Source Details

Vela IRS17
RA: 8 46 34.8 (^{h m s})
Dec: -43 54 30.60 (^{o ' "})

Observation Details

OBSID: 1342198357
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: CO 10-9 - Vela IRS17 - resched
Band: 5A
Herschel Operation Day: OD398
Integration Time: 951 sec
LO Frequency: 1146.6585 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-06-15
HSA Processing Date: 2014-07-17
WISH Processing Date: 2014-08-01
Beam Efficiency H ⁽¹⁾: η=0.59
Beam Efficiency V⁽¹⁾: η=0.59
Beam Efficiency (2012) ⁽¹⁾: η=0.638
Position offset (x,y): (-0.15739,0.890693) arcsec

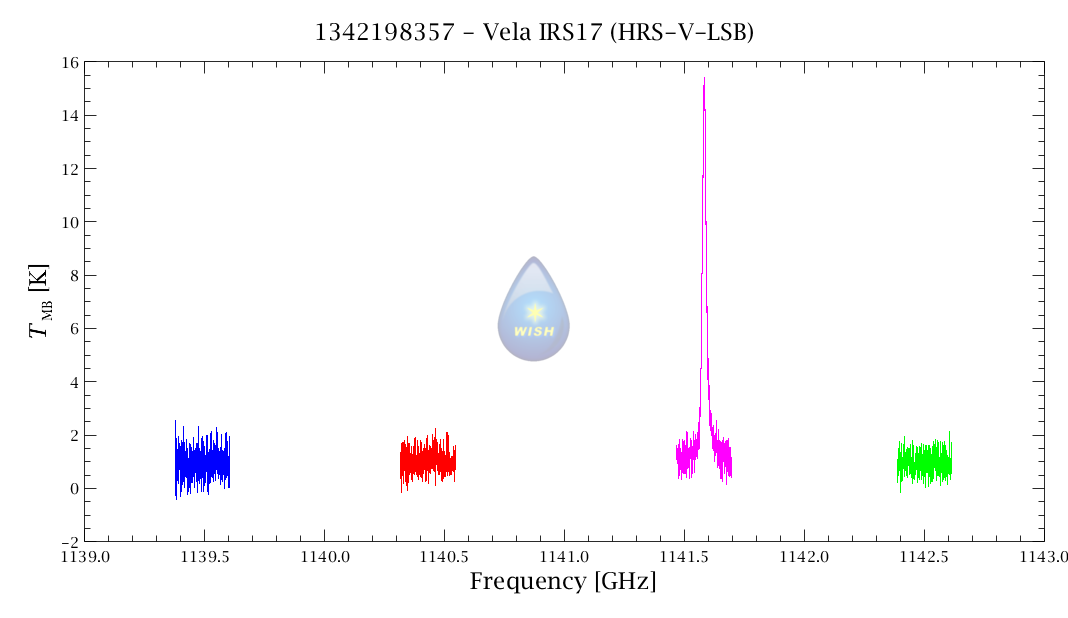

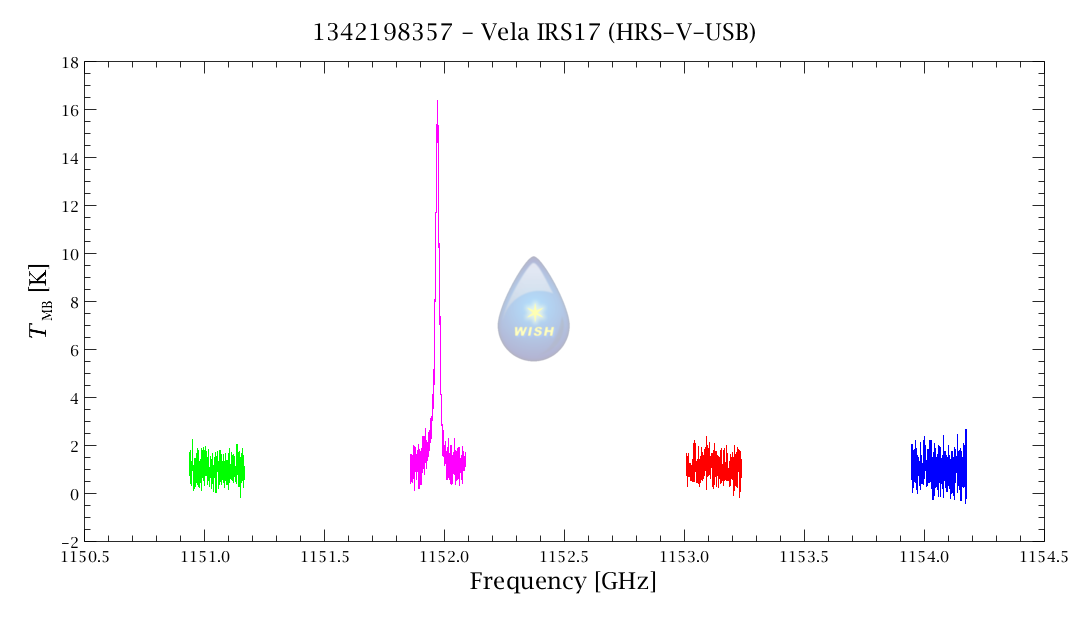

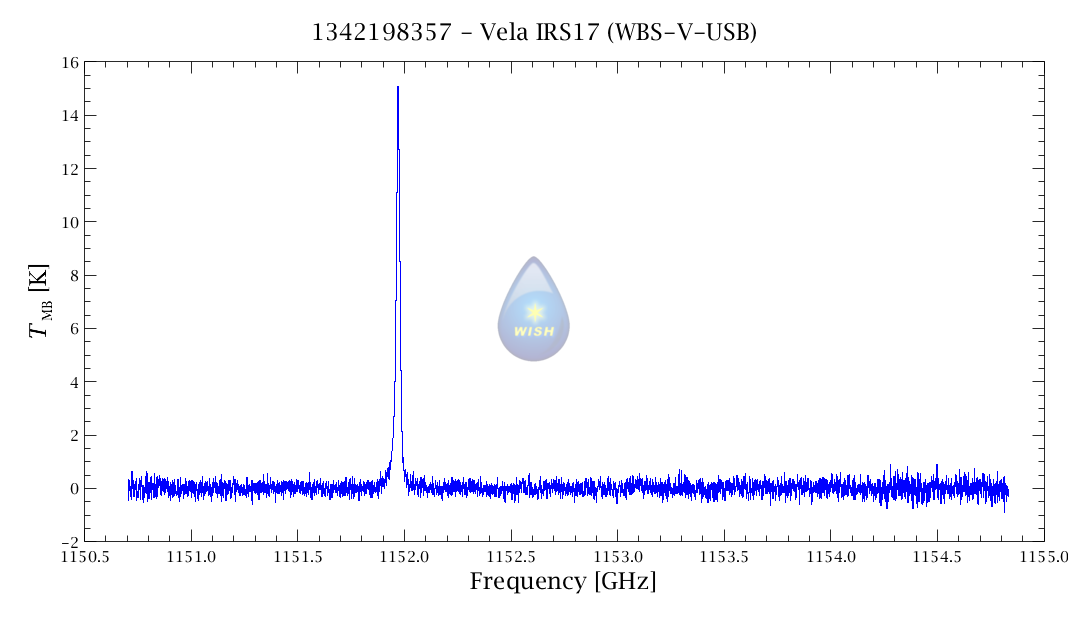

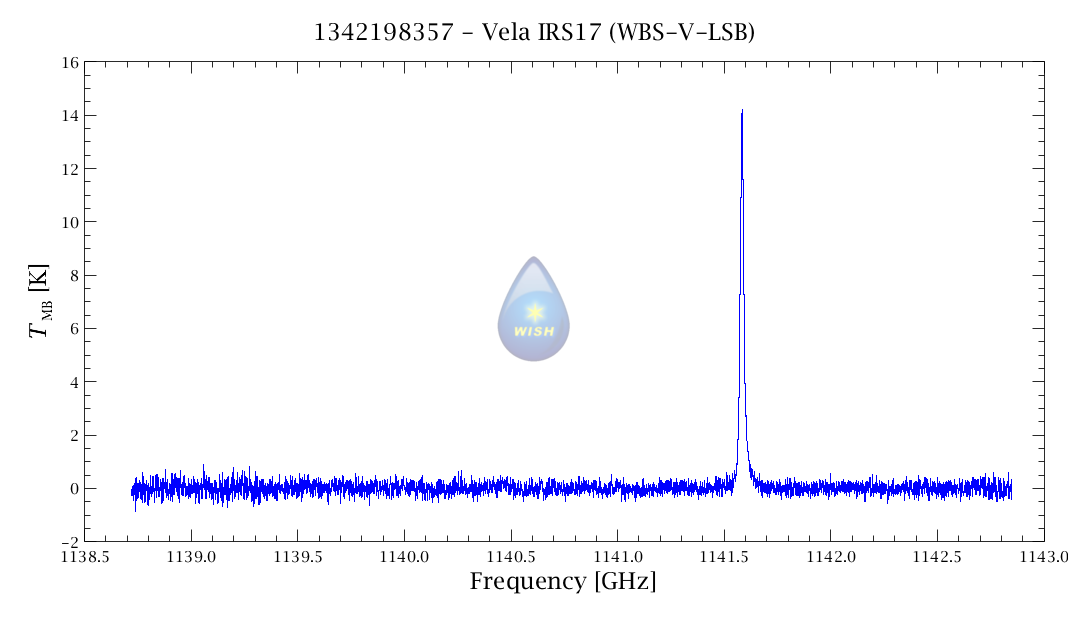

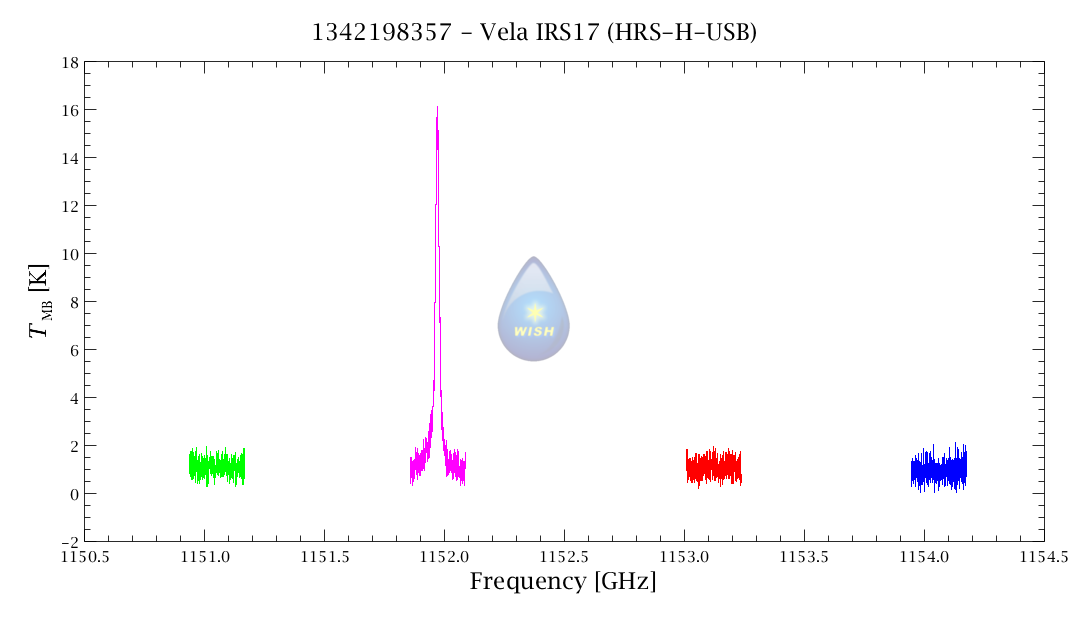

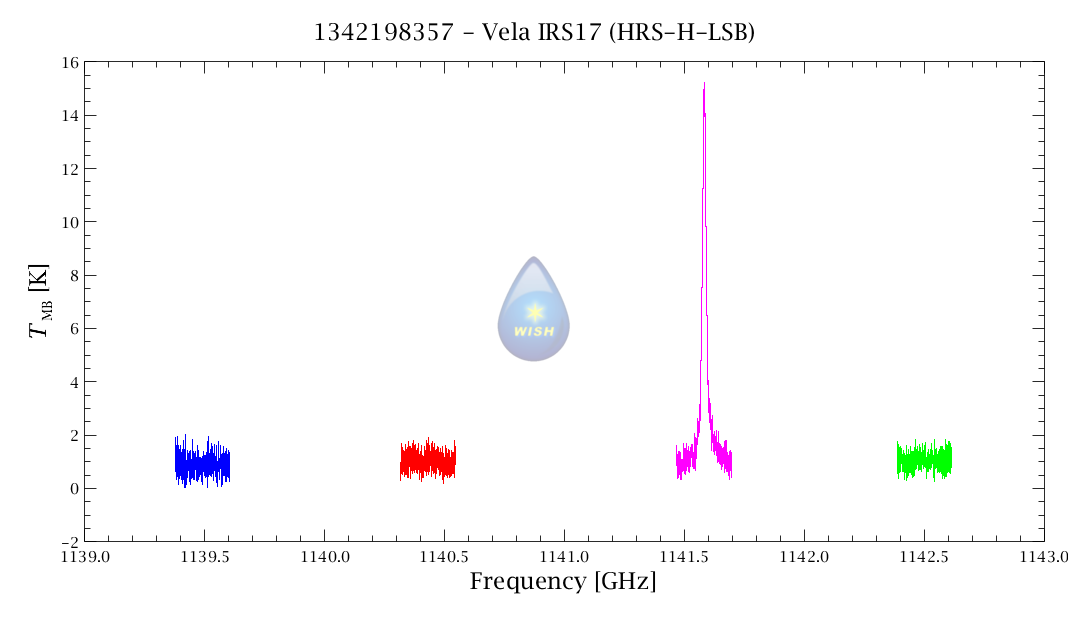

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.1463	0.1759
continuum (K)	0.499	0.486

Downloads Corner

• RAW HIPE FORMAT (99MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
San Jose-Garcia et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
