WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

Ced110 IRS 4
RA: 11 6 47.0 (^{h m s})
Dec: -77 22 32.52 (^{o ' "})

Observation Details

OBSID: 1342201544
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: KPGT_evandish_1-H2O 211-202 - Class I - Ced110 IRS 4
Band: 2B
Herschel Operation Day: OD429
Integration Time: 1289 sec
LO Frequency: 758.988 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-07-17
HSA Processing Date: 2014-07-22
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.64
Beam Efficiency V⁽¹⁾: η=0.66
Beam Efficiency (2012) ⁽¹⁾: η=0.749
Position offset (x,y): (-2.95635,1.55493) arcsec

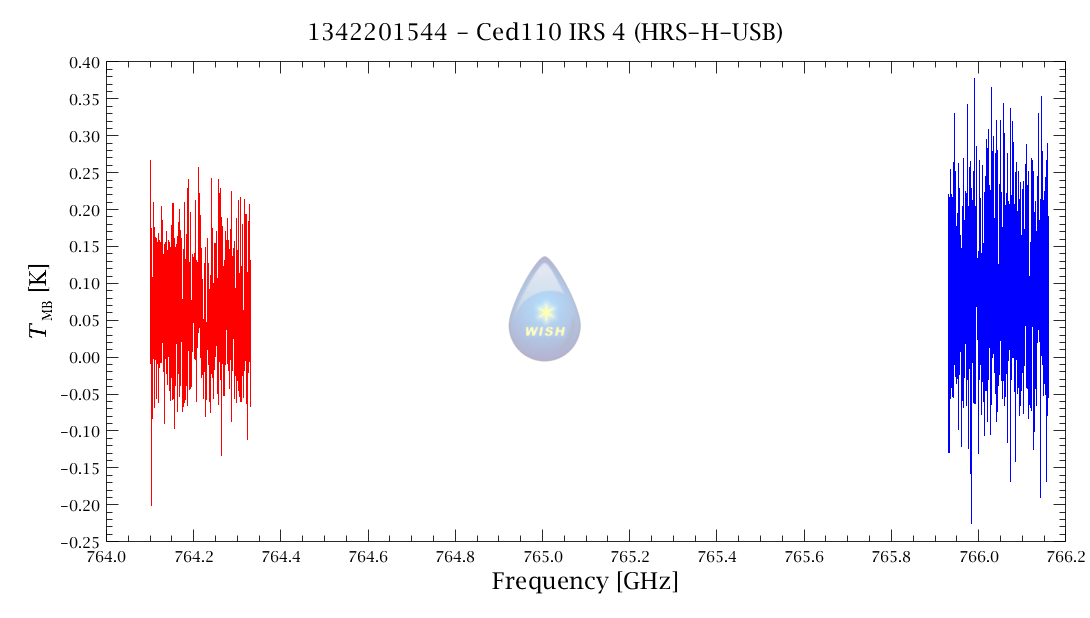

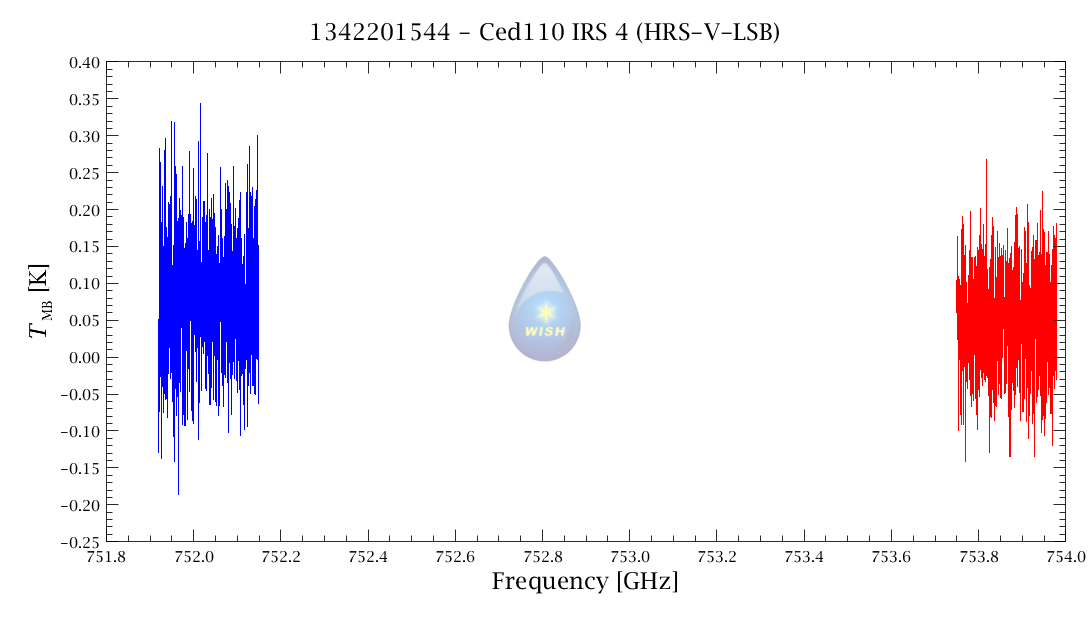

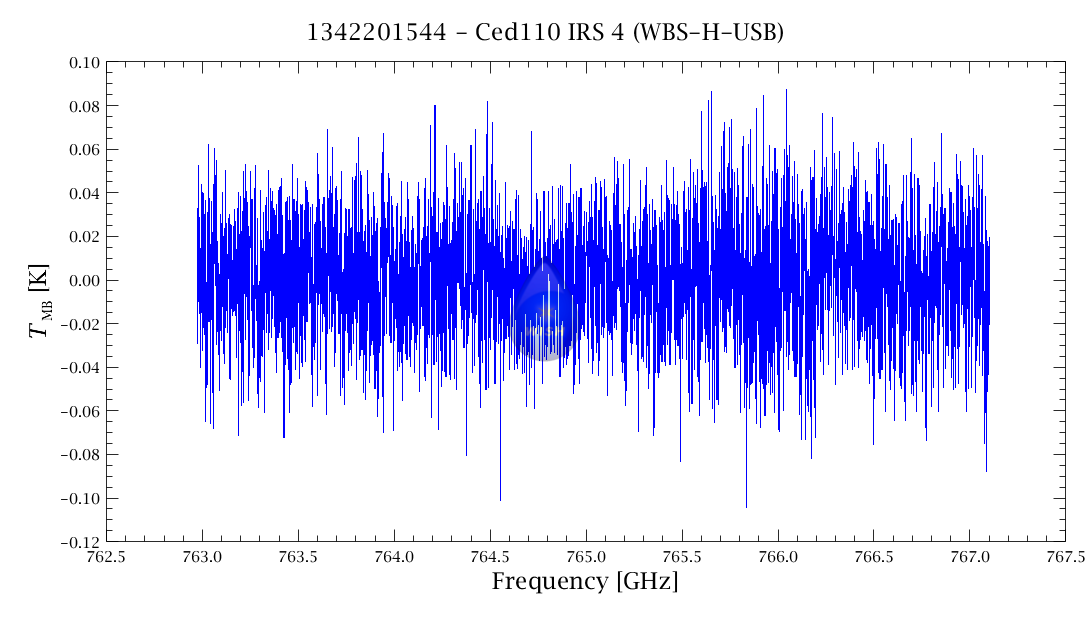

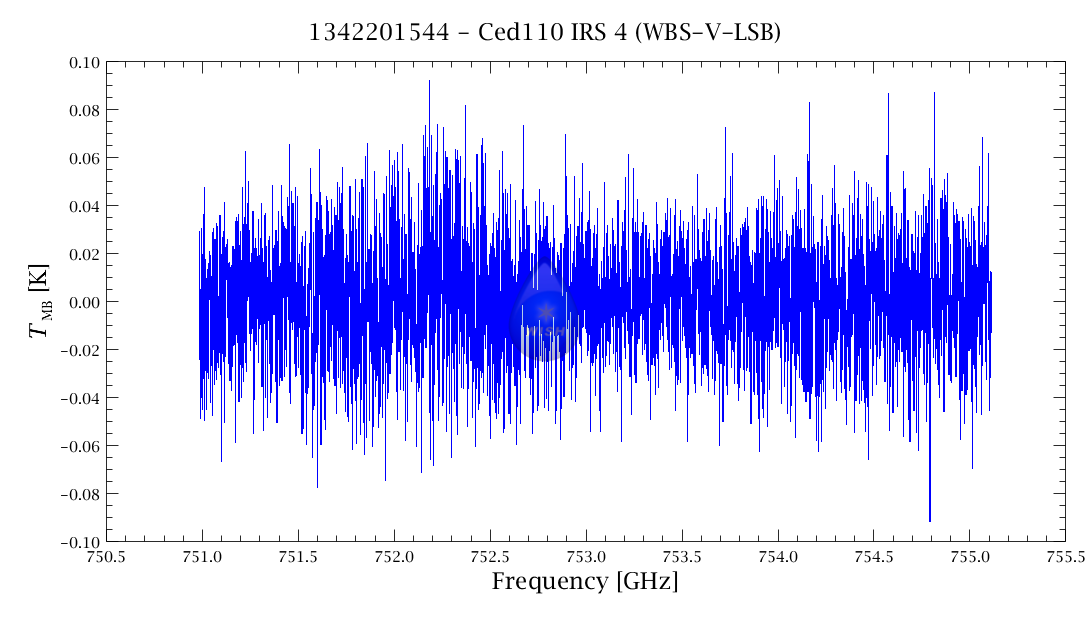

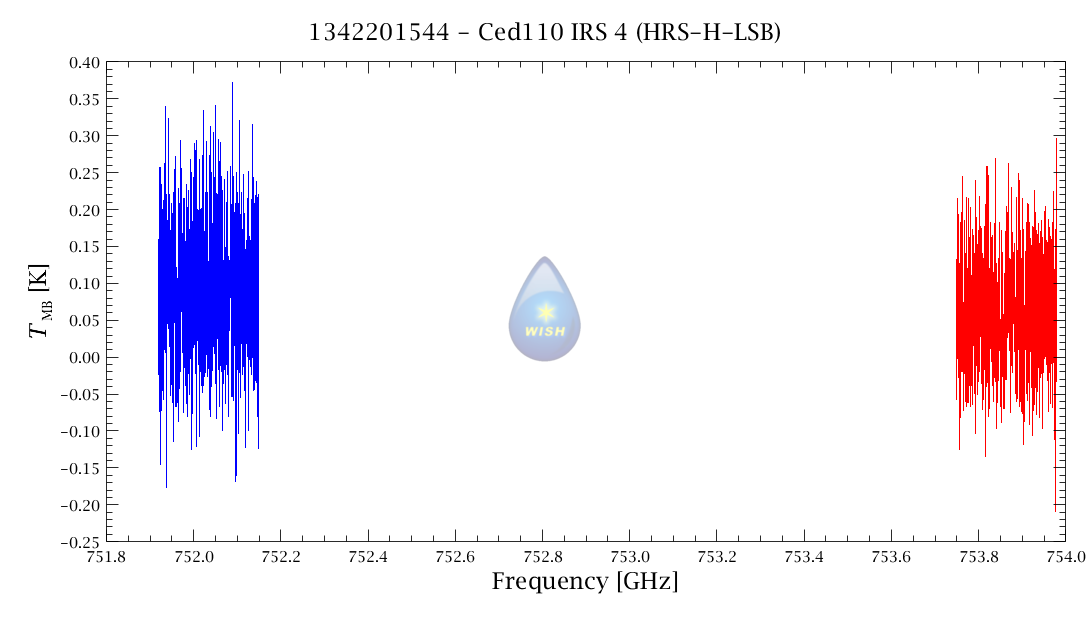

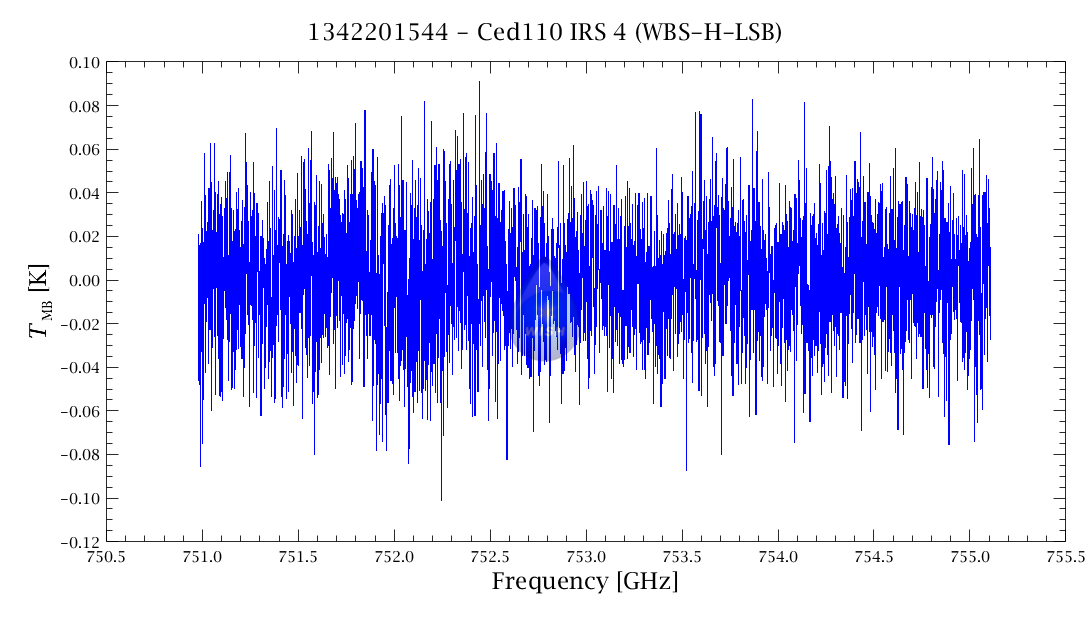

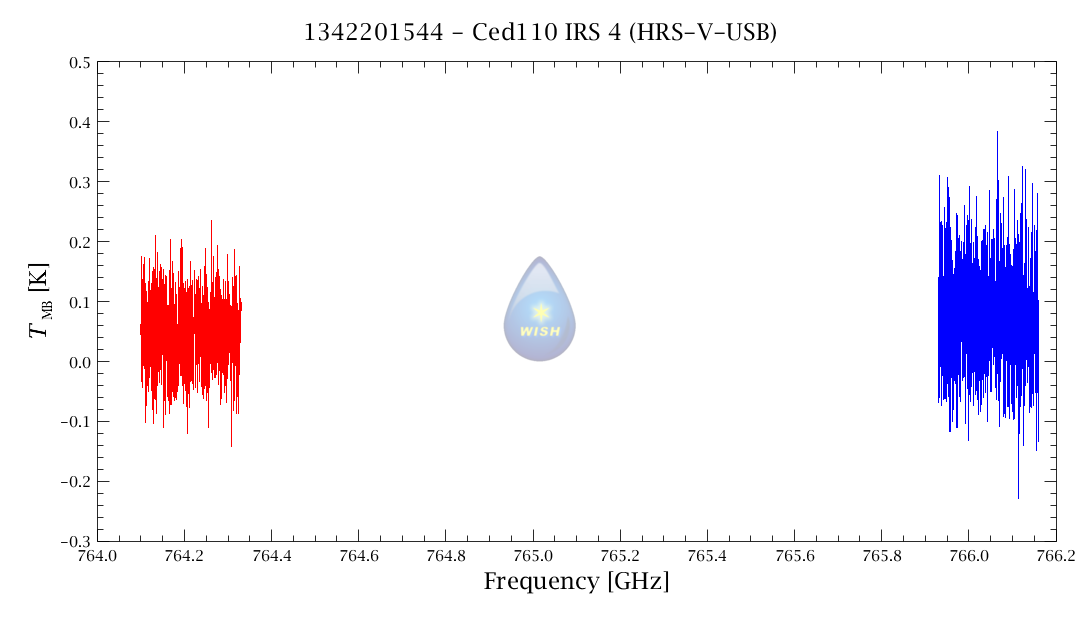

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0232	0.0220
continuum (K)	0.032	0.025

Downloads Corner

• RAW HIPE FORMAT (109MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Mottram et al. 2014, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
