WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

Ser SMM1
RA: 18 29 49.7 (^{h m s})
Dec: 1 15 20.48 (^{o ' "})

Observation Details

OBSID: 1342207656
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: Ser SMM1 - Setting 2
Band: 4A
Herschel Operation Day: OD533
Integration Time: 1699 sec
LO Frequency: 702.0225 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-10-29
HSA Processing Date: 2014-07-24
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.64
Beam Efficiency V⁽¹⁾: η=0.66
Beam Efficiency (2012) ⁽¹⁾: η=0.75
Position offset (x,y): (-2.42606,-0.38602) arcsec

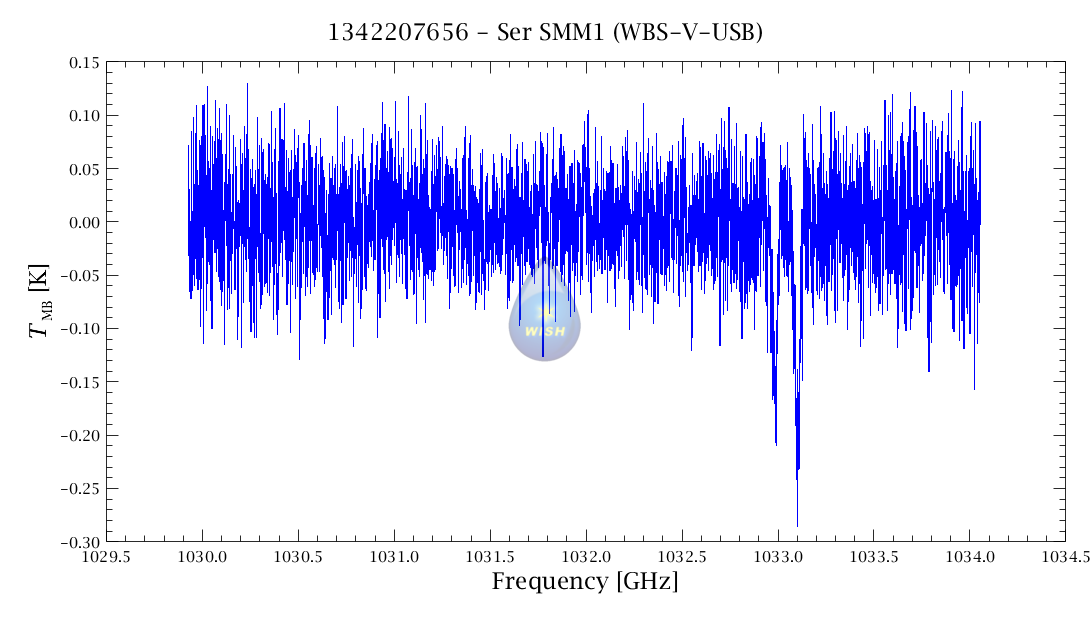

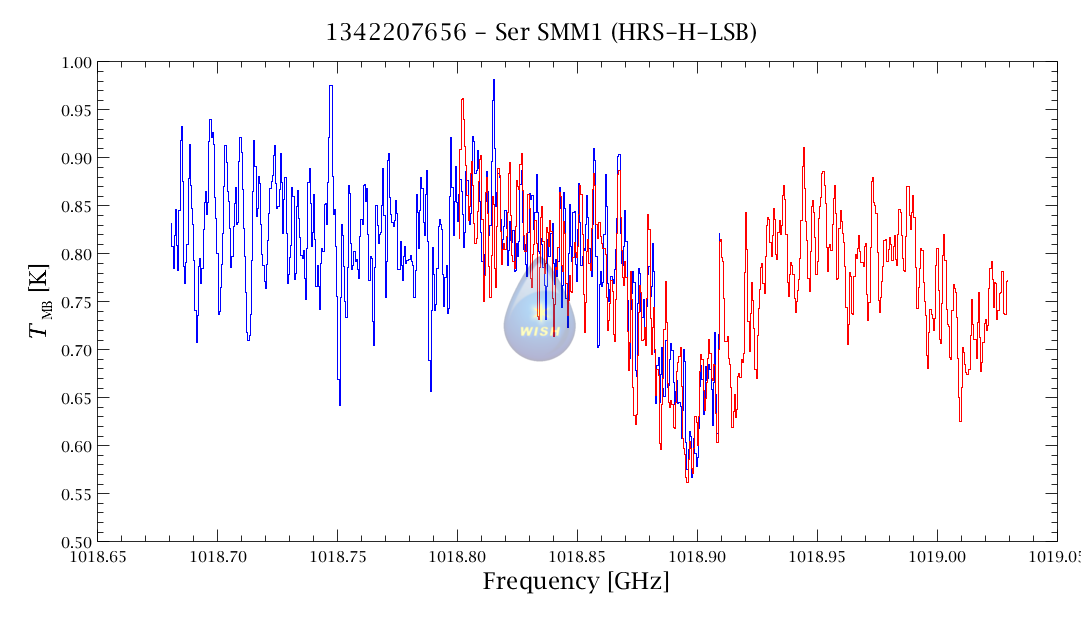

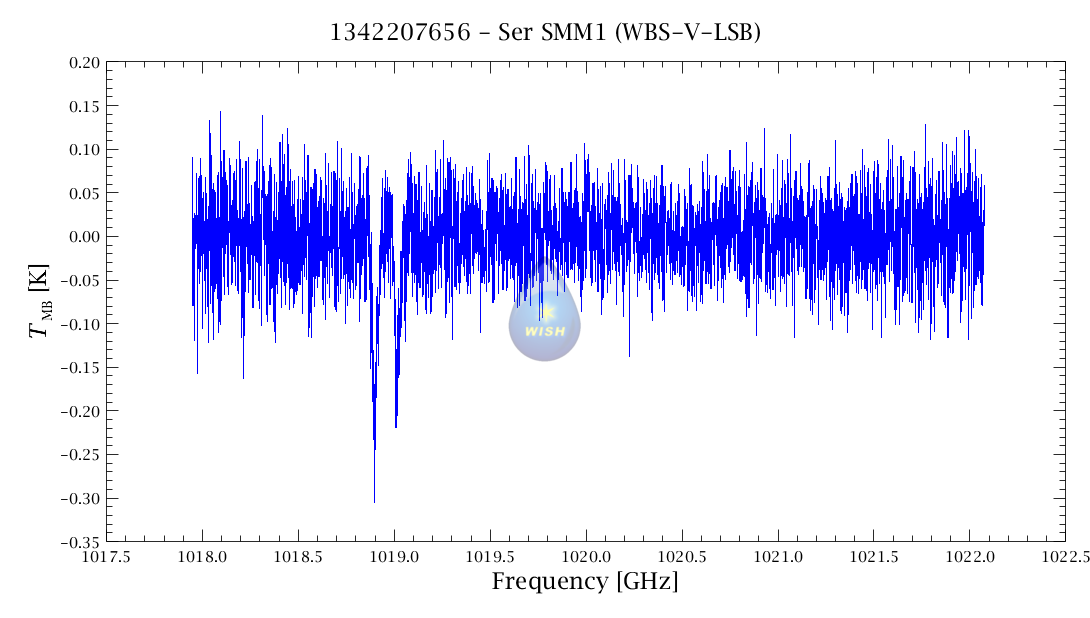

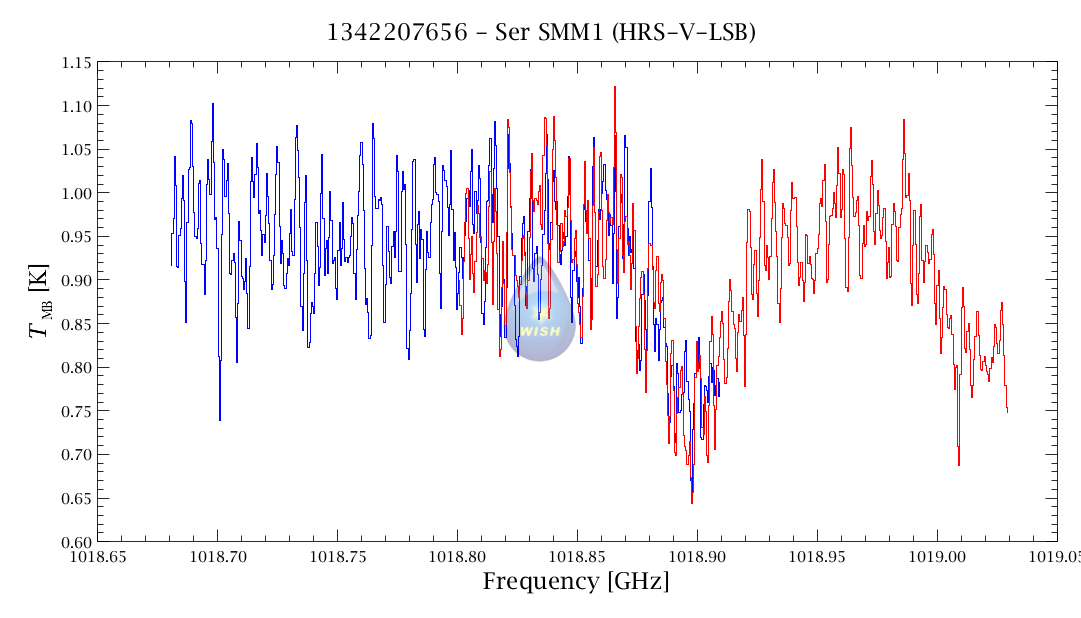

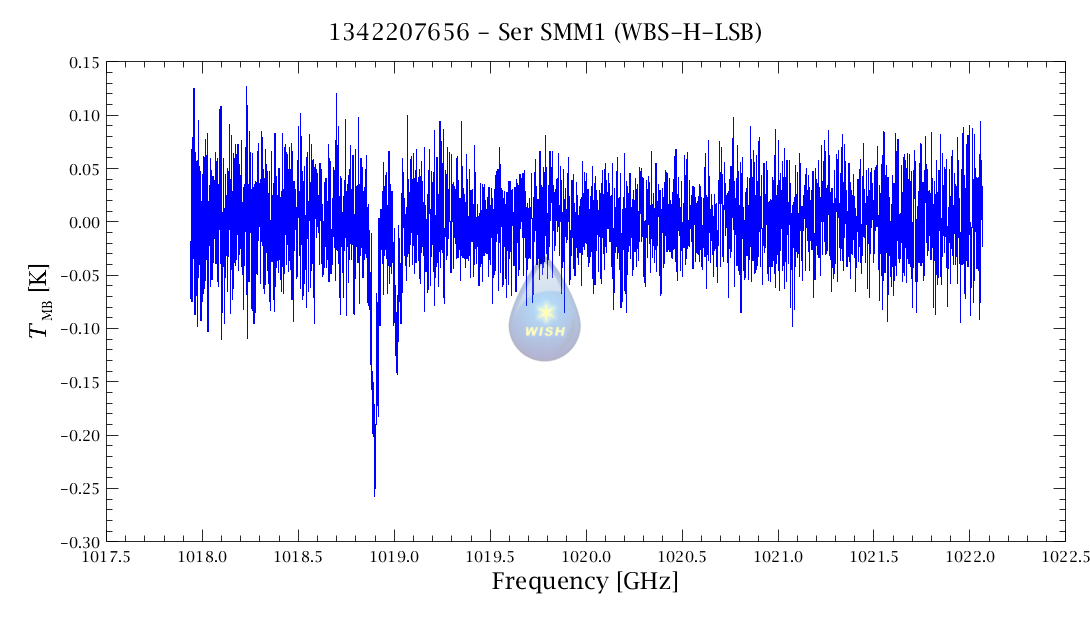

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0334	0.0413
continuum (K)	0.404	0.467

Downloads Corner

• RAW HIPE FORMAT (120MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Benz et al. 2015, A&A Submitted
Kristensen et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
