WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

W3 IRS5
RA: 2 25 40.6 (^{h m s})
Dec: 62 5 51.00 (^{o ' "})

Observation Details

OBSID: 1342191611
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: SDP_W3 IRS5 - Setting 10 - shift
Band: 4A
Herschel Operation Day: OD293
Integration Time: 1145 sec
LO Frequency: 723.2175 GHz
HIPE/Pipeline Version: SPG v11.1.0
Observation Date: 2010-03-03
HSA Processing Date: 2014-01-24
WISH Processing Date: 2014-08-01
Beam Efficiency H ⁽¹⁾: η=0.64
Beam Efficiency V⁽¹⁾: η=0.66
Beam Efficiency (2012) ⁽¹⁾: η=0.75
Position offset (x,y): (0,0) arcsec

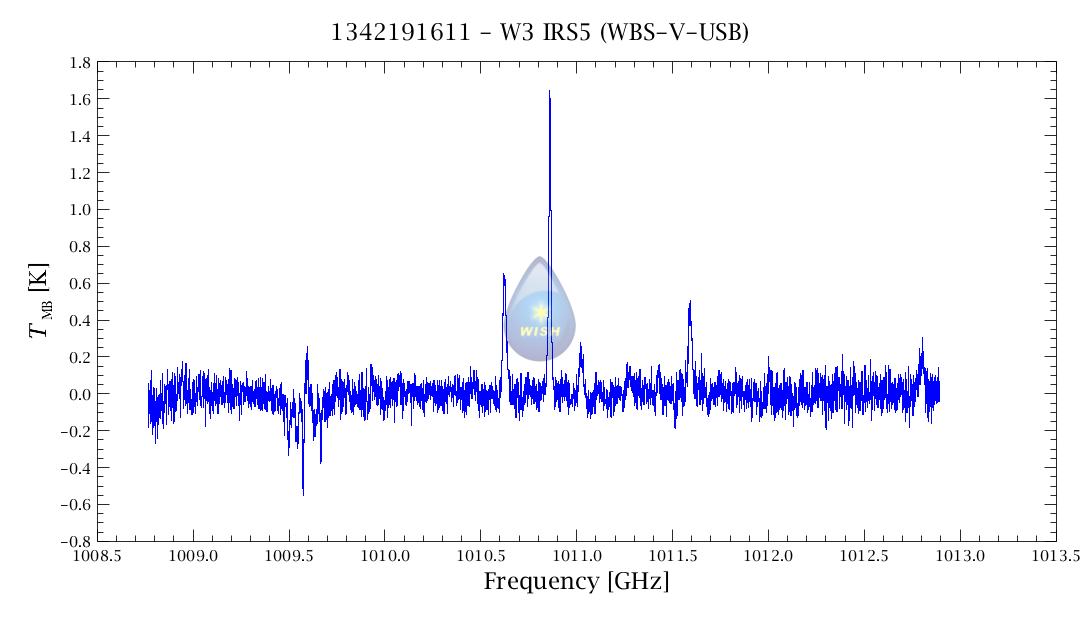

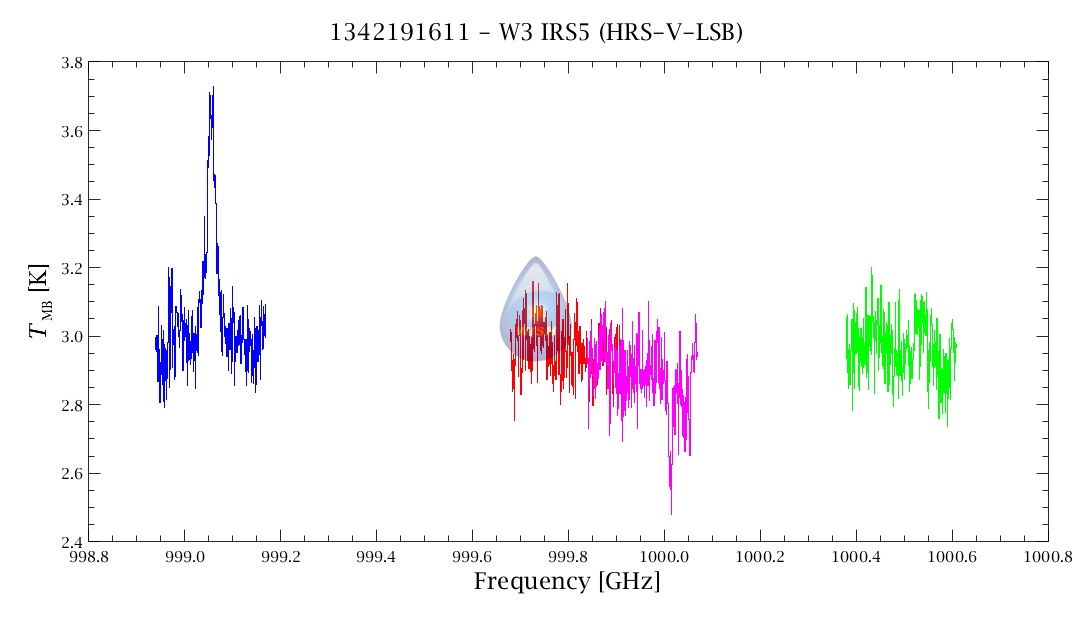

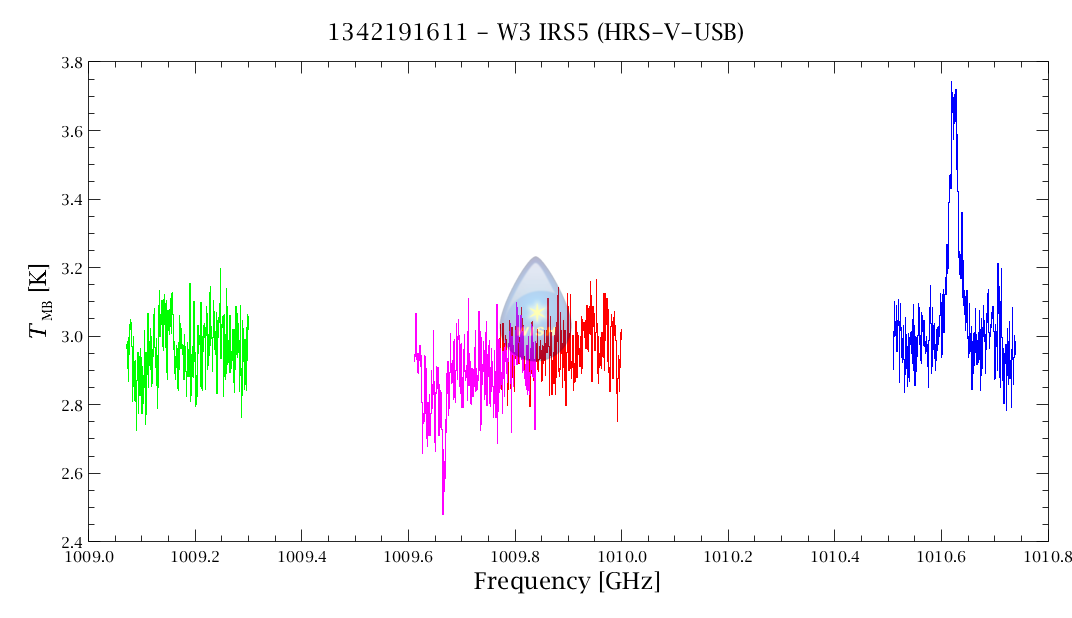

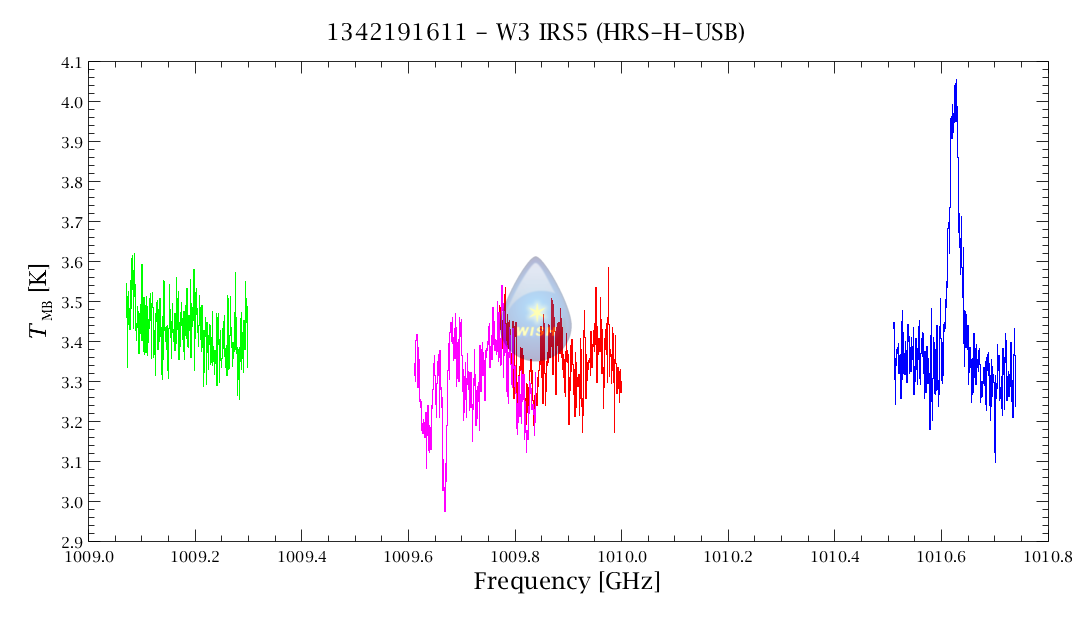

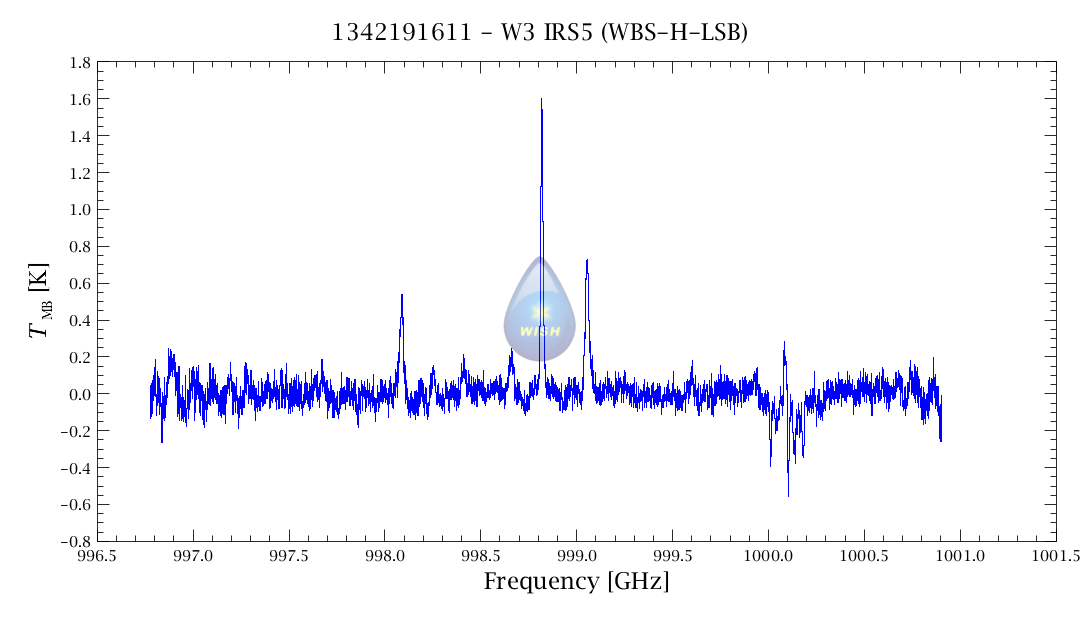

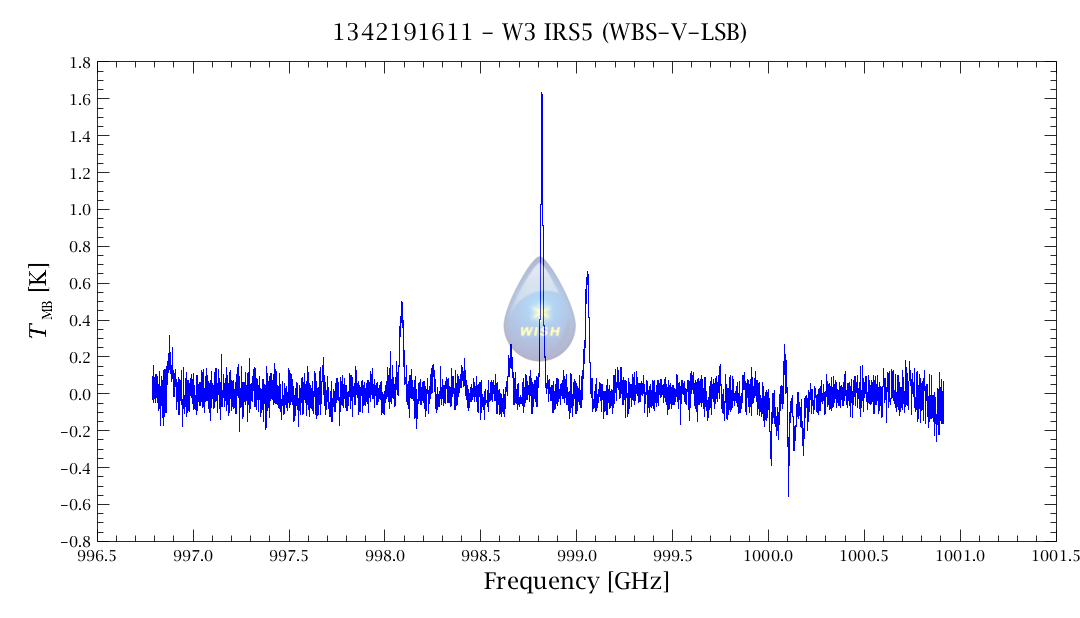

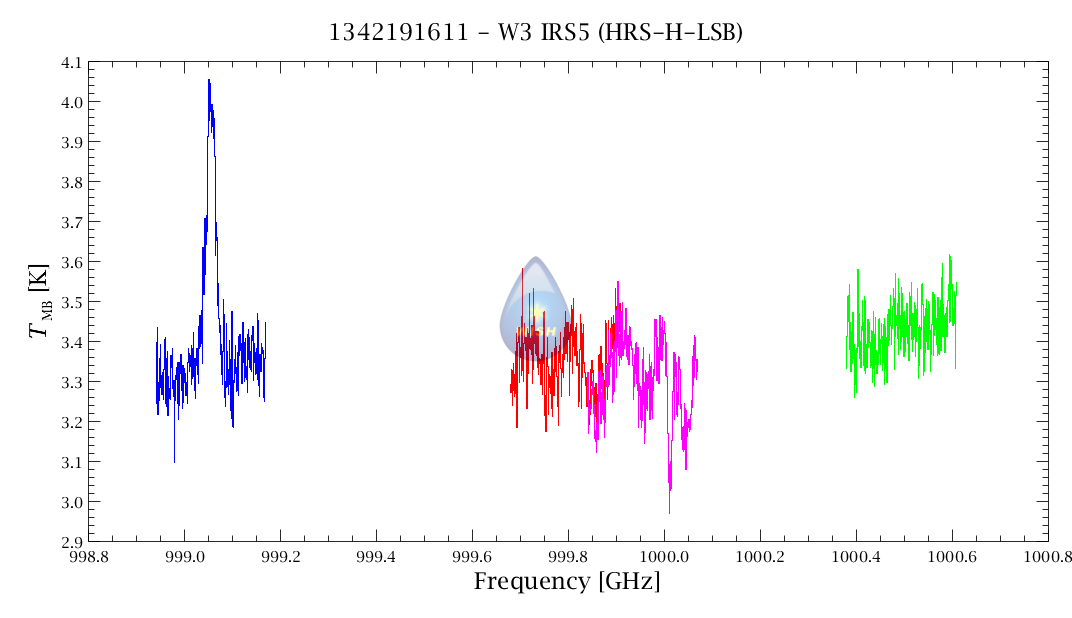

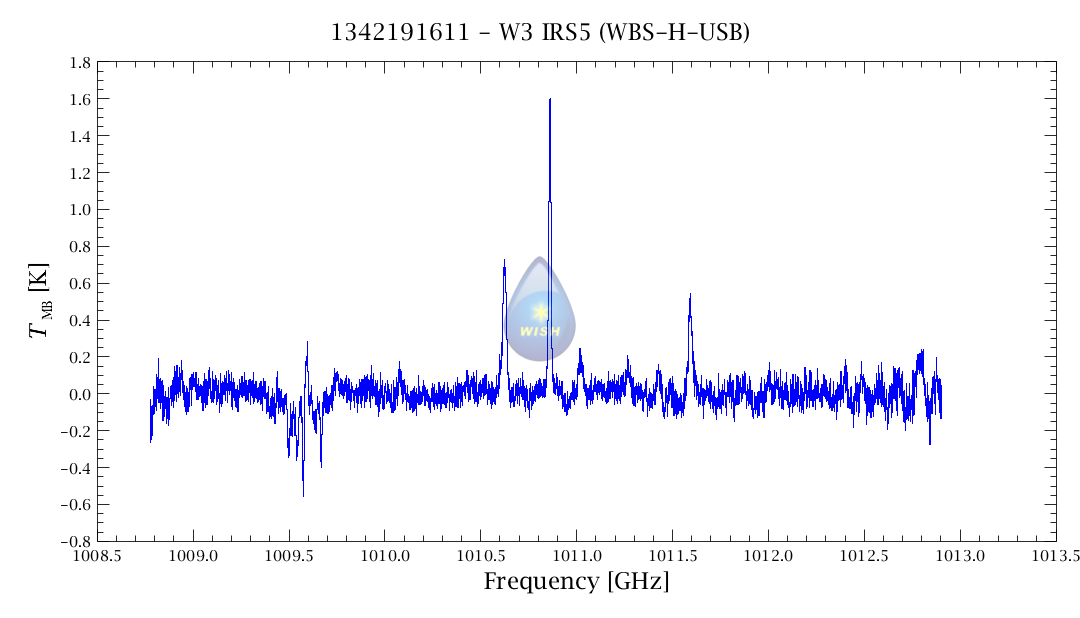

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0660	0.0691
continuum (K)	1.708	1.494

Downloads Corner

• RAW HIPE FORMAT (215MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Benz et al. 2013, Journ. Phys. Chem. A
Benz et al. 2010, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
