WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

W3-IRS5
RA: 2 25 40.6 (^{h m s})
Dec: 62 5 51.00 (^{o ' "})

Observation Details

OBSID: 1342191612
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: SDP_H2O 202-111 - W3-IRS5
Band: 4A
Herschel Operation Day: OD293
Integration Time: 386 sec
LO Frequency: 747.855 GHz
HIPE/Pipeline Version: SPG v11.1.0
Observation Date: 2010-03-03
HSA Processing Date: 2014-01-24
WISH Processing Date: 2014-08-01
Beam Efficiency H ⁽¹⁾: η=0.64
Beam Efficiency V⁽¹⁾: η=0.66
Beam Efficiency (2012) ⁽¹⁾: η=0.749
Position offset (x,y): (0,0) arcsec

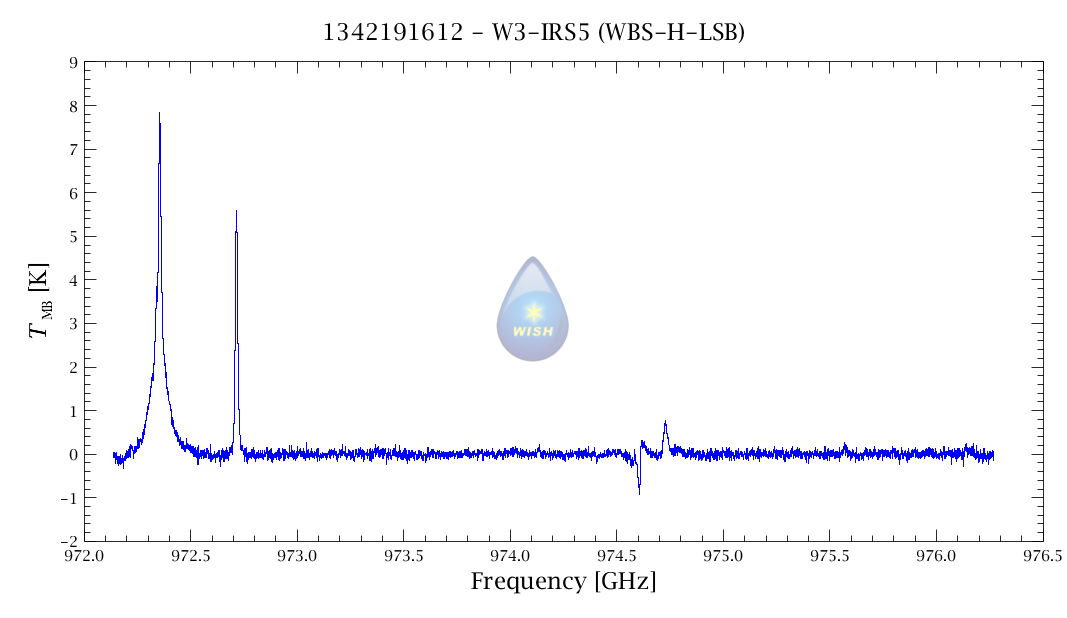

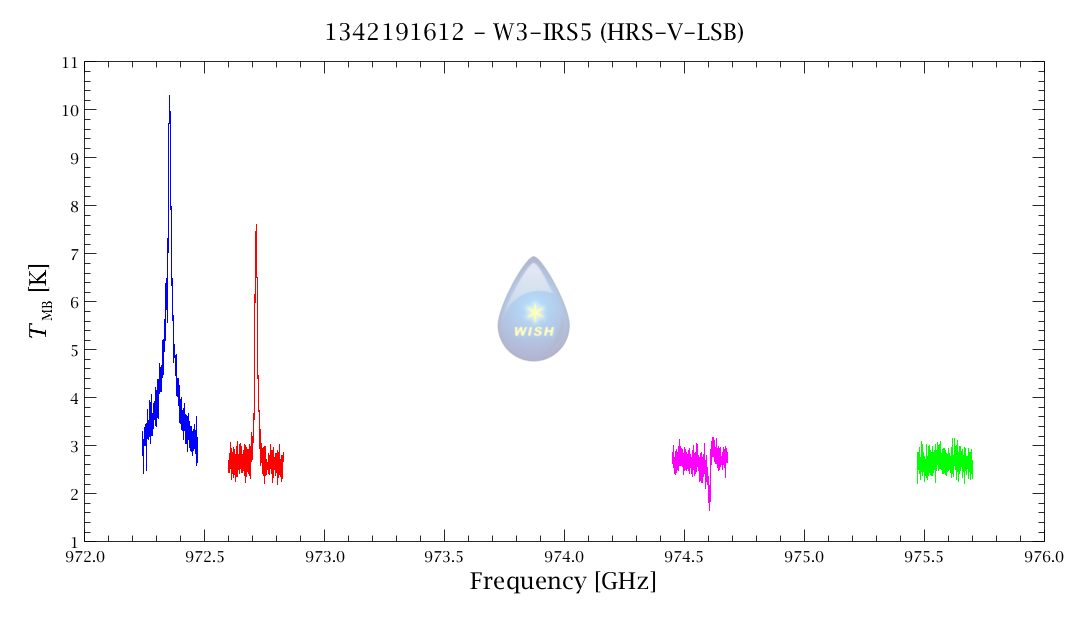

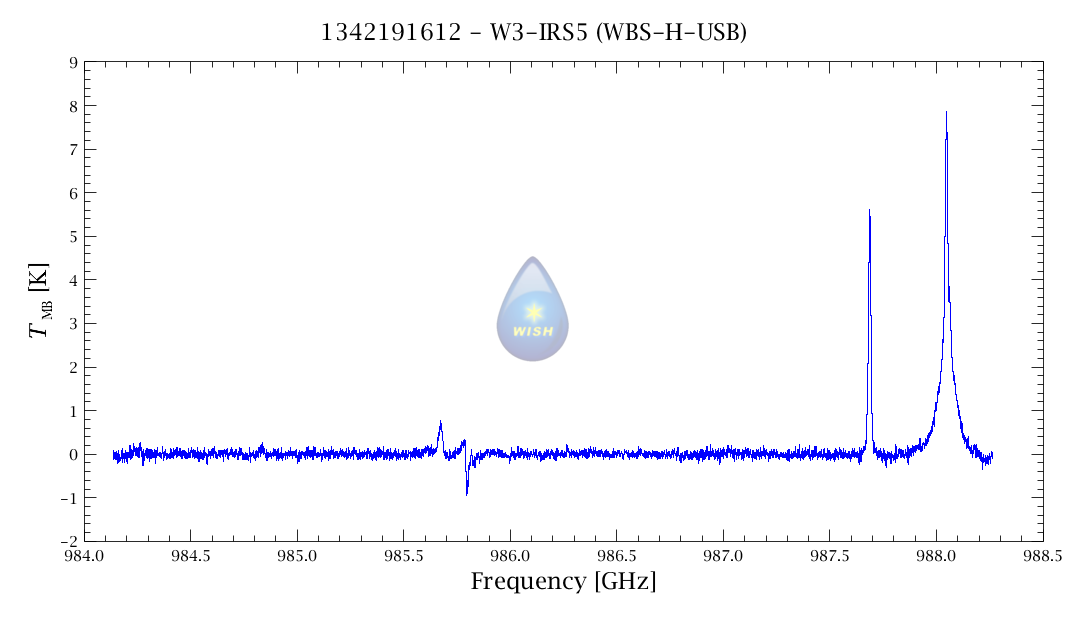

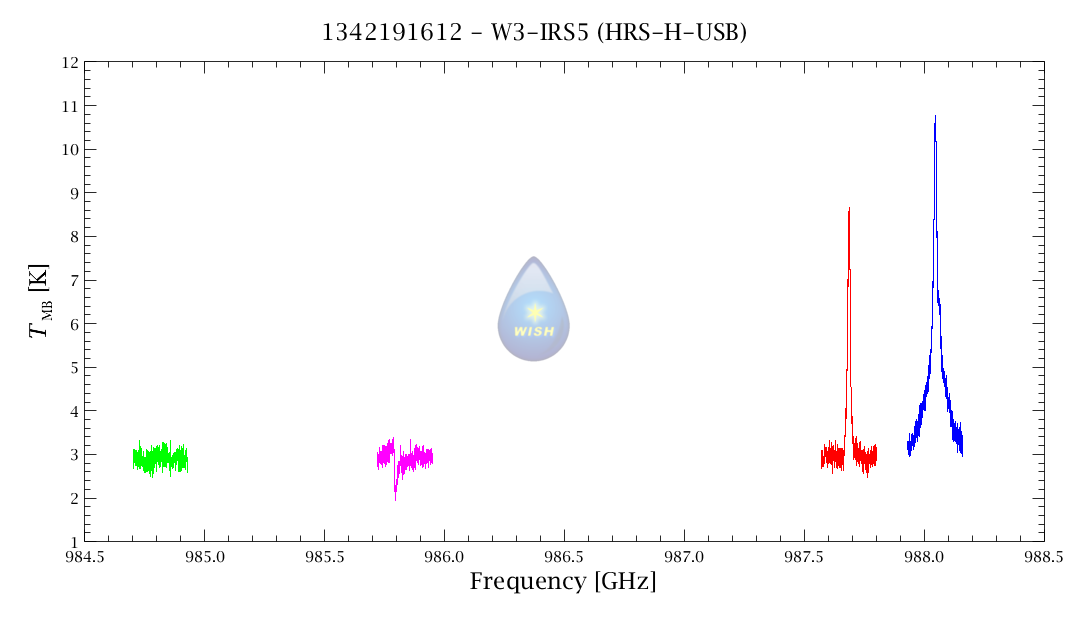

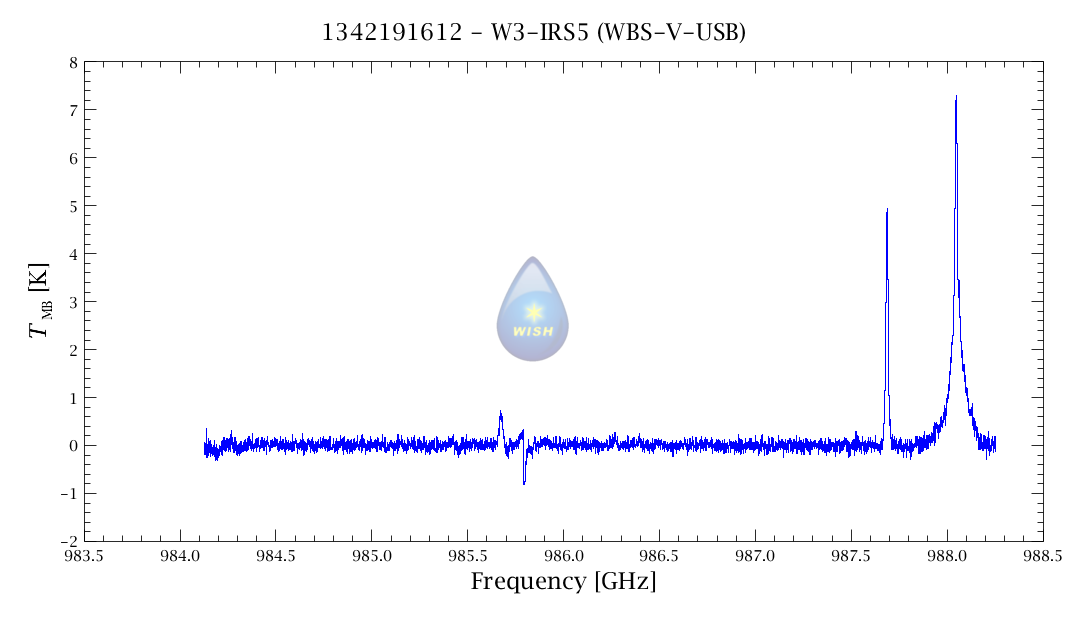

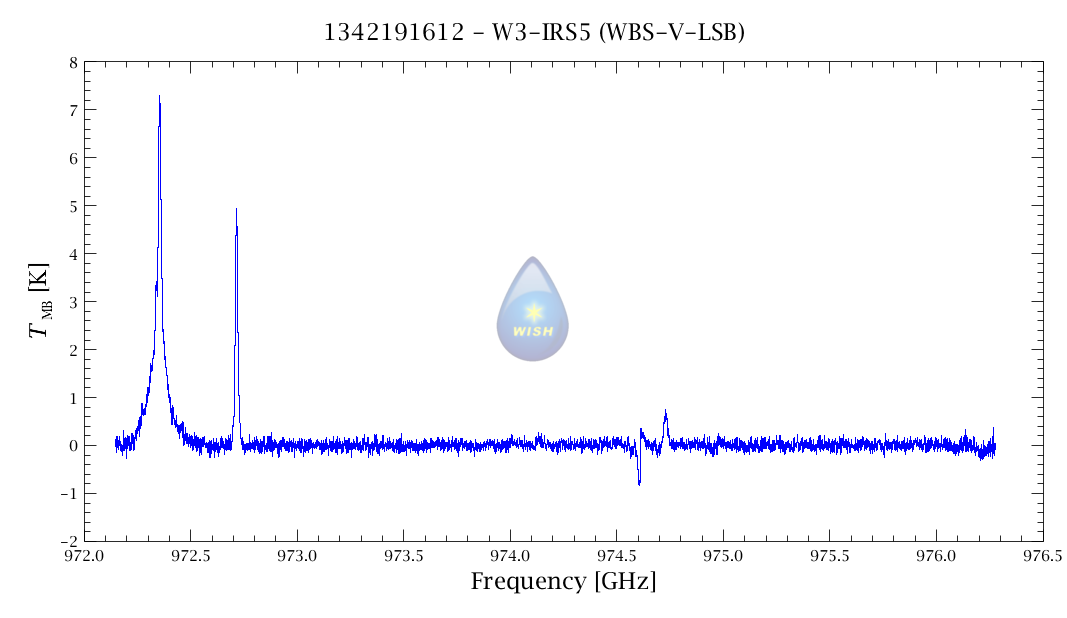

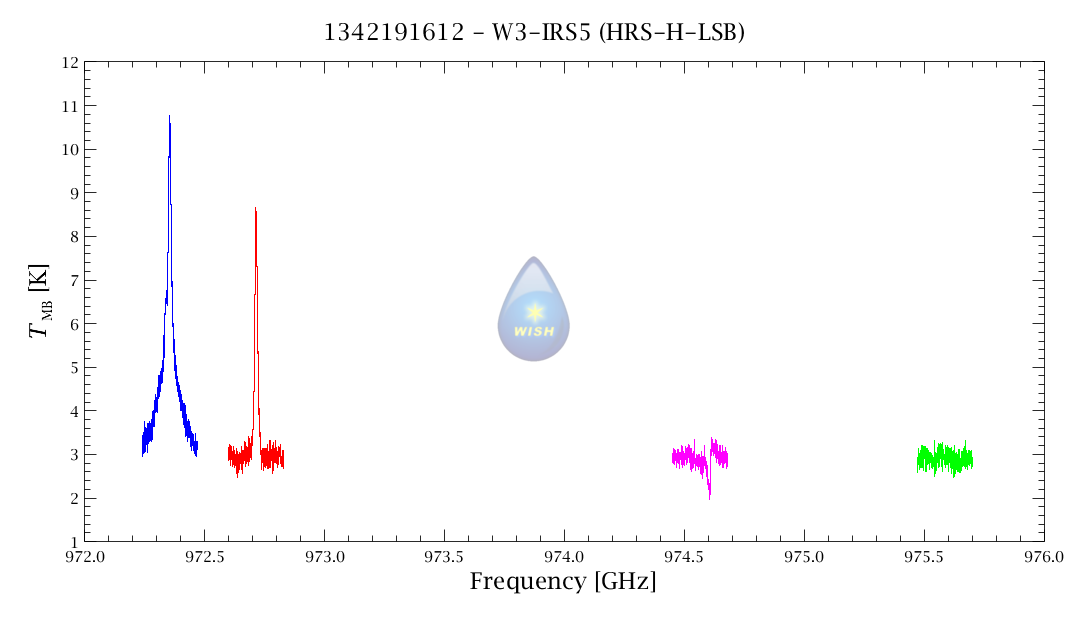

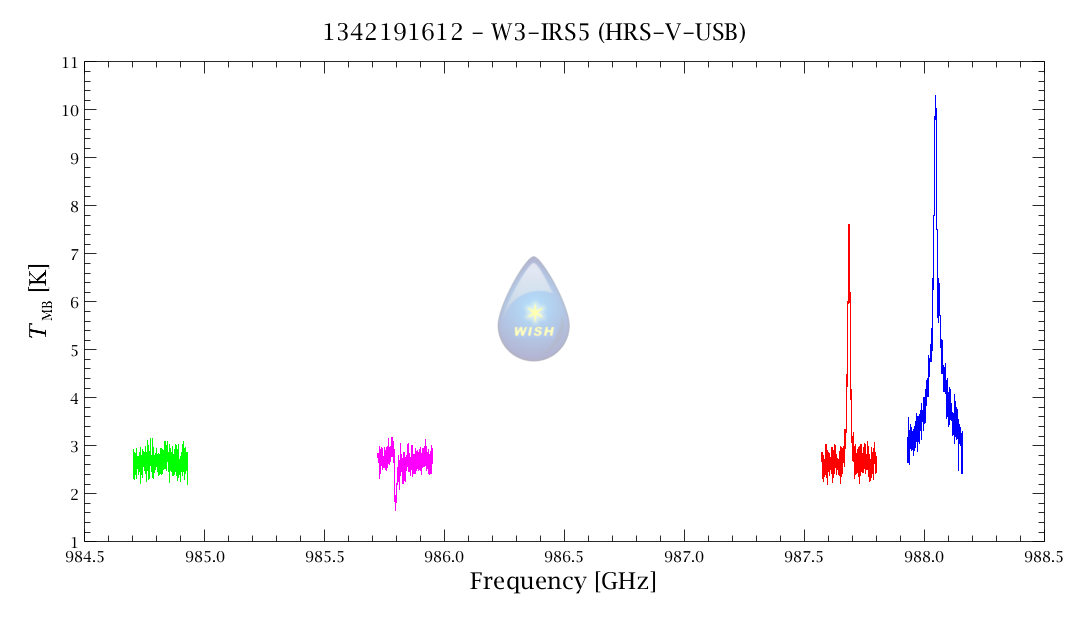

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0771	0.0809
continuum (K)	1.426	1.322

Downloads Corner

• RAW HIPE FORMAT (105MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Benz et al. 2013, Journ. Phys. Chem. A
Van Dishoeck et al. 2013, ChRv
Van der Tak et al. 2013, A&A
San Jose-Garcia et al. 2013, A&A
Bergin & van Dishoeck 2012, RSPTA
van Dishoeck et al. 2011, PASP
Wampfler et al. 2011, A&A
Chavarria et al. 2010, A&A
Benz et al. 2010, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
