WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

NGC1333 IRAS4B
RA: 3 29 12.0 (^{h m s})
Dec: 31 13 8.04 (^{o ' "})

Observation Details

OBSID: 1342191722
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: PSP2_CO 10-9 - NGC1333 IRAS4B
Band: 5A
Herschel Operation Day: OD296
Integration Time: 660 sec
LO Frequency: 1146.6495 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-03-06
HSA Processing Date: 2014-07-15
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.59
Beam Efficiency V⁽¹⁾: η=0.59
Beam Efficiency (2012) ⁽¹⁾: η=0.638
Position offset (x,y): (0,0) arcsec

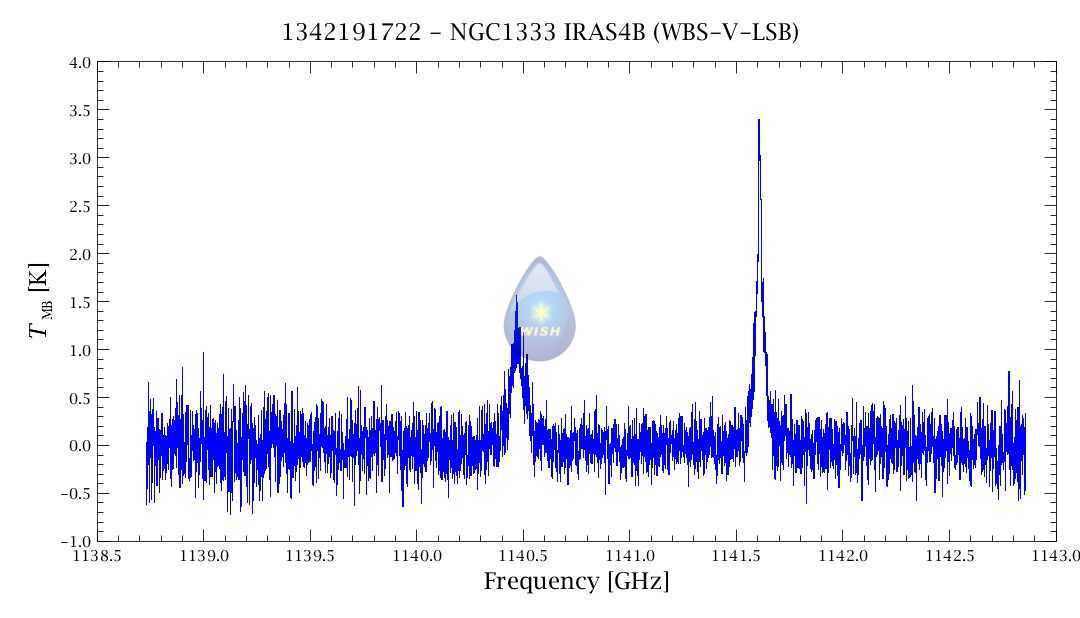

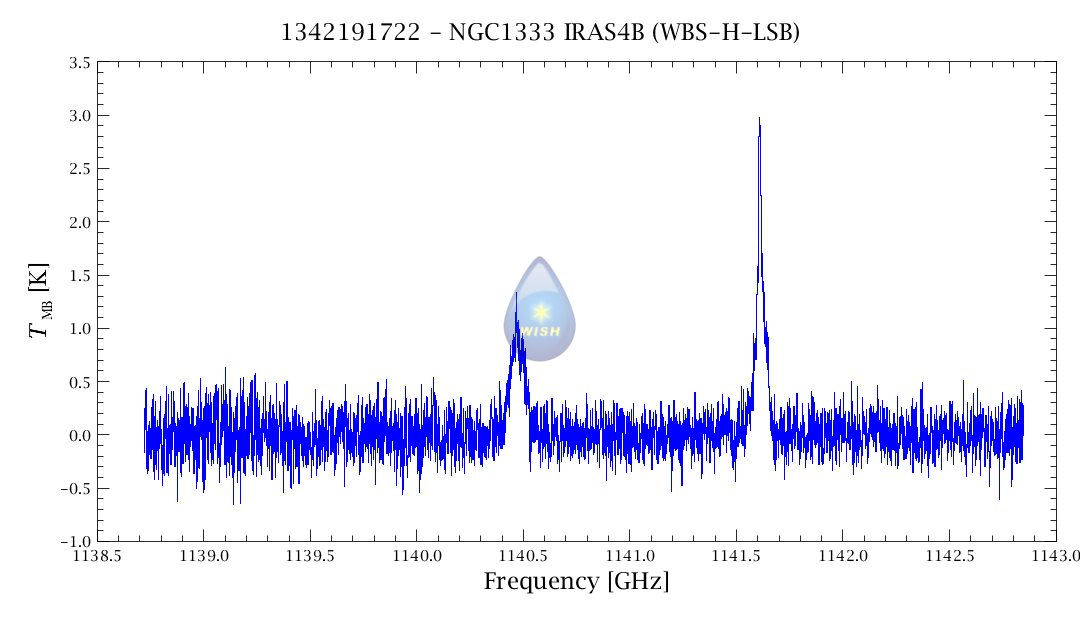

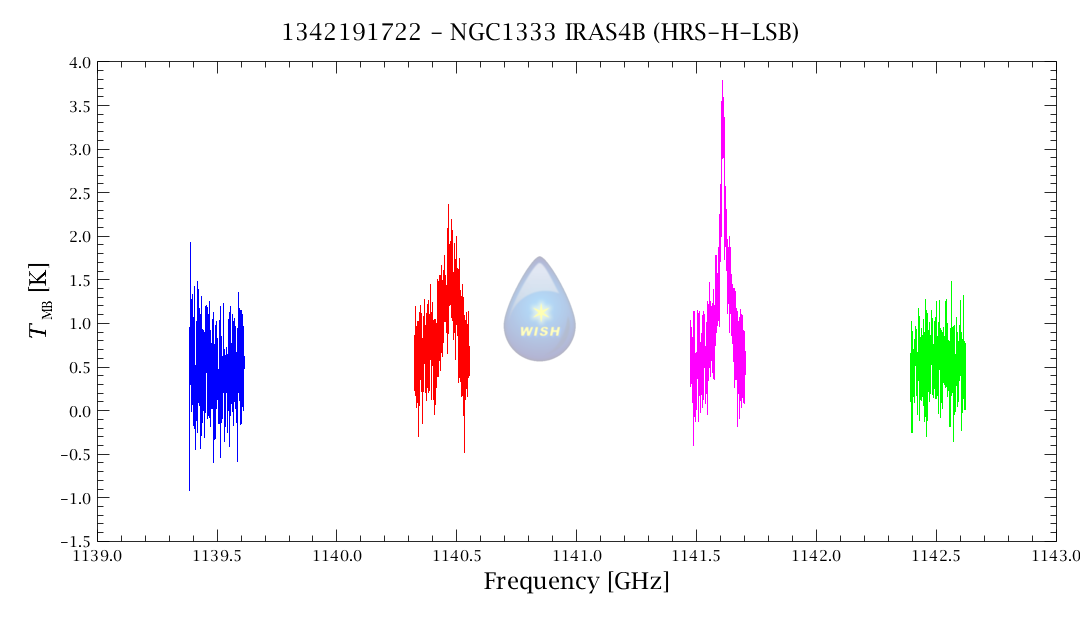

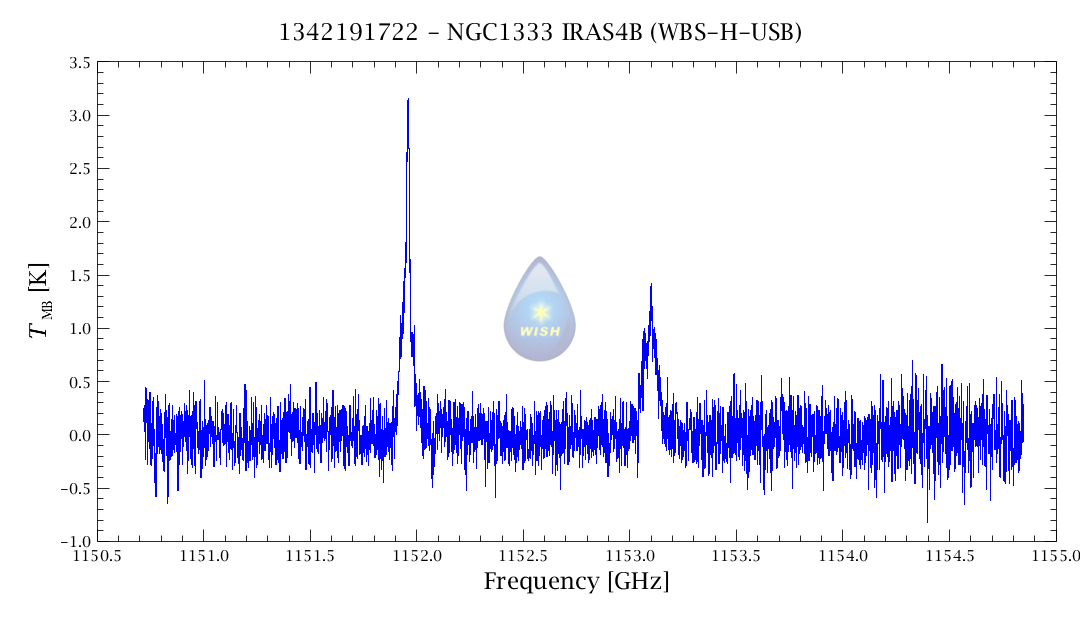

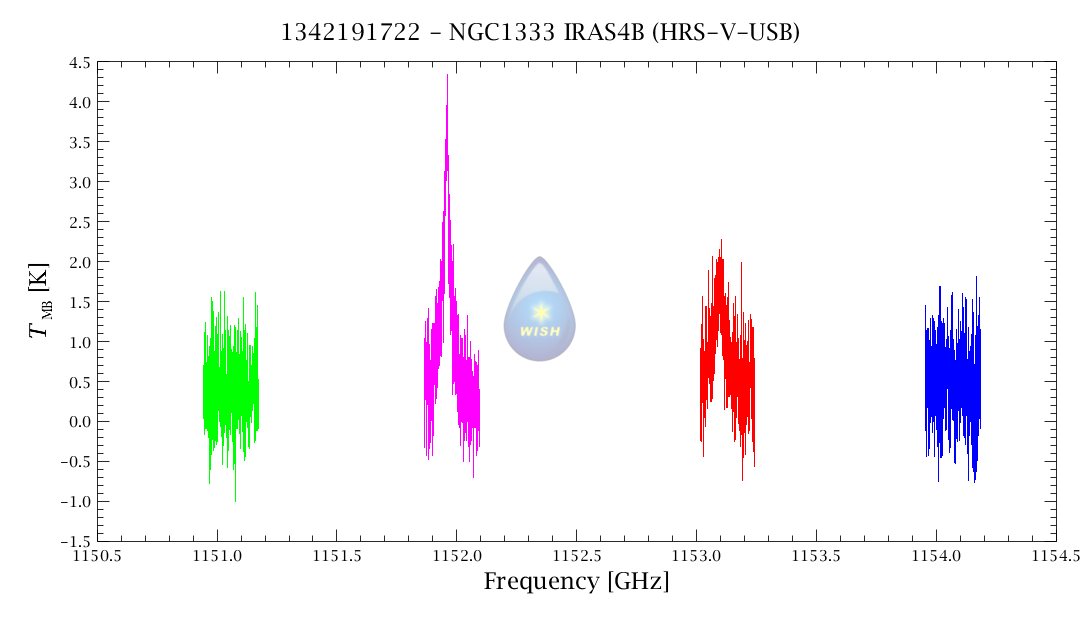

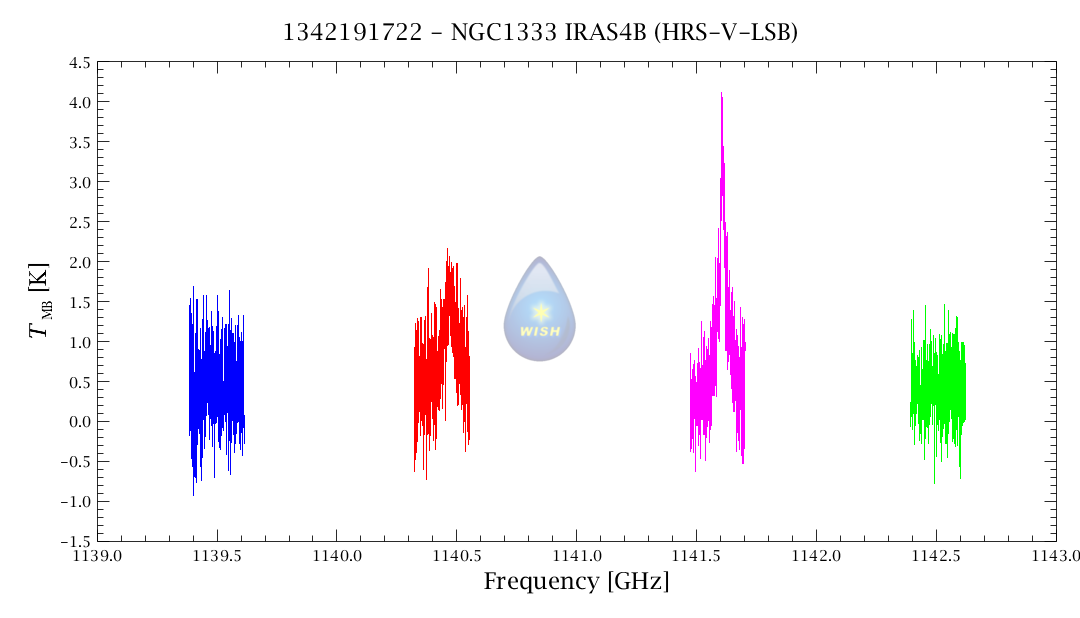

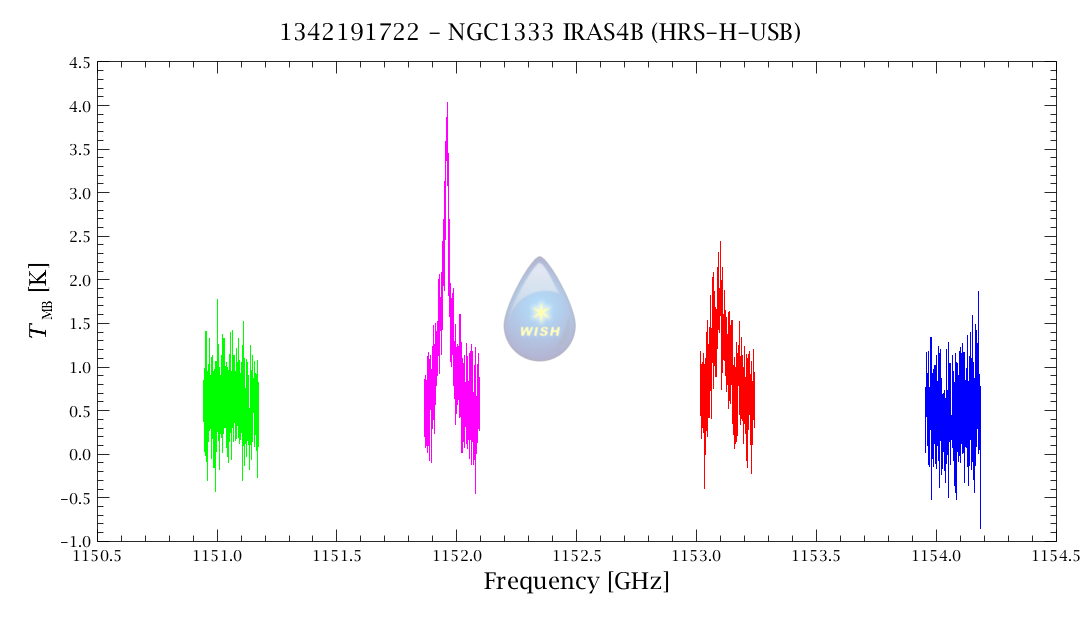

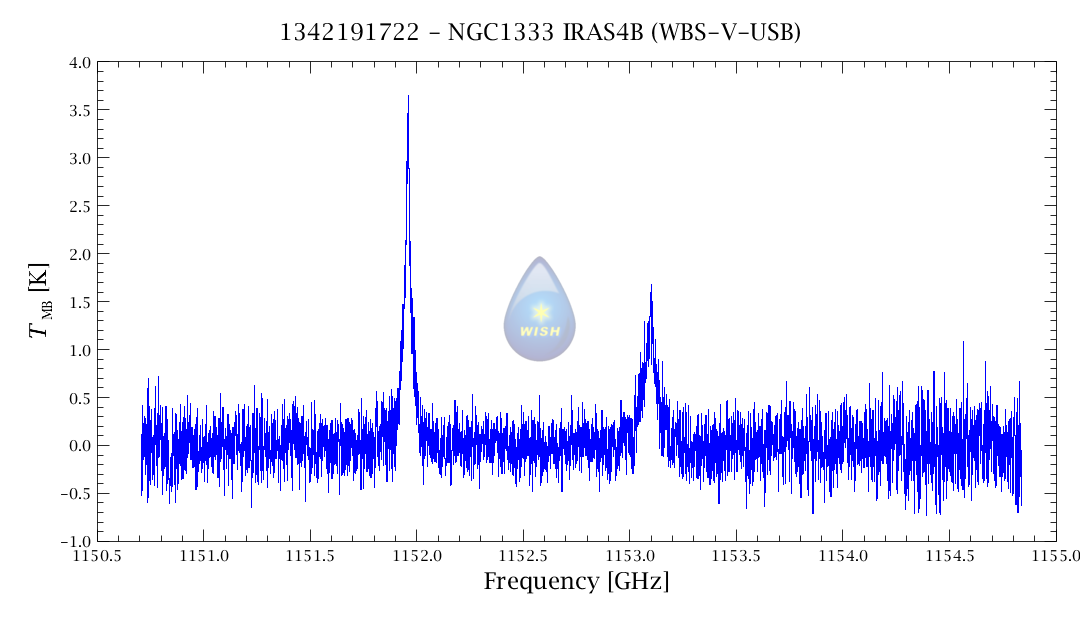

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.1504	0.1902
continuum (K)	0.281	0.189

Downloads Corner

• RAW HIPE FORMAT (98MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Suutarinen et al. 2014, MNRAS
Mottram et al. 2014, A&A
Kristensen et al. 2013, A&A
Yildiz et al. 2013A, A&A
San Jose-Garcia et al. 2013, A&A
Yildiz et al. 2012, A&A
Yildiz et al. 2010, A&A
Kristensen et al. 2010, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
