WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

DM Tau
RA: 4 33 48.7 (^{h m s})
Dec: 18 10 9.84 (^{o ' "})

Observation Details

OBSID: 1342192365
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: SDP_H2O 110-101 - DM Tau
Band: 1B
Herschel Operation Day: OD310
Integration Time: 23904 sec
LO Frequency: 564.66675 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-03-20
HSA Processing Date: 2014-07-15
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (0,0) arcsec

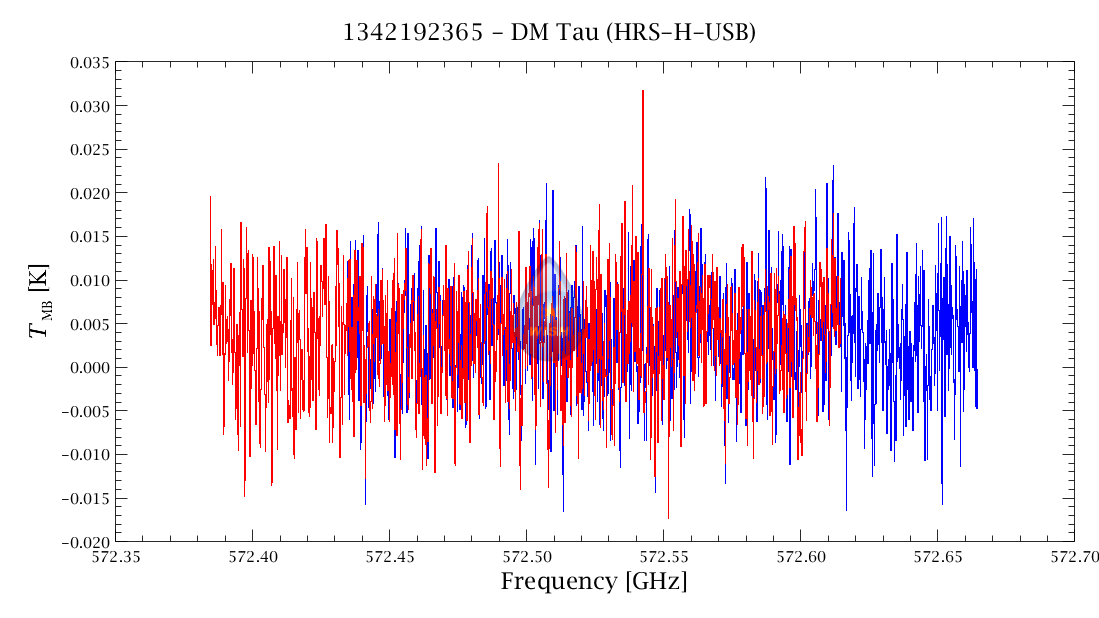

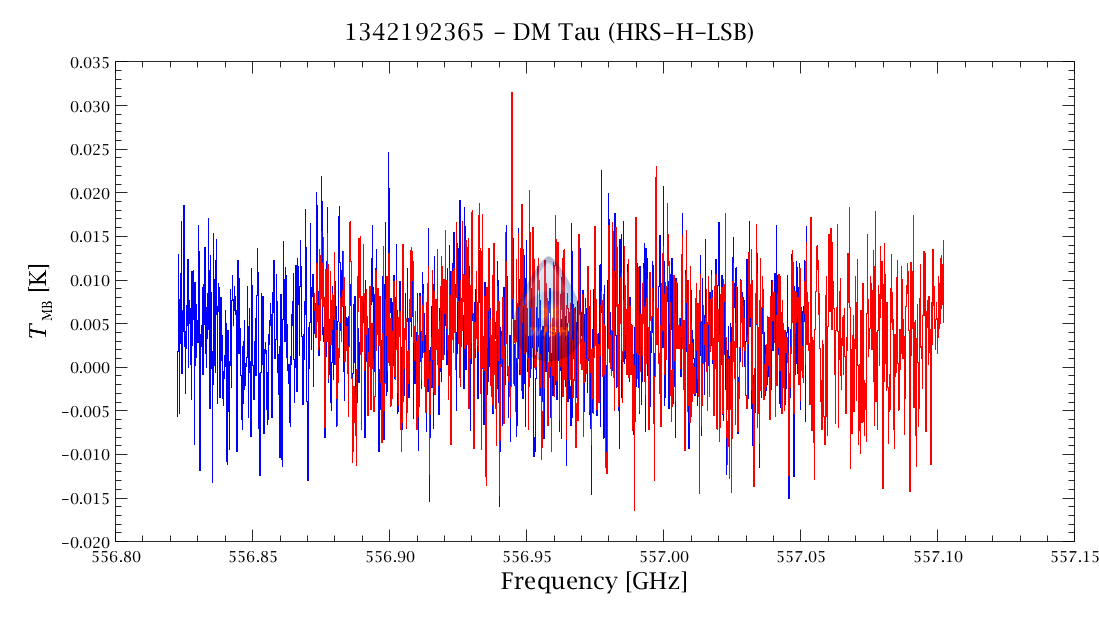

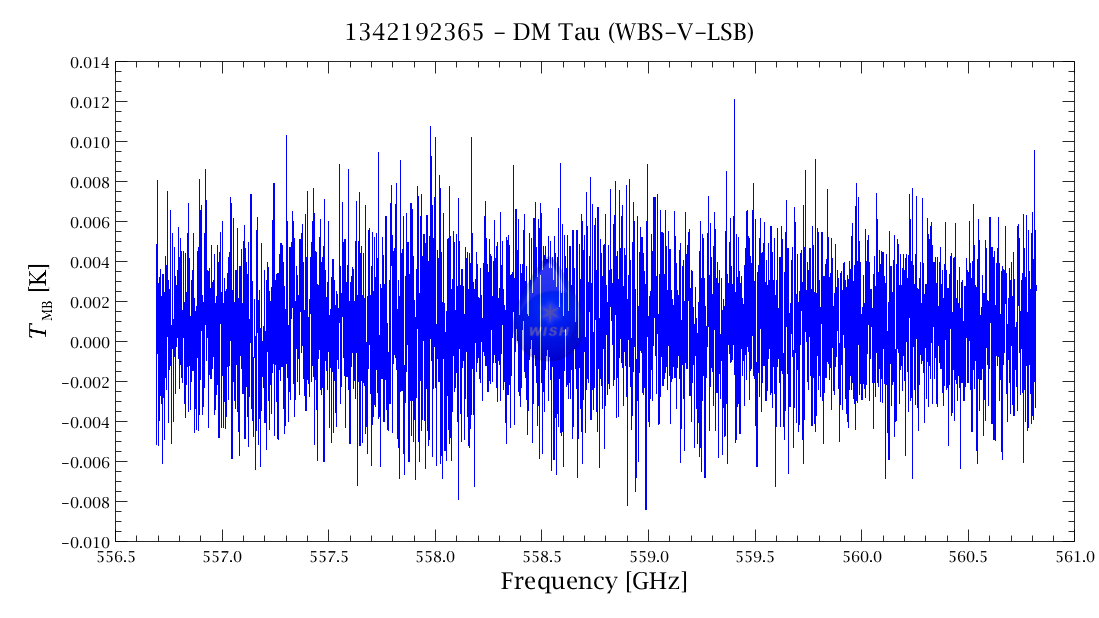

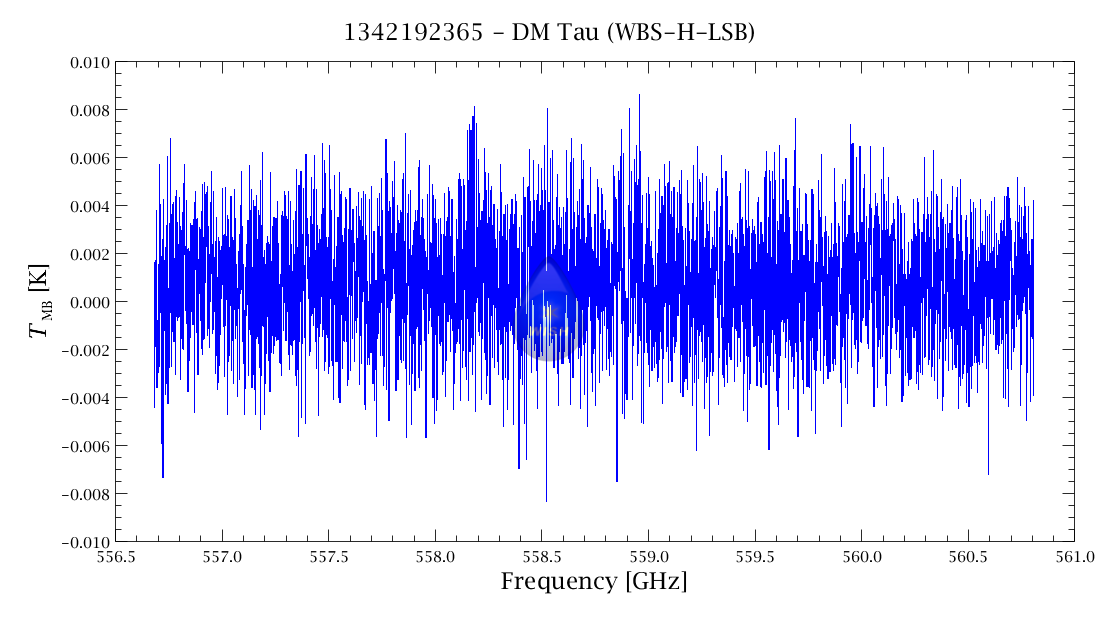

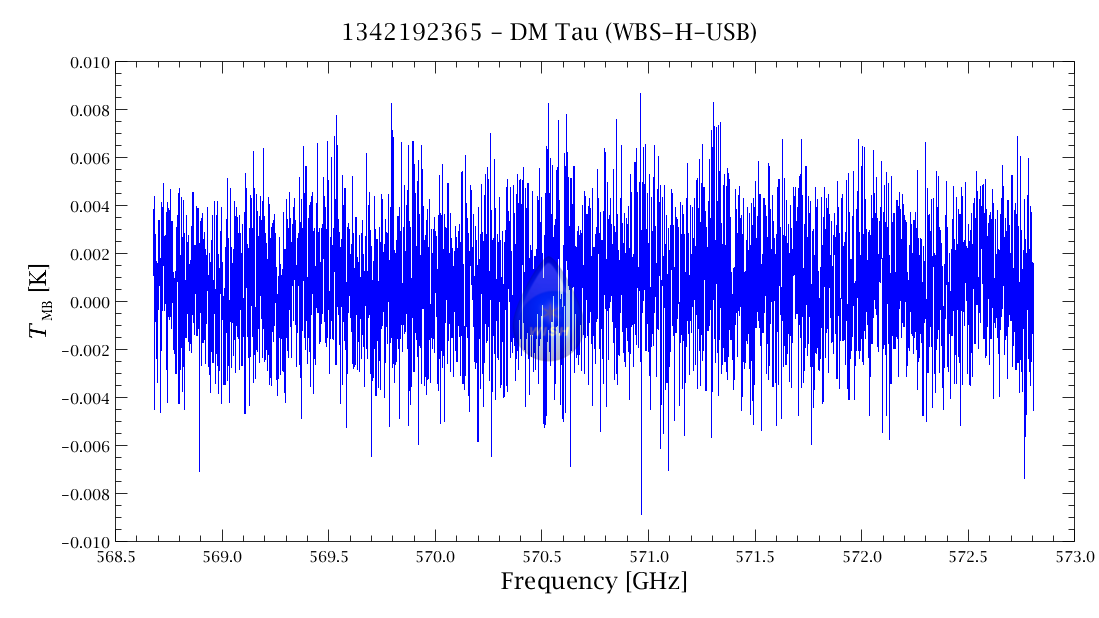

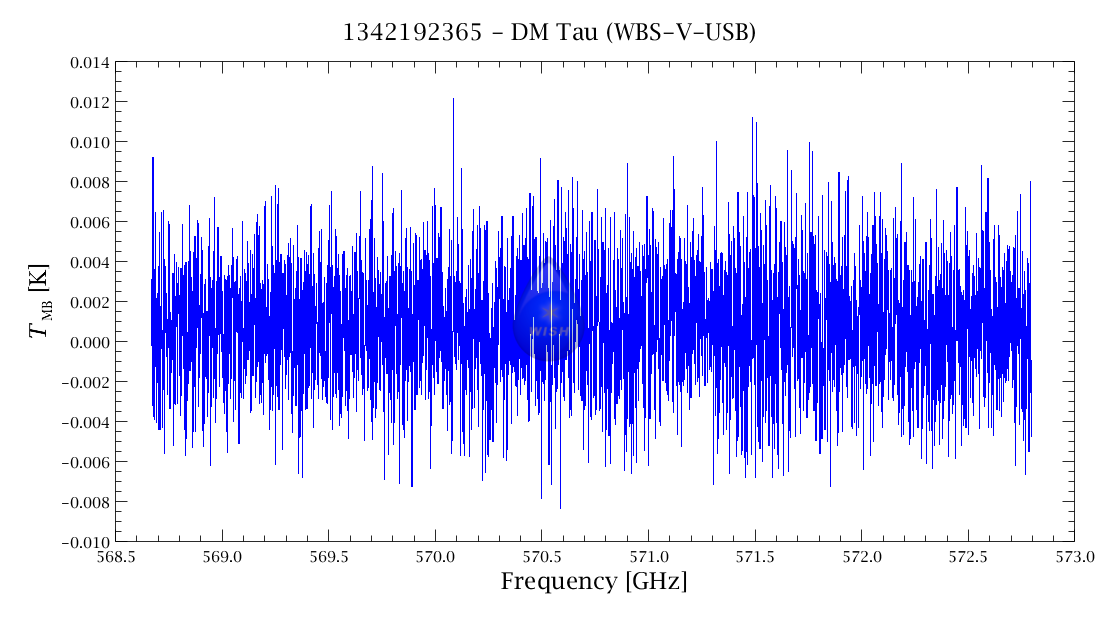

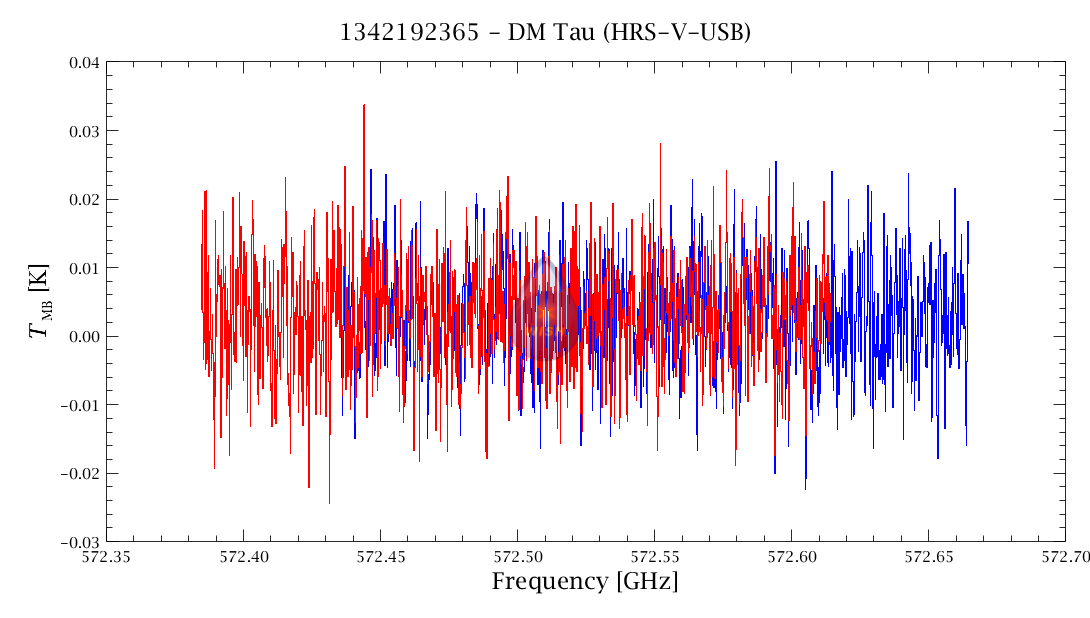

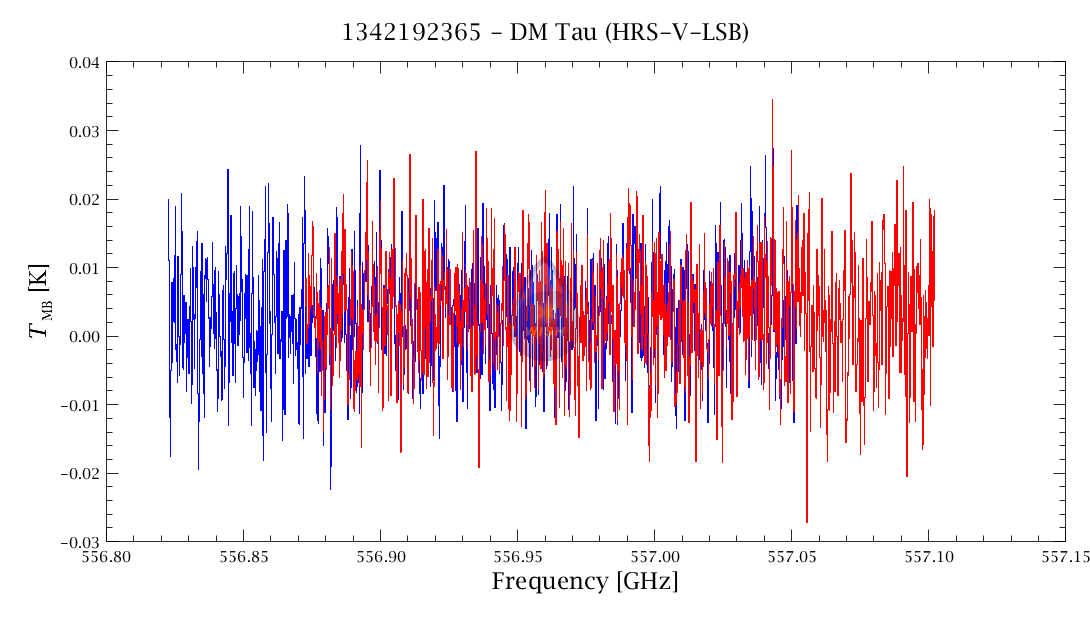

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0021	0.0024
continuum (K)	0.001	0.001

Downloads Corner

• RAW HIPE FORMAT (432MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Bergin & van Dishoeck 2012, RSPTA
van Dishoeck et al. 2011, PASP
Bergin et al. 2010, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
