WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

B68
RA: 17 22 38.2 (^{h m s})
Dec: -23 49 54.12 (^{o ' "})

Observation Details

OBSID: 1342192377
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: PSP1_H2O 110-101 - B68
Band: 1B
Herschel Operation Day: OD310
Integration Time: 13104 sec
LO Frequency: 562.67325 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-03-20
HSA Processing Date: 2014-07-15
WISH Processing Date: 2014-08-04
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (0,0) arcsec

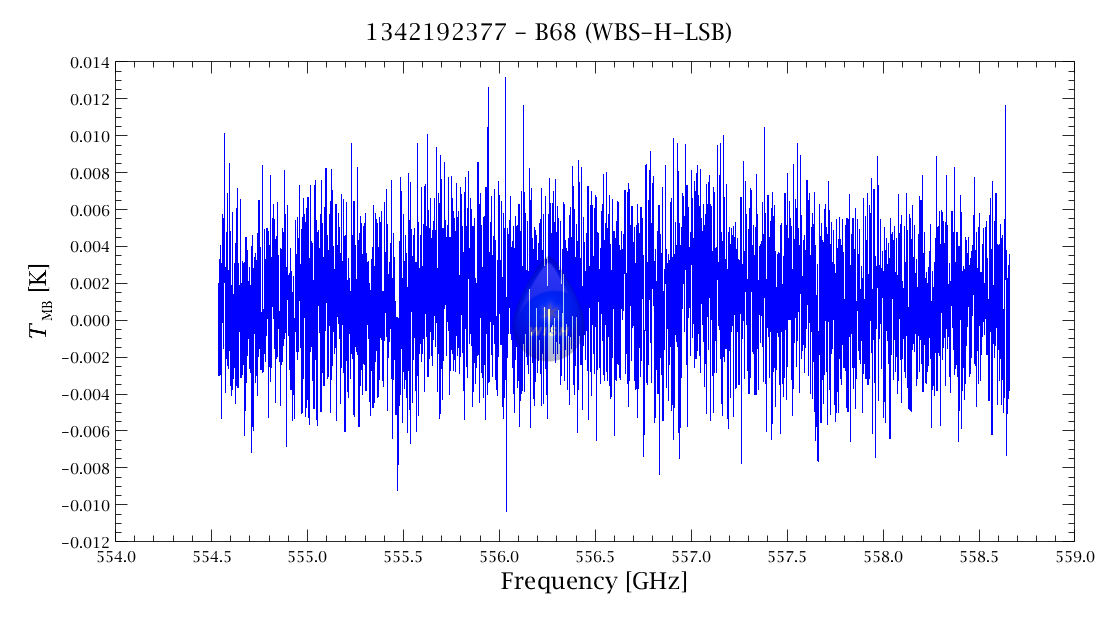

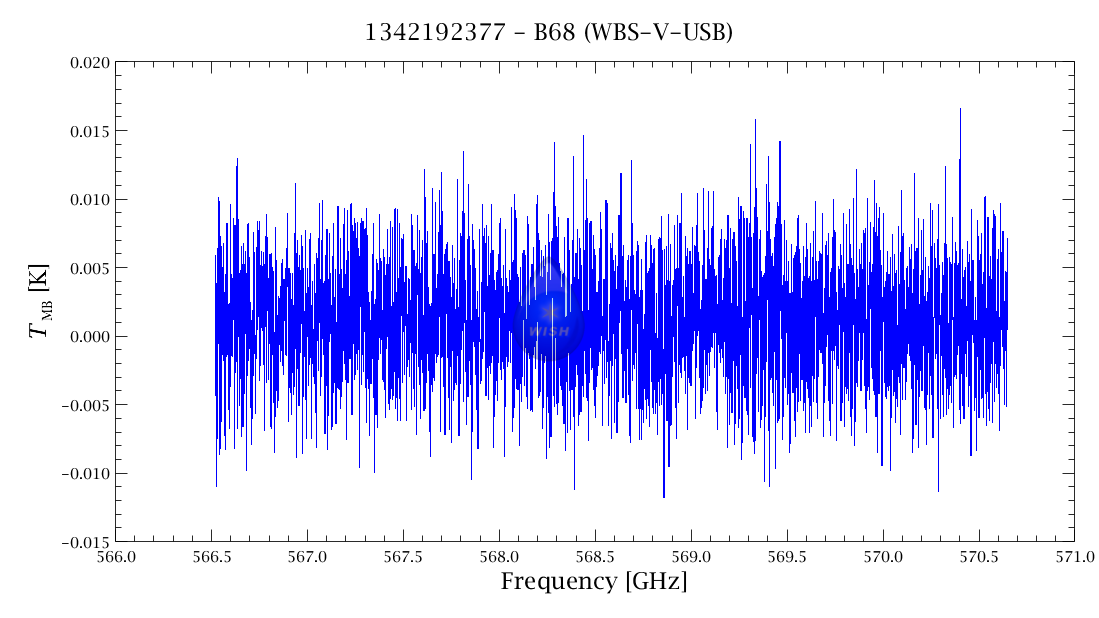

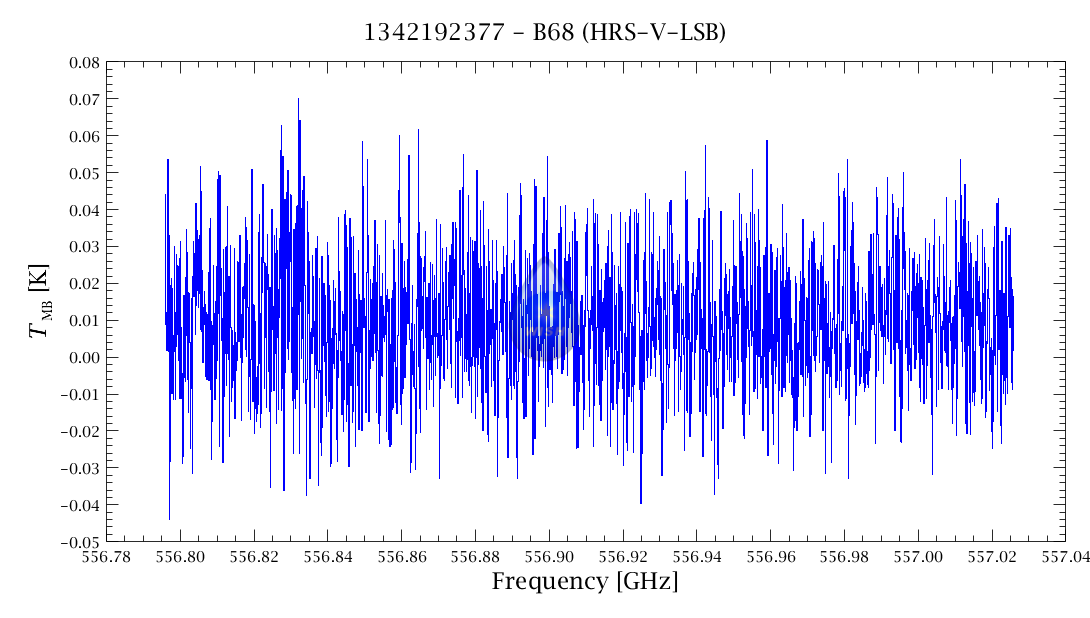

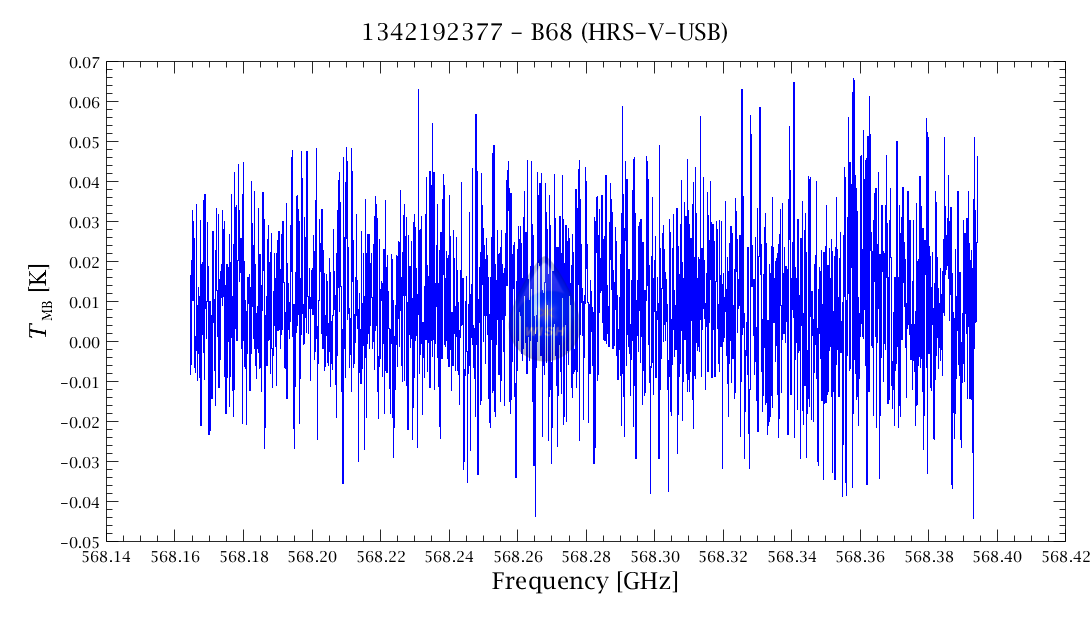

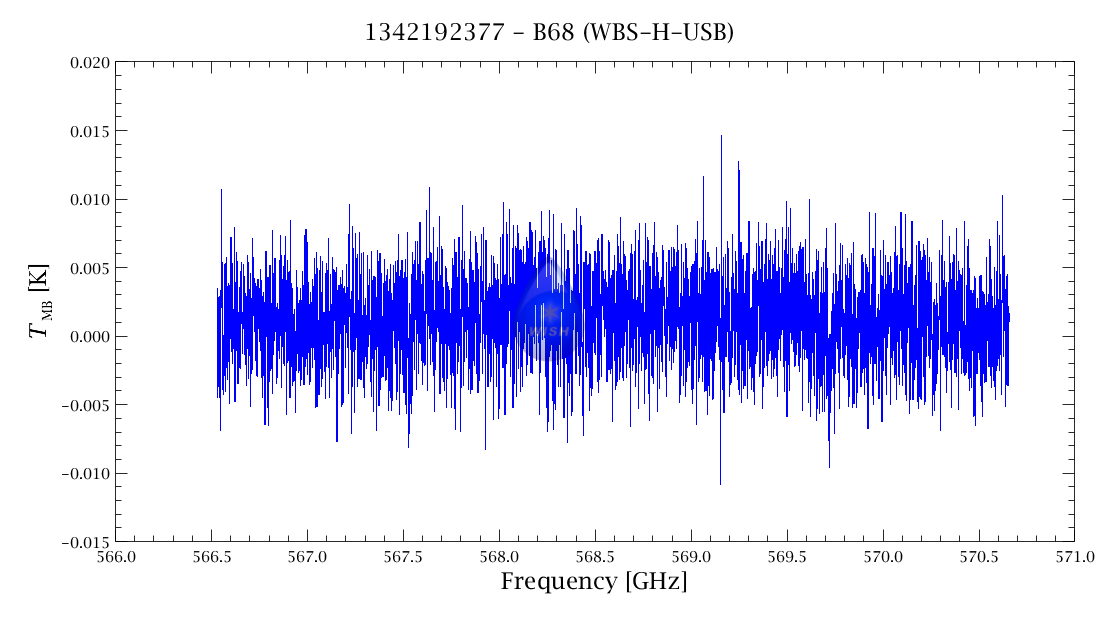

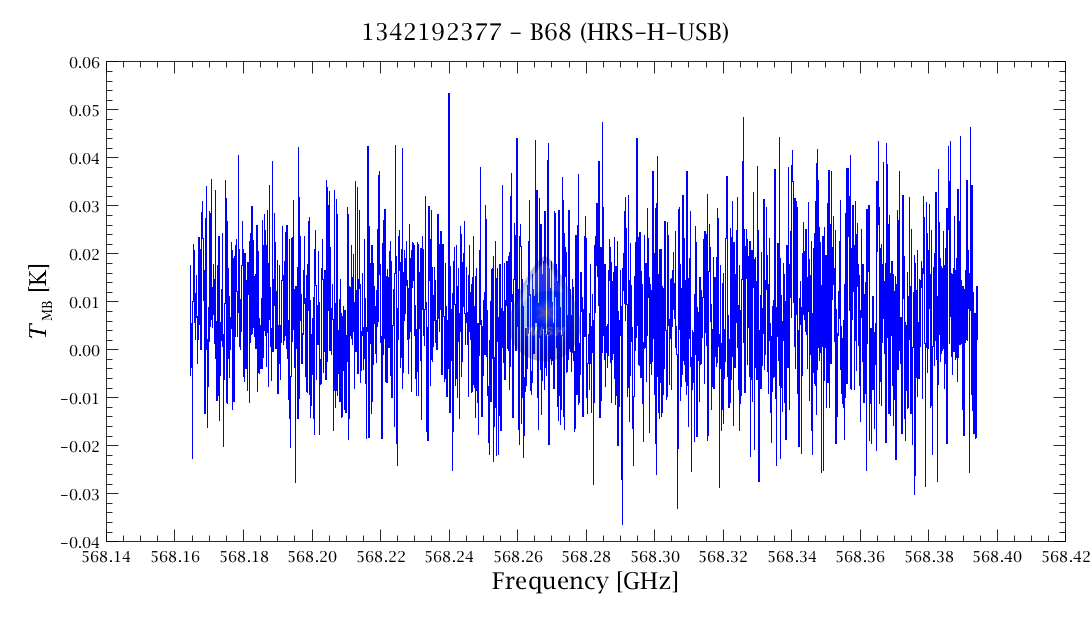

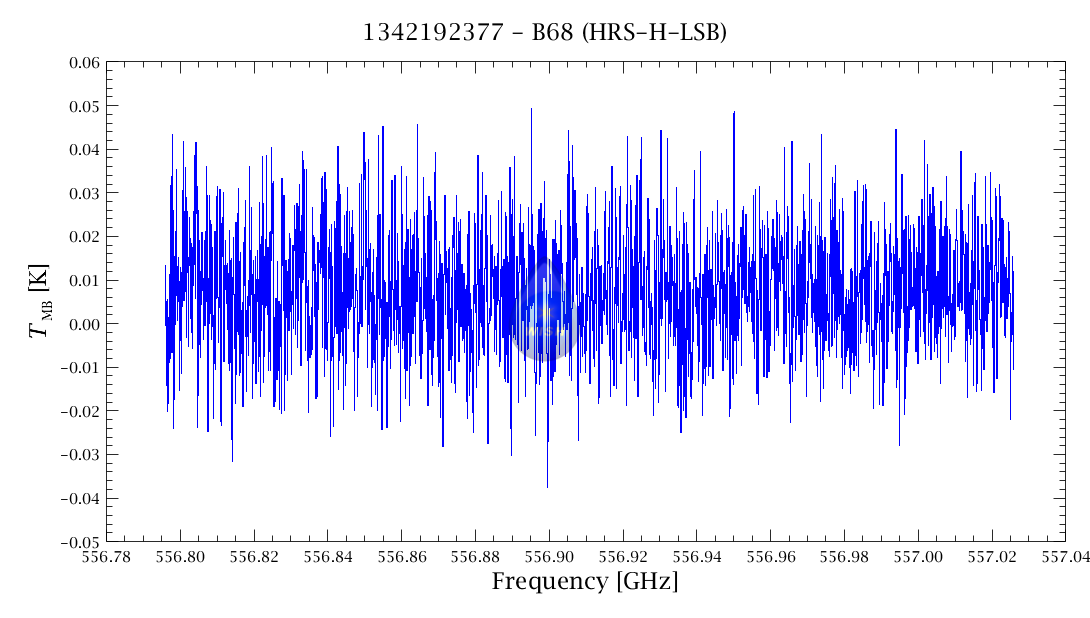

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0027	0.0036
continuum (K)	0.003	0.004

Downloads Corner

• RAW HIPE FORMAT (260MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Van Dishoeck et al. 2013, ChRv
van Dishoeck et al. 2011, PASP
Caselli et al. 2010, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
