WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

TMR 1
RA: 4 39 13.7 (^{h m s})
Dec: 25 53 21.12 (^{o ' "})

Observation Details

OBSID: 1342192525
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: PSP2_H2O 110-101 Class I - TMR 1
Band: 1B
Herschel Operation Day: OD311
Integration Time: 1024 sec
LO Frequency: 562.54275 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-03-21
HSA Processing Date: 2014-08-04
WISH Processing Date: 2014-08-05
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (0,0) arcsec

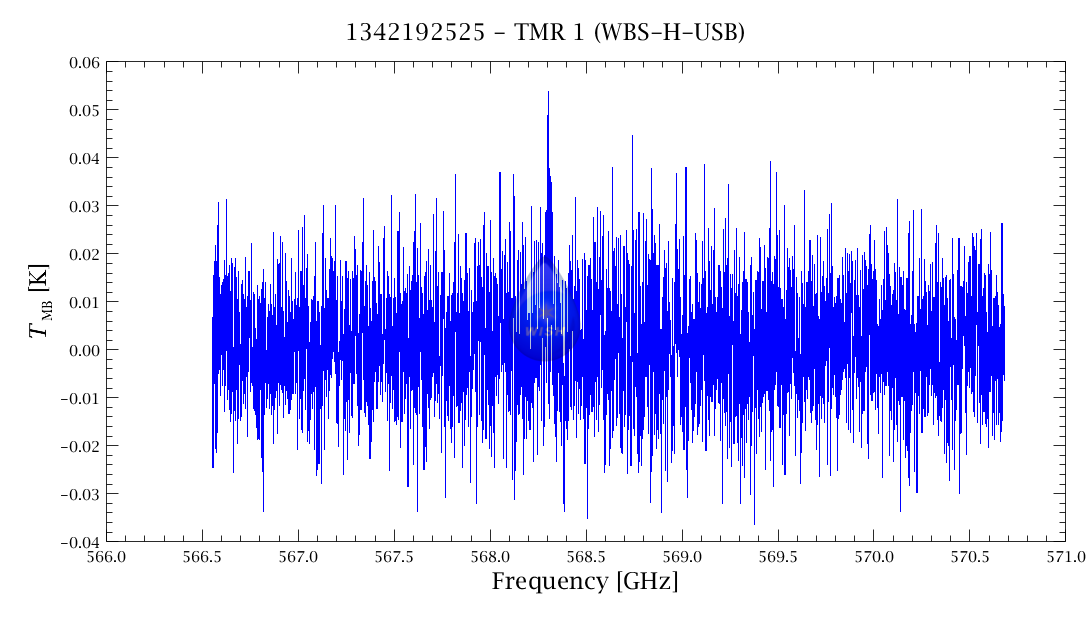

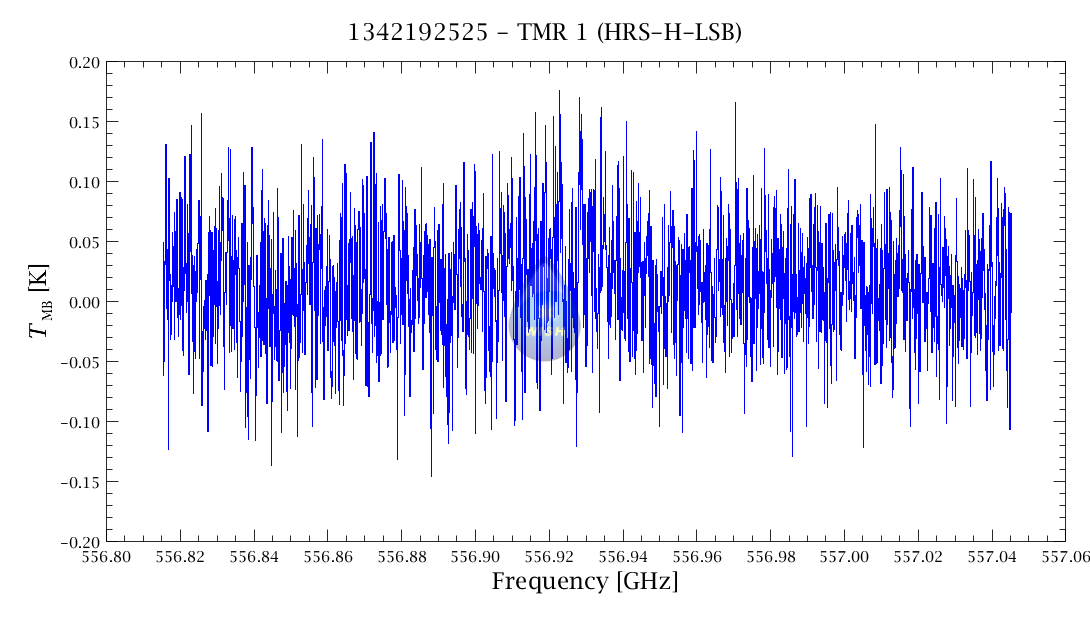

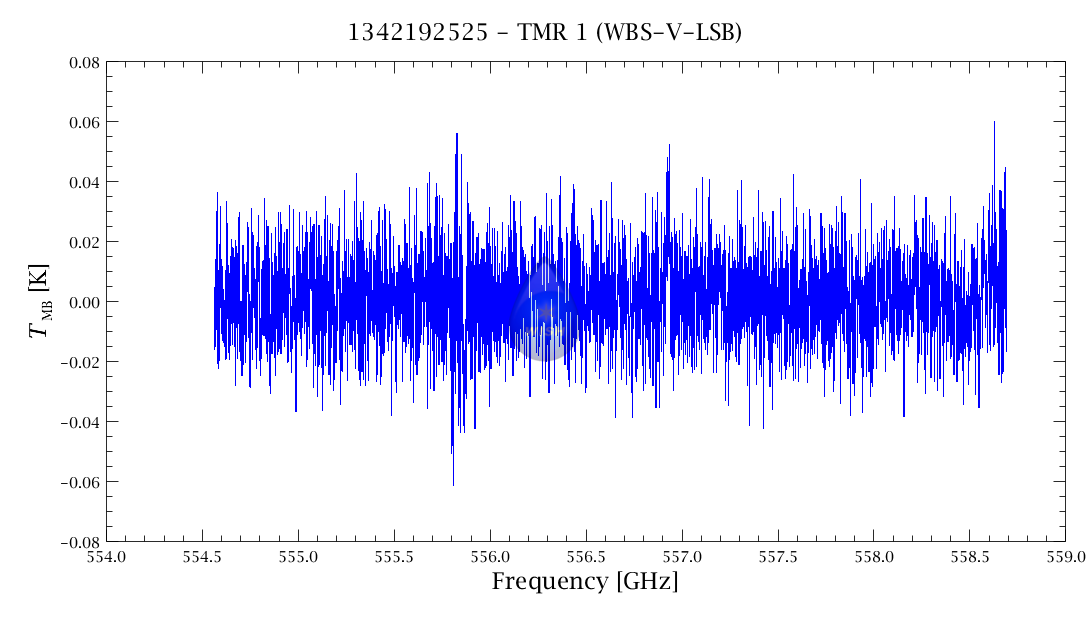

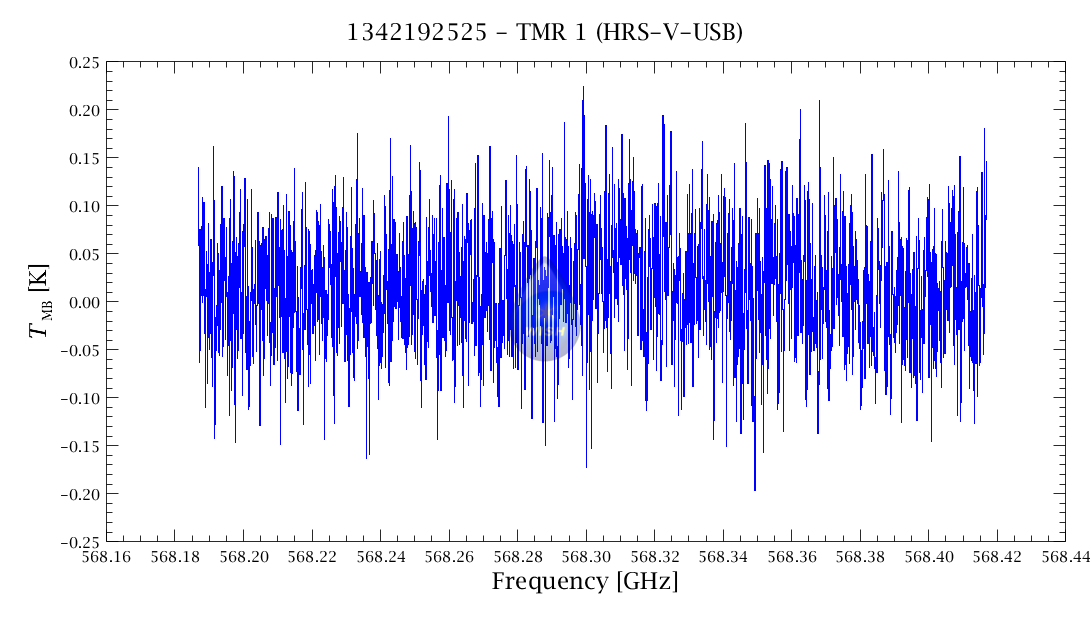

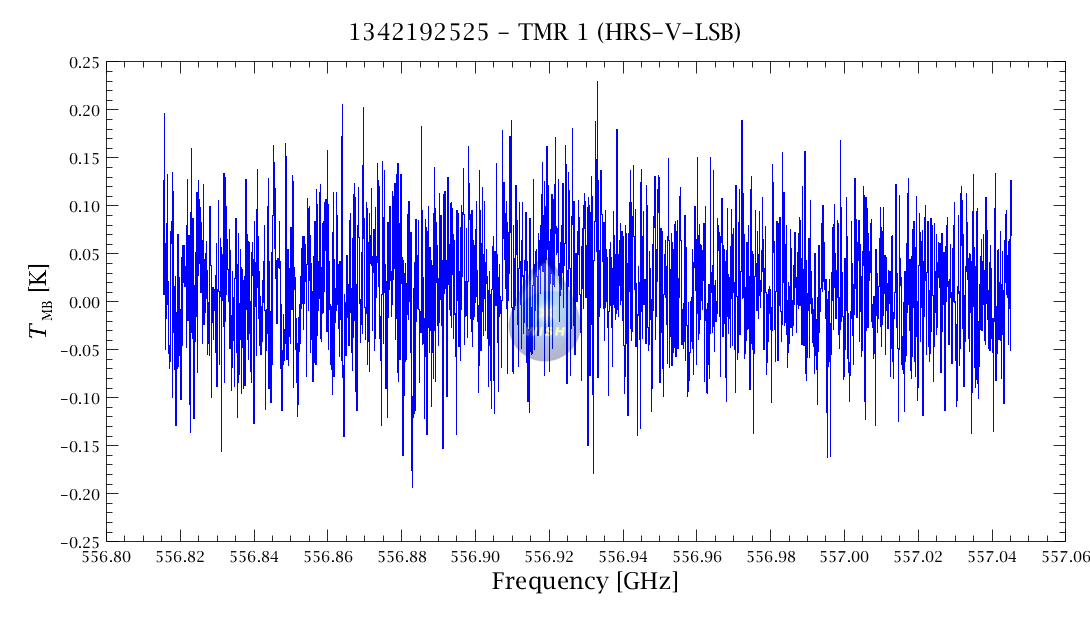

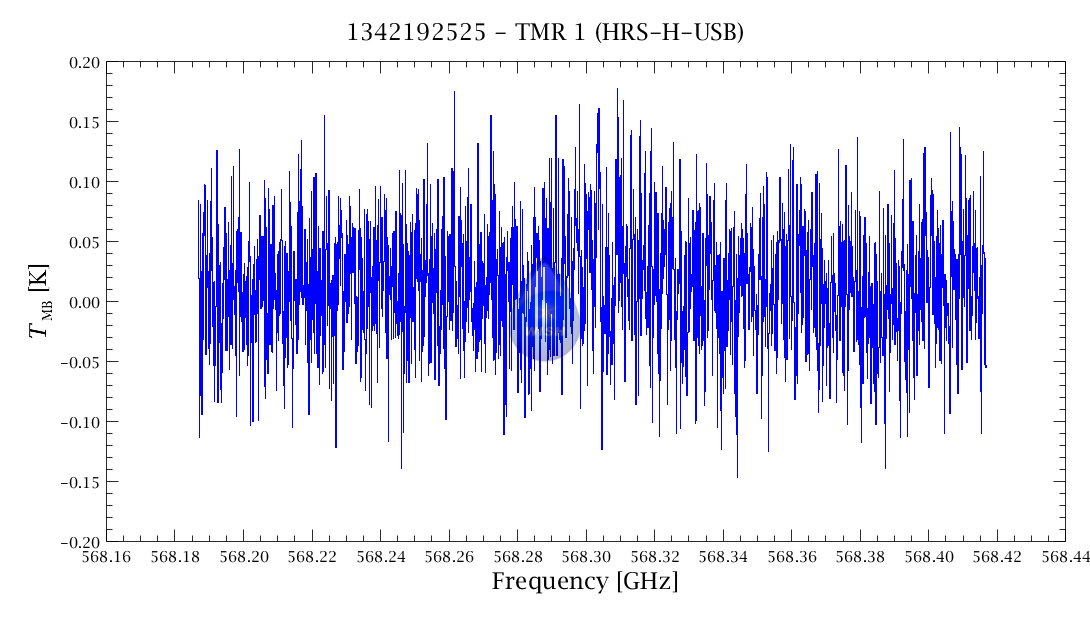

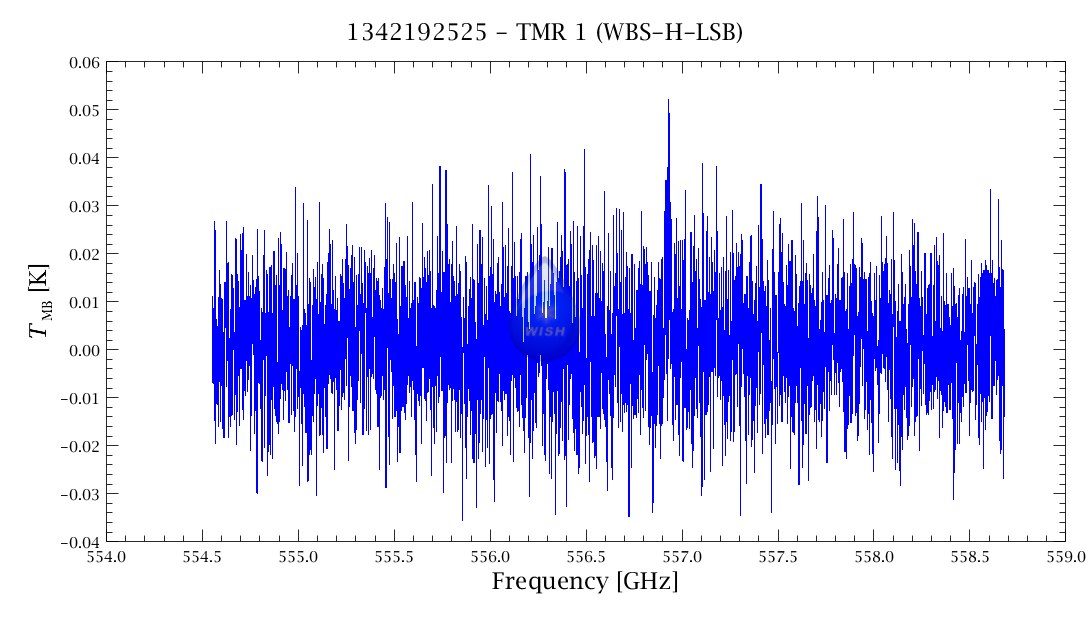

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0102	0.0126
continuum (K)	0.007	0.007

Downloads Corner

• RAW HIPE FORMAT (102MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Schmalzl et al. 2014, A&A
Mottram et al. 2014, A&A
Kristensen et al. 2012, A&A
van Dishoeck et al. 2011, PASP

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
