WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

AFGL2591
RA: 20 29 25.0 (^{h m s})
Dec: 40 11 19.68 (^{o ' "})

Observation Details

OBSID: 1342192570
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: PSP1_H2O 212-101 - AFGL2591
Band: 6B
Herschel Operation Day: OD312
Integration Time: 1261 sec
LO Frequency: 1665.56925 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-03-22
HSA Processing Date: 2014-07-15
WISH Processing Date: 2014-08-05
Beam Efficiency H ⁽¹⁾: η=0.58
Beam Efficiency V⁽¹⁾: η=0.58
Beam Efficiency (2012) ⁽¹⁾: η=0.707
Position offset (x,y): (0,0) arcsec

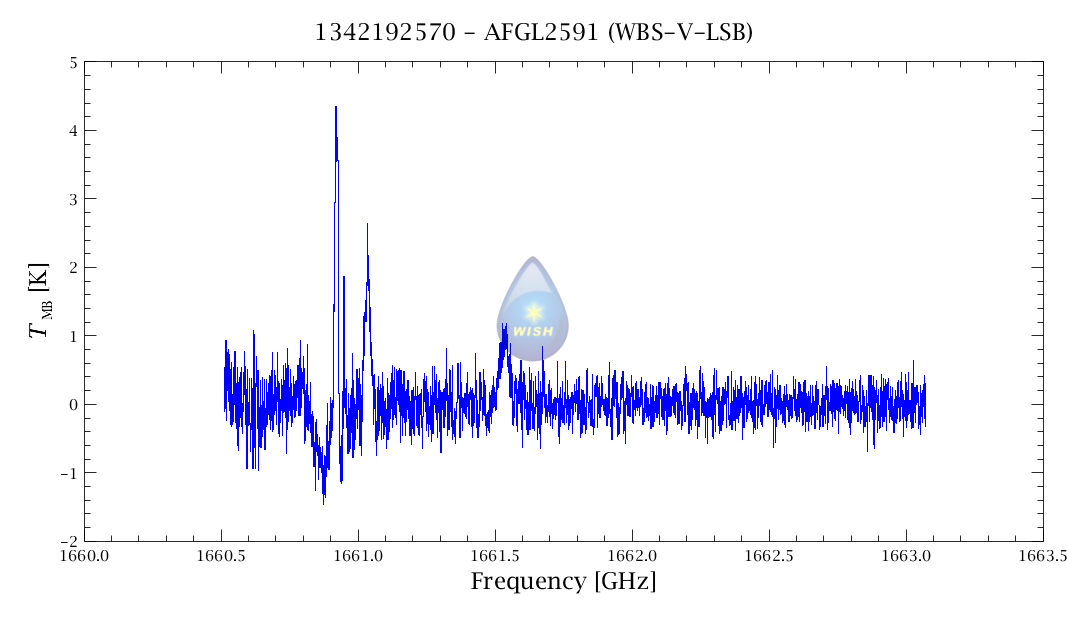

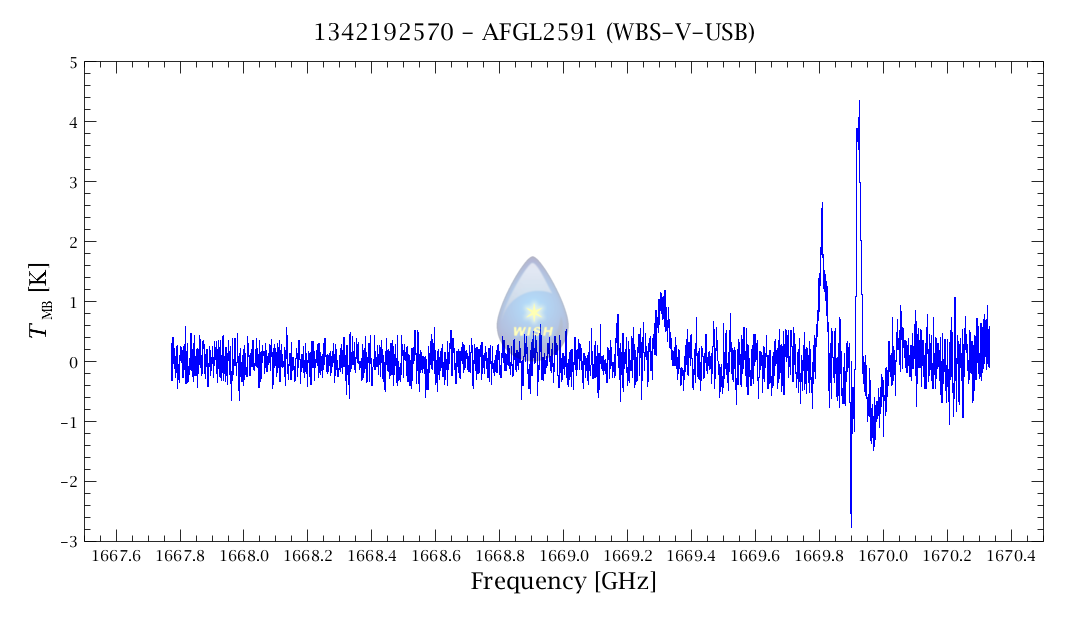

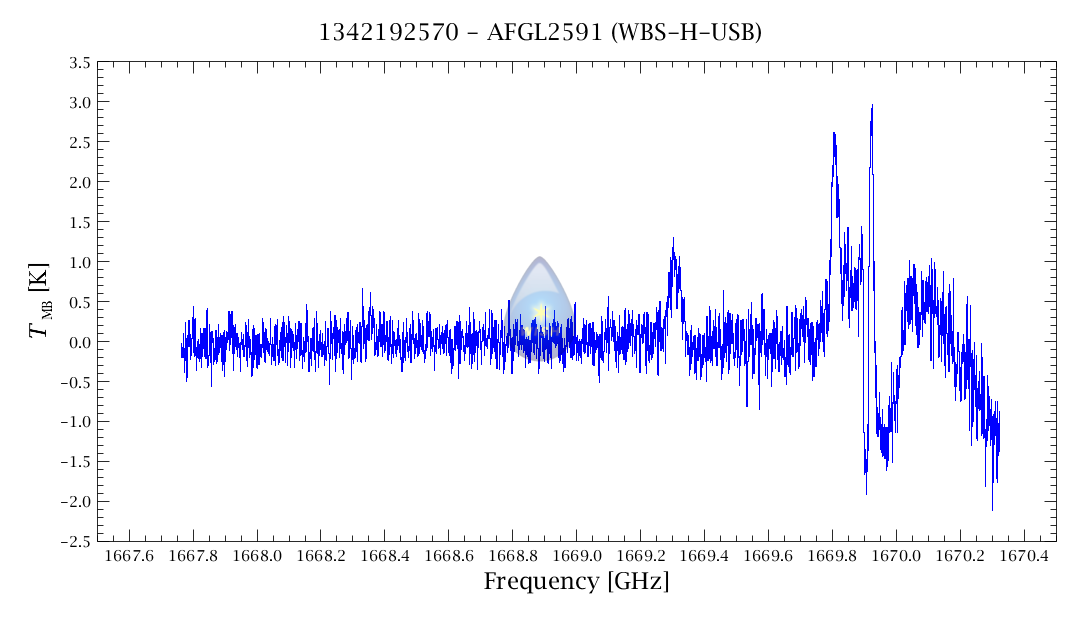

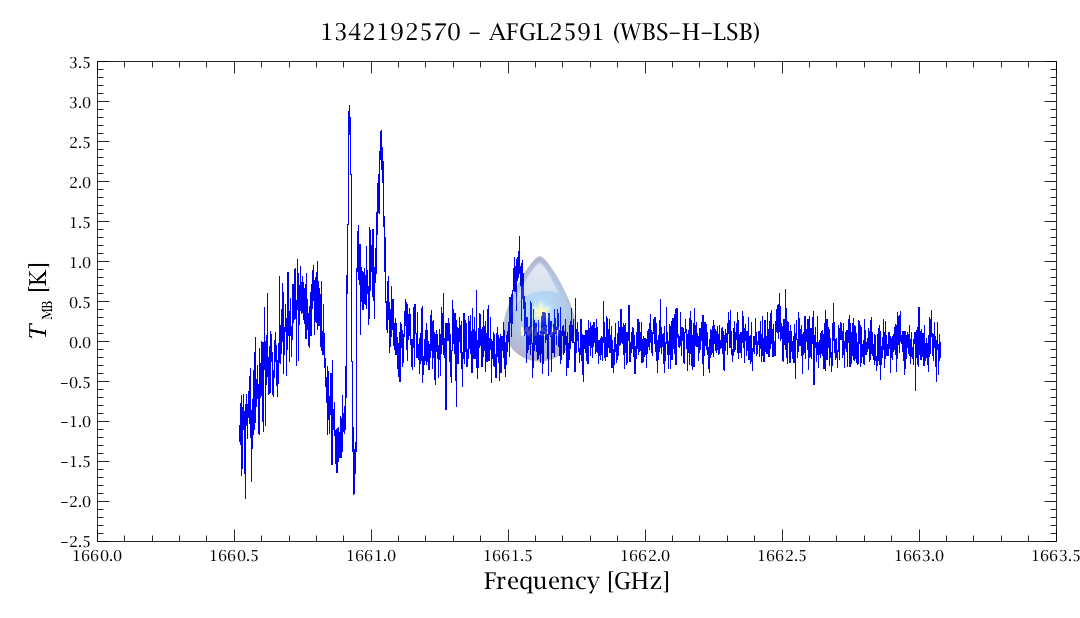

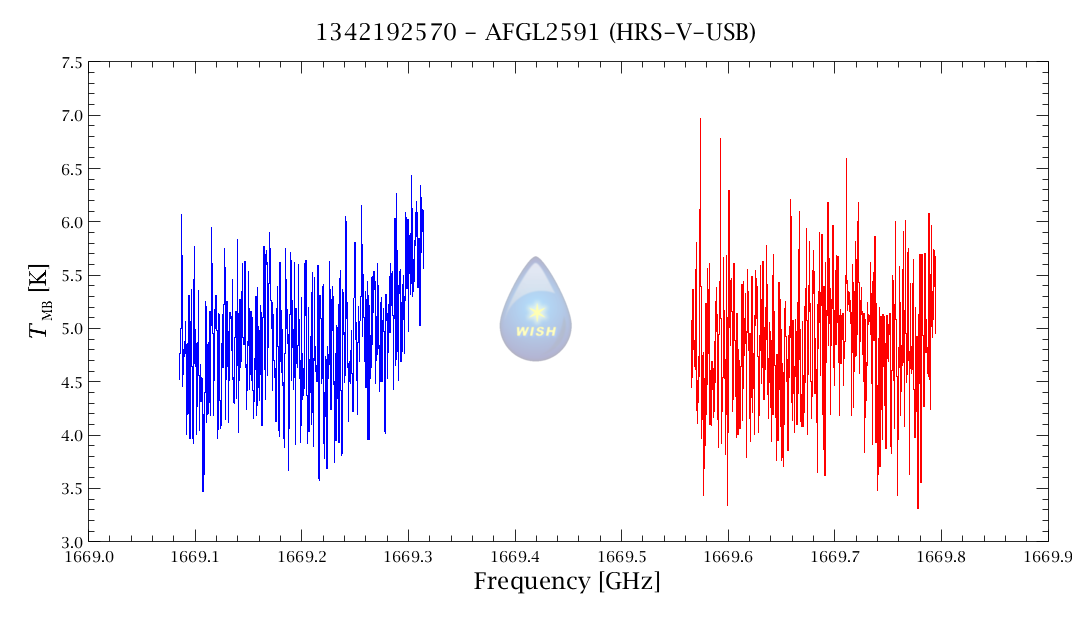

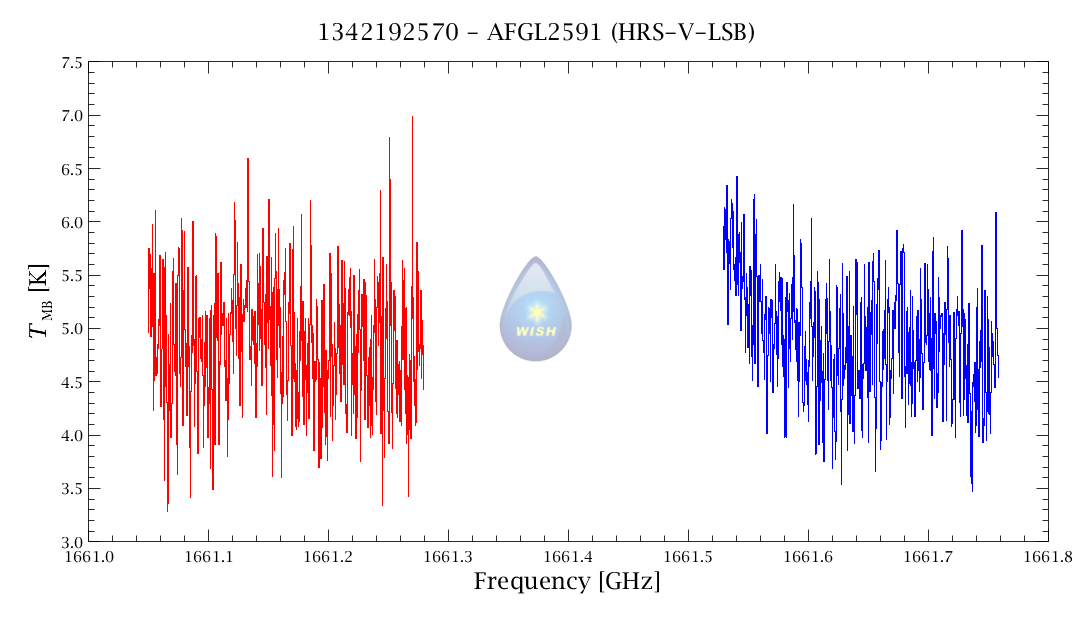

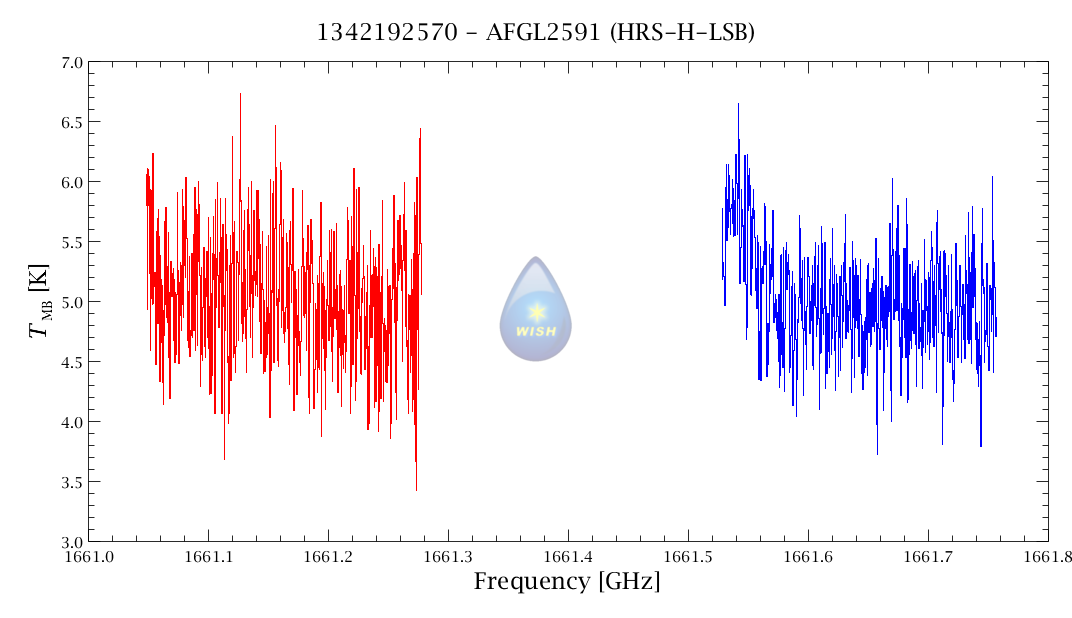

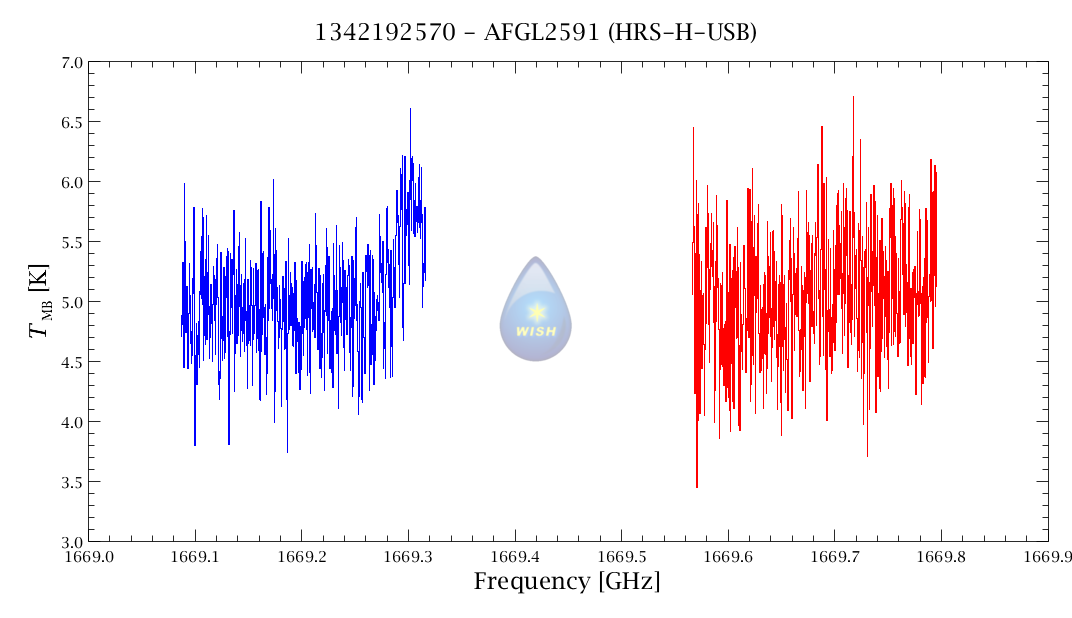

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	0.5
	WBS-H	WBS-V
rms (K)	0.5856	0.3451
continuum (K)	2.055	2.171

Downloads Corner

• RAW HIPE FORMAT (110MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Choi et al. 2015, A&A
Van der Tak et al. 2013, A&A
Bruderer et al. 2010, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
