WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

HH 46
RA: 8 25 43.9 (^{h m s})
Dec: -51 0 36.00 (^{o ' "})

Observation Details

OBSID: 1342194783
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: SDP_OH 3/2-1/2 Class I - HH 46
Band: 7B
Herschel Operation Day: OD338
Integration Time: 2458 sec
LO Frequency: 1834.866 GHz
HIPE/Pipeline Version: SPG v11.1.0
Observation Date: 2010-04-17
HSA Processing Date: 2014-01-24
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.57
Beam Efficiency V⁽¹⁾: η=0.6
Beam Efficiency (2012) ⁽¹⁾: η=0.699
Position offset (x,y): (0.916947,-0.12436) arcsec

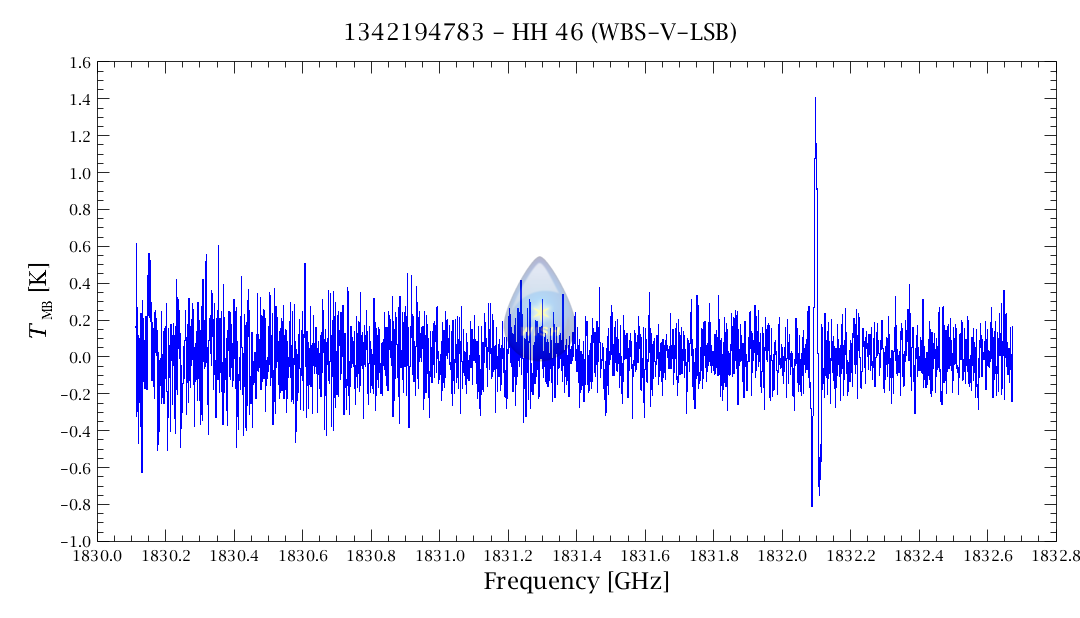

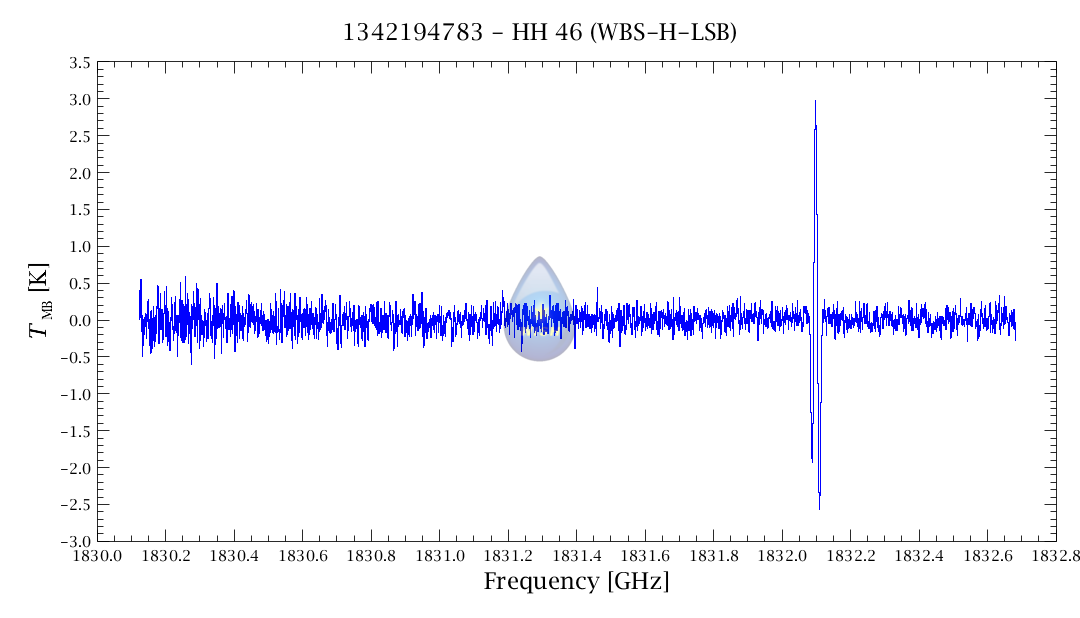

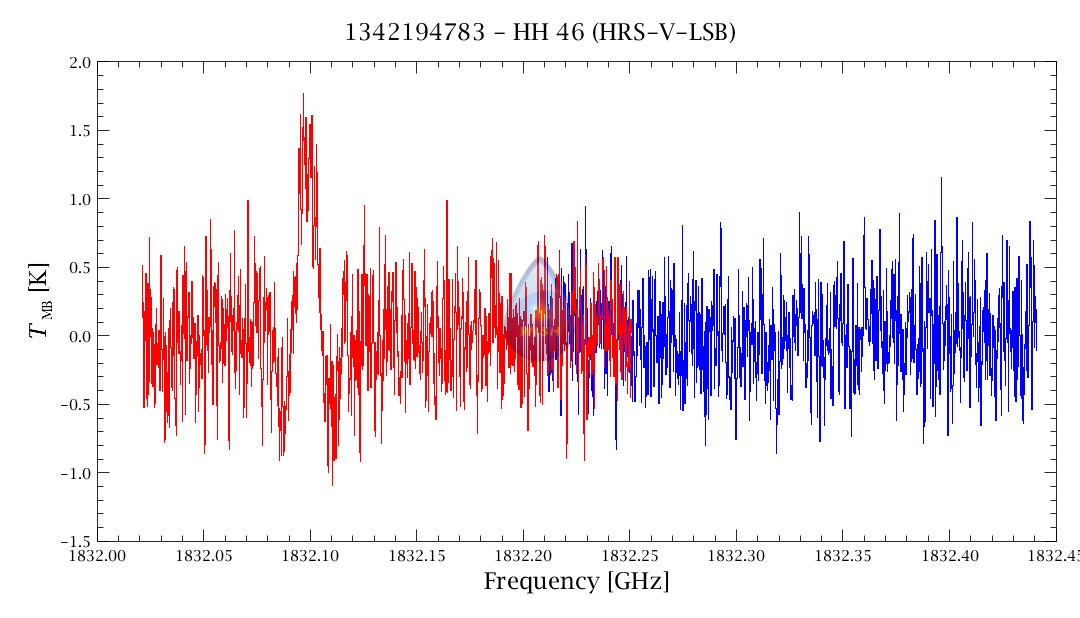

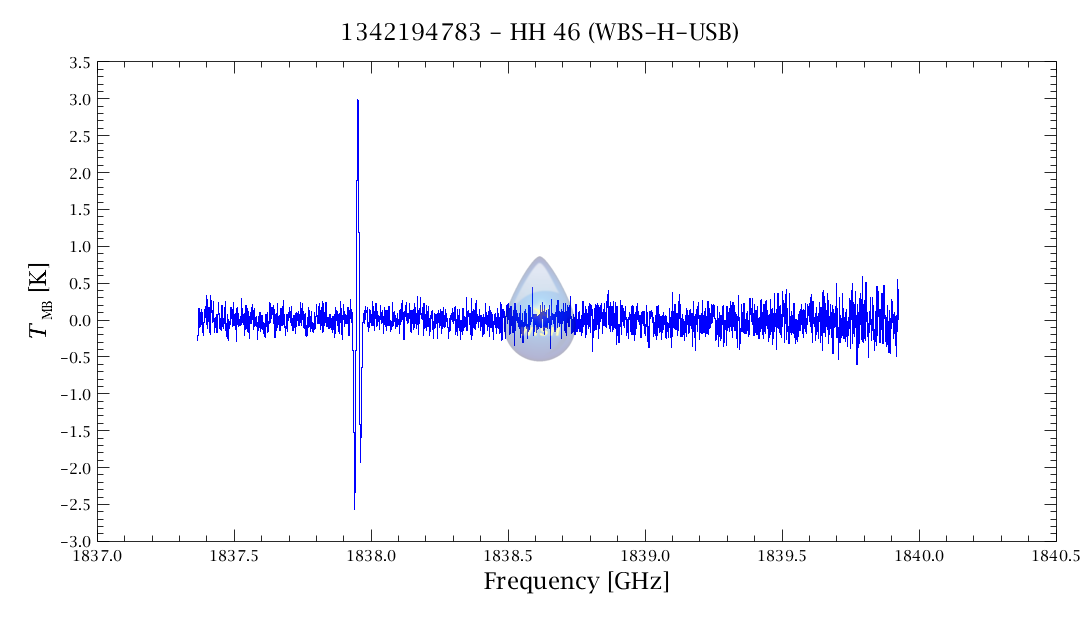

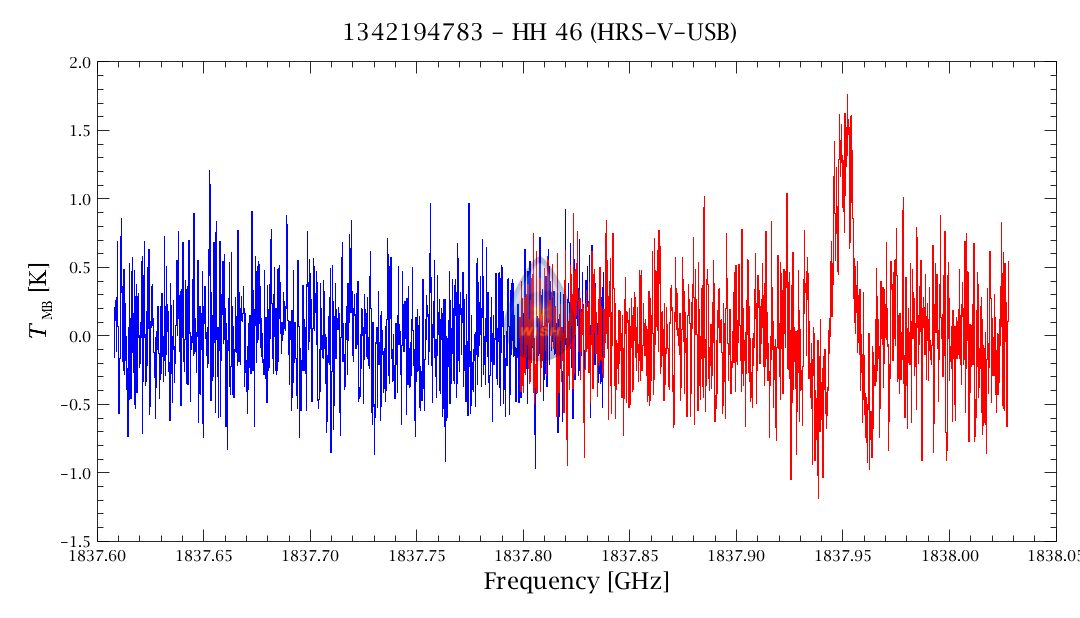

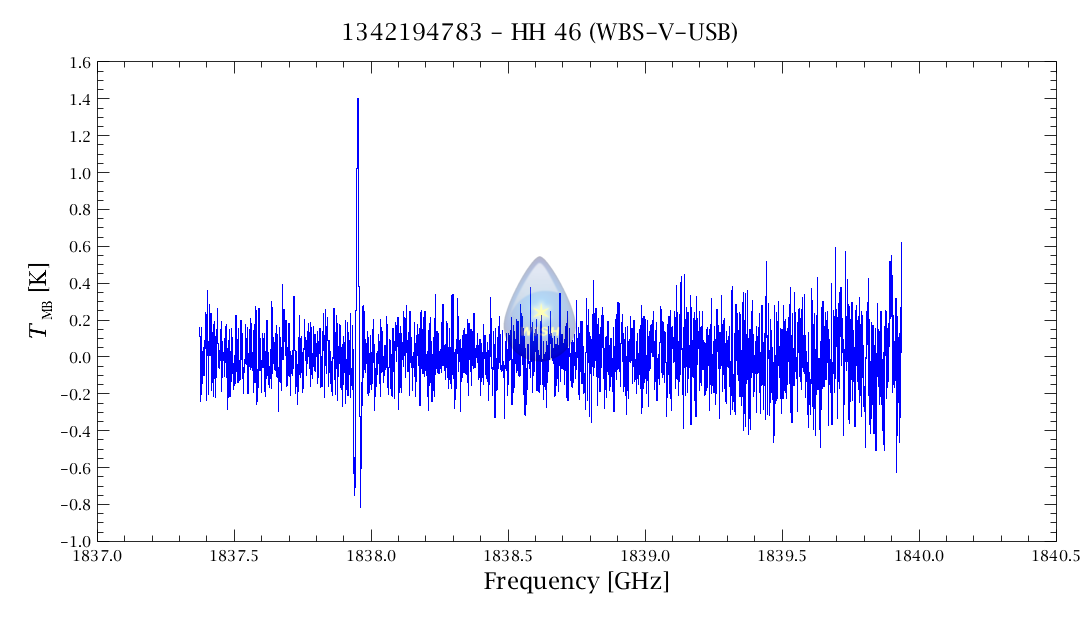

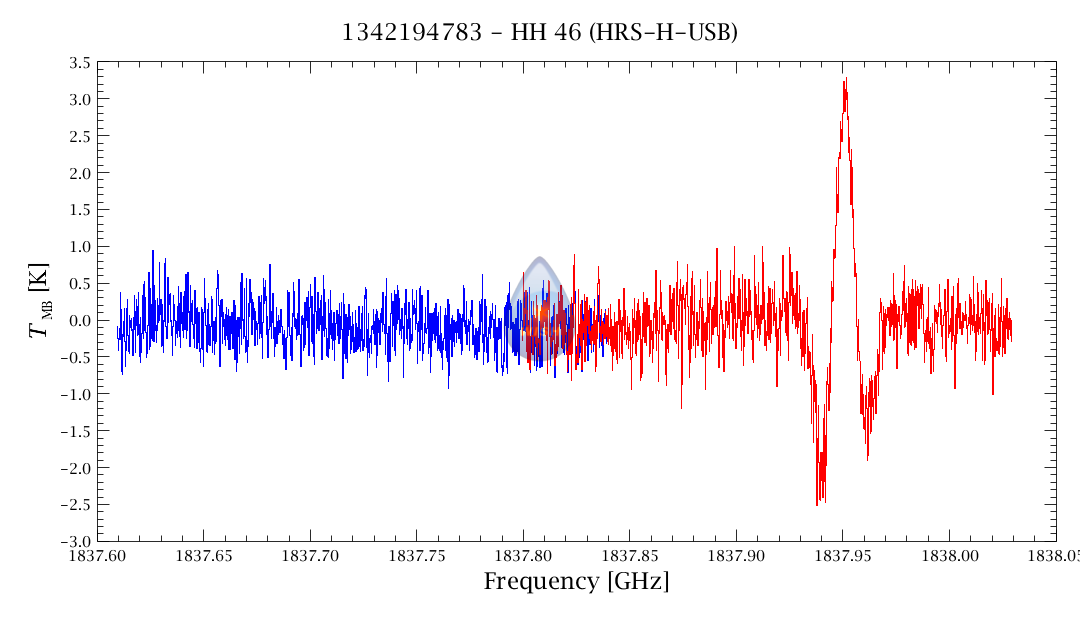

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	0.125
	WBS-H	WBS-V
rms (K)	0.1855	0.1889
continuum (K)	-0.019	0.076

Downloads Corner

• RAW HIPE FORMAT (123MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Wampfler et al. 2010, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
