WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

W51N-e1
RA: 19 23 43.7 (^{h m s})
Dec: 14 30 25.92 (^{o ' "})

Observation Details

OBSID: 1342194802
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: PSP1_H2O 111-000 - W51N-e1 - shift
Band: 4B
Herschel Operation Day: OD338
Integration Time: 438 sec
LO Frequency: 1108.035 GHz
HIPE/Pipeline Version: SPG v11.1.0
Observation Date: 2010-04-17
HSA Processing Date: 2014-01-24
WISH Processing Date: 2014-08-01
Beam Efficiency H ⁽¹⁾: η=0.63
Beam Efficiency V⁽¹⁾: η=0.64
Beam Efficiency (2012) ⁽¹⁾: η=0.737
Position offset (x,y): (-3.79568,-1.22073) arcsec

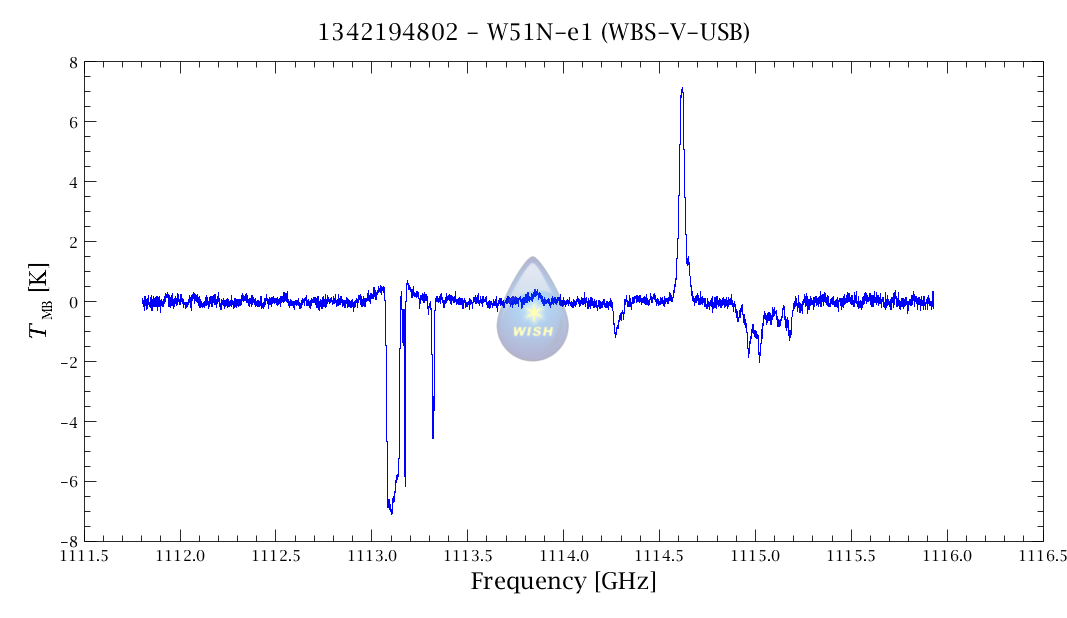

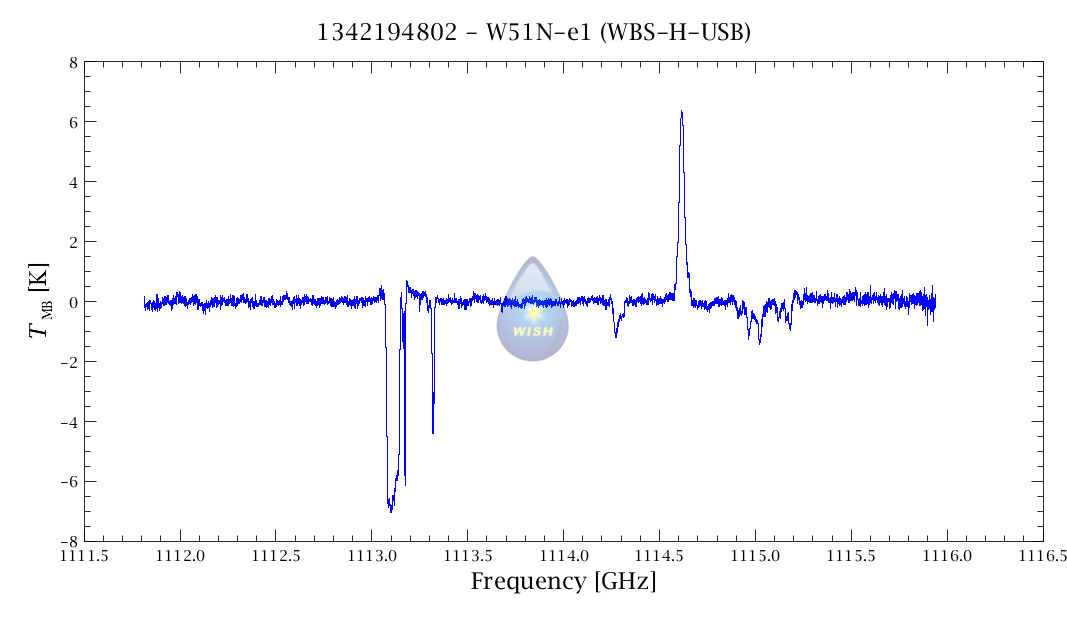

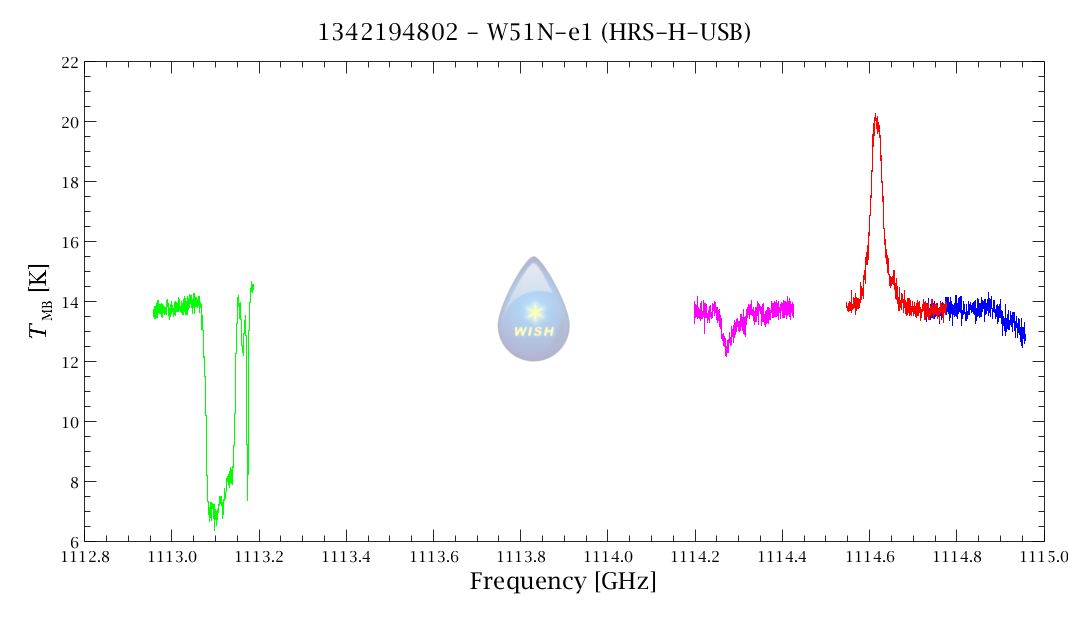

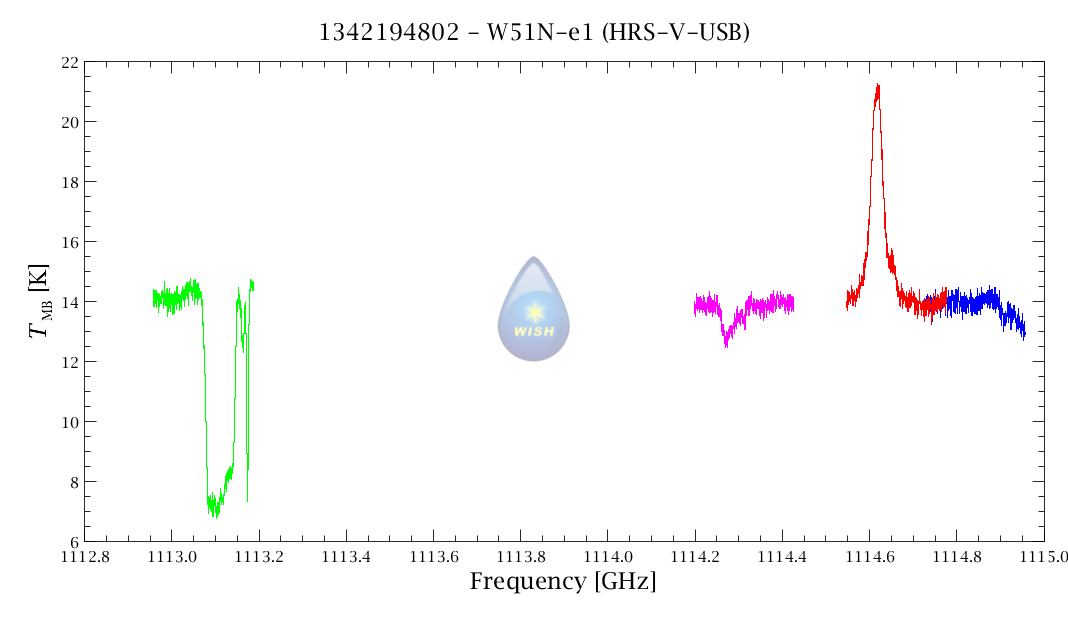

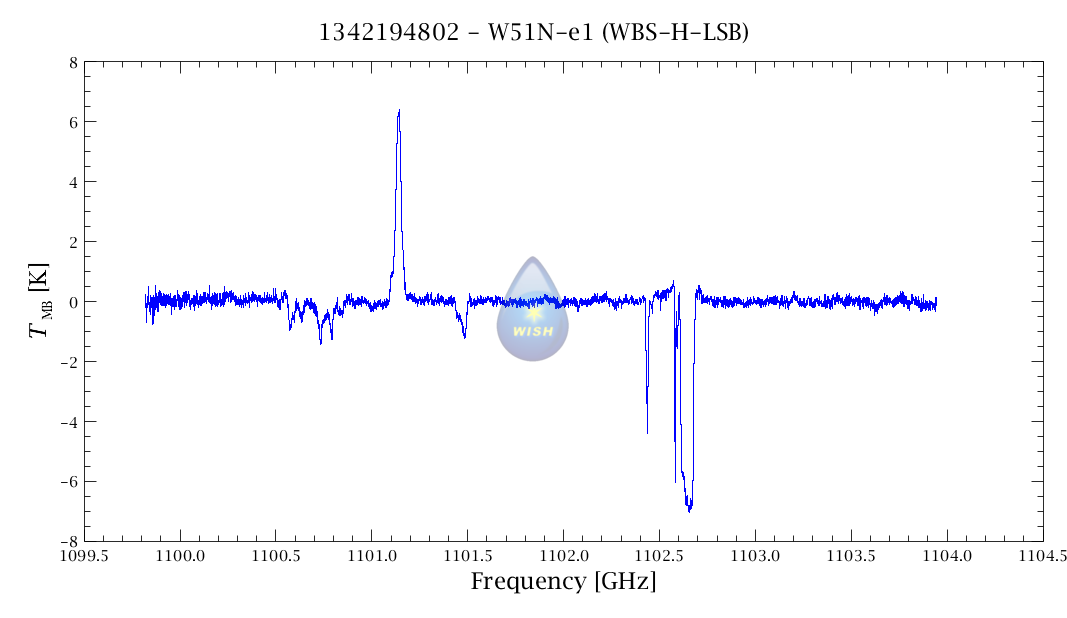

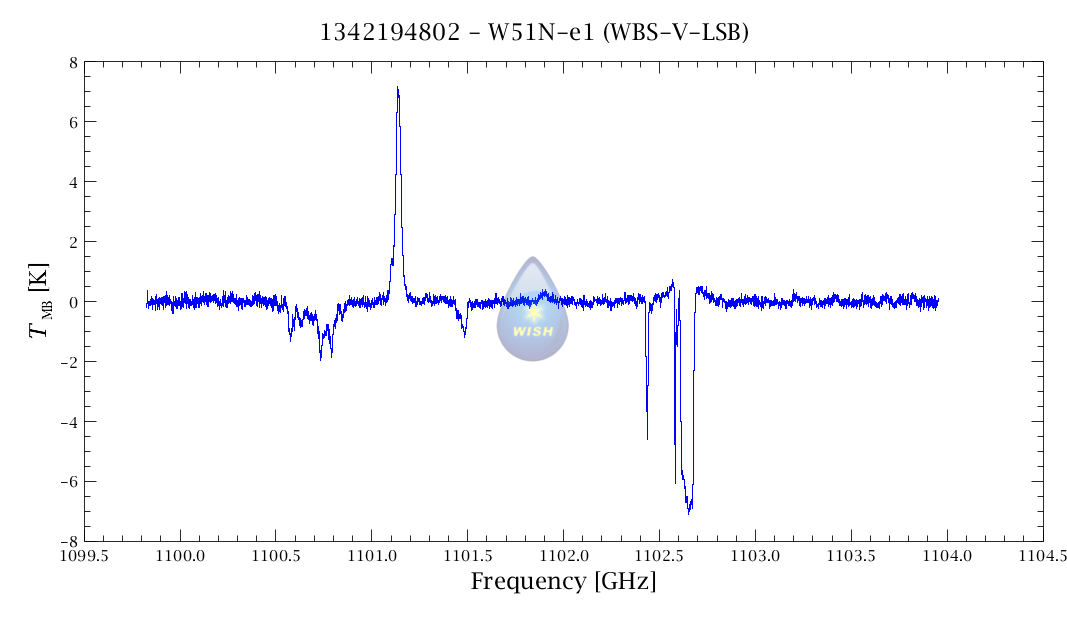

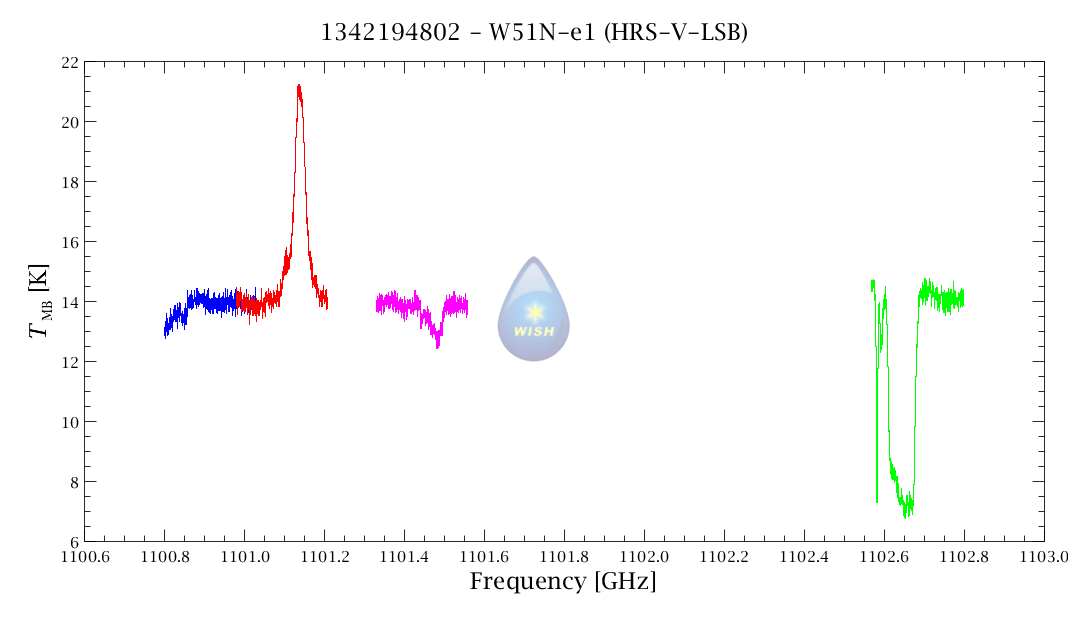

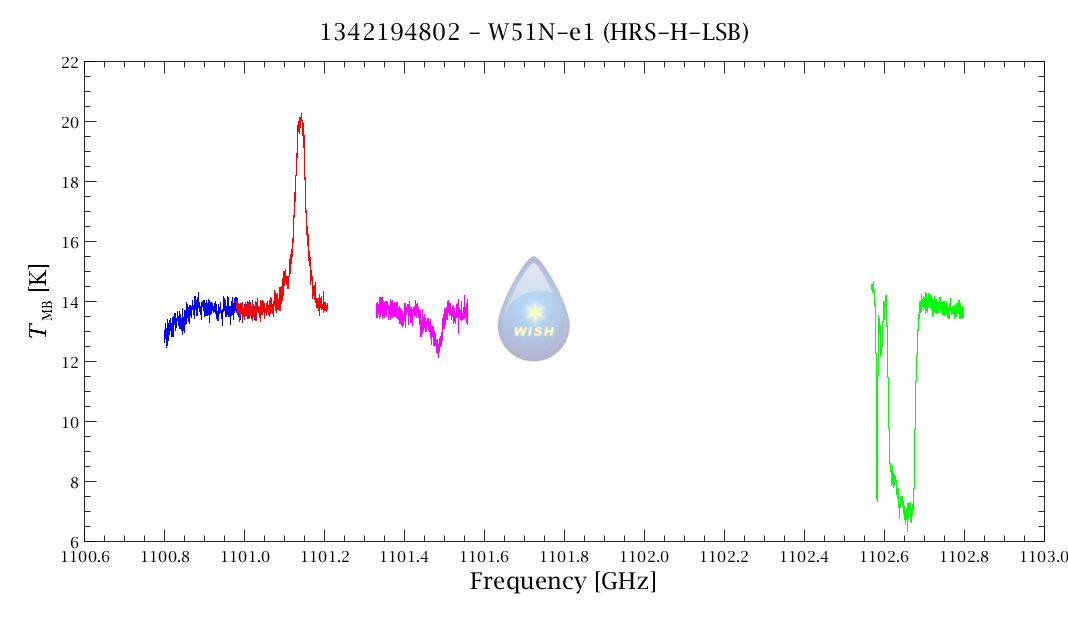

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.1232	0.1252
continuum (K)	6.857	6.976

Downloads Corner

• RAW HIPE FORMAT (103MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Indriolo et al. 2015, ApJ
Wyrowski et al. 2010, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
