WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

AFGL2591
RA: 20 29 25.0 (^{h m s})
Dec: 40 11 19.68 (^{o ' "})

Observation Details

OBSID: 1342195019
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: PSP1_H2O 202-111 - AFGL2591
Band: 4A
Herschel Operation Day: OD339
Integration Time: 418 sec
LO Frequency: 747.6975 GHz
HIPE/Pipeline Version: SPG v11.1.0
Observation Date: 2010-04-18
HSA Processing Date: 2014-01-24
WISH Processing Date: 2014-08-01
Beam Efficiency H ⁽¹⁾: η=0.64
Beam Efficiency V⁽¹⁾: η=0.66
Beam Efficiency (2012) ⁽¹⁾: η=0.749
Position offset (x,y): (-1.96179,-0.85081) arcsec

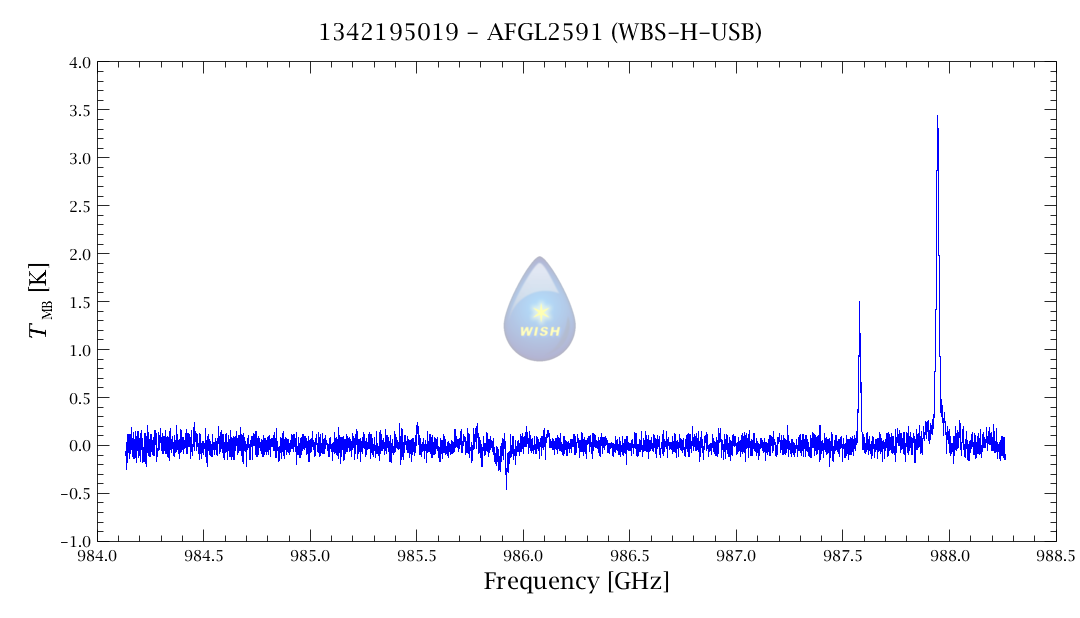

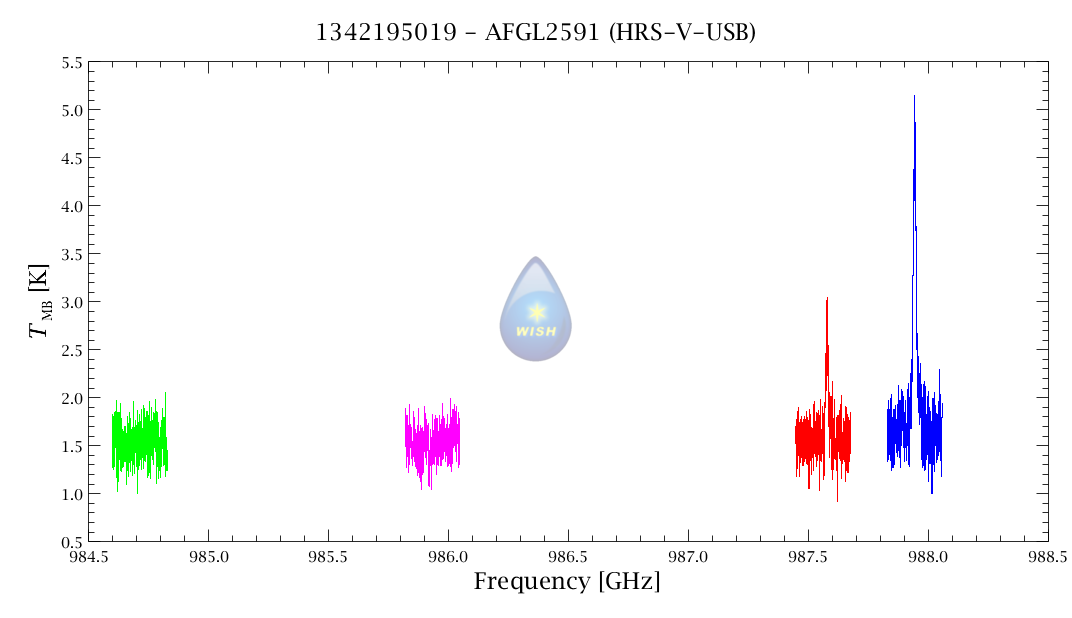

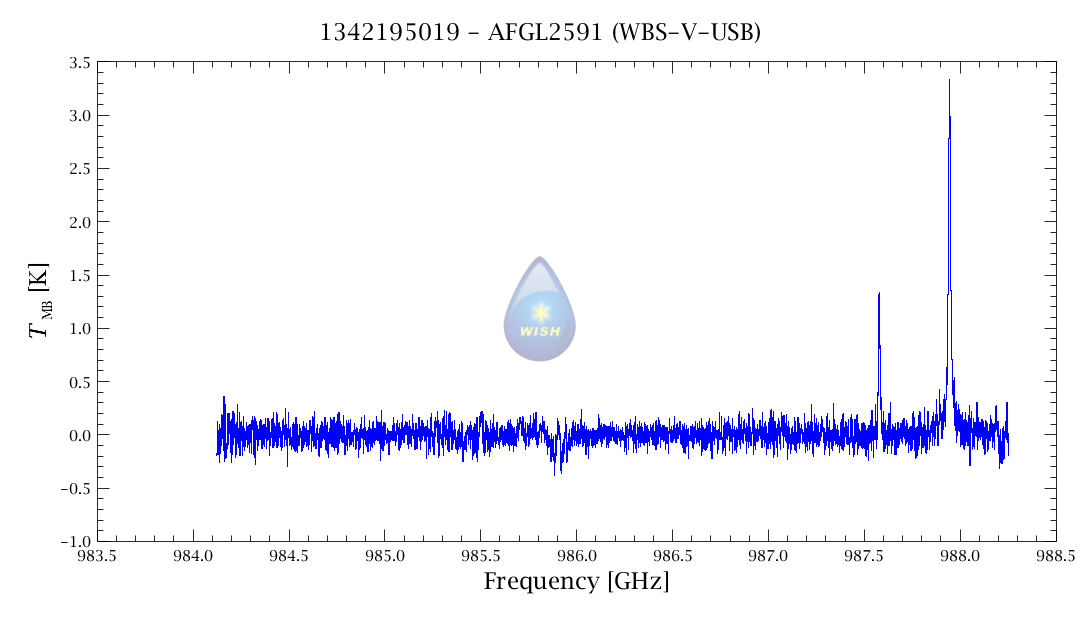

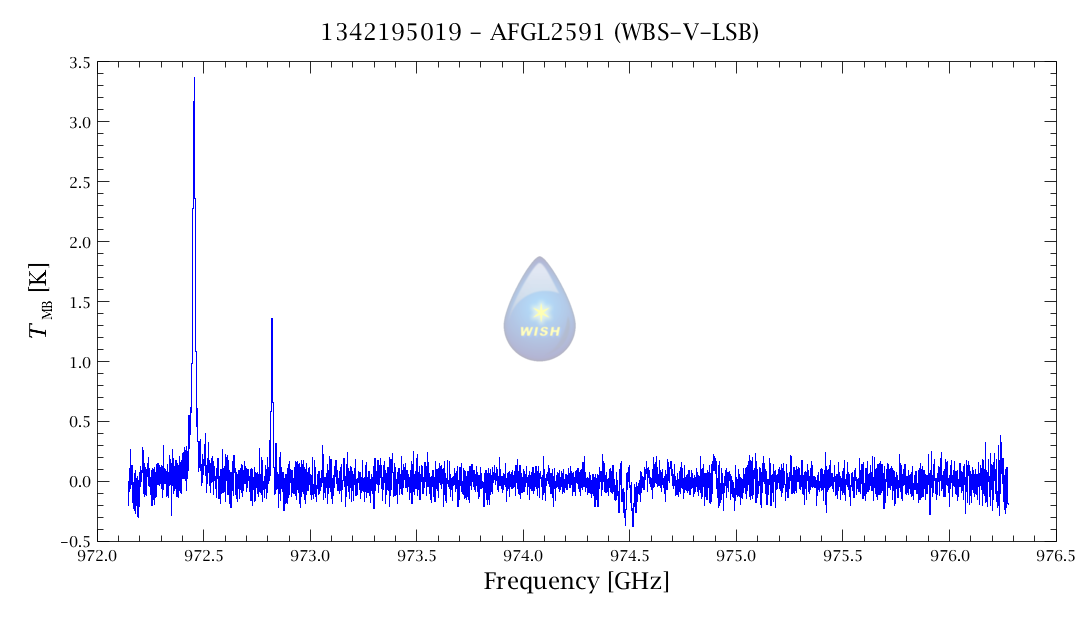

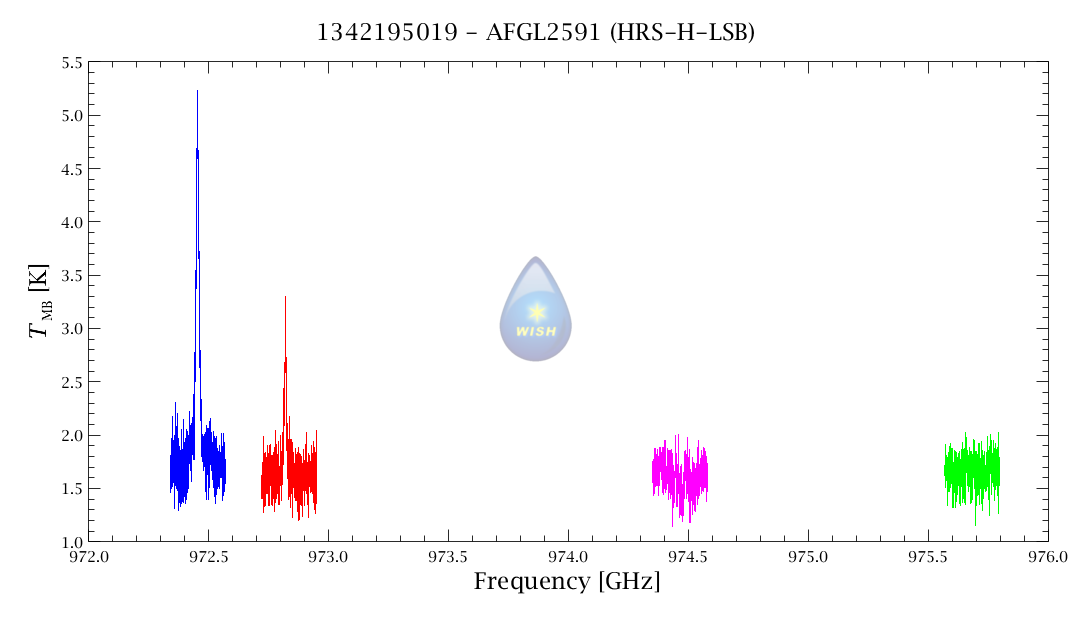

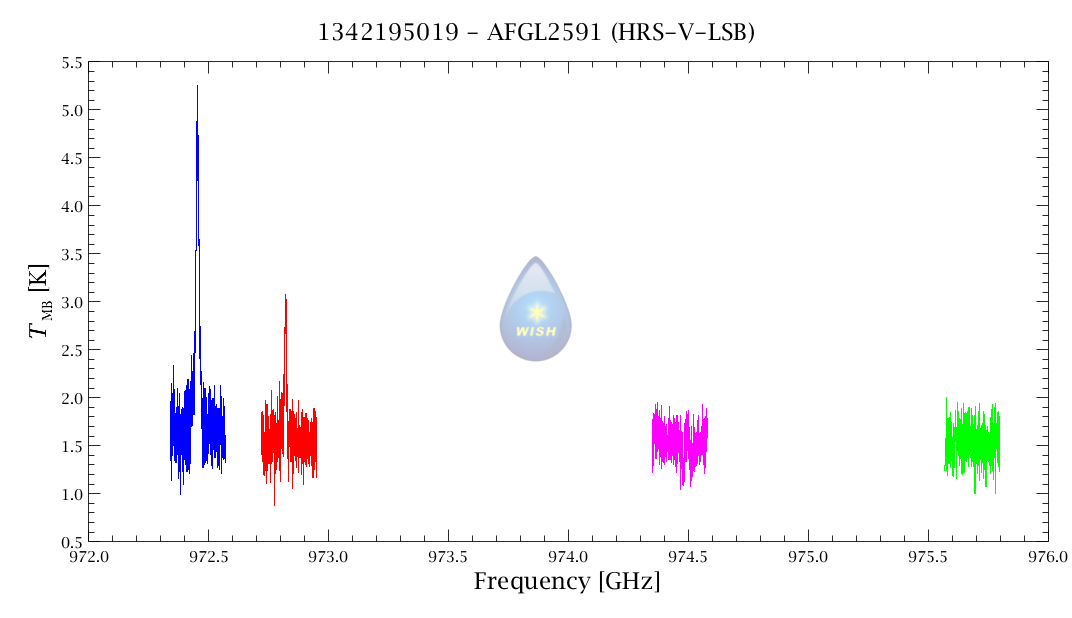

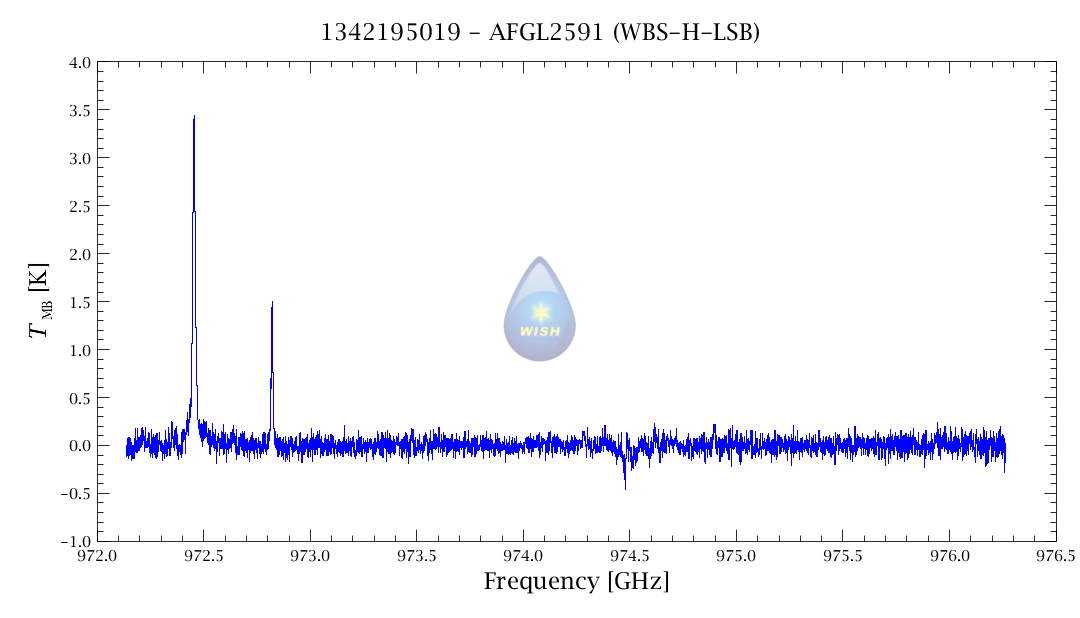

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0710	0.0806
continuum (K)	0.812	0.754

Downloads Corner

• RAW HIPE FORMAT (132MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Indriolo et al. 2015, ApJ
Choi et al. 2015, A&A
Van der Tak et al. 2013, A&A
San Jose-Garcia et al. 2013, A&A
Bruderer et al. 2010, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
