WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

L 1157-r
RA: 20 39 1.0 (^{h m s})
Dec: 68 4 31.08 (^{o ' "})

Observation Details

OBSID: 1342195090
Obs. Type: HIFI Single Point
Obs. Mode: Position Switch
AOR Label: PSP2_L1157 110-101 red
Band: 1B
Herschel Operation Day: OD340
Integration Time: 1125 sec
LO Frequency: 564.786 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-04-19
HSA Processing Date: 2014-07-16
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (0.456424,-1.93142) arcsec

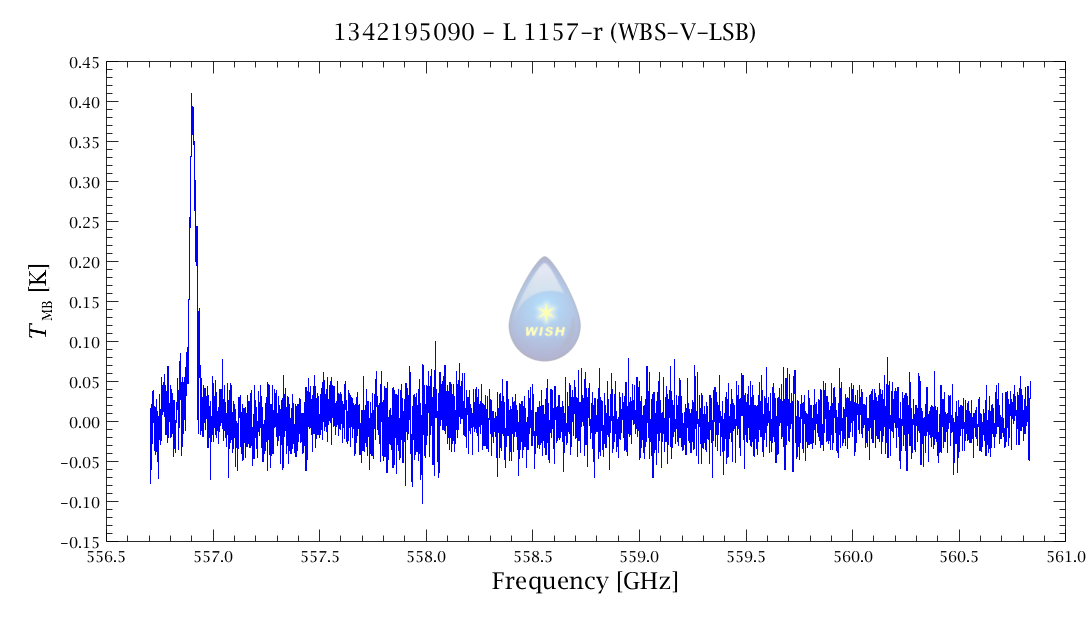

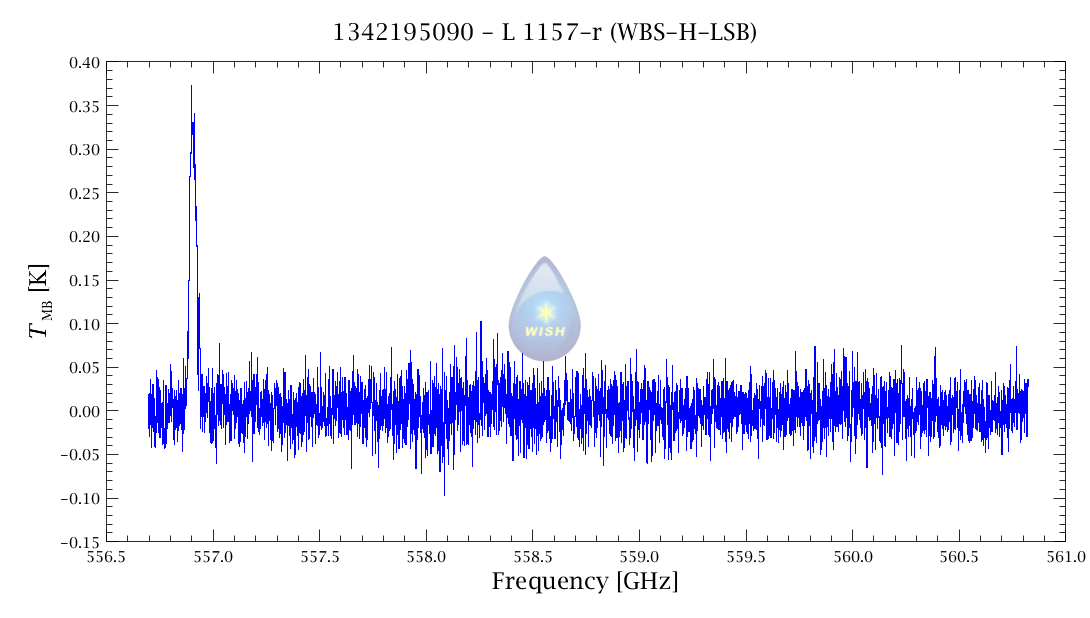

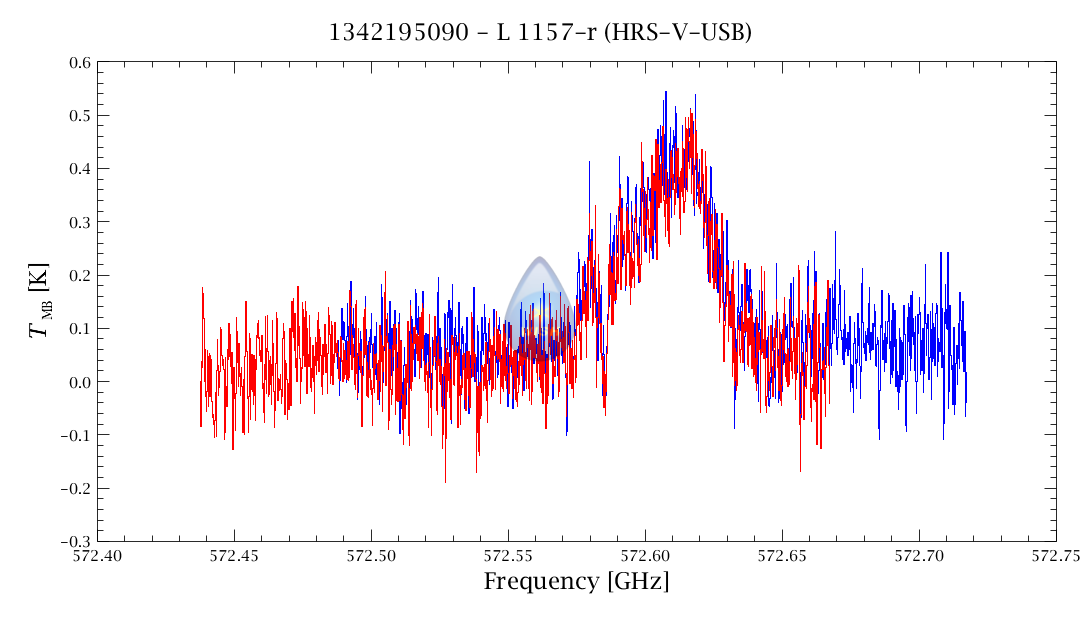

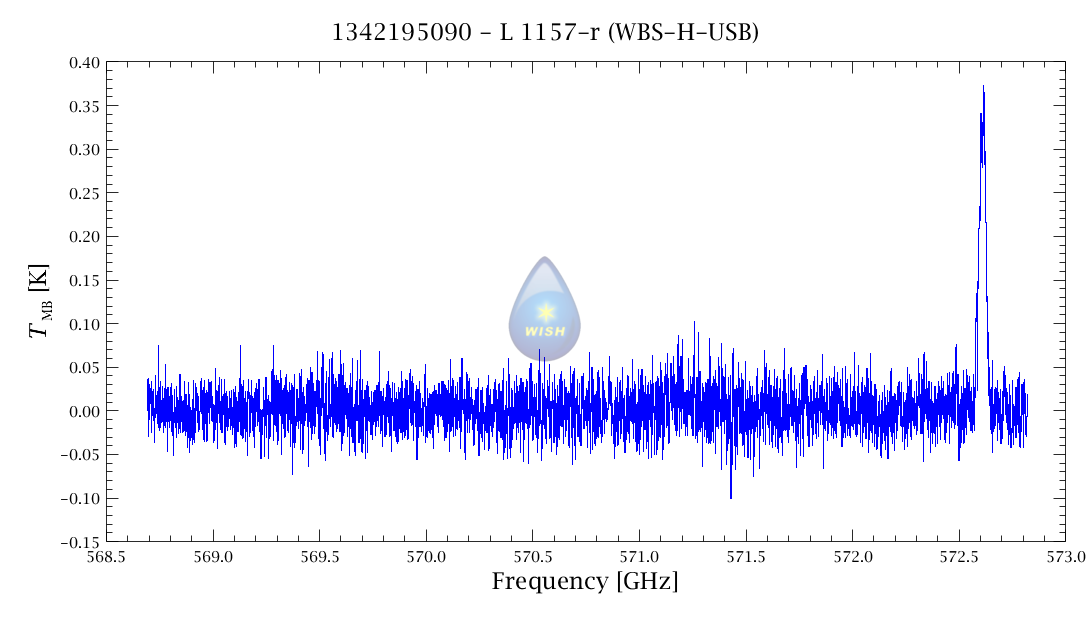

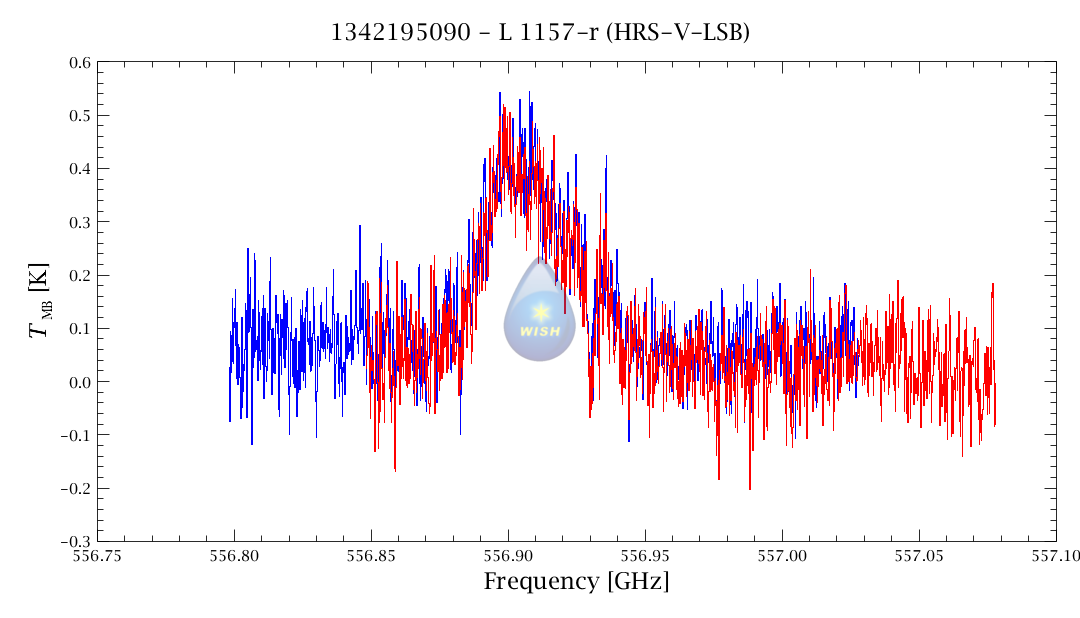

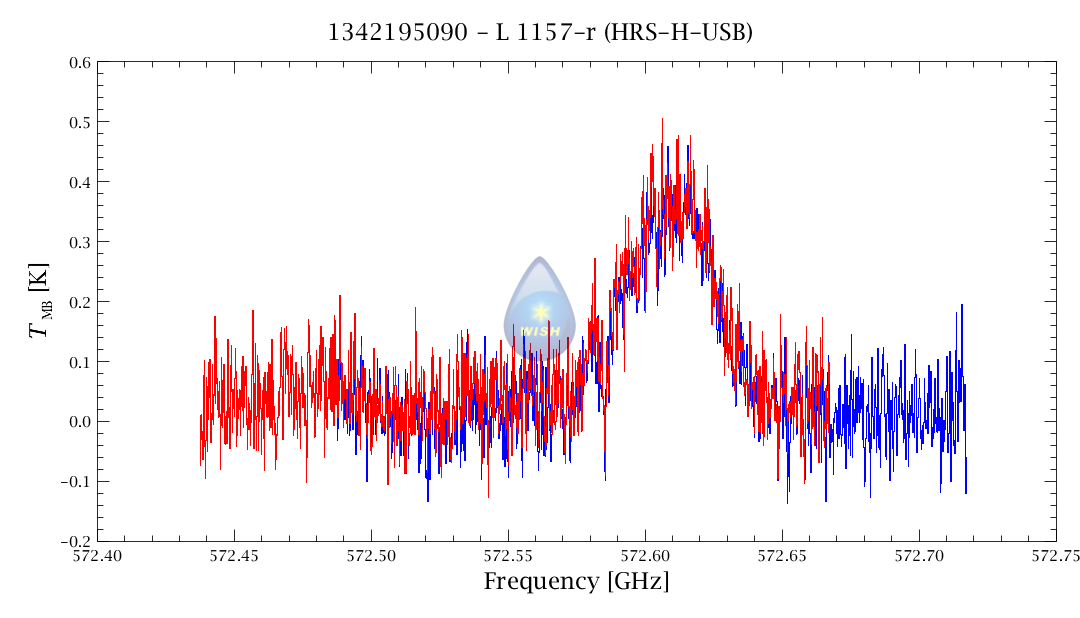

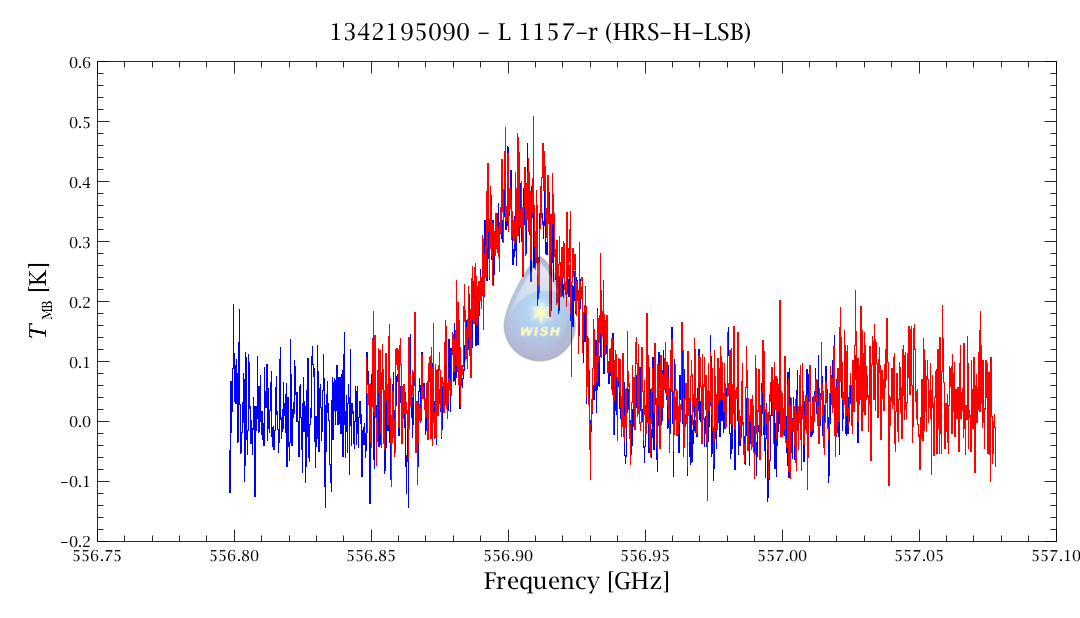

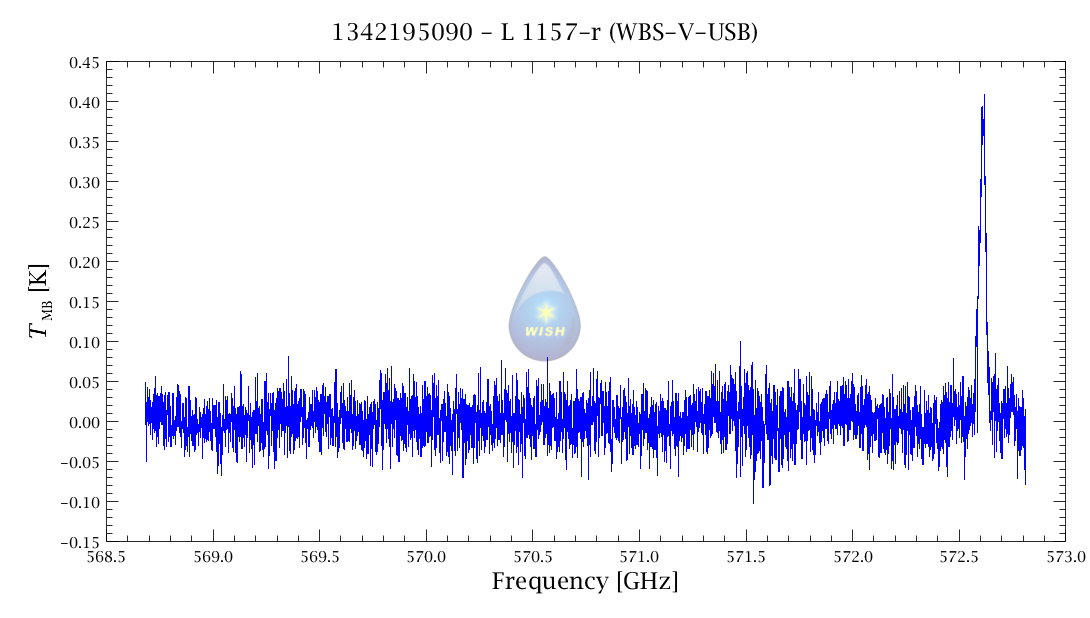

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0214	0.0210
continuum (K)	0.027	0.049

Downloads Corner

• RAW HIPE FORMAT (159MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
