WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

HH46-b
RA: 8 25 42.7 (^{h m s})
Dec: -51 0 36.00 (^{o ' "})

Observation Details

OBSID: 1342195095
Obs. Type: HIFI Single Point
Obs. Mode: Position Switch
AOR Label: PSP2_HH46-blue
Band: 1B
Herschel Operation Day: OD340
Integration Time: 897 sec
LO Frequency: 564.696 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-04-19
HSA Processing Date: 2014-07-16
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (0.950266,0.010229) arcsec

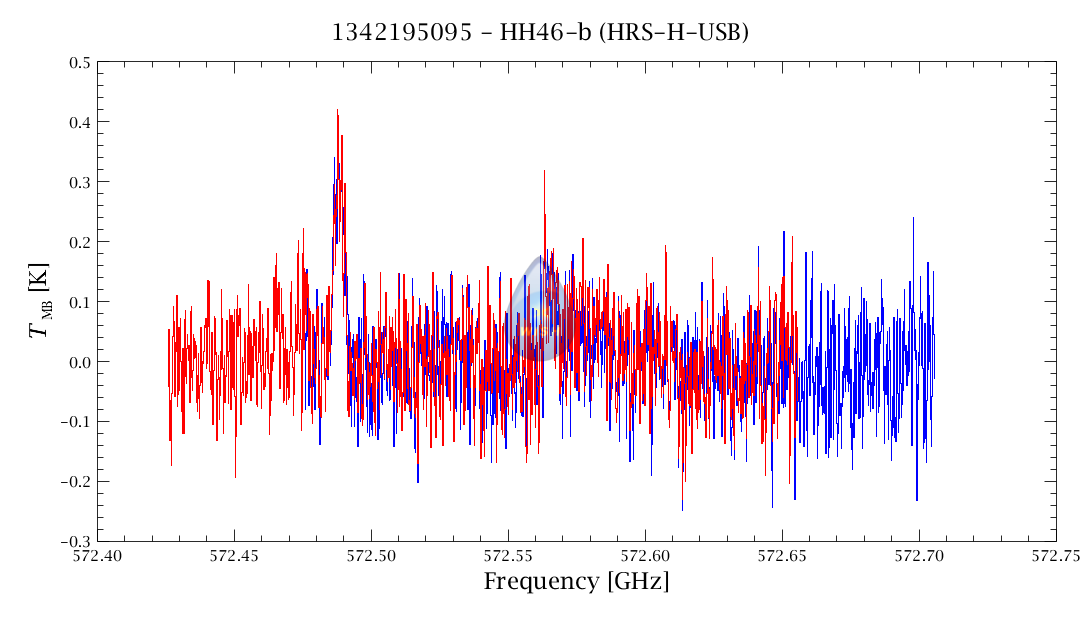

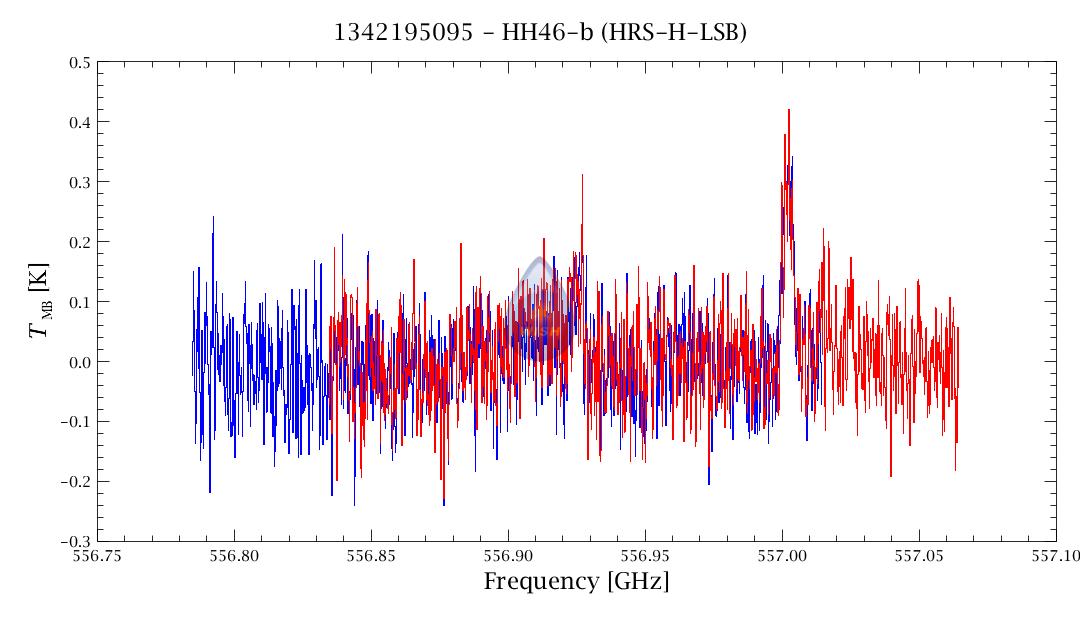

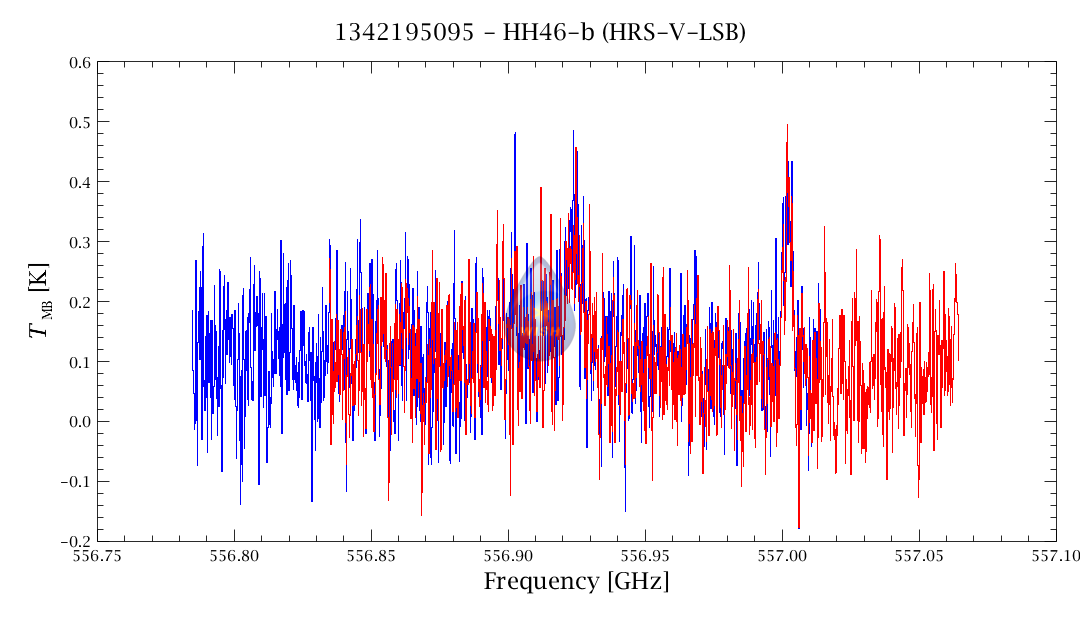

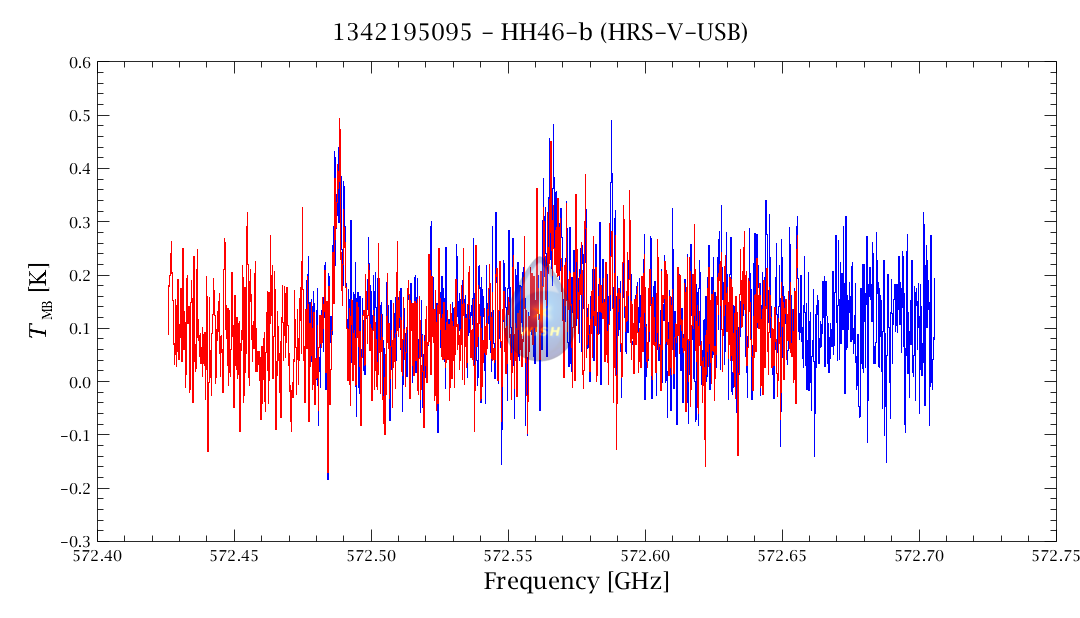

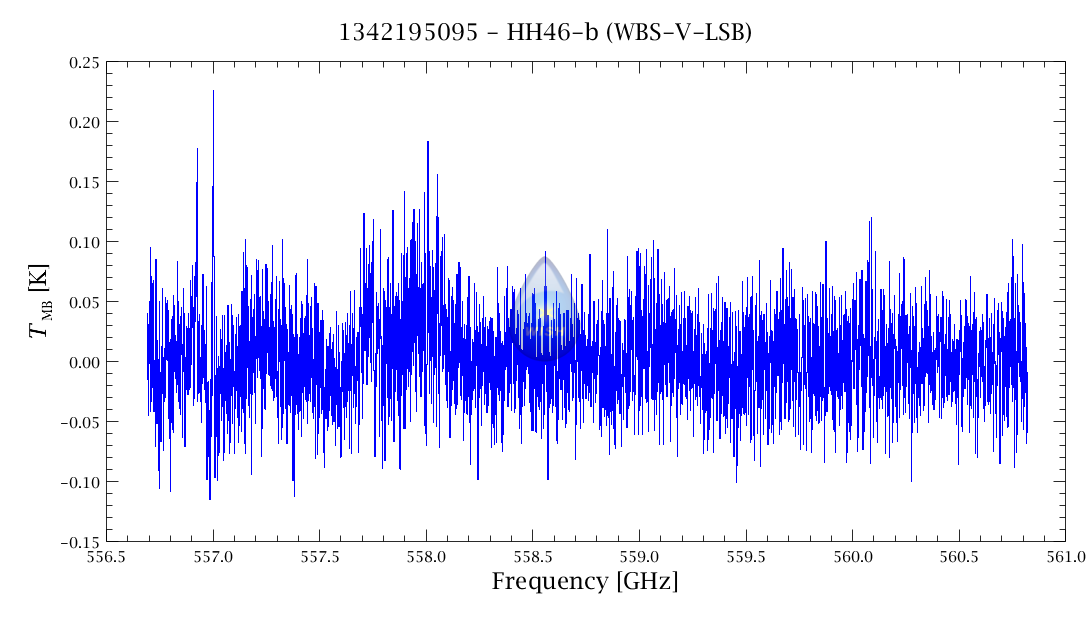

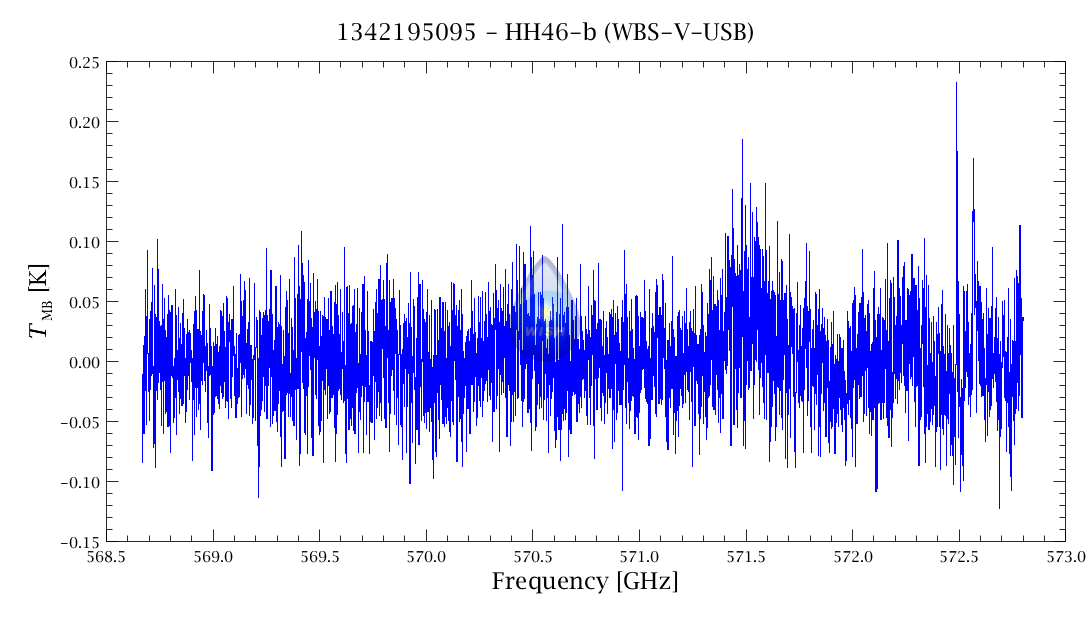

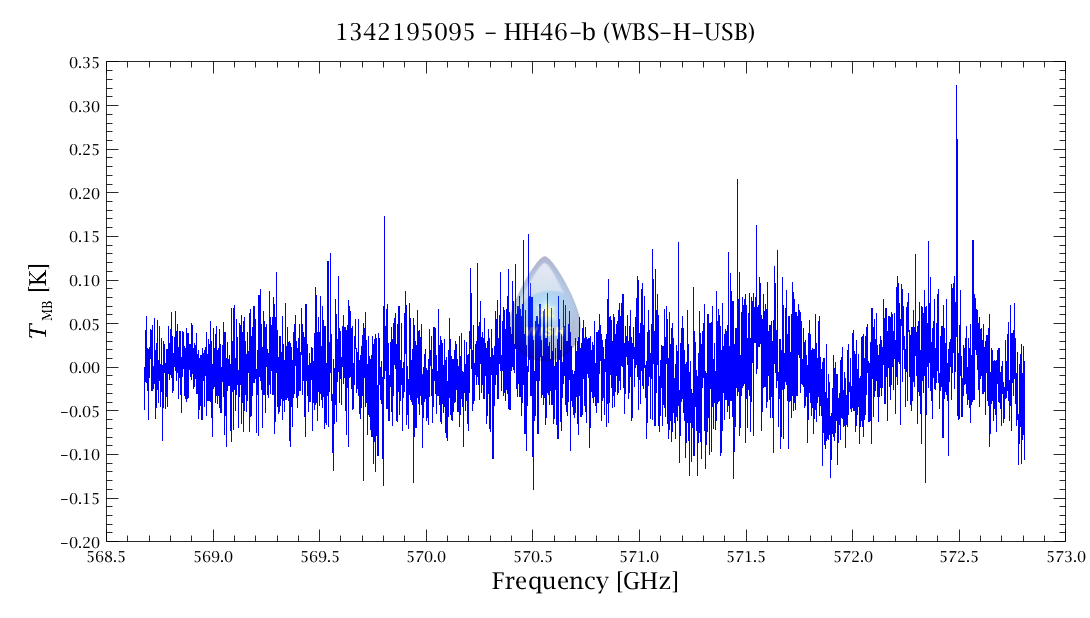

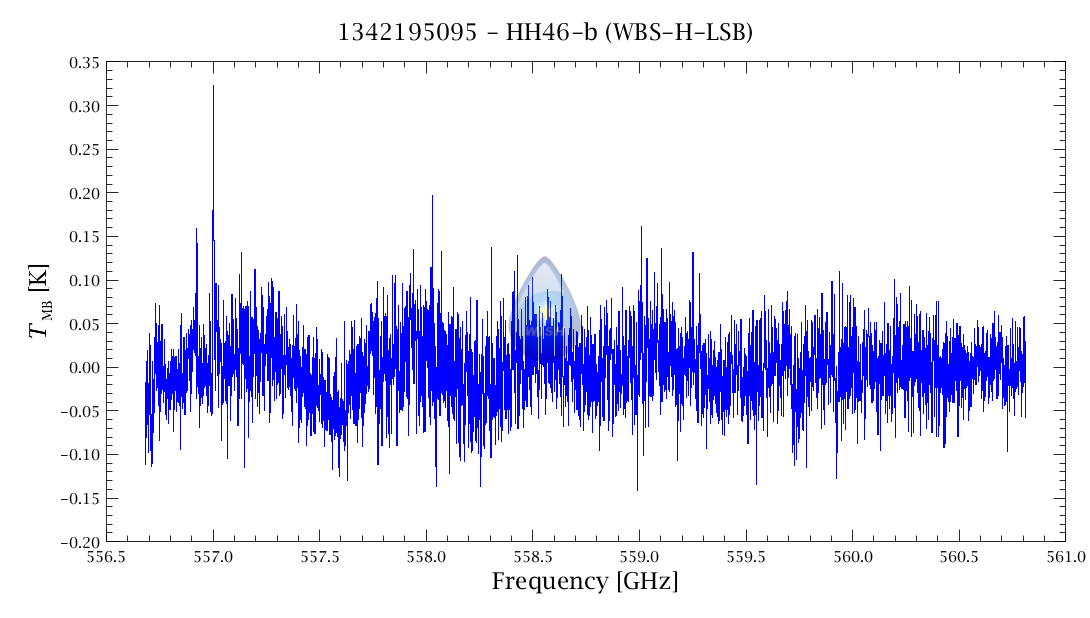

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0306	0.0305
continuum (K)	-0.009	0.097

Downloads Corner

• RAW HIPE FORMAT (117MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Tafalla et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
