WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

HH 46
RA: 8 25 43.9 (^{h m s})
Dec: -51 0 36.00 (^{o ' "})

Observation Details

OBSID: 1342196410
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: SDP_H2O 110-101 Class I - HH 46
Band: 1B
Herschel Operation Day: OD362
Integration Time: 2238 sec
LO Frequency: 562.54725 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-05-10
HSA Processing Date: 2014-07-16
WISH Processing Date: 2014-08-04
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (0.907529,-0.19059) arcsec

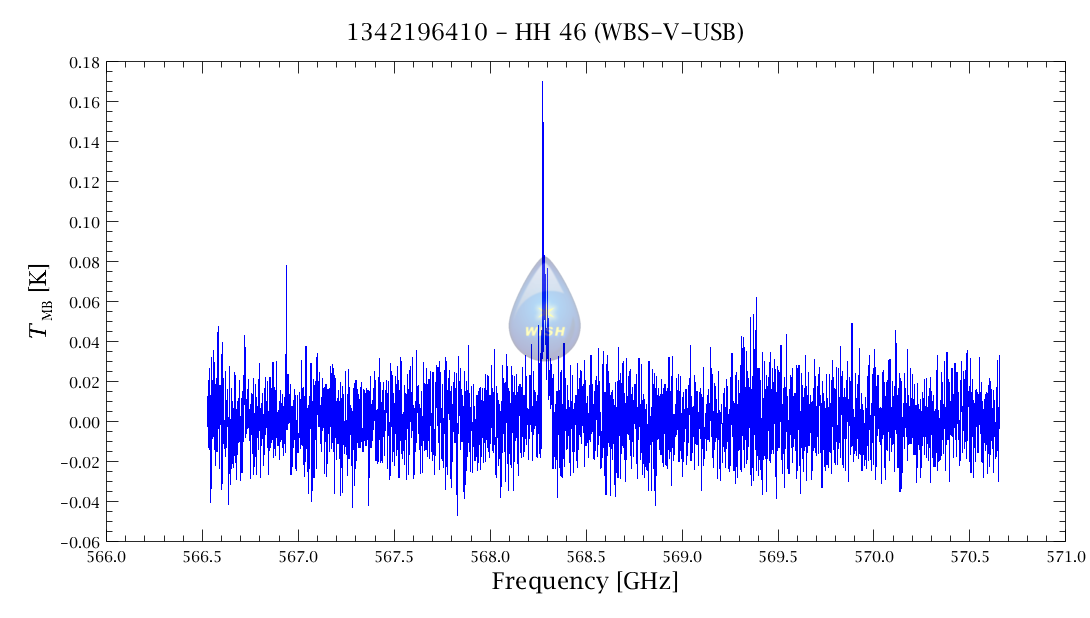

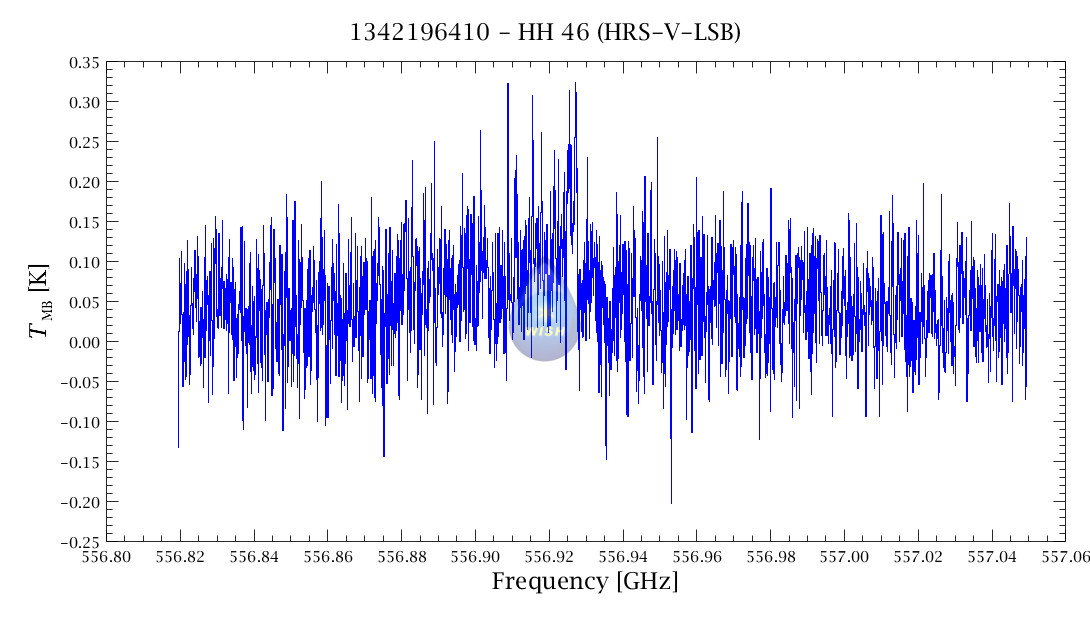

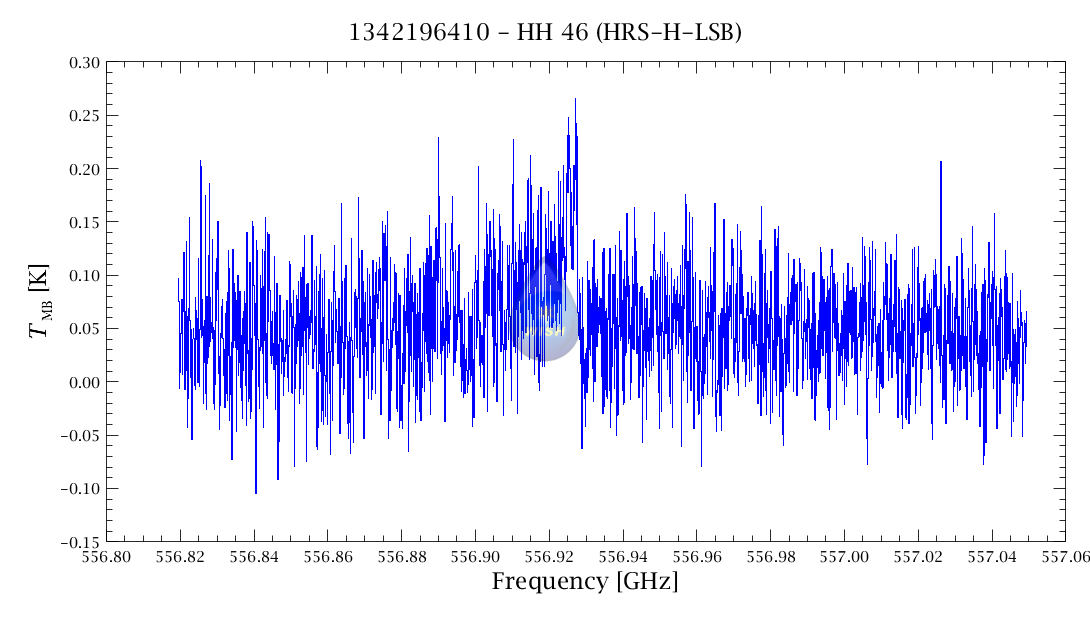

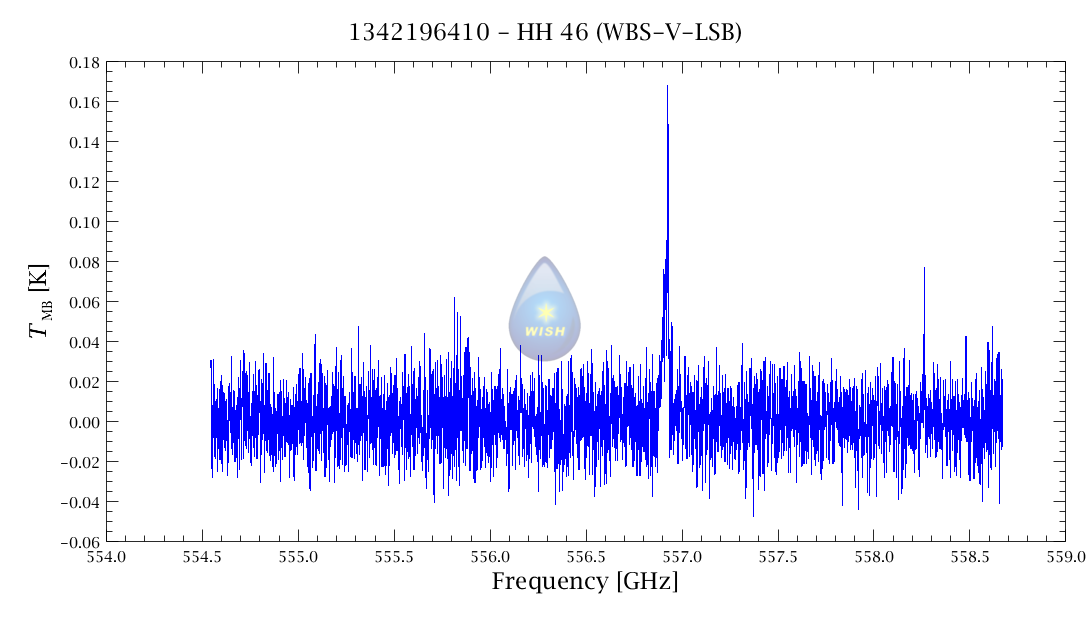

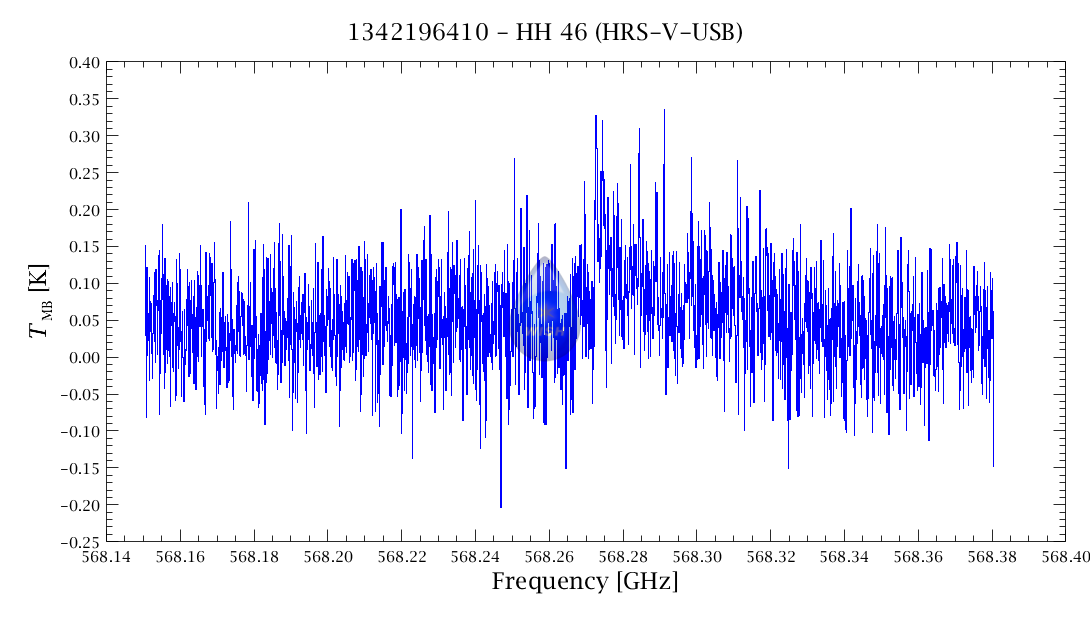

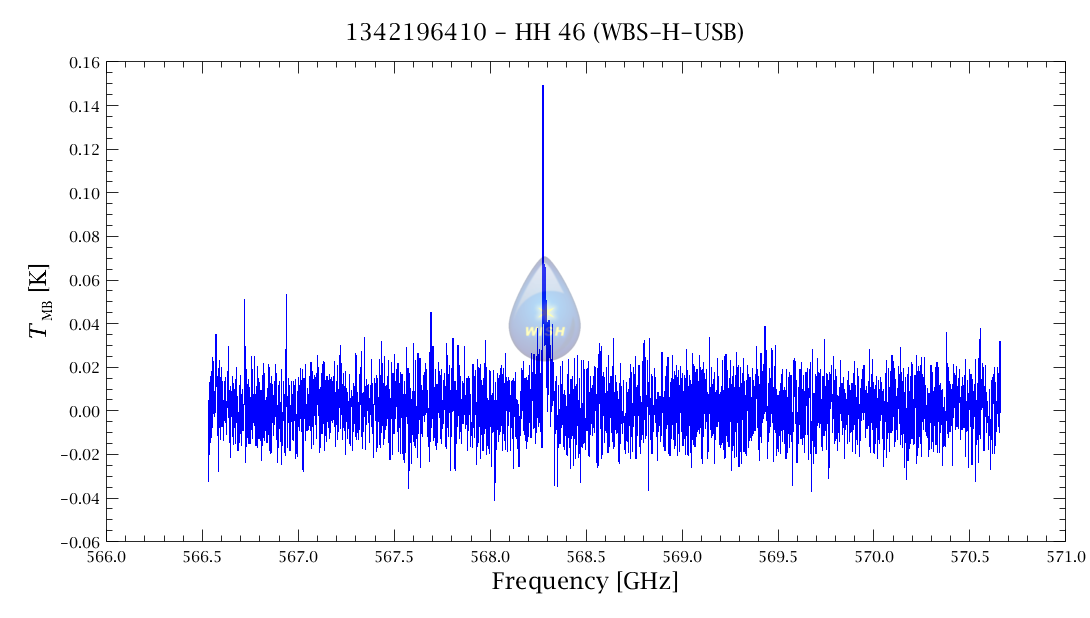

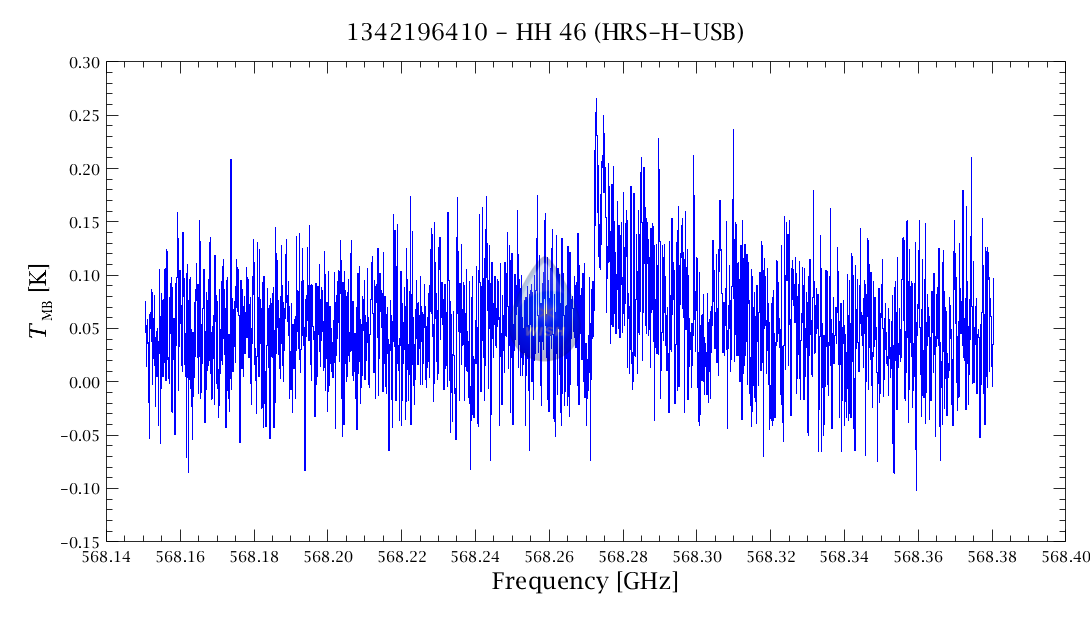

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0107	0.0131
continuum (K)	0.022	0.020

Downloads Corner

• RAW HIPE FORMAT (103MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Schmalzl et al. 2014, A&A
Mottram et al. 2014, A&A
Kristensen et al. 2012, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
