WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

AFGL 2591
RA: 20 29 25.0 (^{h m s})
Dec: 40 11 19.68 (^{o ' "})

Observation Details

OBSID: 1342196532
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: PSP2_AFGL 2591 - Setting 8 - shift
Band: 6B
Herschel Operation Day: OD365
Integration Time: 1262 sec
LO Frequency: 1665.7245 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-05-13
HSA Processing Date: 2014-07-16
WISH Processing Date: 2014-08-01
Beam Efficiency H ⁽¹⁾: η=0.58
Beam Efficiency V⁽¹⁾: η=0.58
Beam Efficiency (2012) ⁽¹⁾: η=0.707
Position offset (x,y): (-2.17877,-1.33134) arcsec

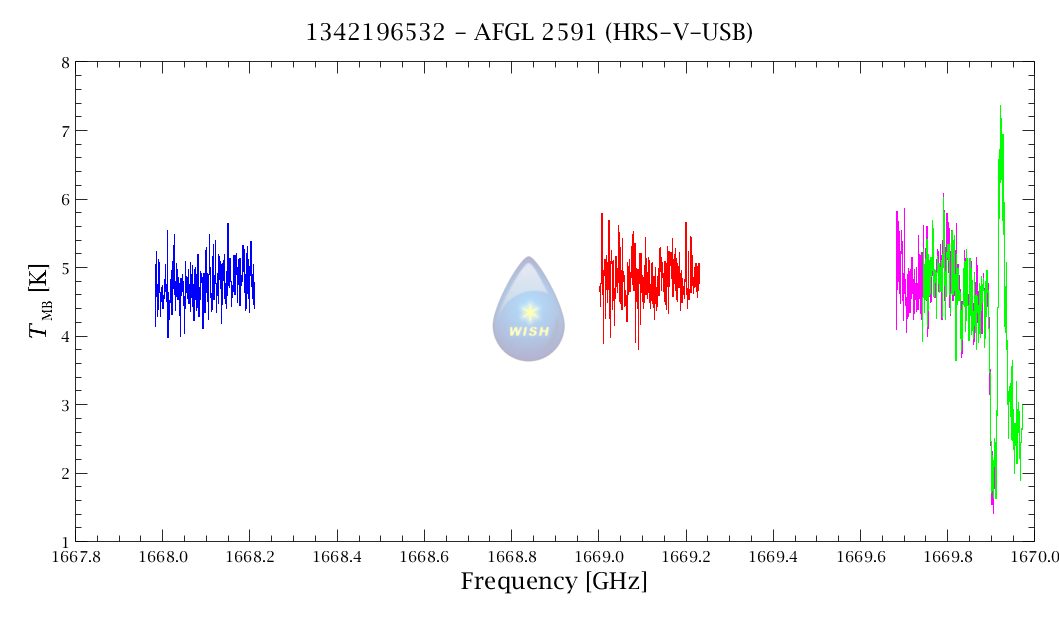

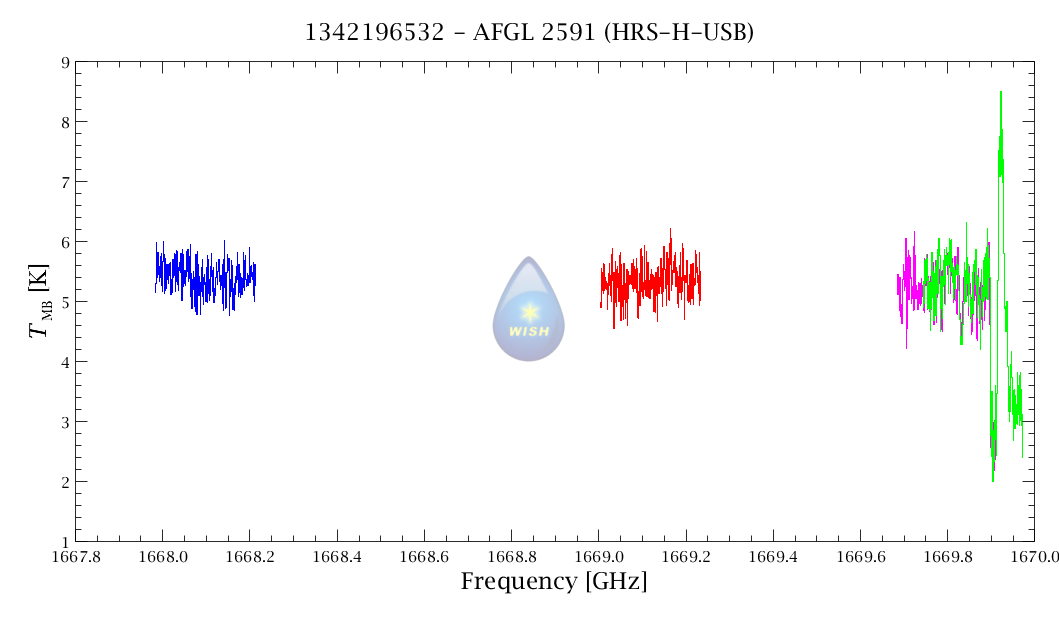

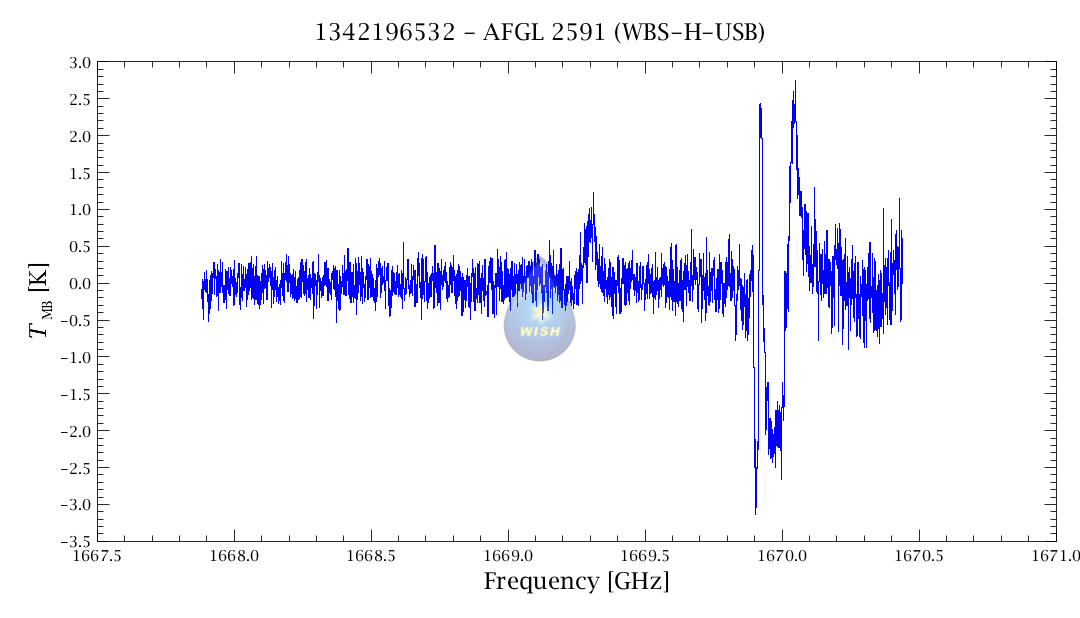

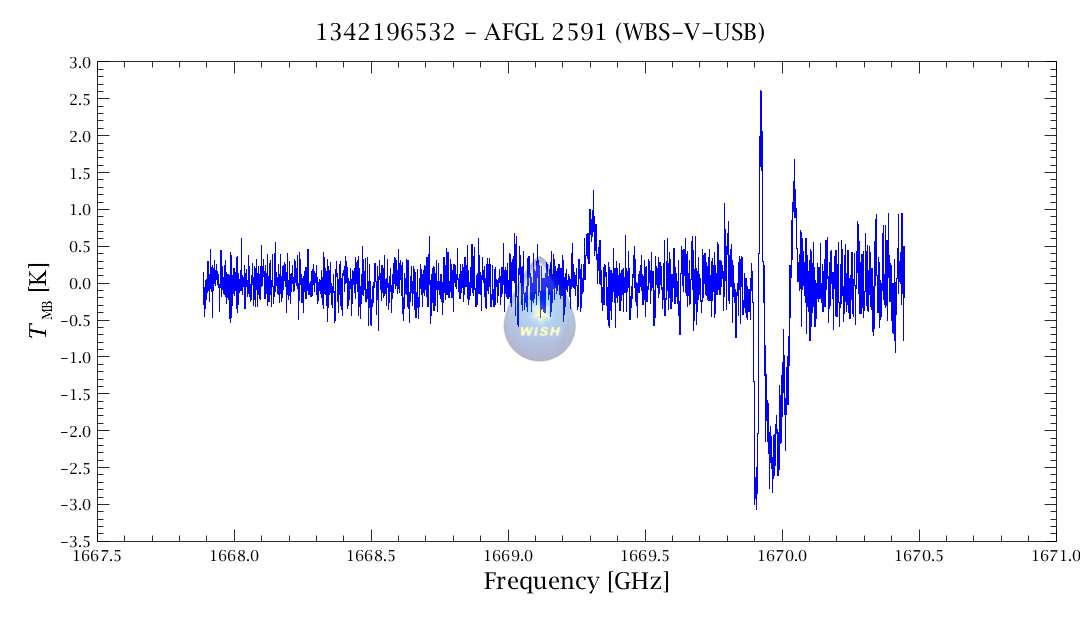

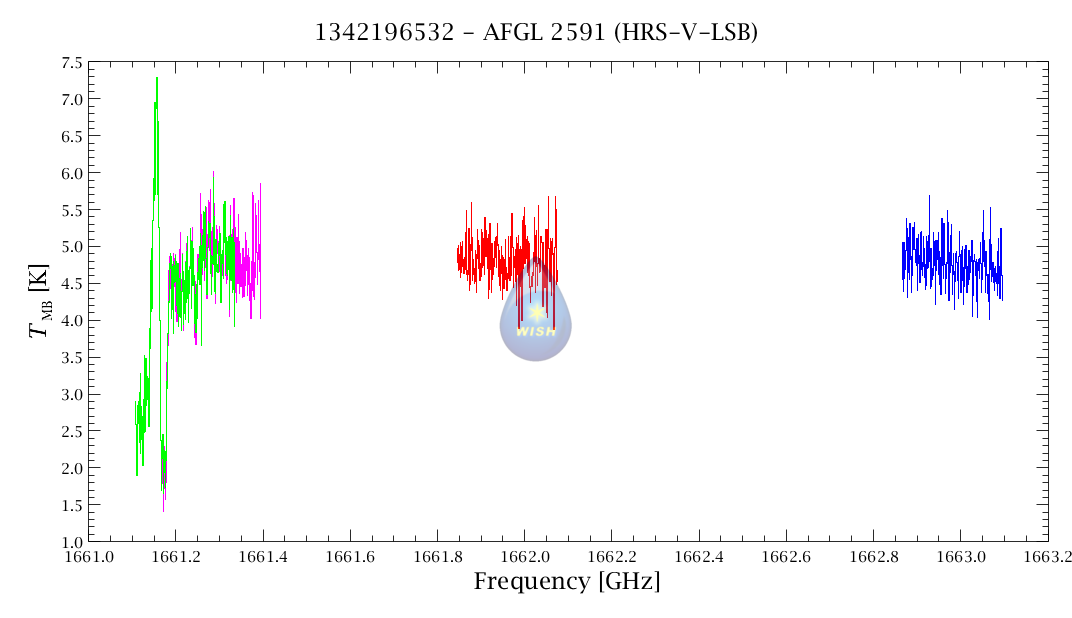

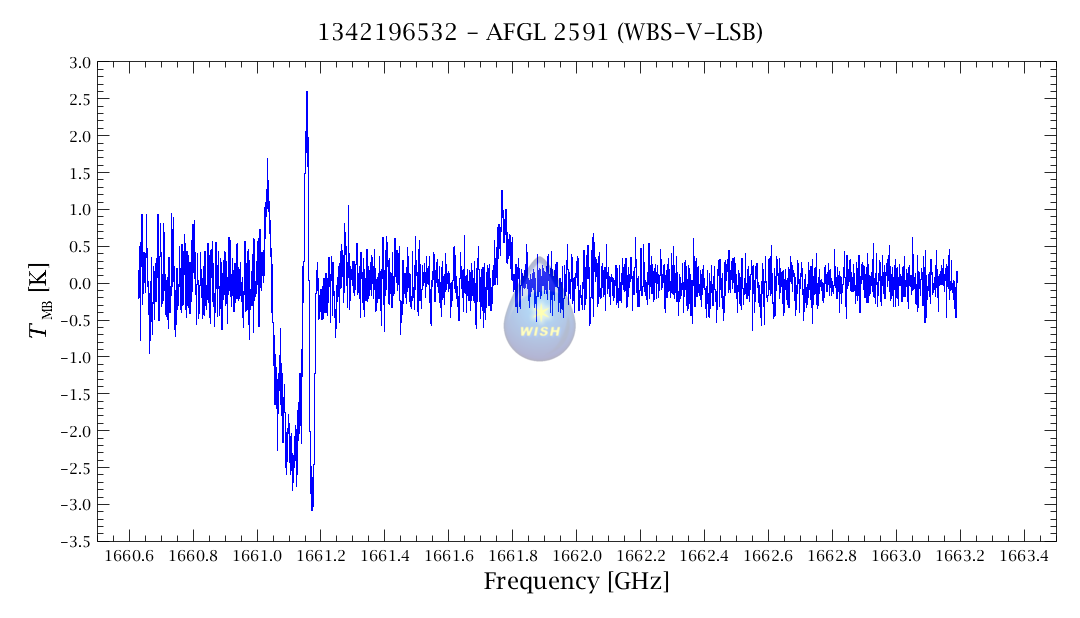

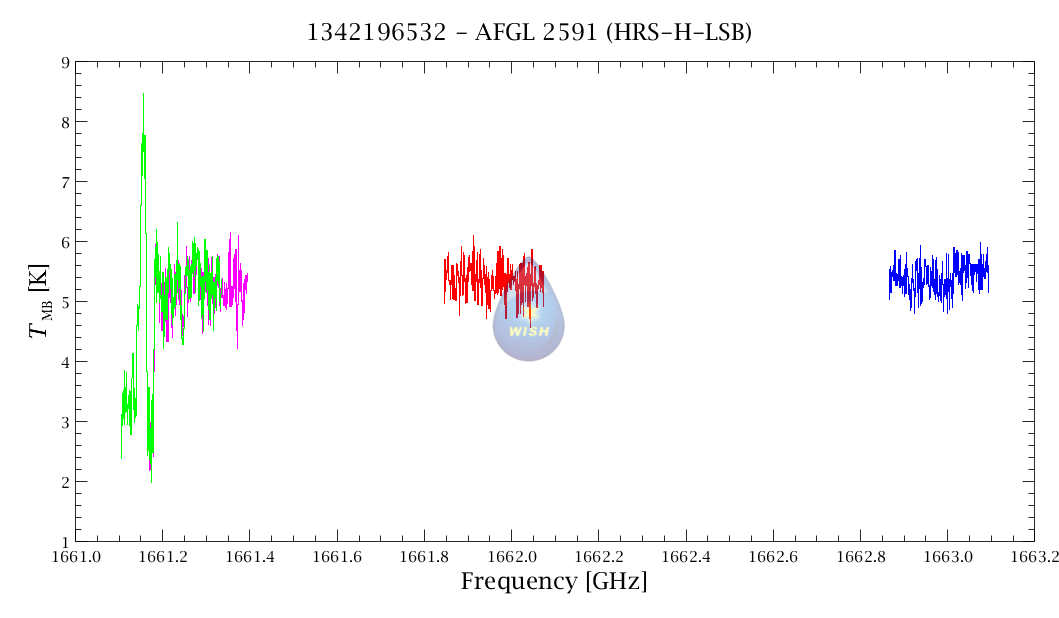

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1
	WBS-H	WBS-V
rms (K)	0.4231	0.3327
continuum (K)	2.604	2.348

Downloads Corner

• RAW HIPE FORMAT (108MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Benz et al. 2013, Journ. Phys. Chem. A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
