WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

S140
RA: 22 19 18.2 (^{h m s})
Dec: 63 18 46.80 (^{o ' "})

Observation Details

OBSID: 1342197968
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: S140 - Setting 1
Band: 4A
Herschel Operation Day: OD391
Integration Time: 801 sec
LO Frequency: 721.1745 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-06-08
HSA Processing Date: 2014-07-17
WISH Processing Date: 2014-08-01
Beam Efficiency H ⁽¹⁾: η=0.64
Beam Efficiency V⁽¹⁾: η=0.66
Beam Efficiency (2012) ⁽¹⁾: η=0.75
Position offset (x,y): (1.66828,-0.70954) arcsec

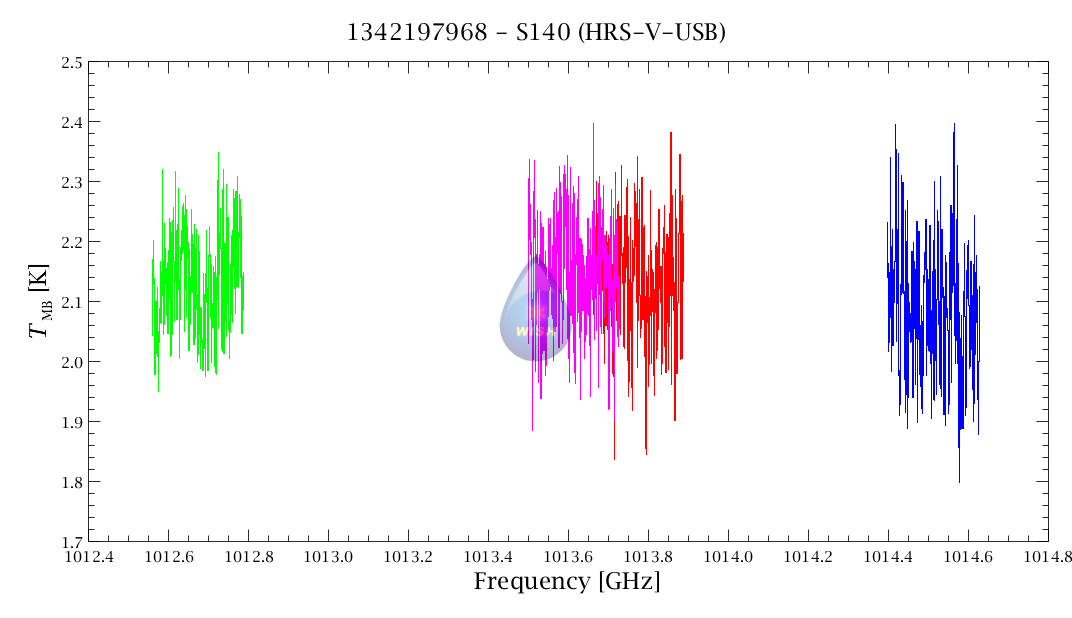

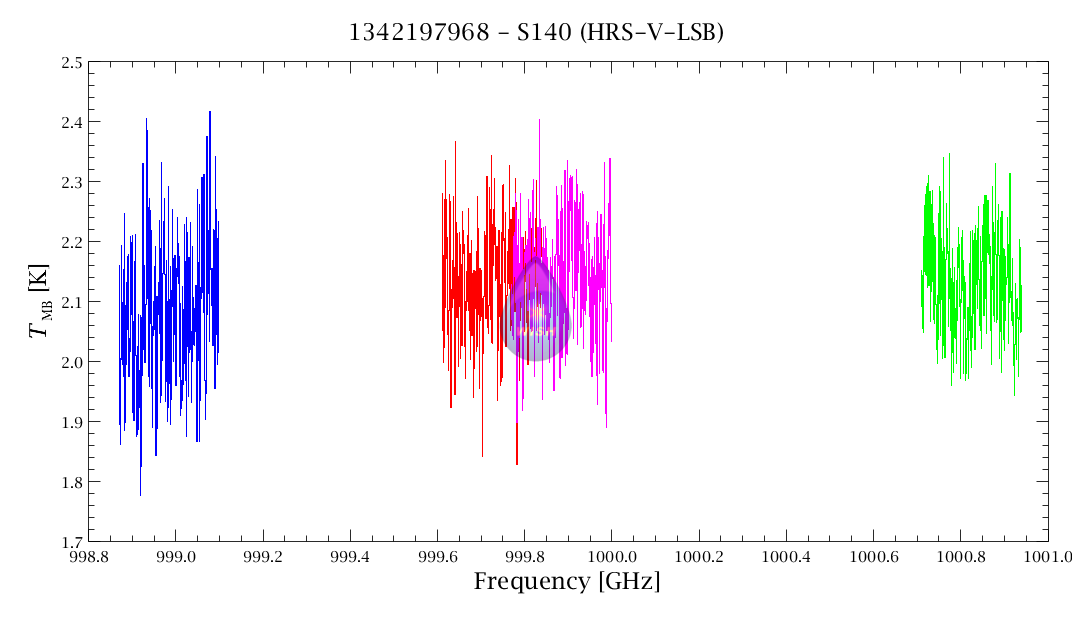

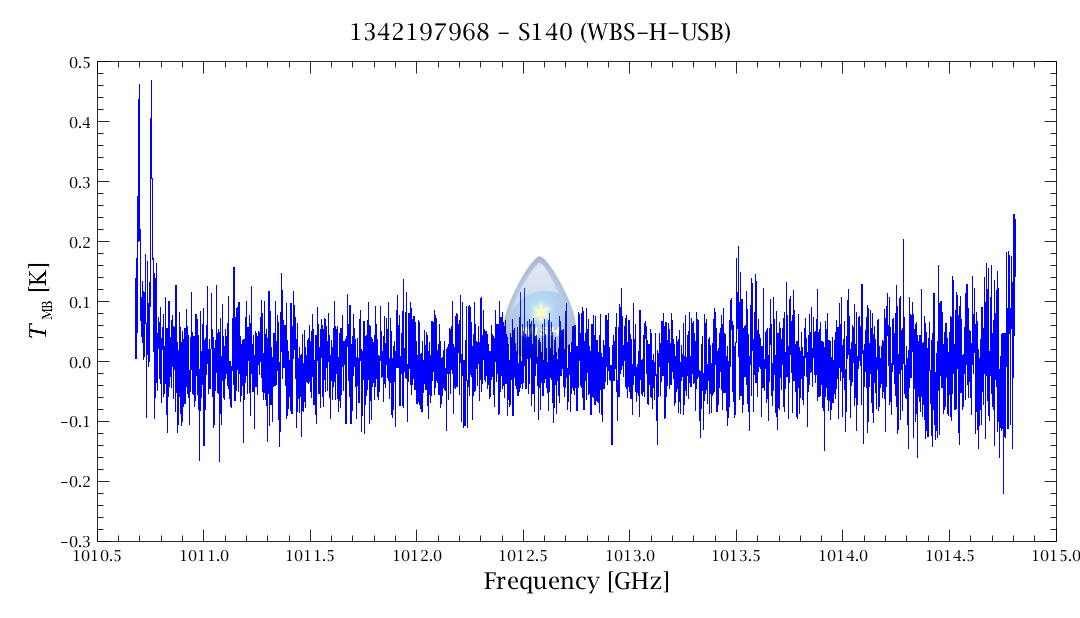

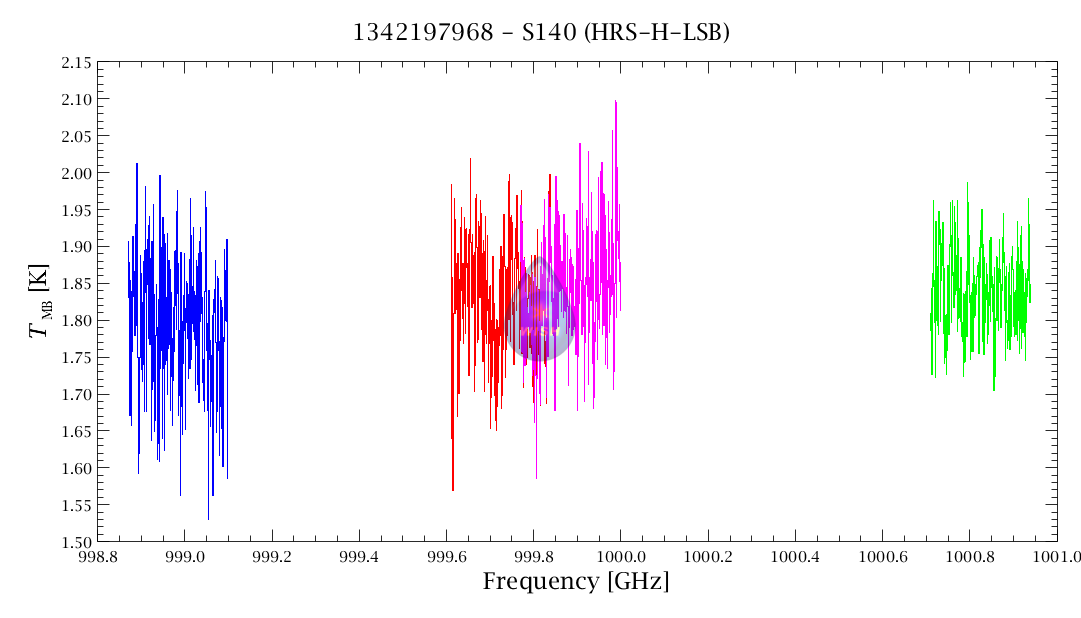

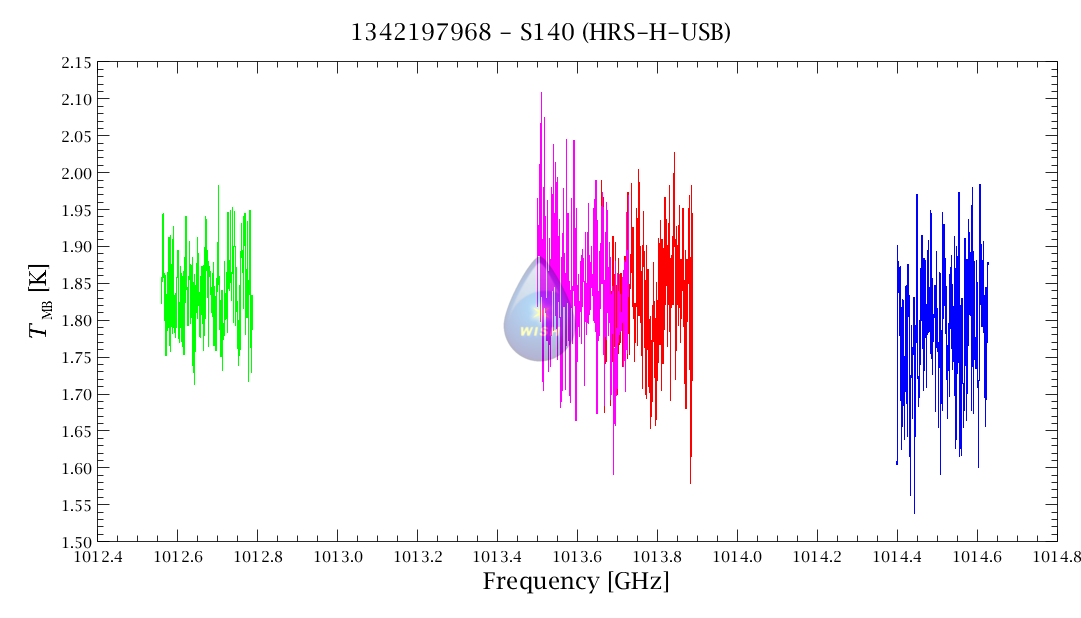

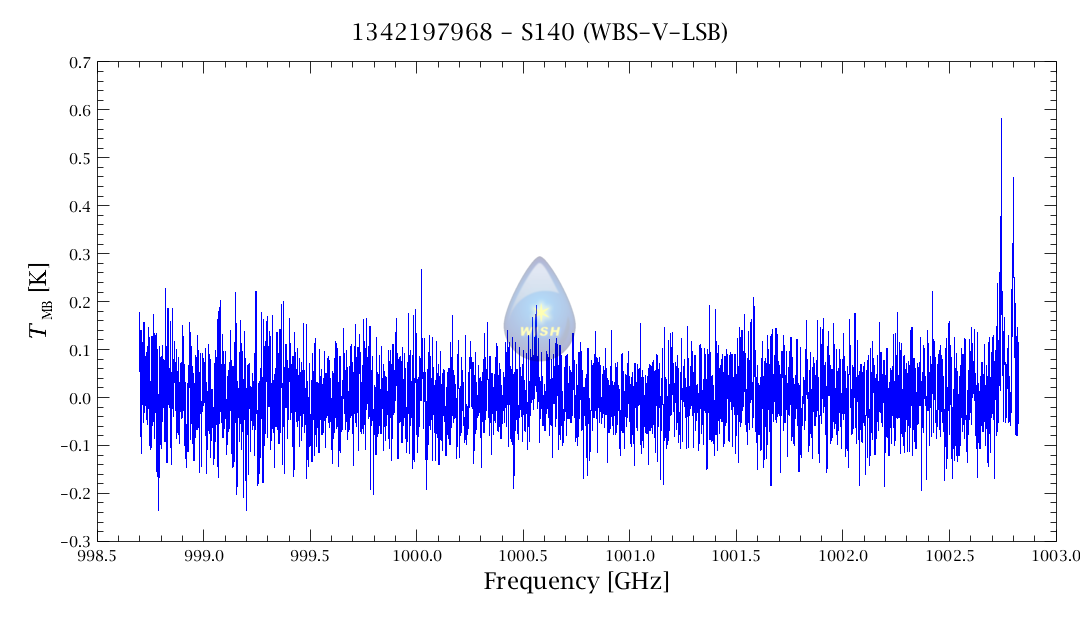

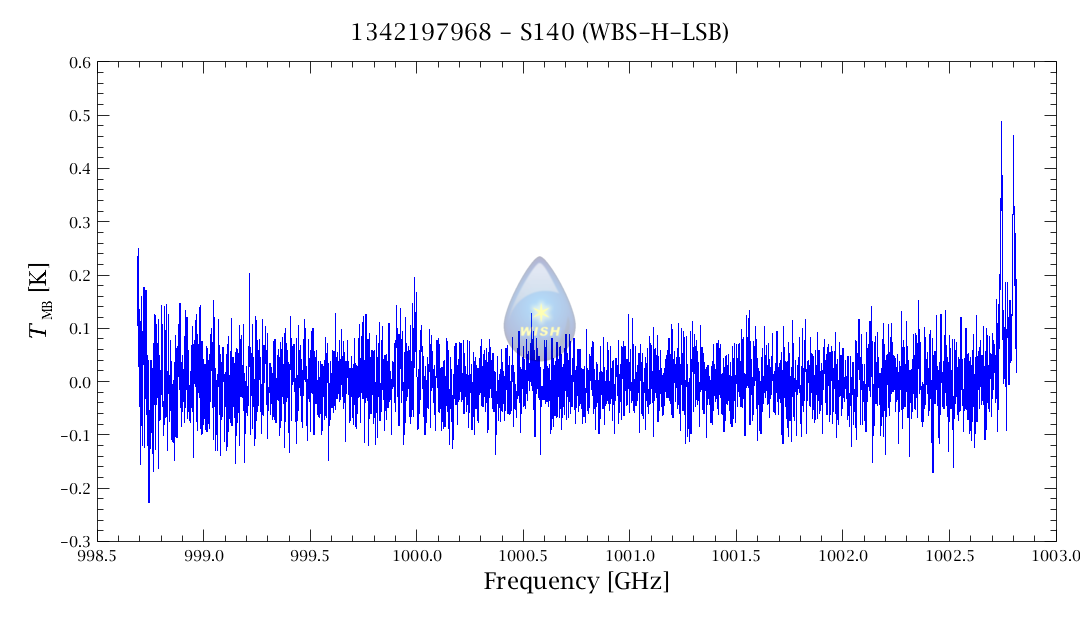

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0461	0.0631
continuum (K)	0.908	1.076

Downloads Corner

• RAW HIPE FORMAT (98MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
