WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

L1157_b2
RA: 20 39 12.5 (^{h m s})
Dec: 68 0 41.04 (^{o ' "})

Observation Details

OBSID: 1342199078
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: !1157_b2 H218O
Band: 1A
Herschel Operation Day: OD406
Integration Time: 3487 sec
LO Frequency: 542.24775 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-06-23
HSA Processing Date: 2014-07-21
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (-0.61235,-2.83104) arcsec

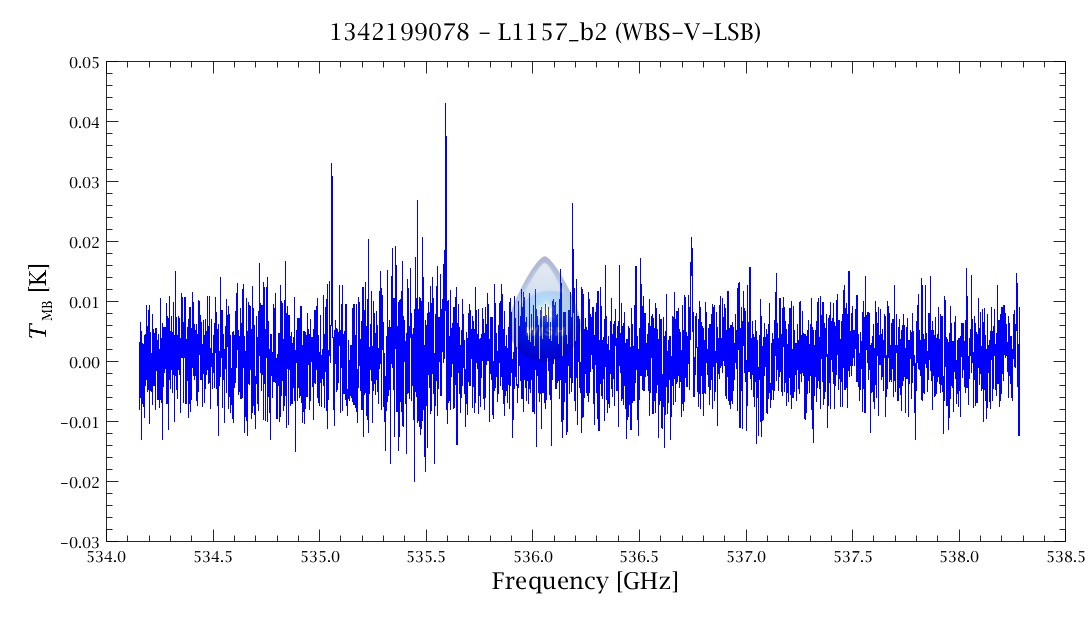

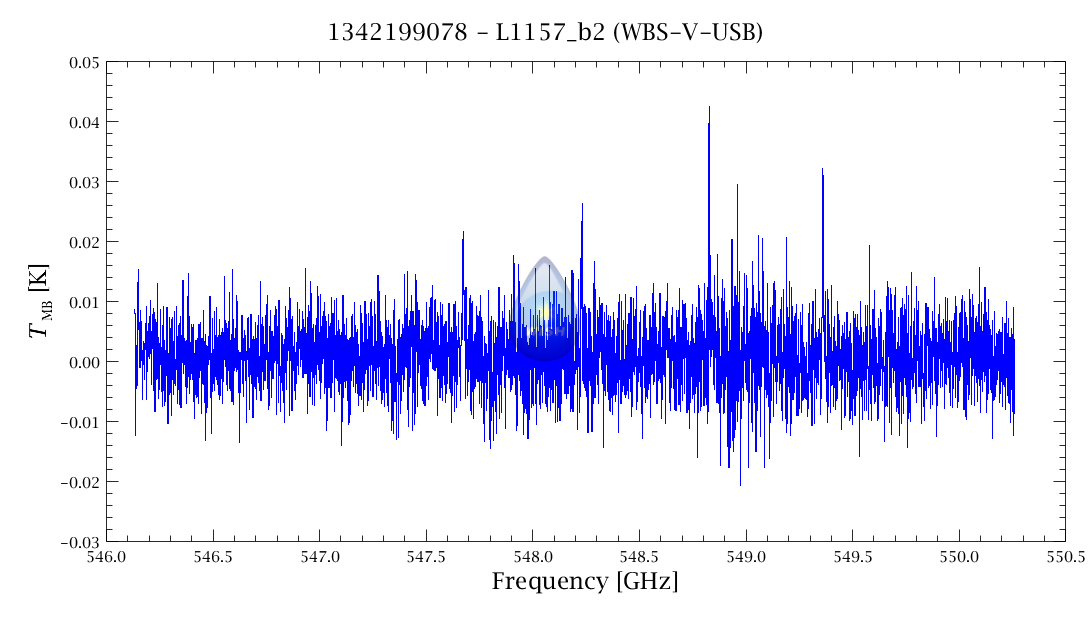

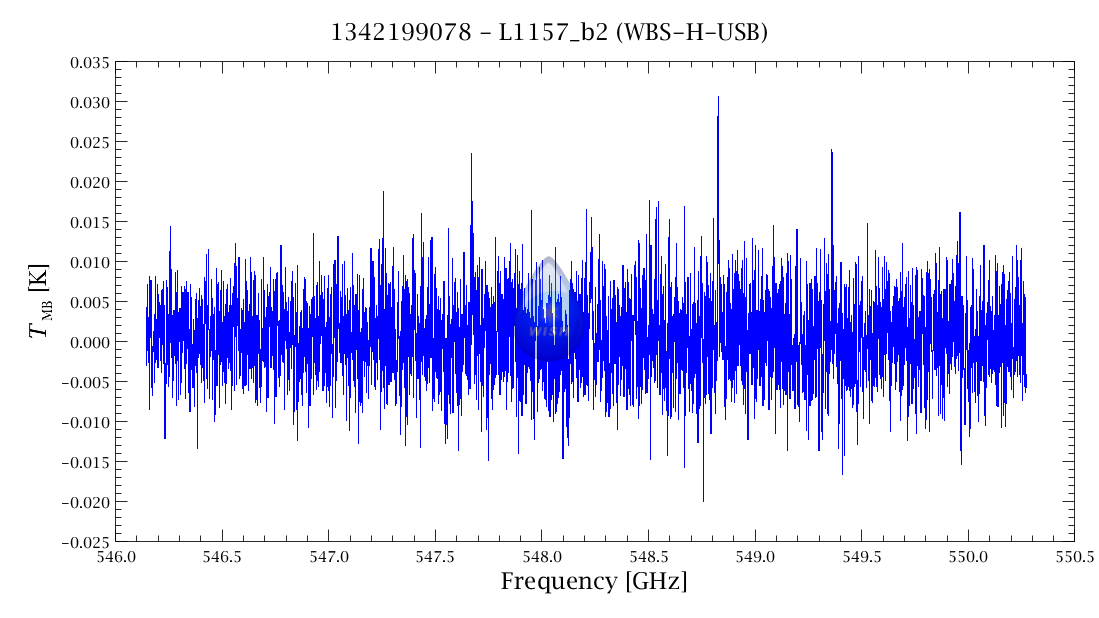

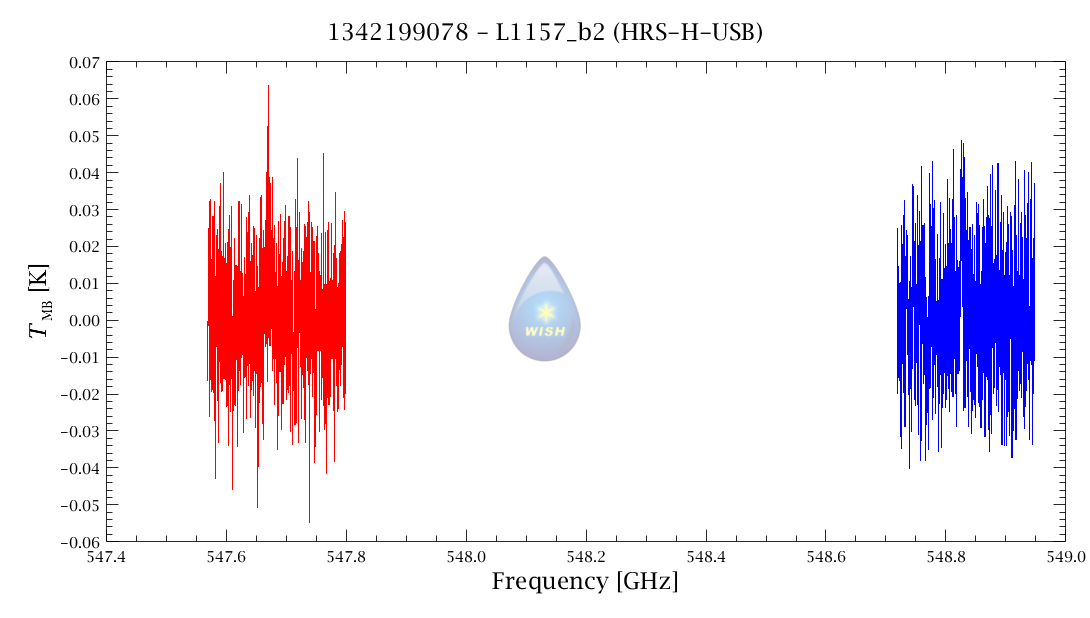

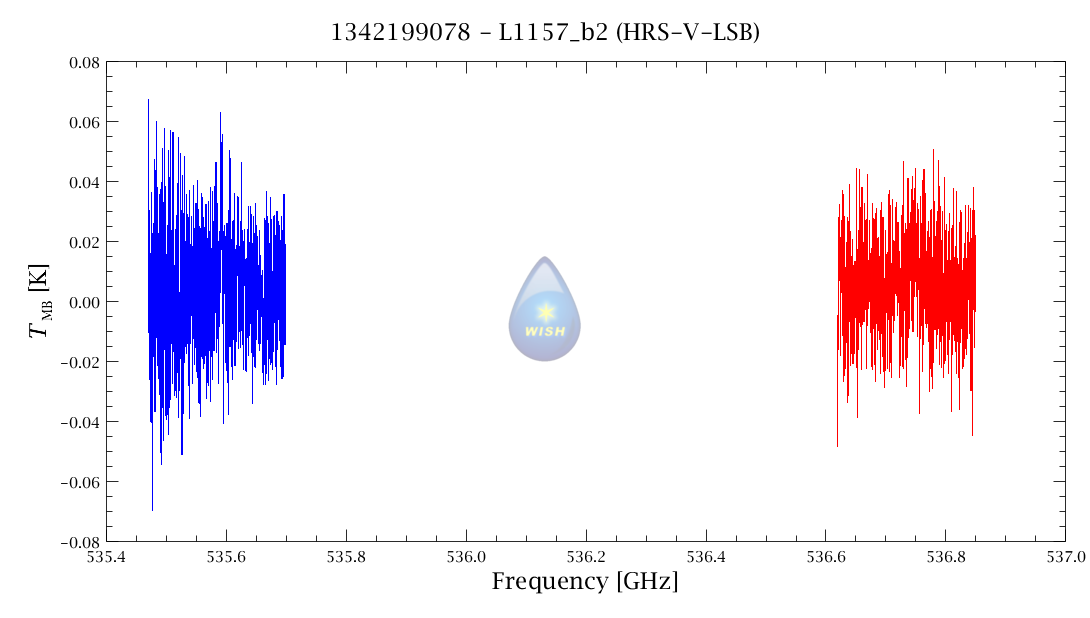

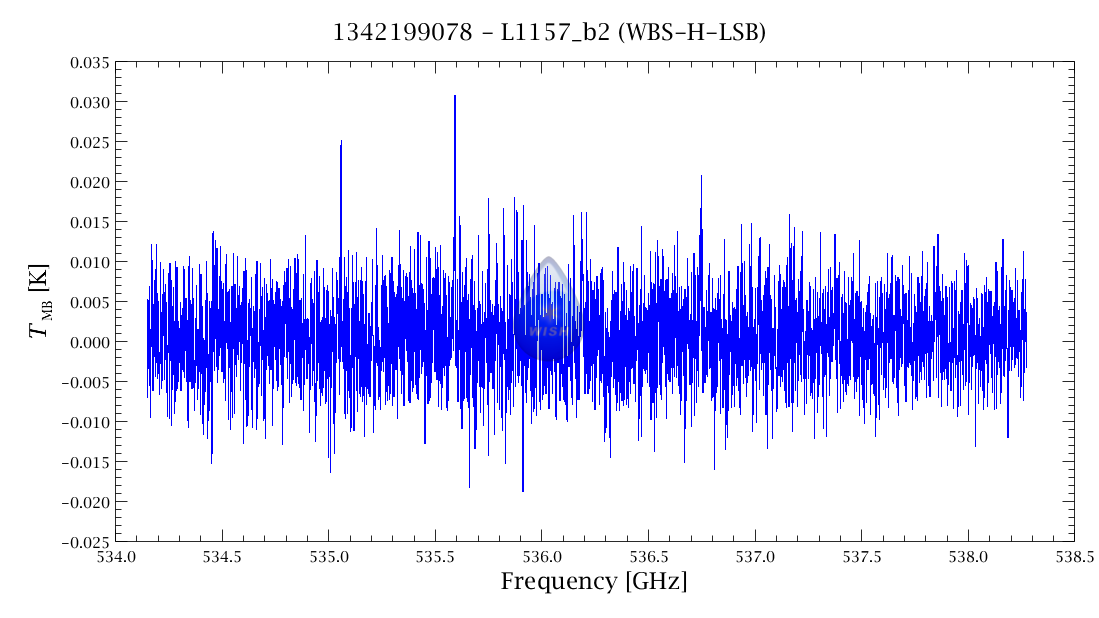

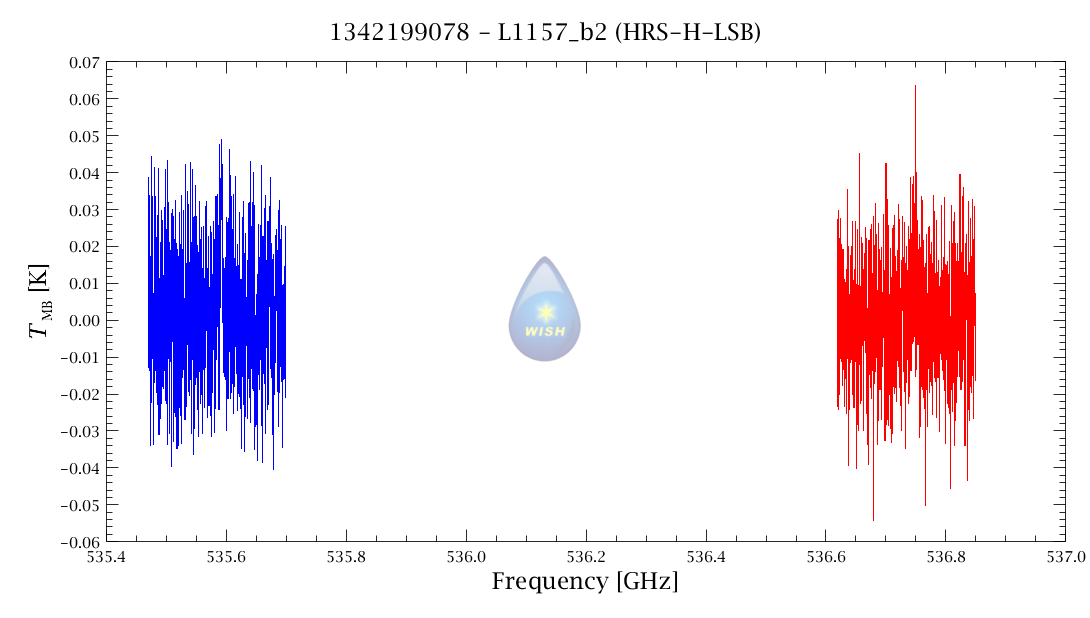

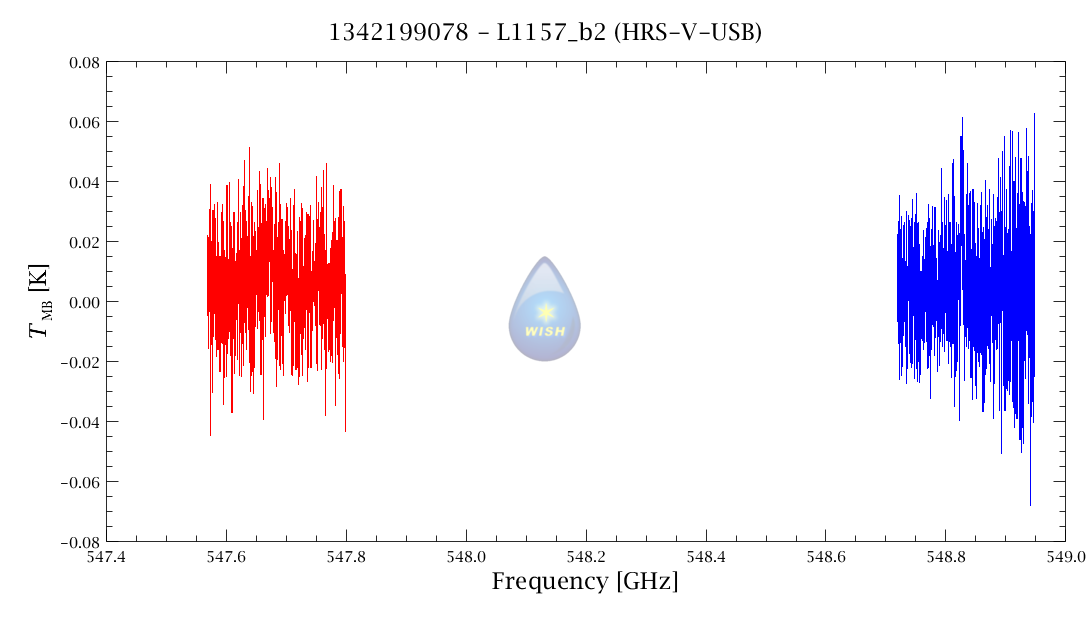

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0042	0.0044
continuum (K)	0.001	0.002

Downloads Corner

• RAW HIPE FORMAT (141MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Vasta et al. 2012, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
