WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

W3-IRS5
RA: 2 25 40.6 (^{h m s})
Dec: 62 5 51.00 (^{o ' "})

Observation Details

OBSID: 1342201548
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: H2O 211-202 - W3-IRS5
Band: 2B
Herschel Operation Day: OD429
Integration Time: 476 sec
LO Frequency: 746.025 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-07-17
HSA Processing Date: 2014-07-22
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.64
Beam Efficiency V⁽¹⁾: η=0.66
Beam Efficiency (2012) ⁽¹⁾: η=0.749
Position offset (x,y): (6.81664,-0.32832) arcsec

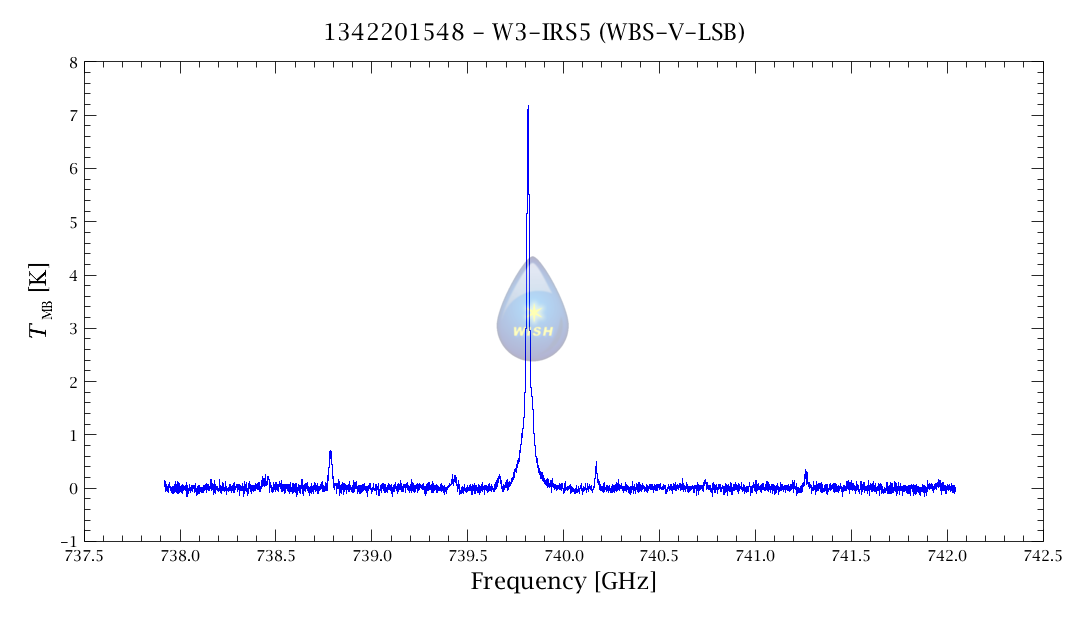

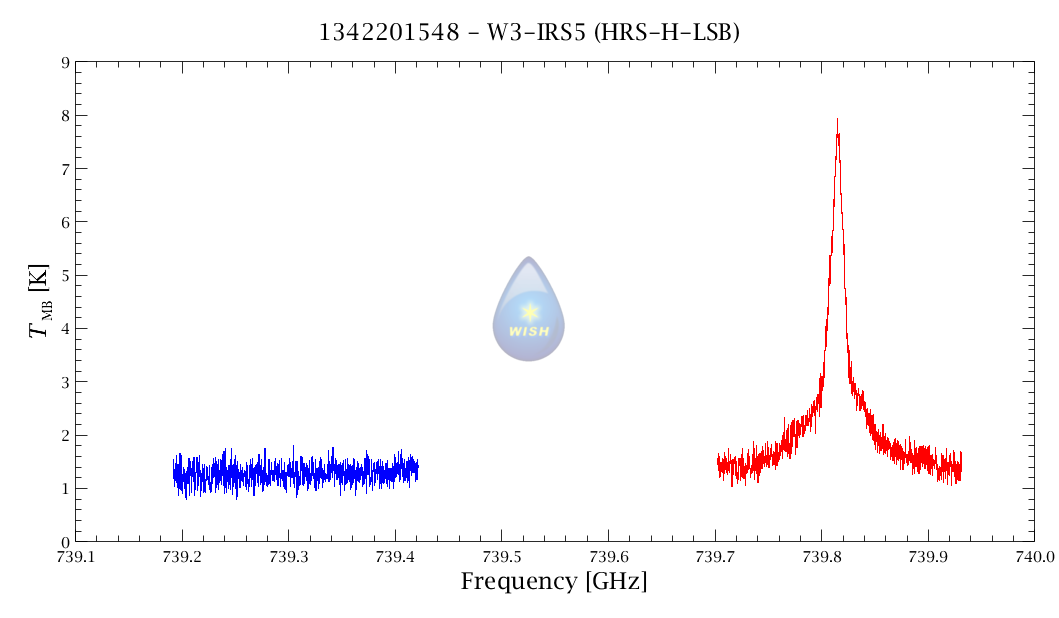

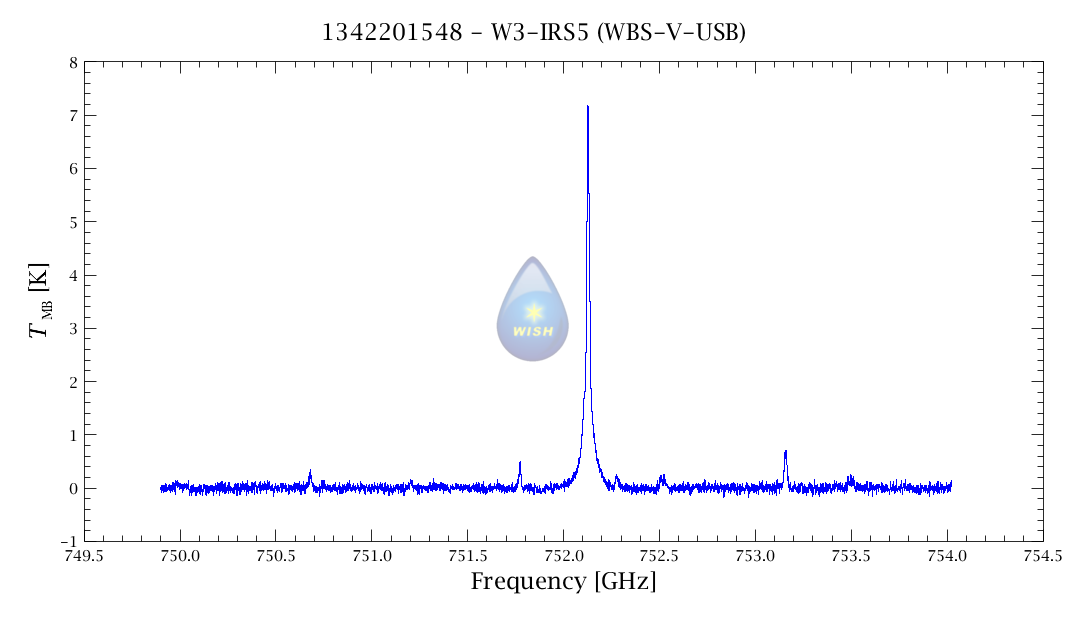

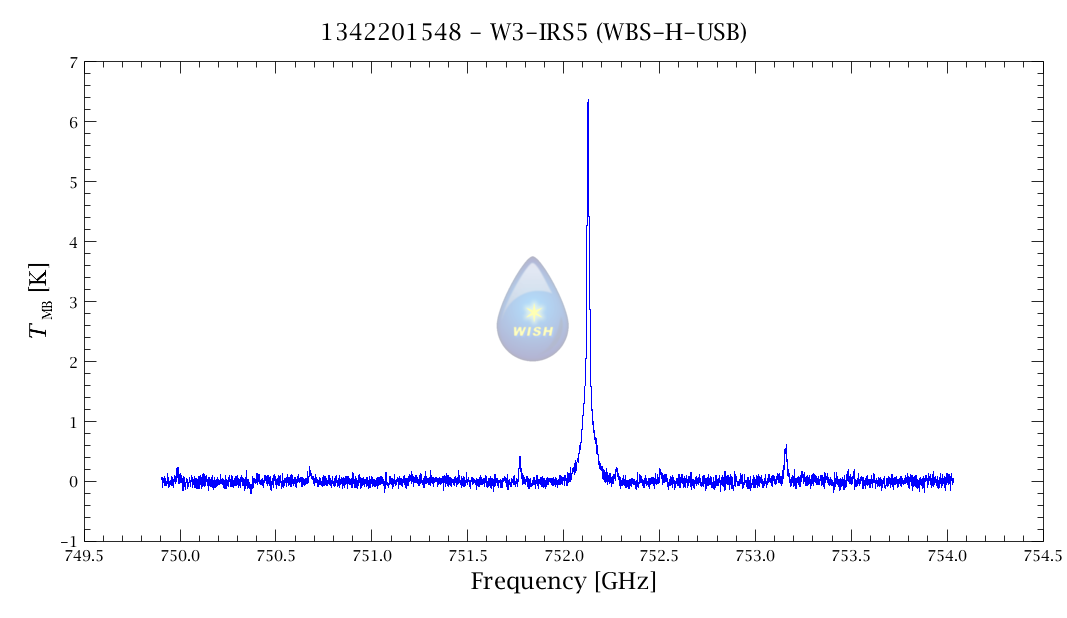

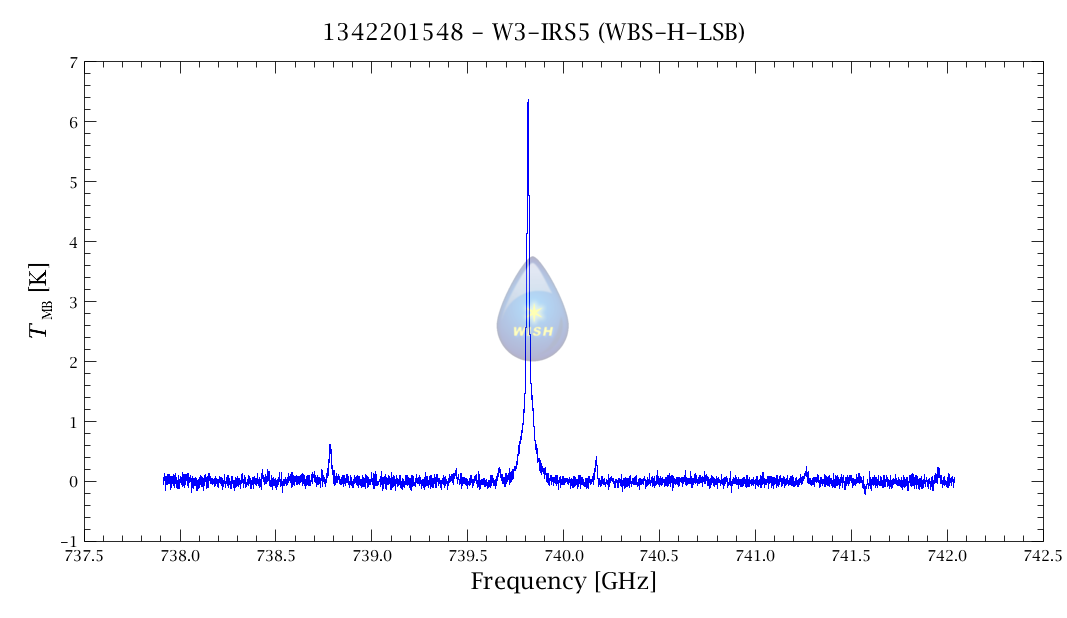

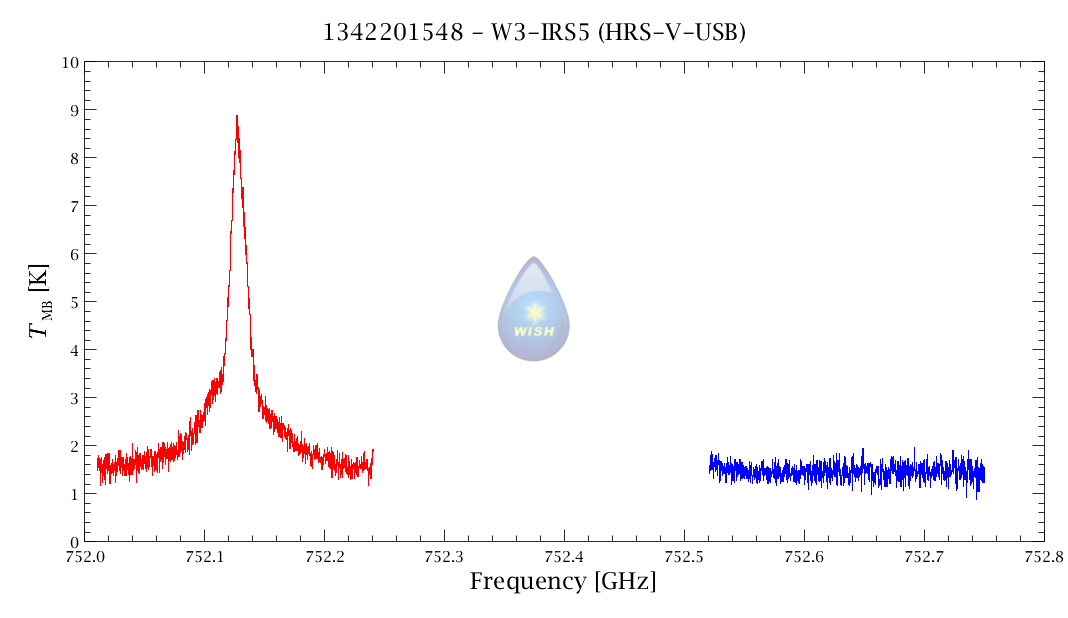

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0574	0.0516
continuum (K)	0.653	0.747

Downloads Corner

• RAW HIPE FORMAT (93MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Chavarria et al. 2010, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
