WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

W3 IRS5
RA: 2 25 40.6 (^{h m s})
Dec: 62 5 51.00 (^{o ' "})

Observation Details

OBSID: 1342201549
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: SDP_W3 IRS5 - Setting 17
Band: 2B
Herschel Operation Day: OD429
Integration Time: 1241 sec
LO Frequency: 752.7 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-07-17
HSA Processing Date: 2014-07-22
WISH Processing Date: 2014-08-01
Beam Efficiency H ⁽¹⁾: η=0.64
Beam Efficiency V⁽¹⁾: η=0.66
Beam Efficiency (2012) ⁽¹⁾: η=0.749
Position offset (x,y): (6.81674,-0.32763) arcsec

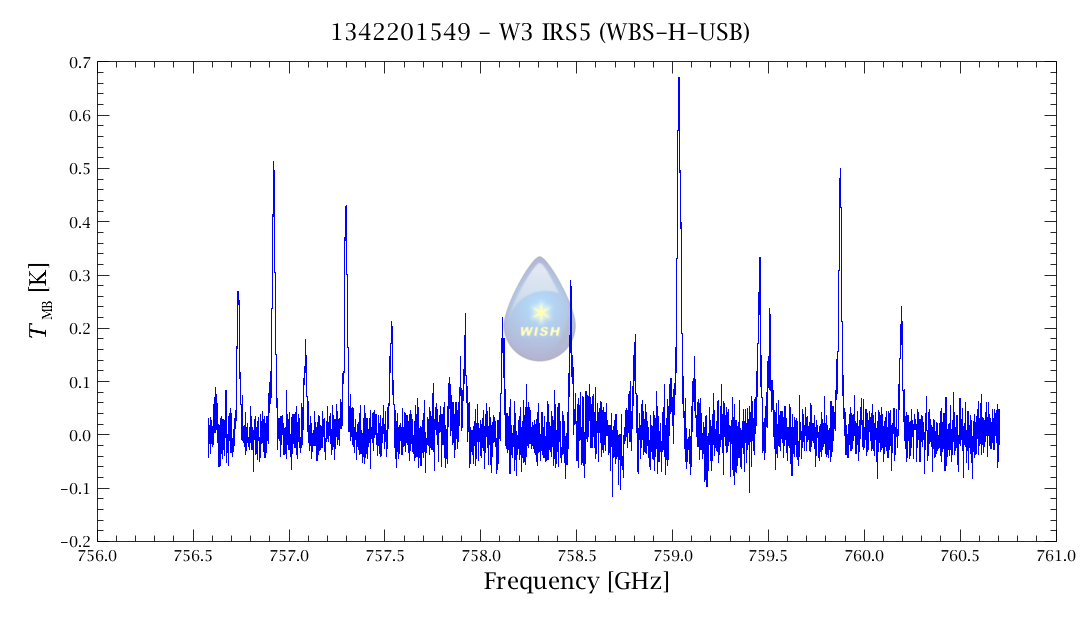

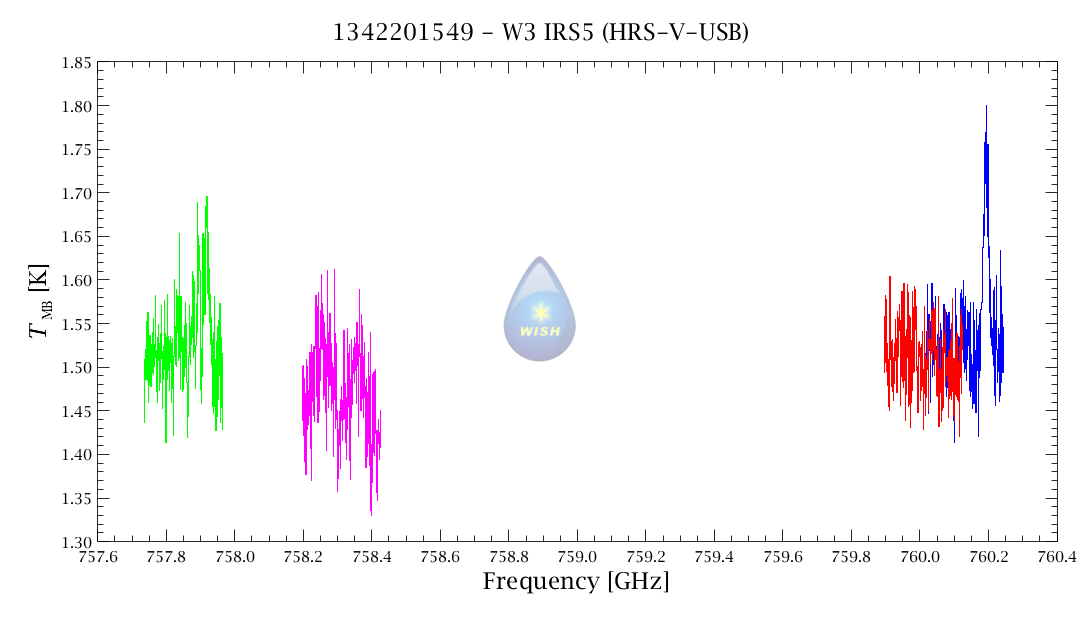

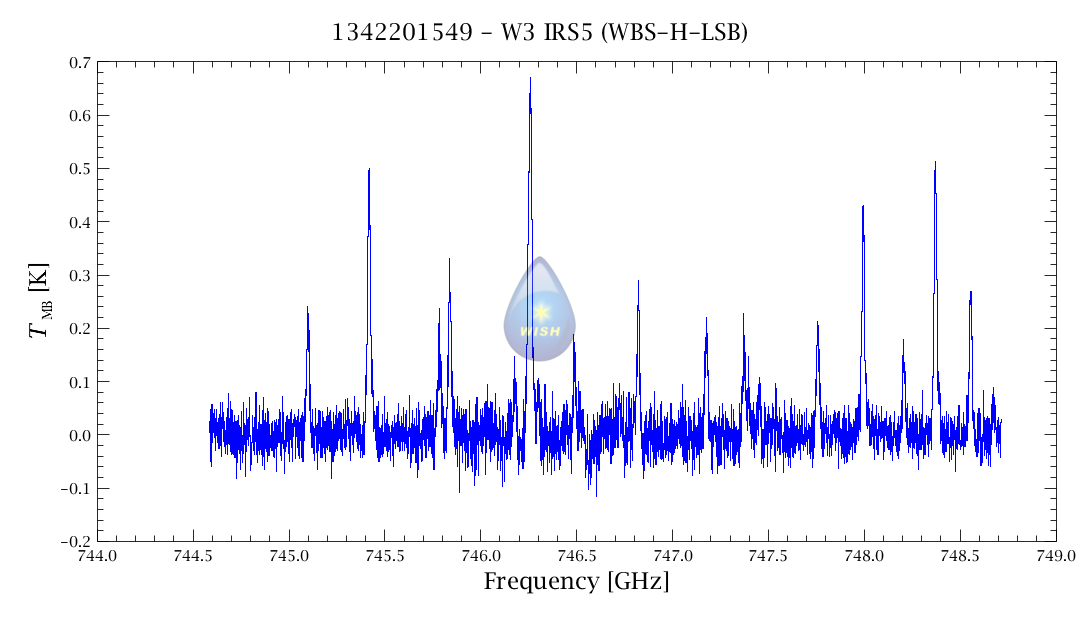

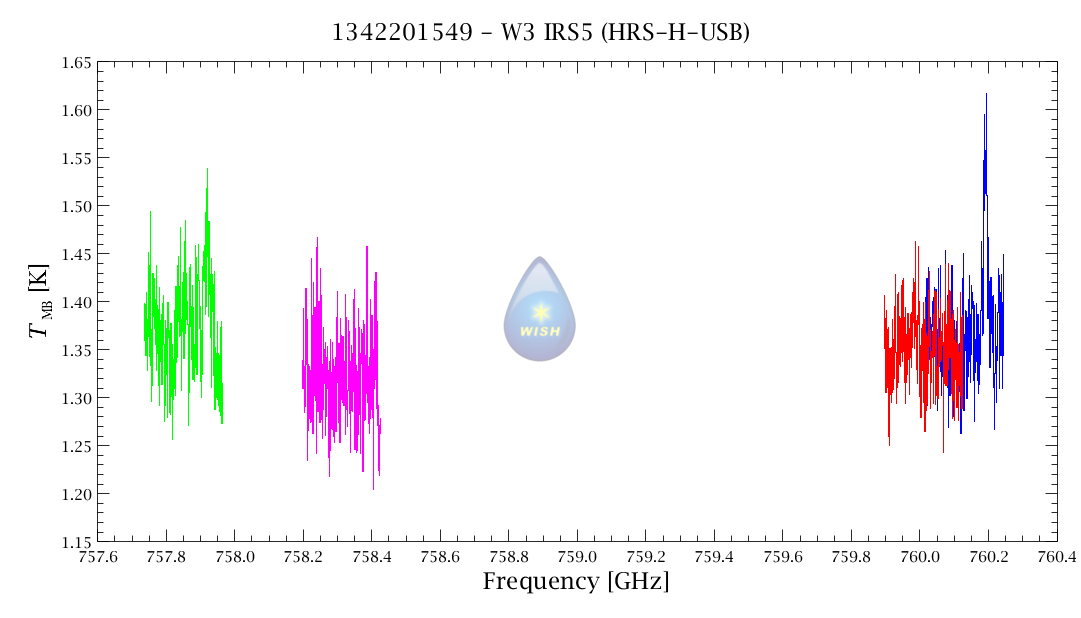

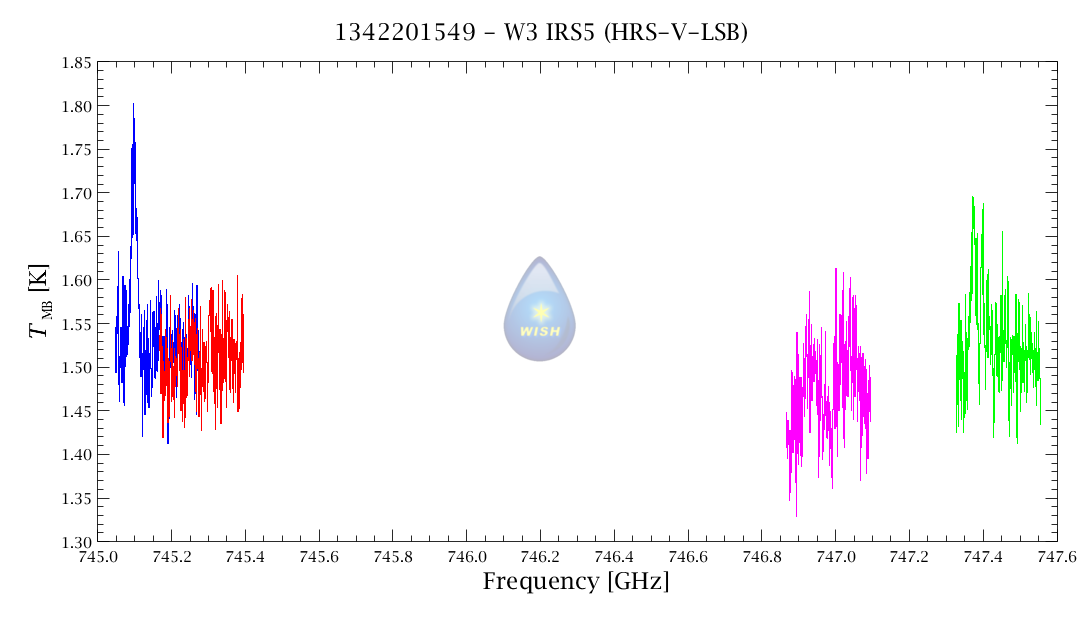

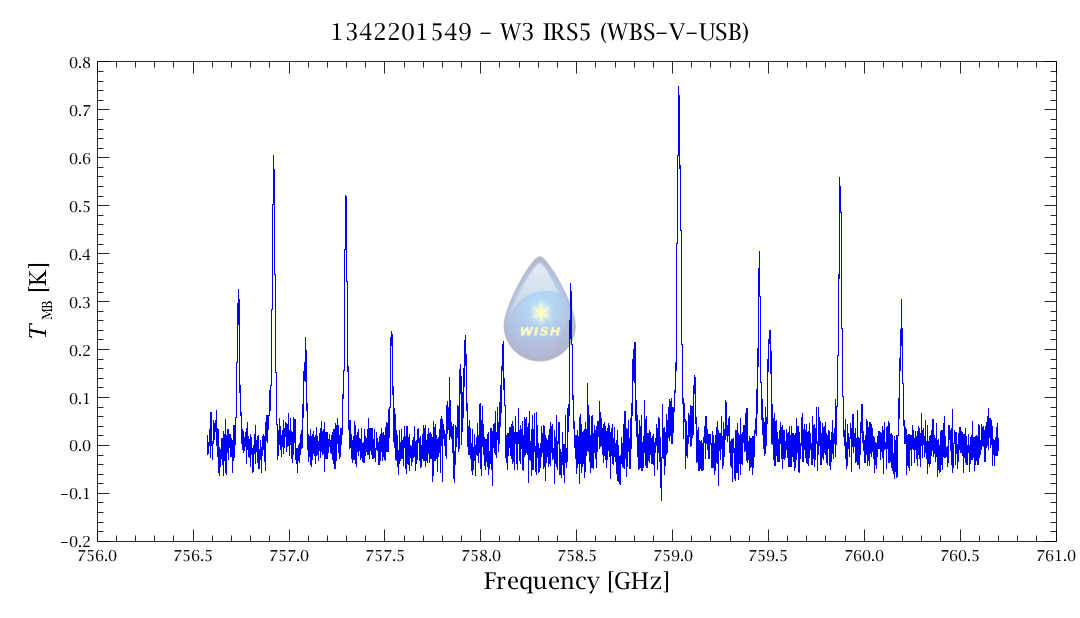

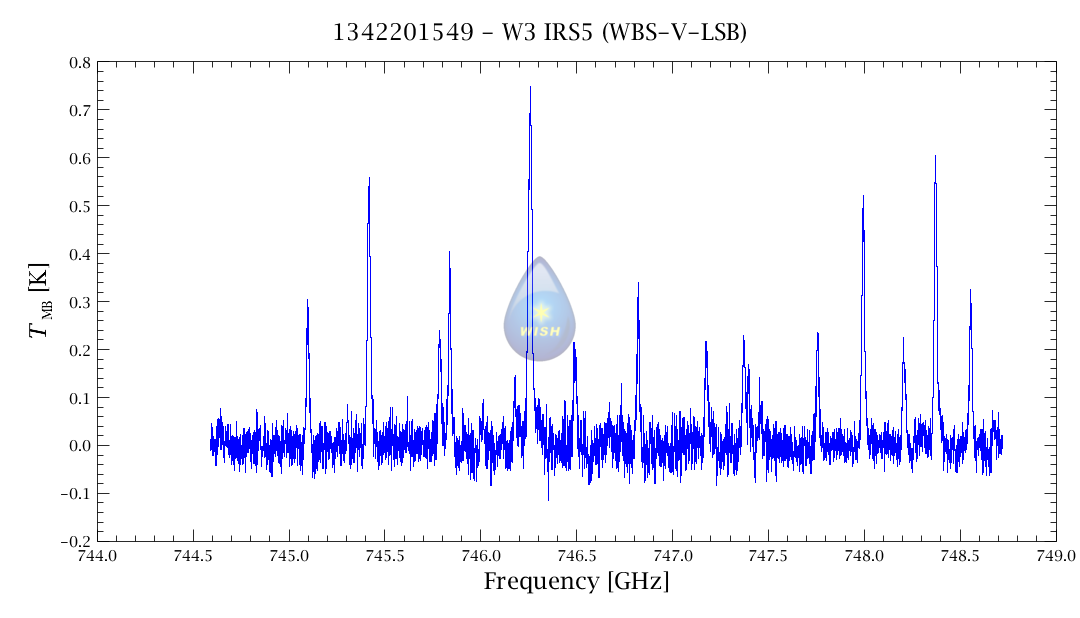

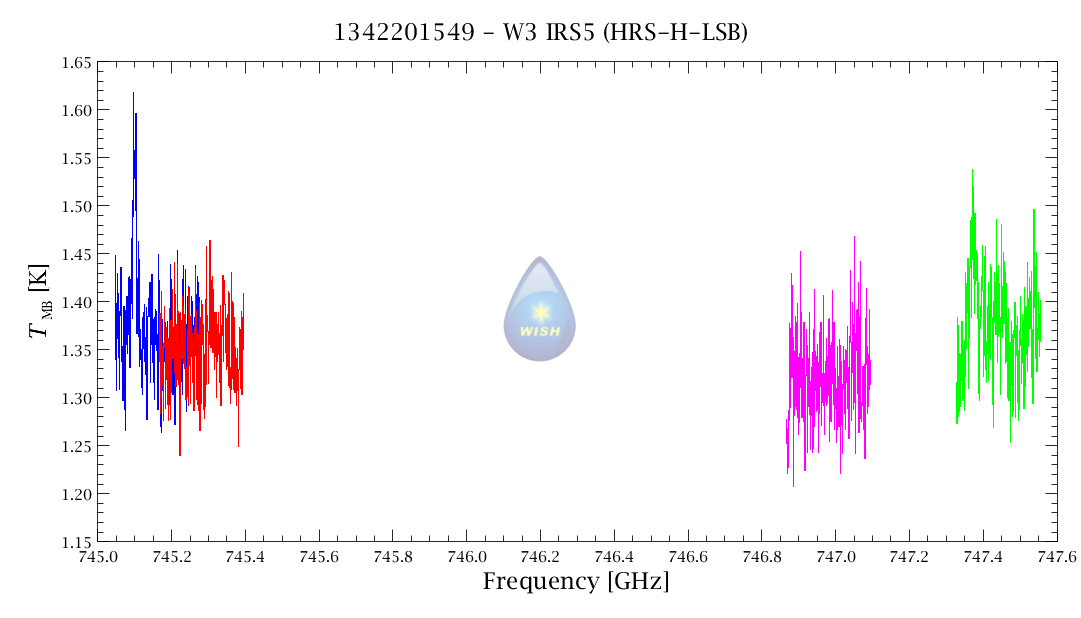

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0254	0.0231
continuum (K)	0.678	0.761

Downloads Corner

• RAW HIPE FORMAT (109MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Benz et al. 2013, Journ. Phys. Chem. A
Benz et al. 2010, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
