WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

TWHya
RA: 11 1 51.8 (^{h m s})
Dec: -34 42 16.92 (^{o ' "})

Observation Details

OBSID: 1342201585
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: PSP1_H2O 111-000 - TWHya
Band: 4B
Herschel Operation Day: OD430
Integration Time: 43518 sec
LO Frequency: 1108.107 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-07-18
HSA Processing Date: 2014-07-22
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.63
Beam Efficiency V⁽¹⁾: η=0.64
Beam Efficiency (2012) ⁽¹⁾: η=0.737
Position offset (x,y): (2.31339,-1.37203) arcsec

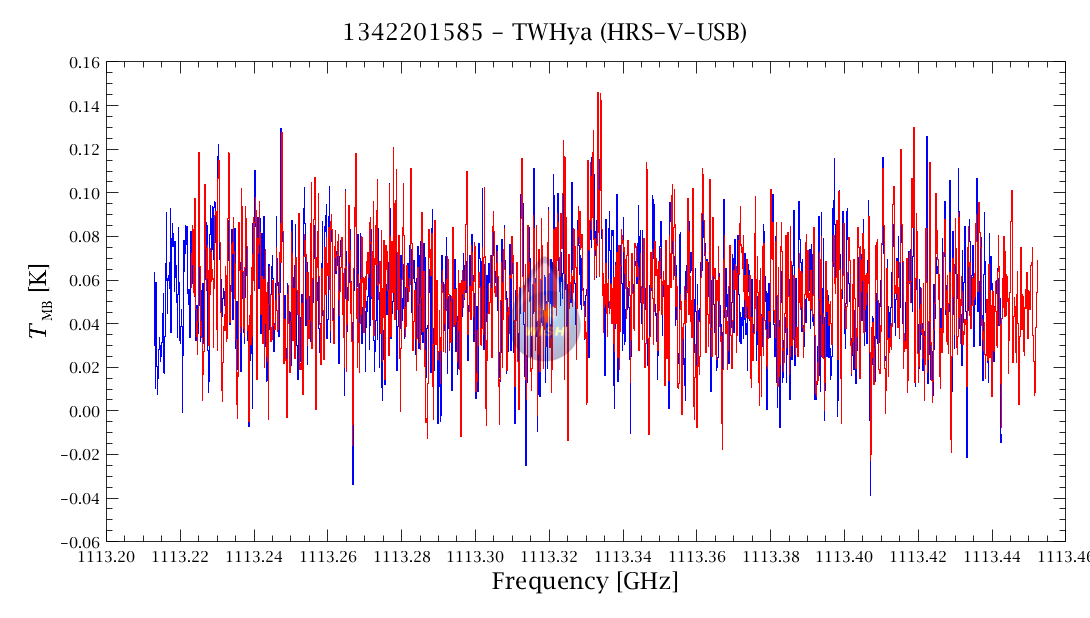

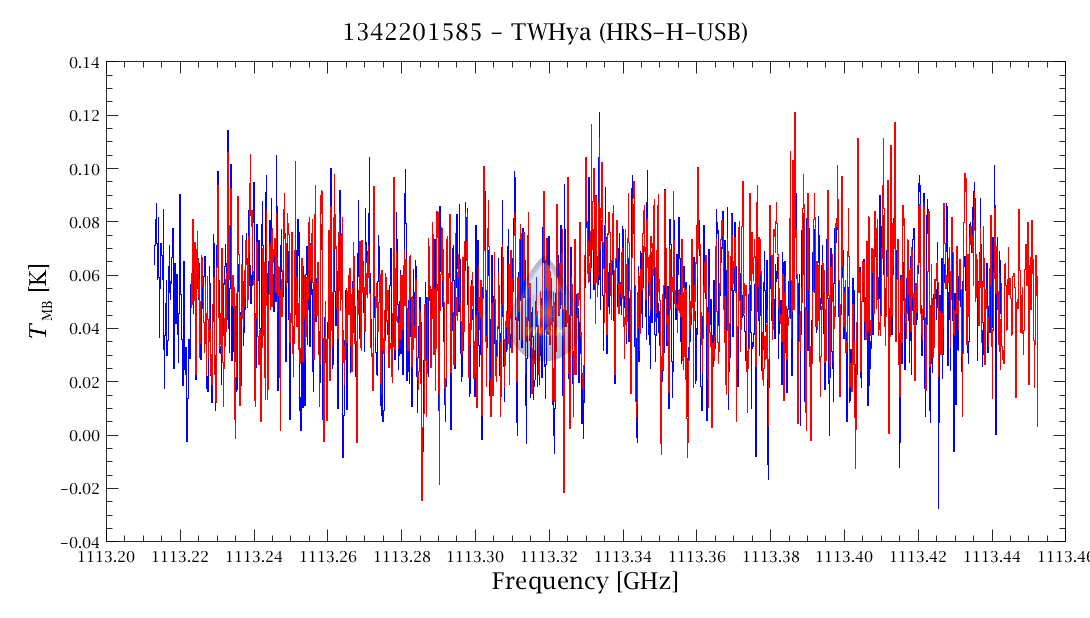

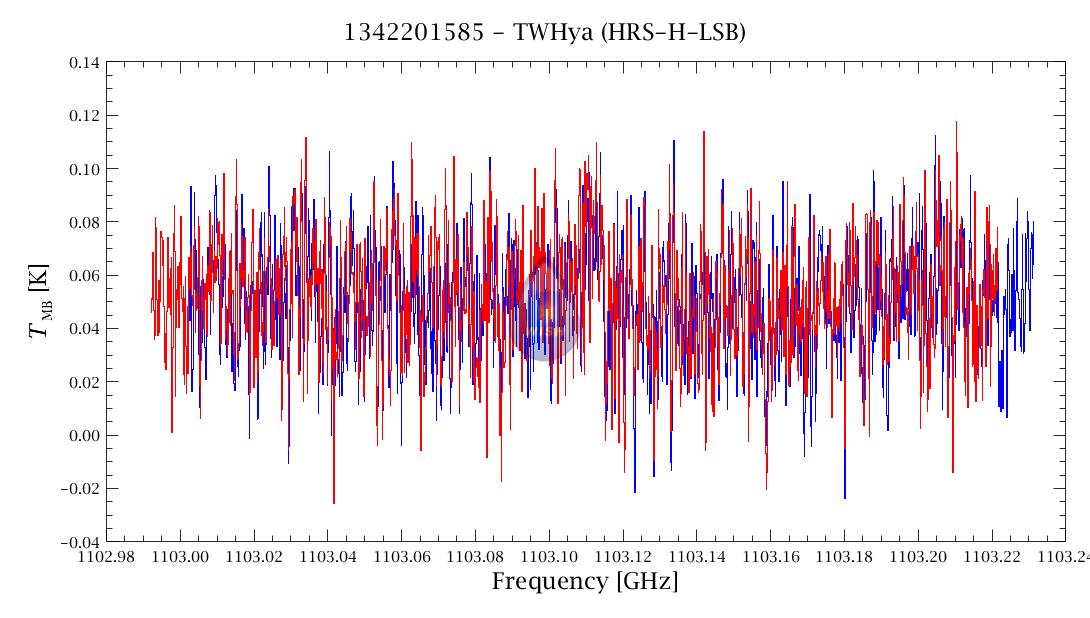

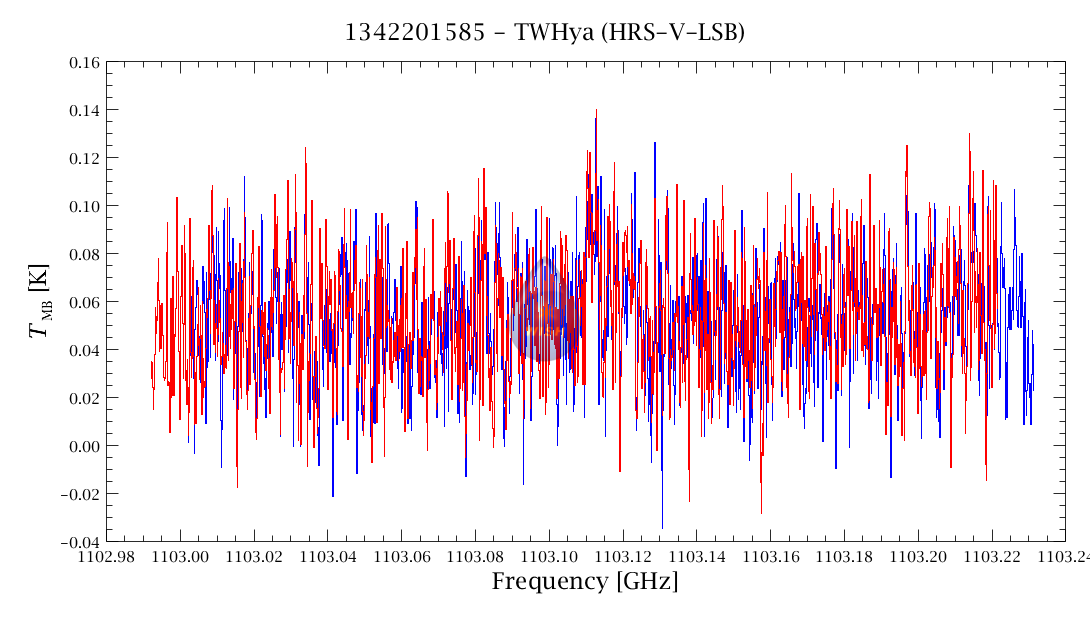

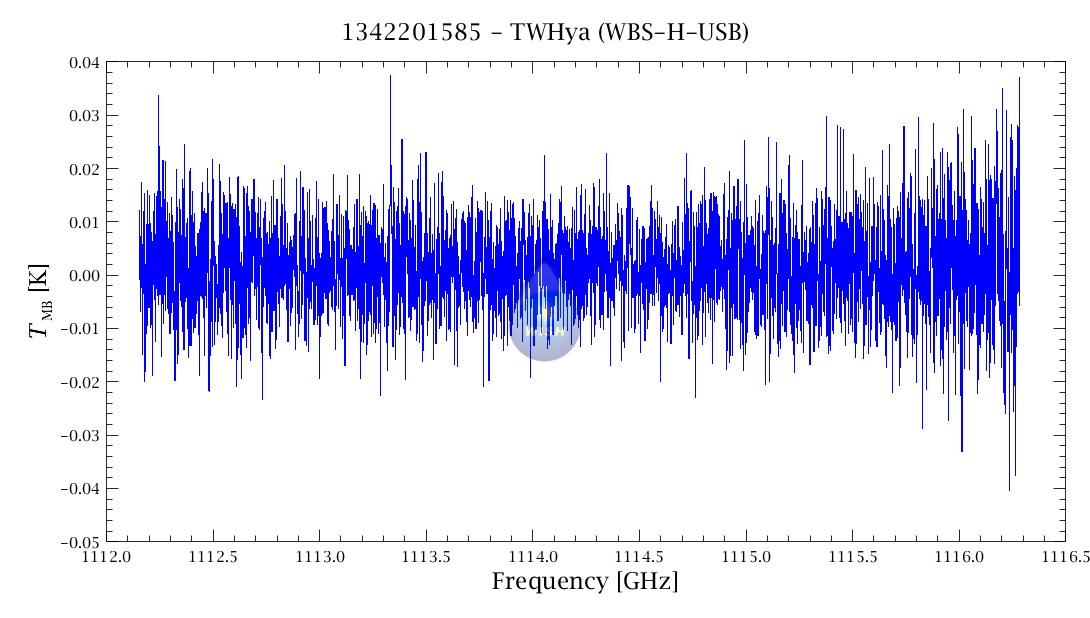

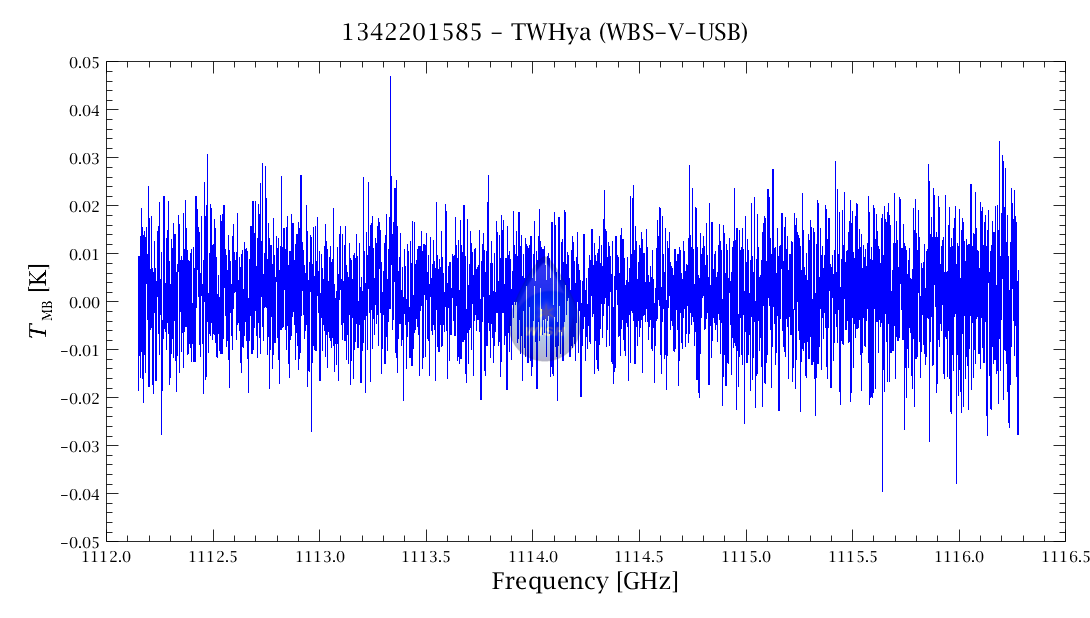

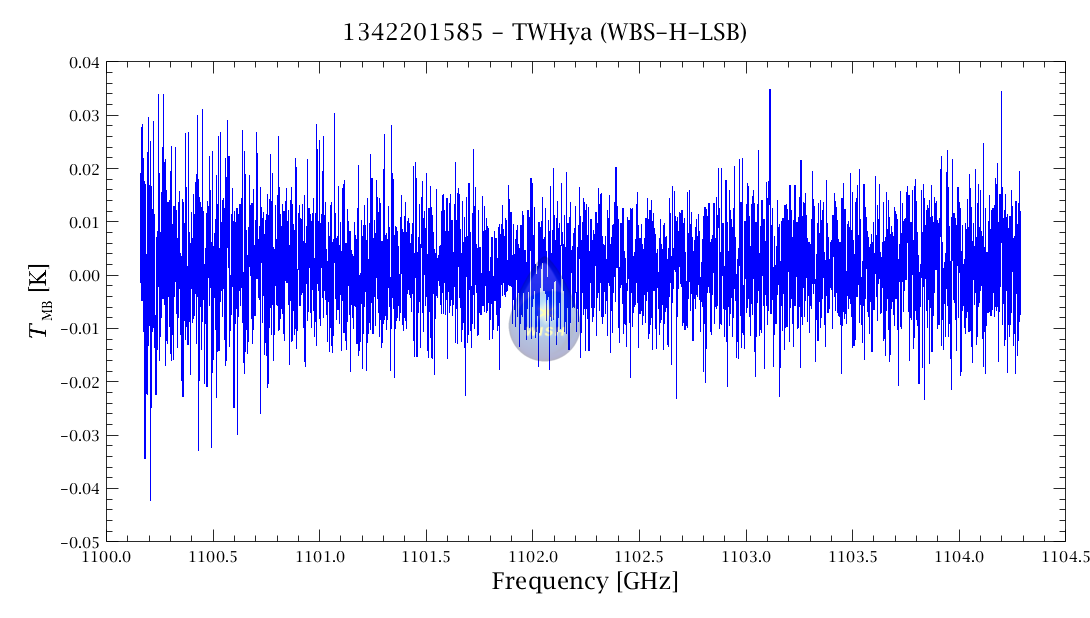

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0076	0.0082
continuum (K)	0.023	0.024

Downloads Corner

• RAW HIPE FORMAT (751MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Van Dishoeck et al. 2013, ChRv
Hogerheijde et al. 2011, Science

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
