WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

IRAS 12496/HH54
RA: 12 53 17.3 (^{h m s})
Dec: -77 7 10.56 (^{o ' "})

Observation Details

OBSID: 1342201590
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: KPGT_evandish_1-H2O 111-000 Class I - IRAS 12496/HH54
Band: 4B
Herschel Operation Day: OD430
Integration Time: 1947 sec
LO Frequency: 1108.5975 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-07-18
HSA Processing Date: 2014-07-22
WISH Processing Date: 2014-08-01
Beam Efficiency H ⁽¹⁾: η=0.63
Beam Efficiency V⁽¹⁾: η=0.64
Beam Efficiency (2012) ⁽¹⁾: η=0.737
Position offset (x,y): (1.99079,1.44946) arcsec

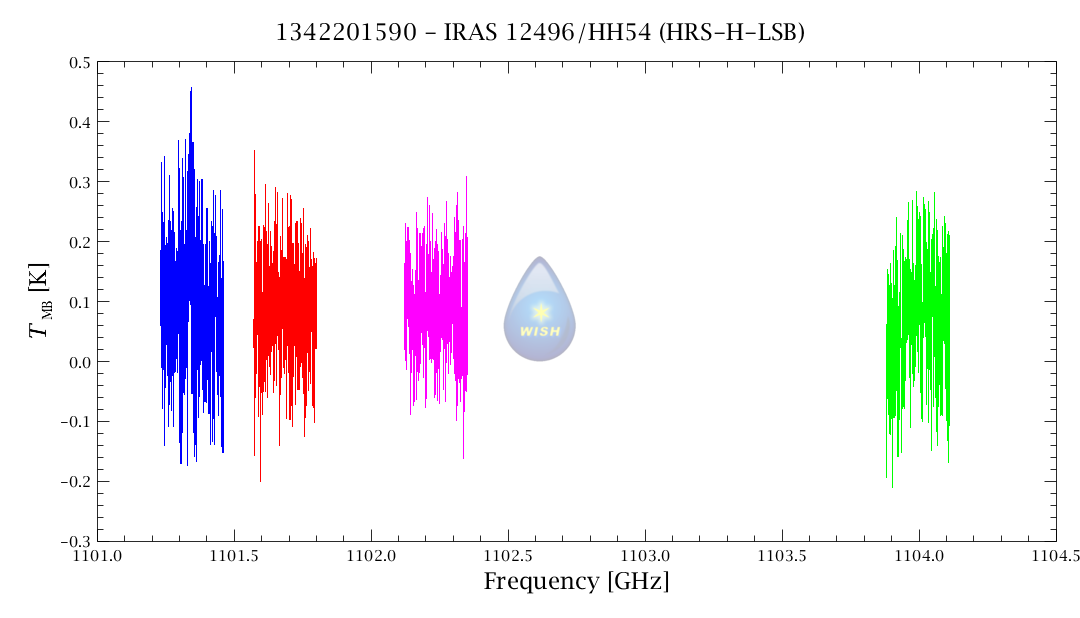

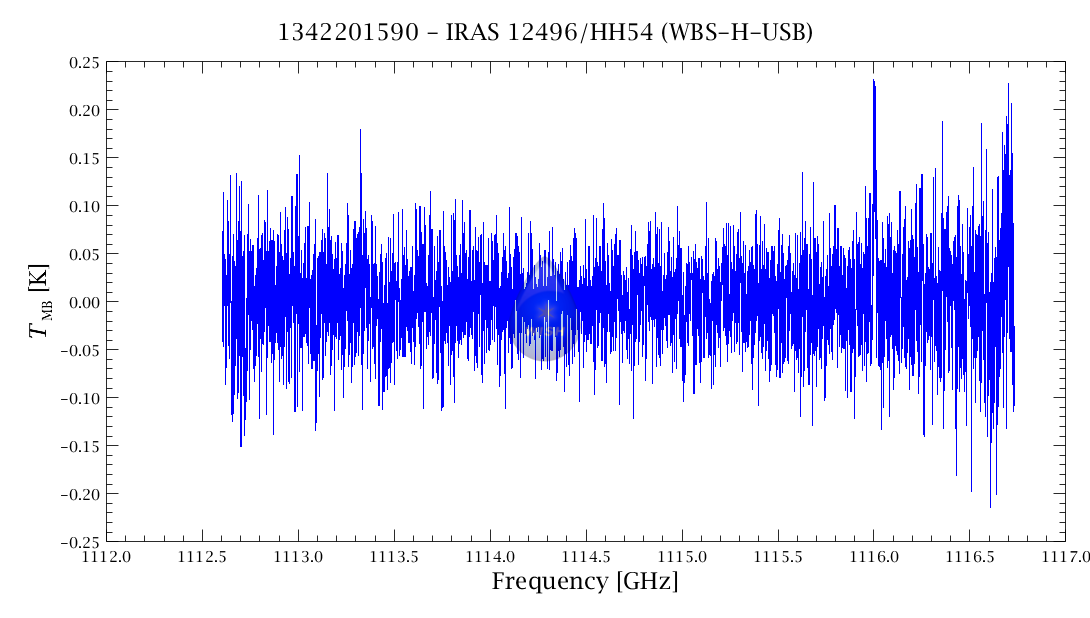

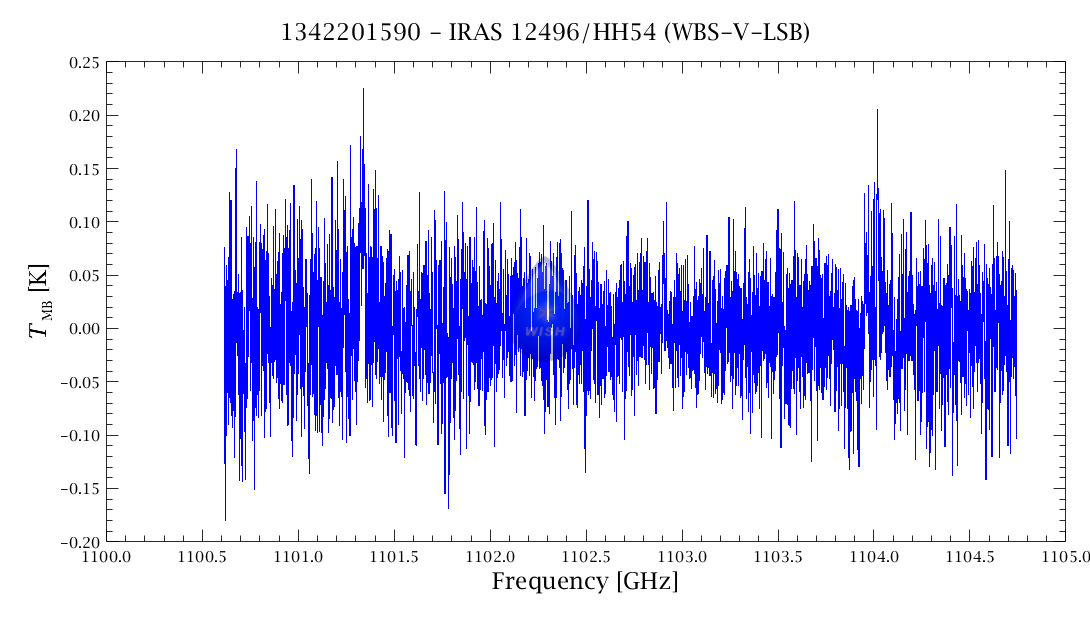

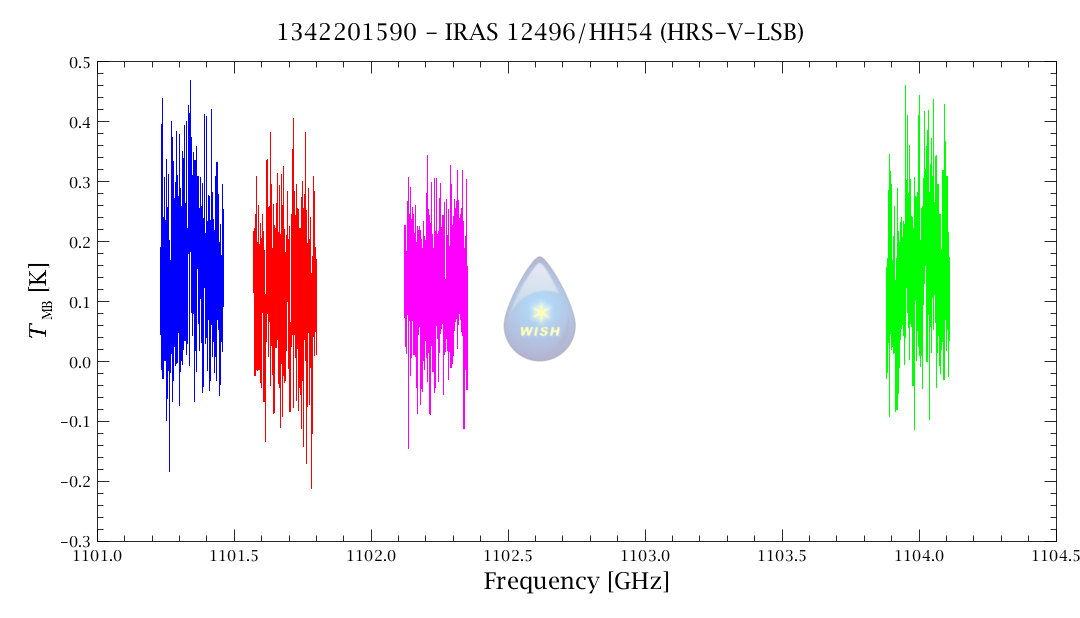

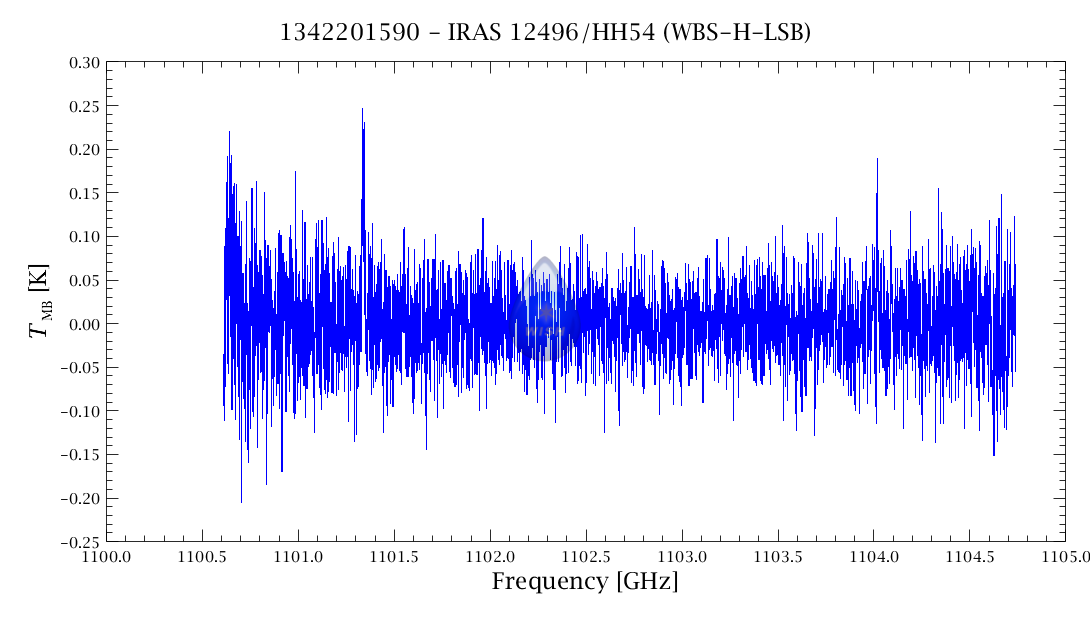

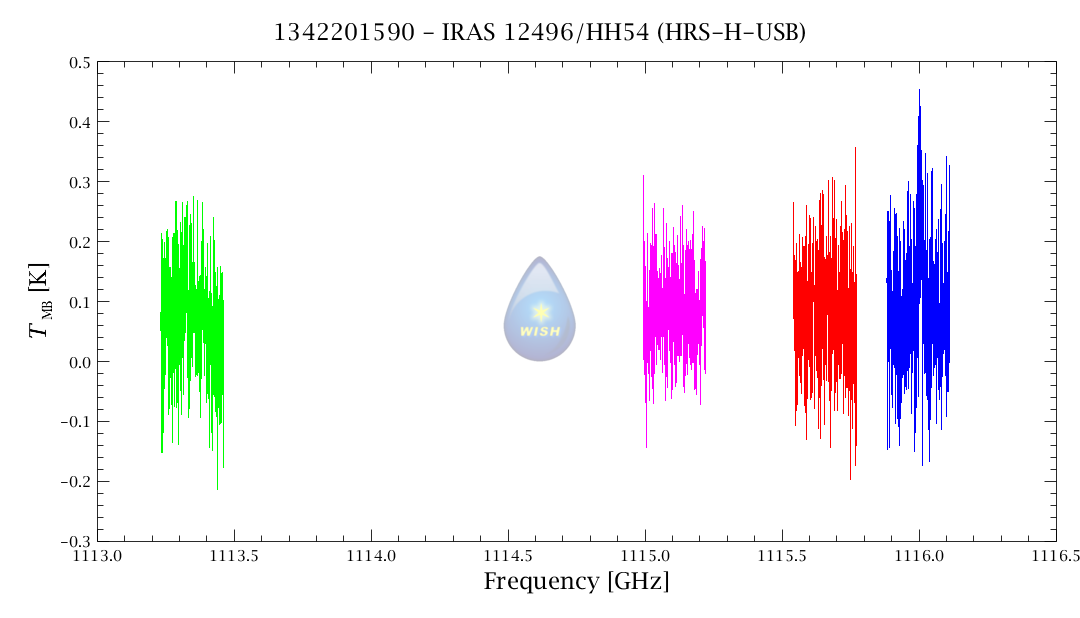

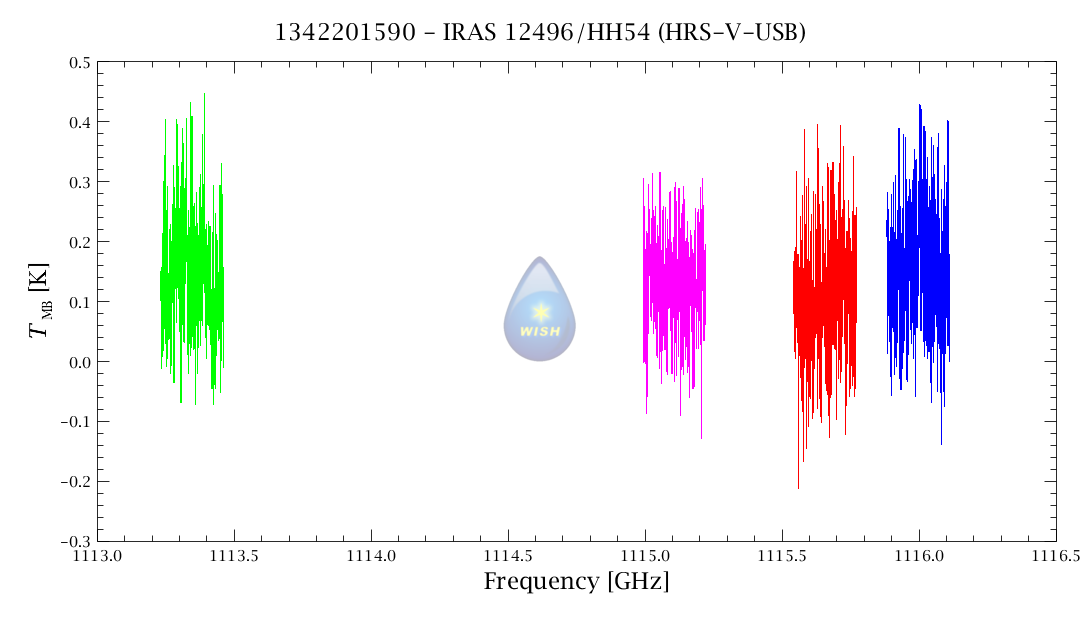

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0449	0.0462
continuum (K)	0.034	0.074

Downloads Corner

• RAW HIPE FORMAT (114MB)
• FITS FORMAT
• CLASS FORMAT
• REFERENCE POSITION

Publications

This data was published in:
Mottram et al. 2014, A&A
Yildiz et al. 2013A, A&A
San Jose-Garcia et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
