WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

NGC1333 IRAS4A
RA: 3 29 10.5 (^{h m s})
Dec: 31 13 31.08 (^{o ' "})

Observation Details

OBSID: 1342201796
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: PSP2_H2O 312-303 - NGC1333 IRAS4A
Band: 4B
Herschel Operation Day: OD444
Integration Time: 3287 sec
LO Frequency: 1090.7685 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-07-31
HSA Processing Date: 2014-07-22
WISH Processing Date: 2014-08-01
Beam Efficiency H ⁽¹⁾: η=0.63
Beam Efficiency V⁽¹⁾: η=0.64
Beam Efficiency (2012) ⁽¹⁾: η=0.738
Position offset (x,y): (2.73345,2.09293) arcsec

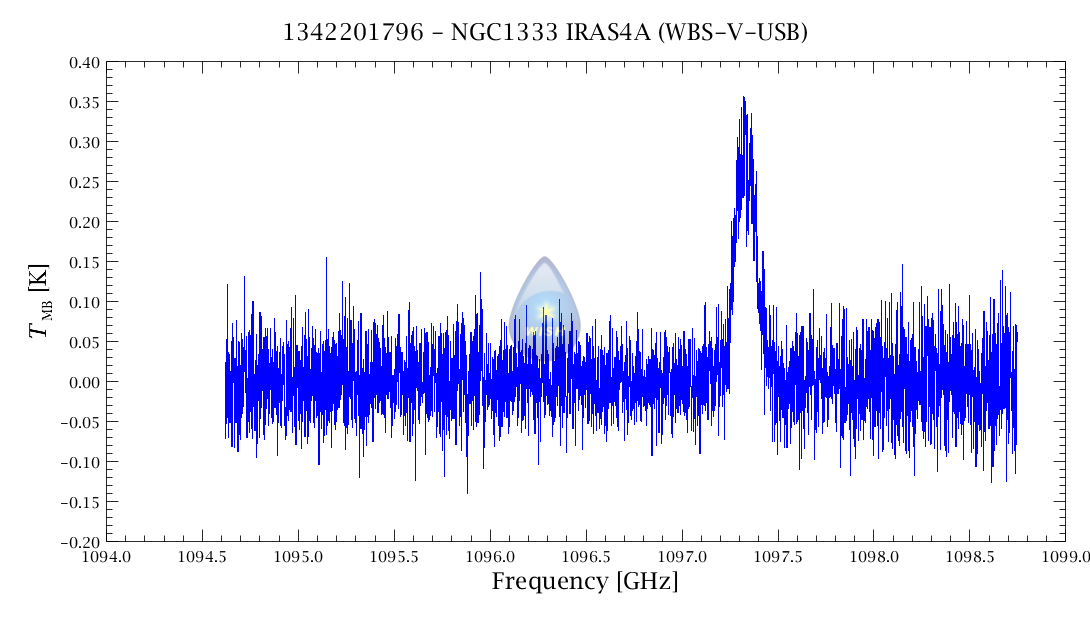

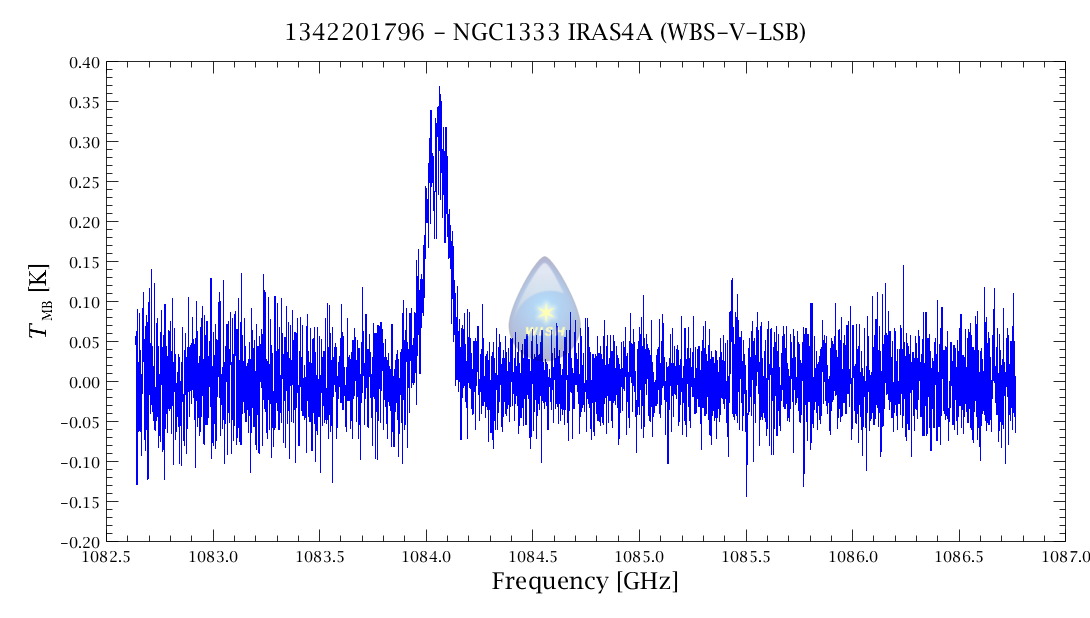

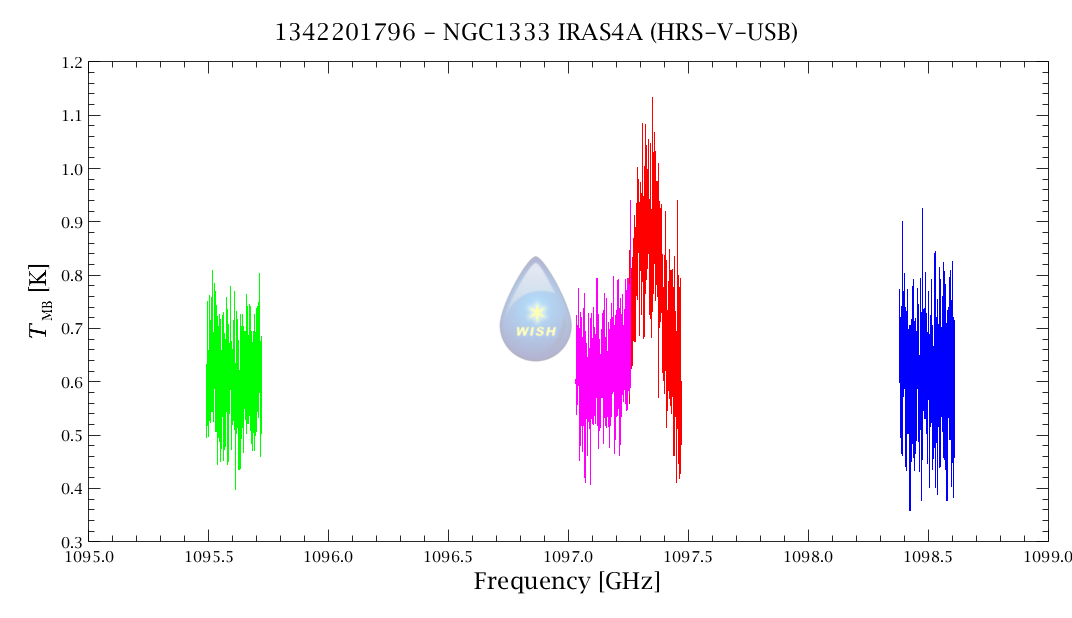

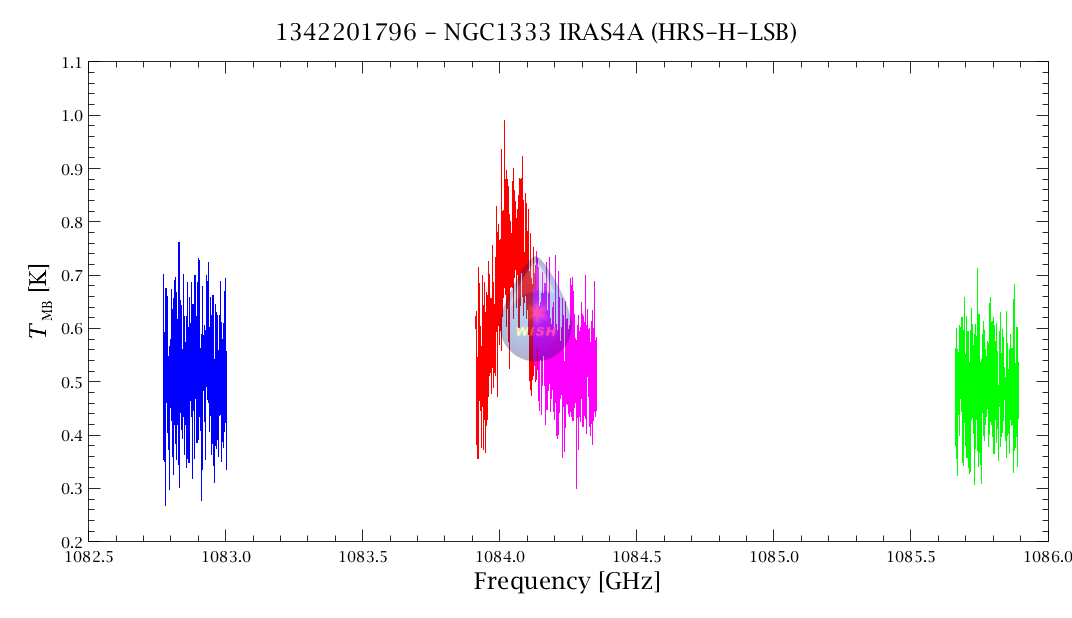

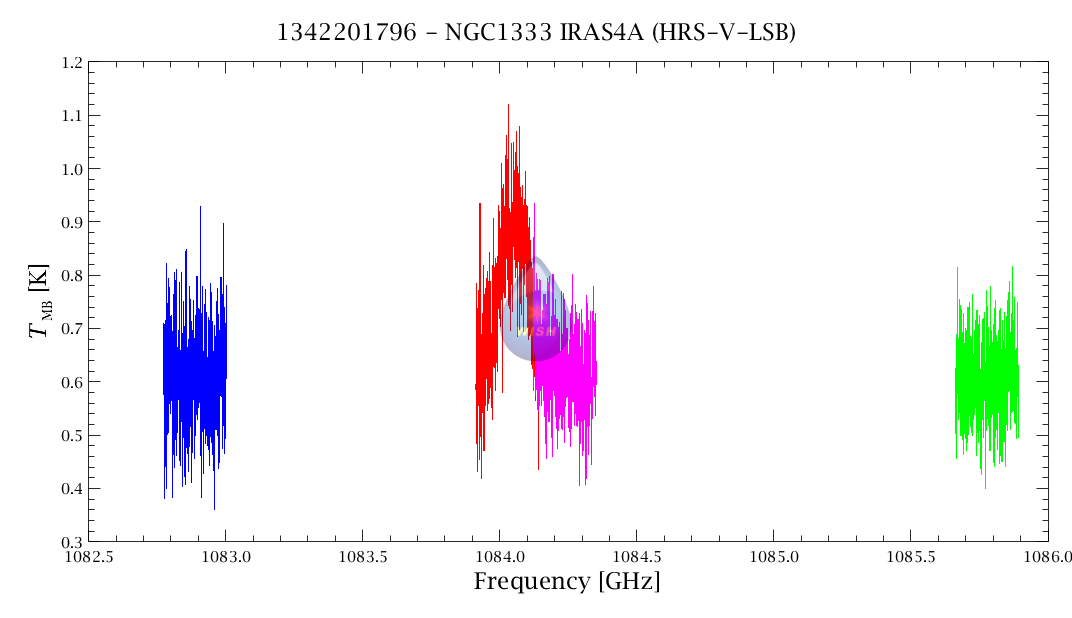

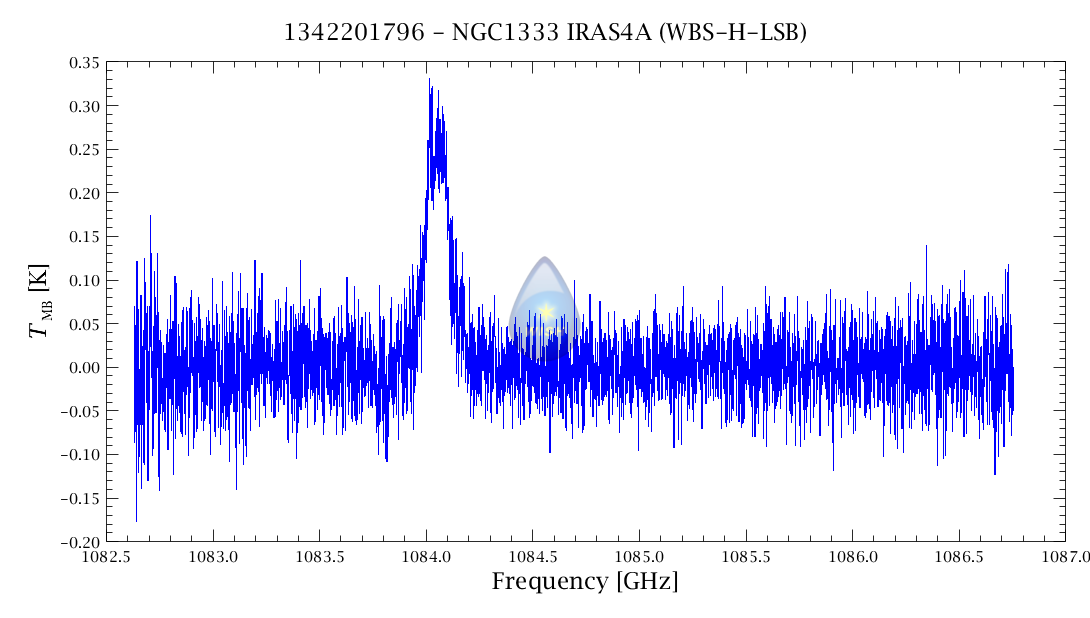

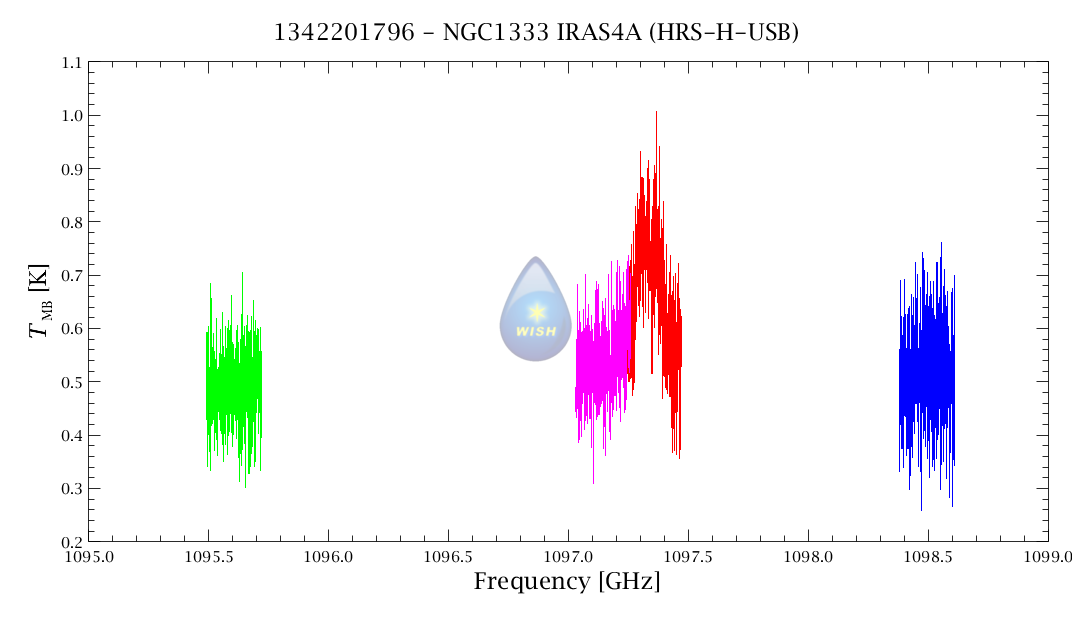

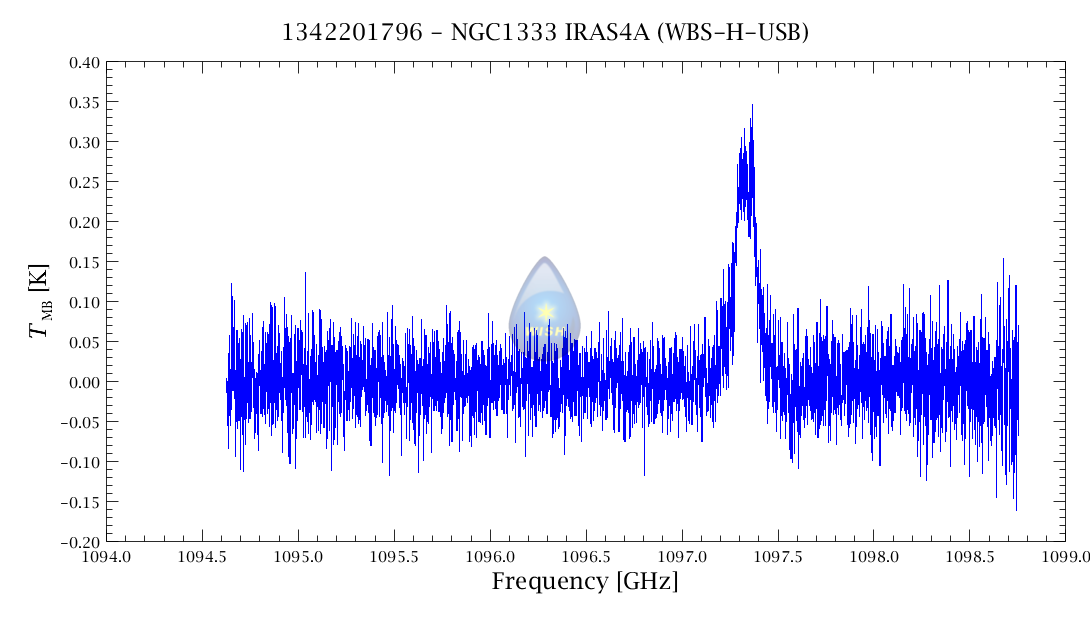

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0351	0.0353
continuum (K)	0.255	0.303

Downloads Corner

• RAW HIPE FORMAT (118MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Mottram et al. 2013, A&A
Kristensen et al. 2013, A&A
Yildiz et al. 2012, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
