WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

NGC 1333 IRAS 2A
RA: 3 28 55.6 (^{h m s})
Dec: 31 14 36.96 (^{o ' "})

Observation Details

OBSID: 1342201840
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: NGC1333 IRAS2A - Setting 9
Band: 7B
Herschel Operation Day: OD444
Integration Time: 1067 sec
LO Frequency: 1896.5745 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-08-01
HSA Processing Date: 2014-07-22
WISH Processing Date: 2014-08-01
Beam Efficiency H ⁽¹⁾: η=0.57
Beam Efficiency V⁽¹⁾: η=0.6
Beam Efficiency (2012) ⁽¹⁾: η=0.694
Position offset (x,y): (5.57412,1.73424) arcsec

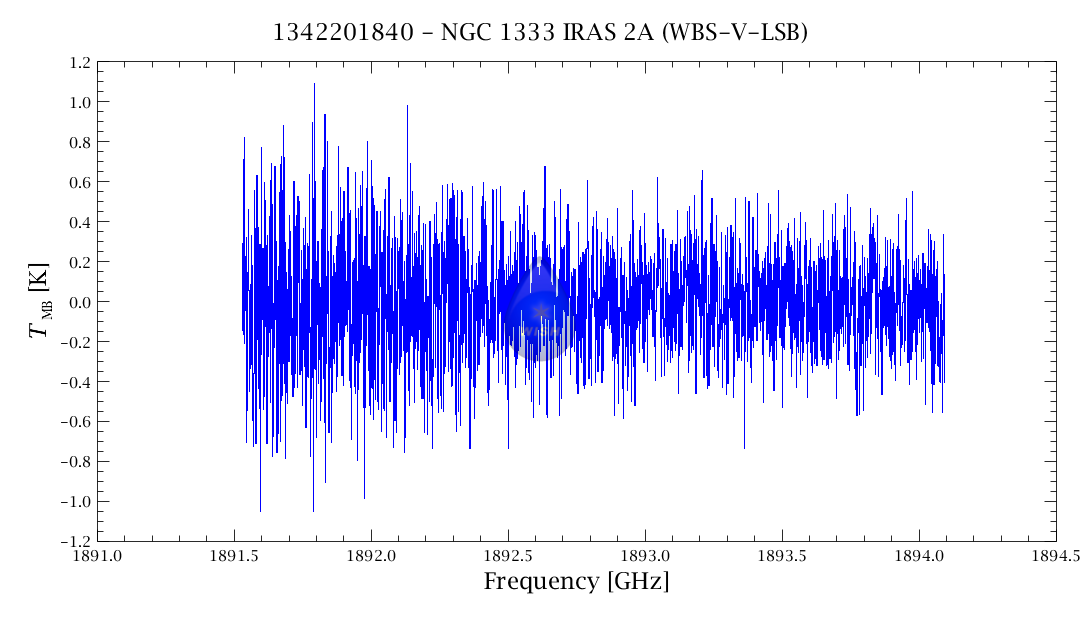

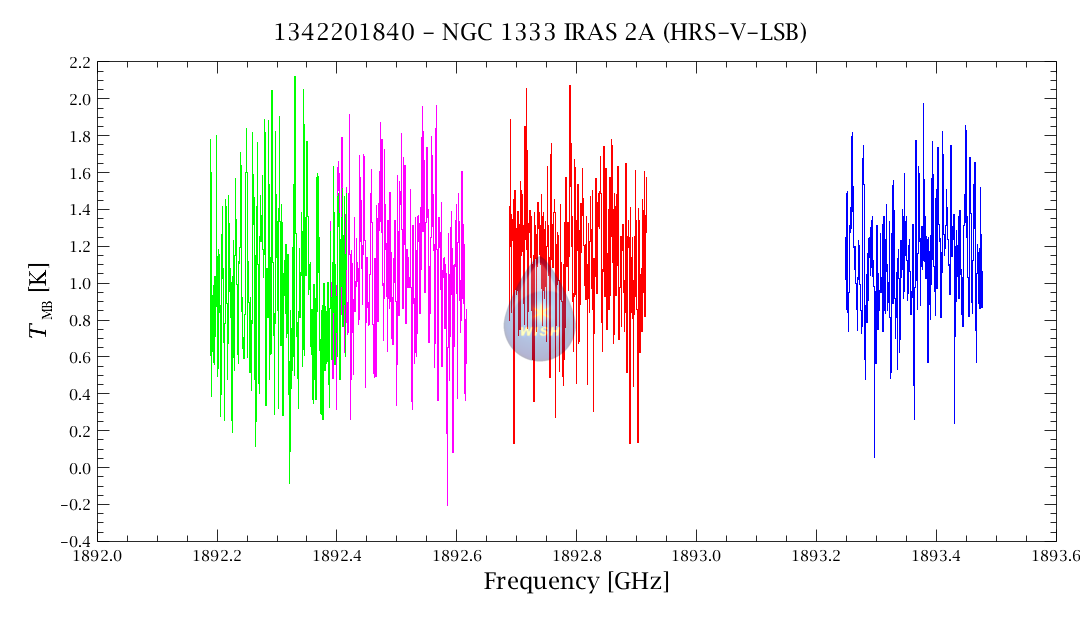

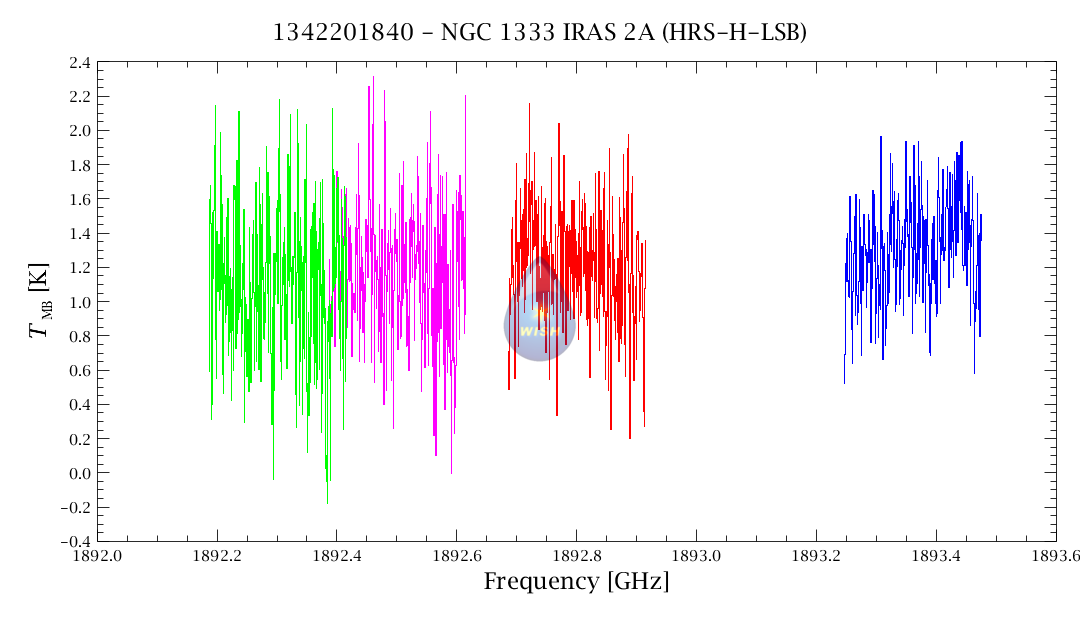

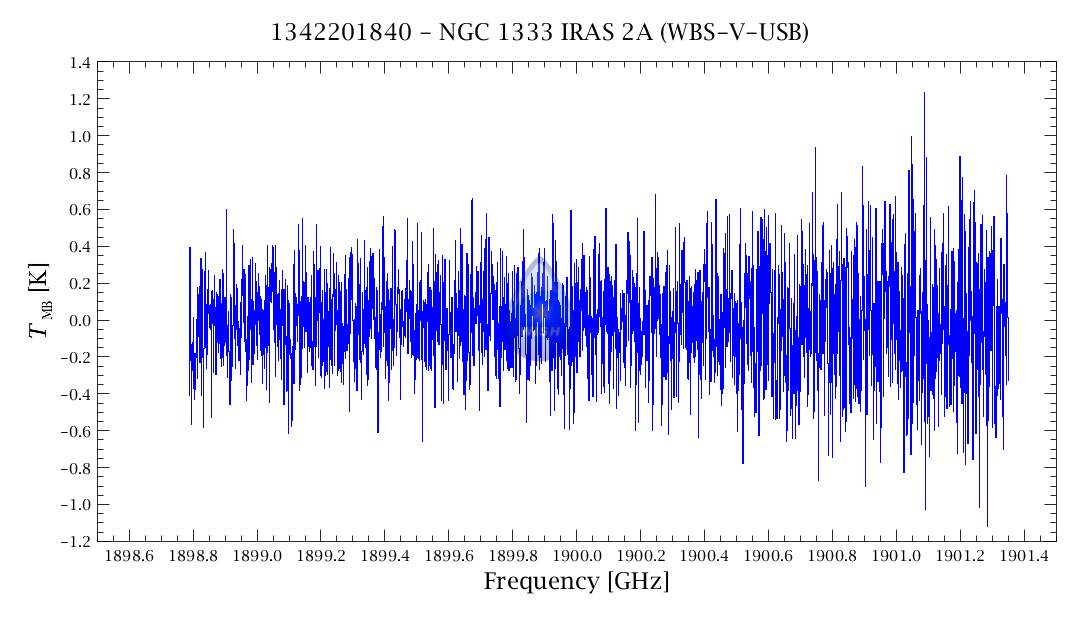

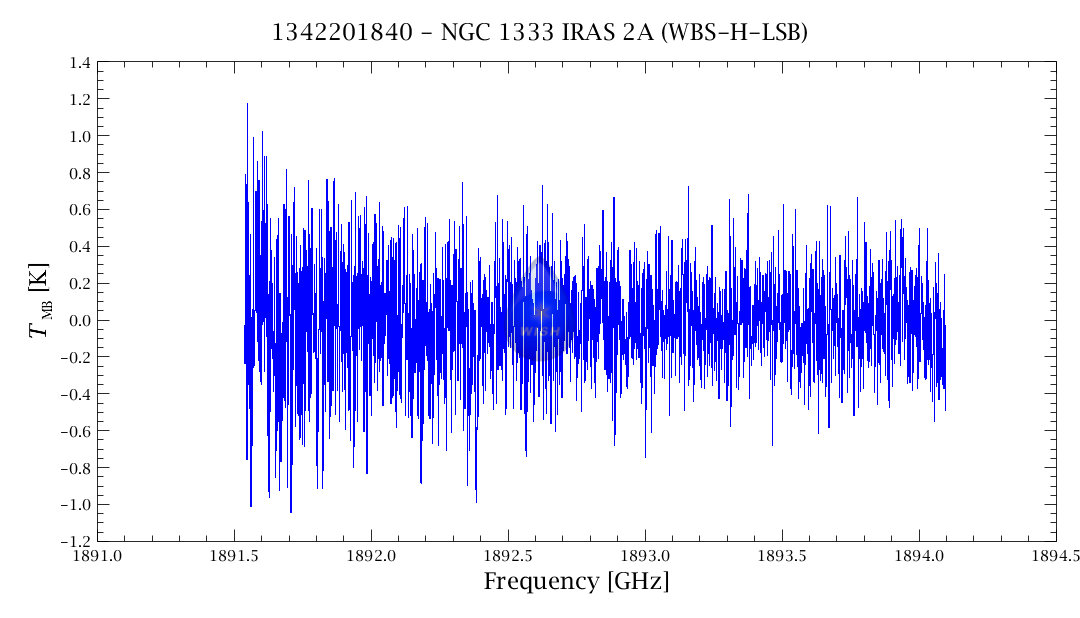

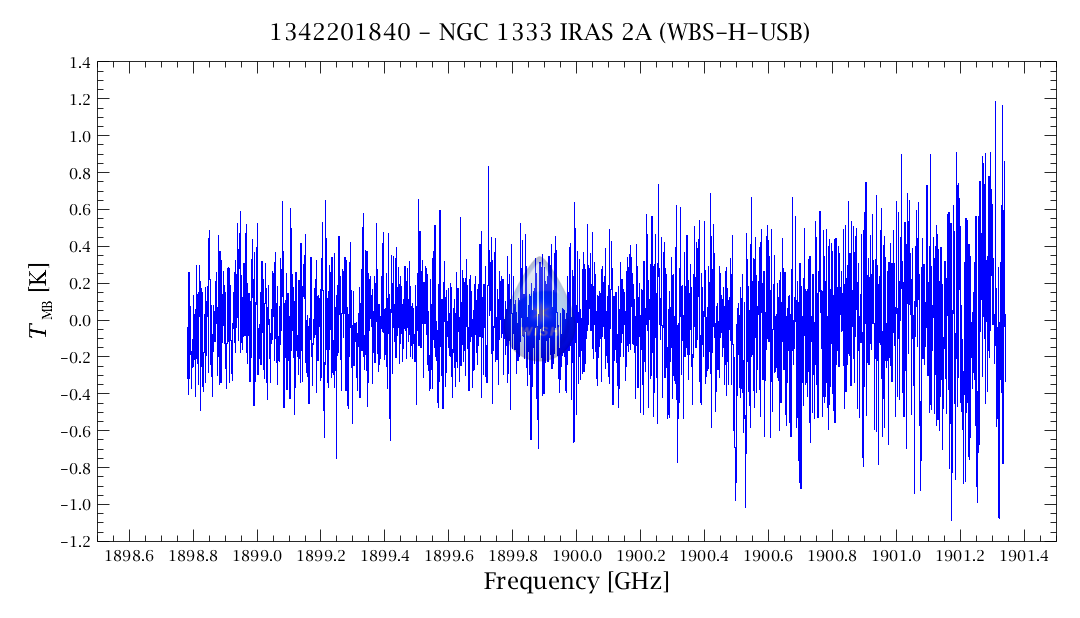

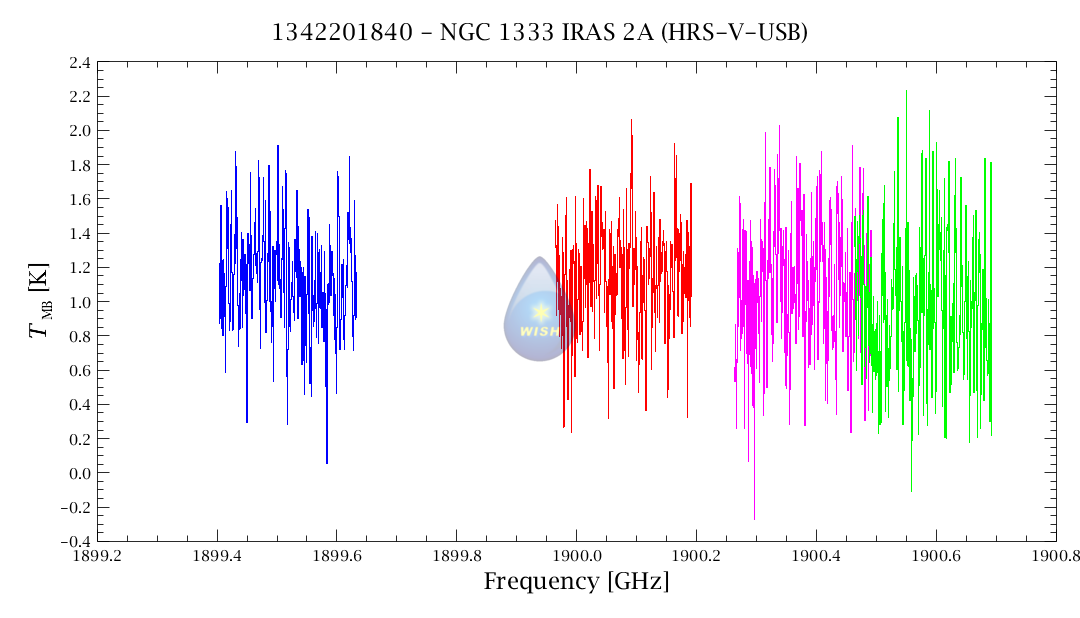

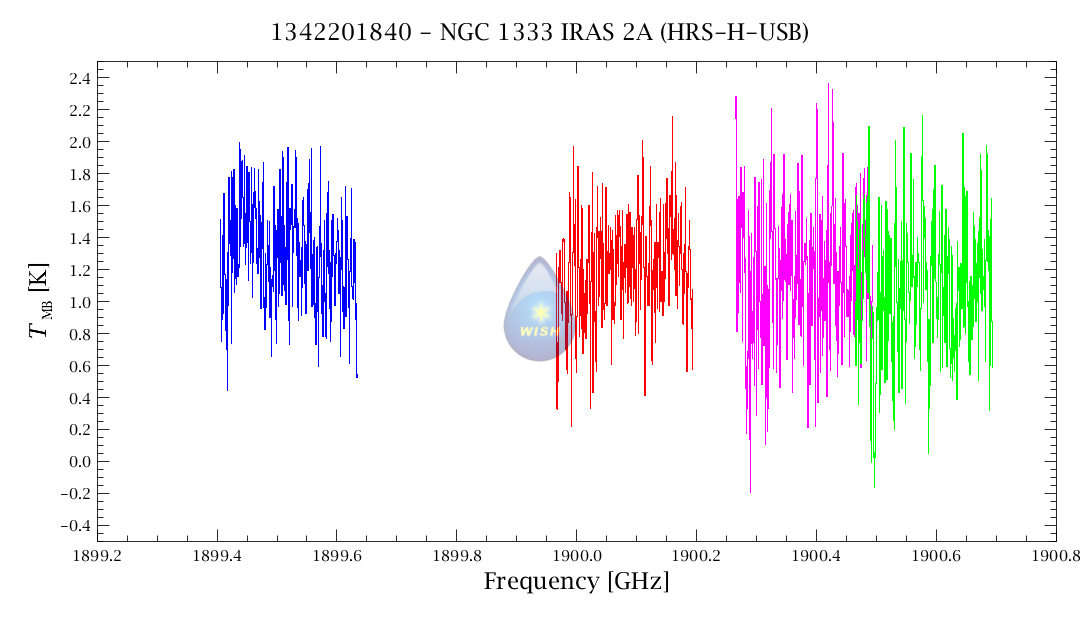

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1
	WBS-H	WBS-V
rms (K)	0.3526	0.3420
continuum (K)	0.586	0.473

Downloads Corner

• RAW HIPE FORMAT (103MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Benz et al. 2015, A&A Submitted
Visser et al. 2013, ApJ
Kristensen et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
