WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

HH46-b
RA: 8 25 42.7 (^{h m s})
Dec: -51 0 36.00 (^{o ' "})

Observation Details

OBSID: 1342202054
Obs. Type: HIFI Single Point
Obs. Mode: Position Switch
AOR Label: PSP2_HH46-blue - resched
Band: 1B
Herschel Operation Day: OD445
Integration Time: 714 sec
LO Frequency: 564.70275 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-08-02
HSA Processing Date: 2014-07-22
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (0.518791,-0.24463) arcsec

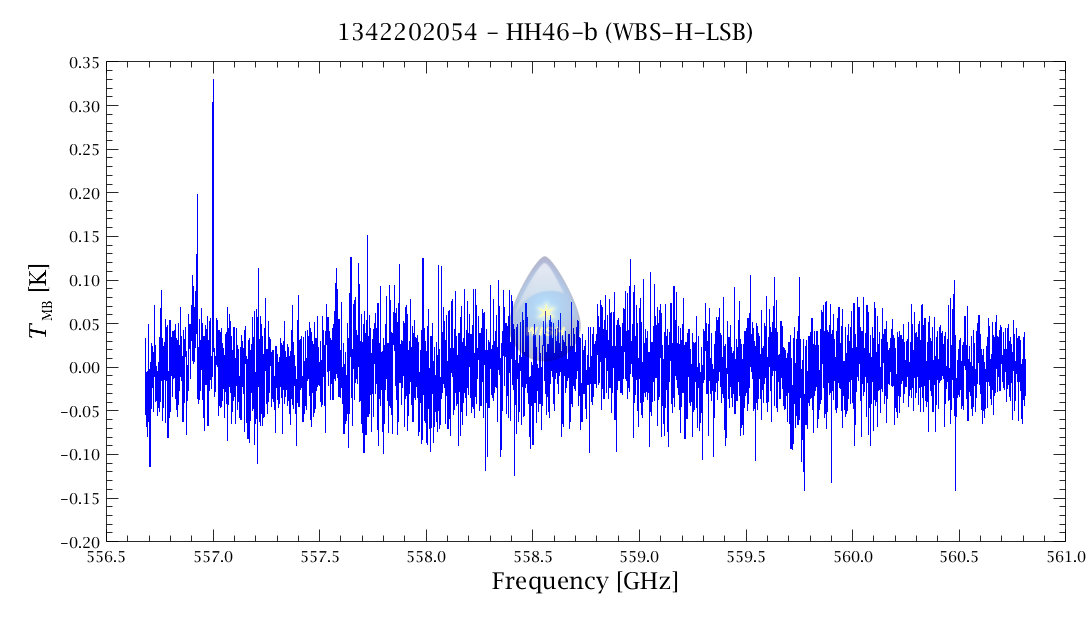

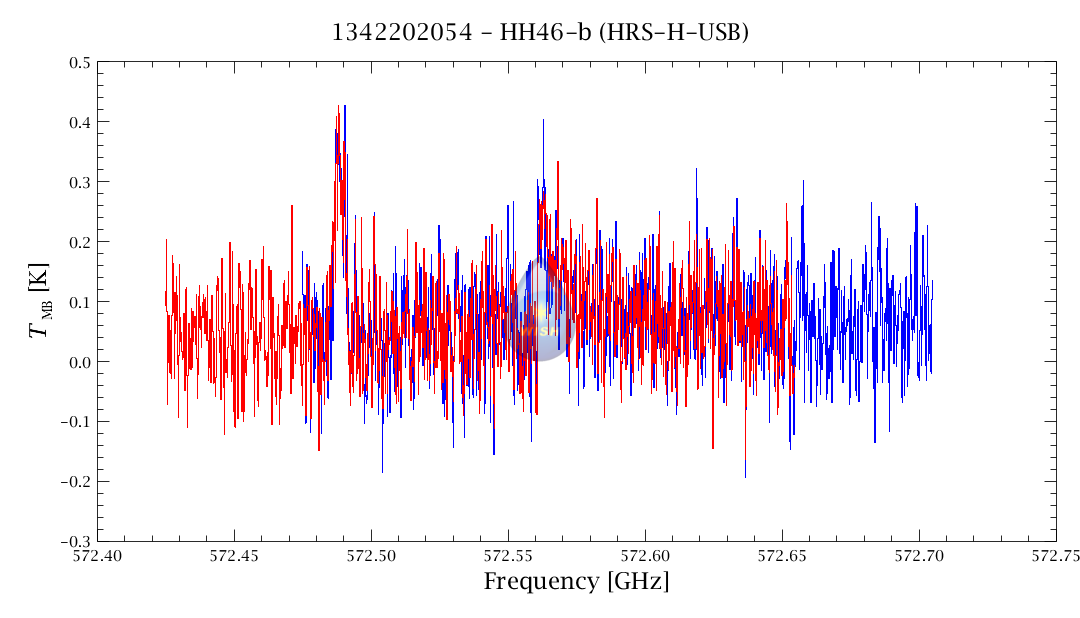

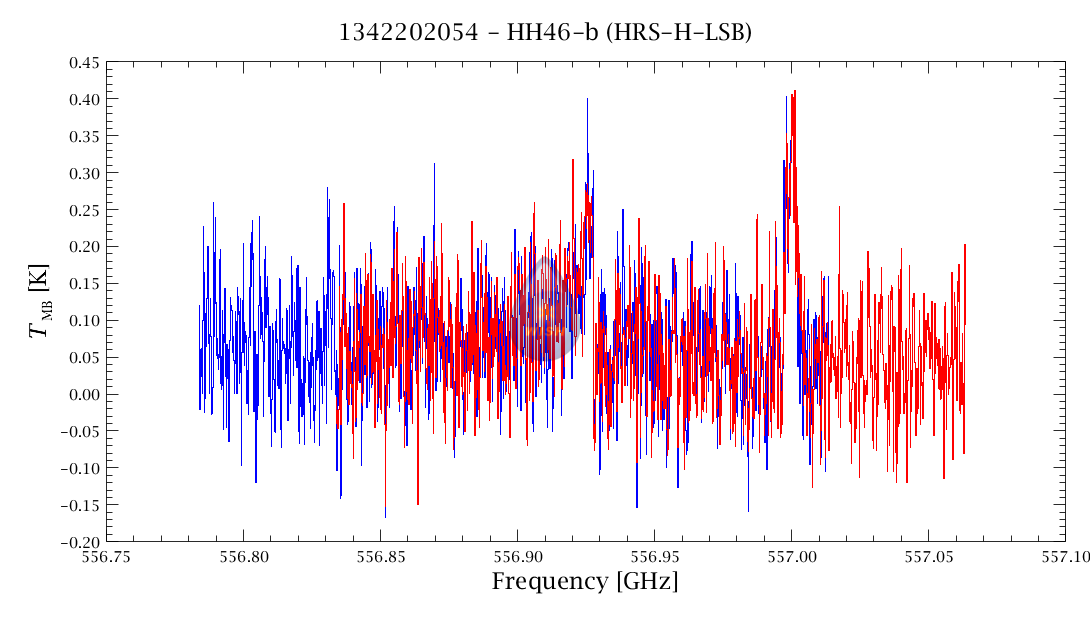

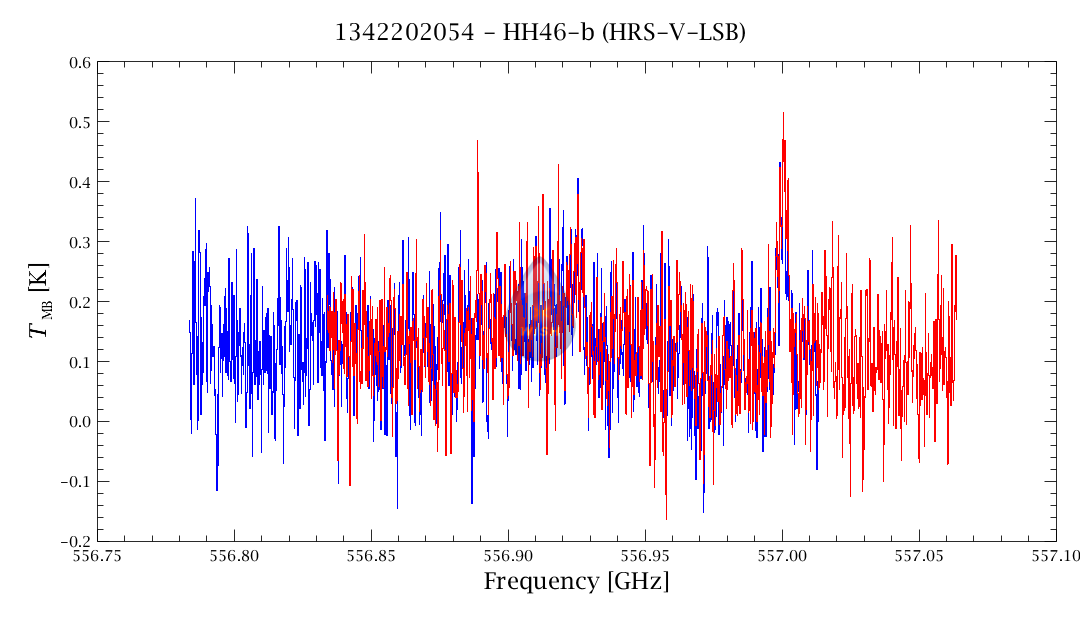

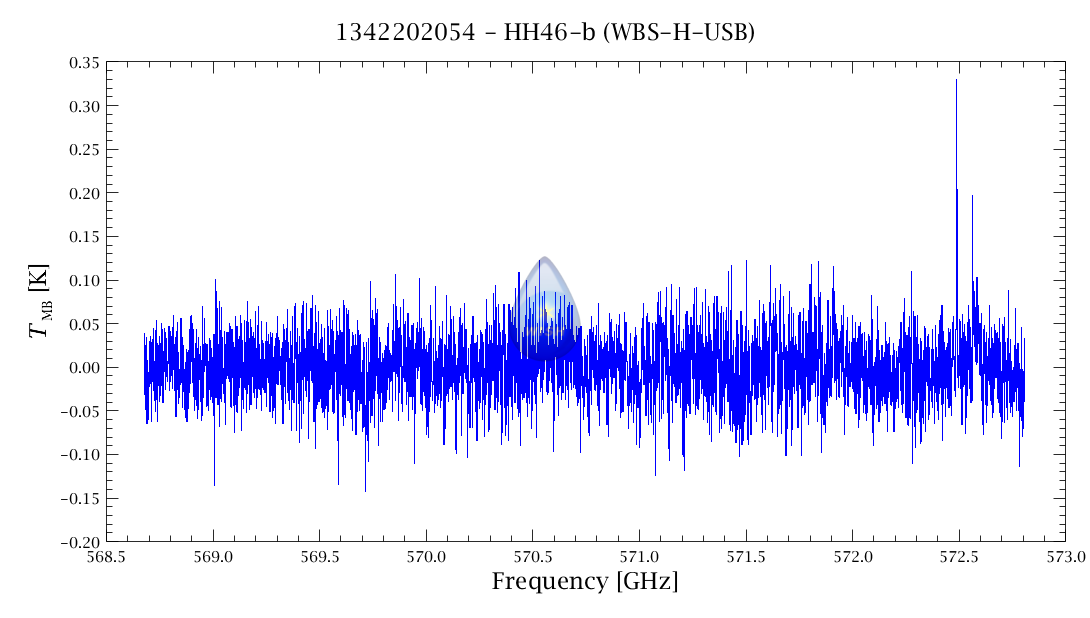

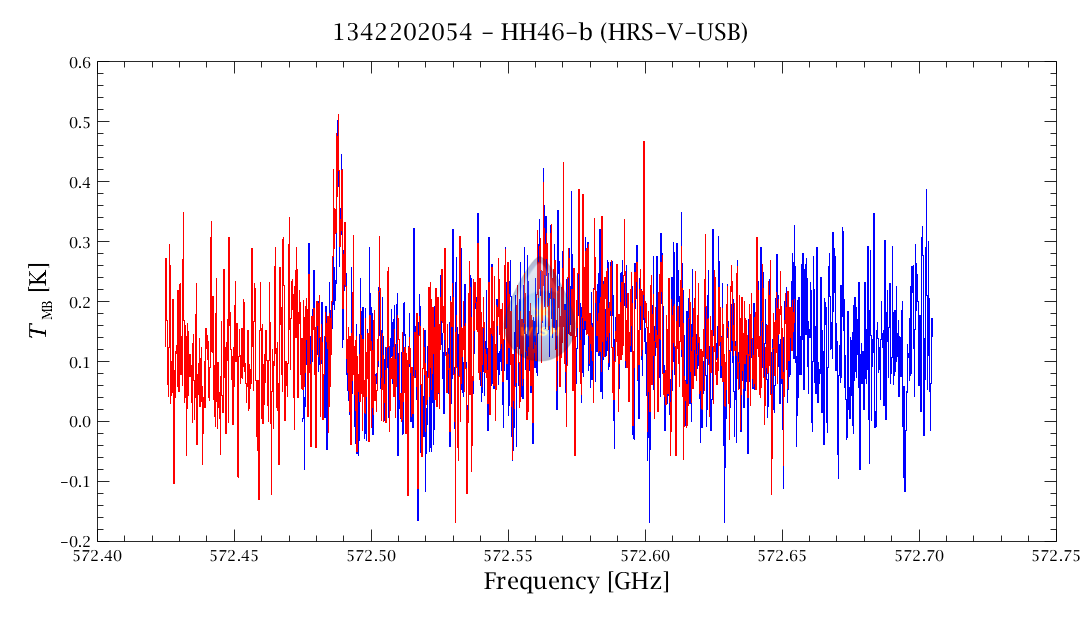

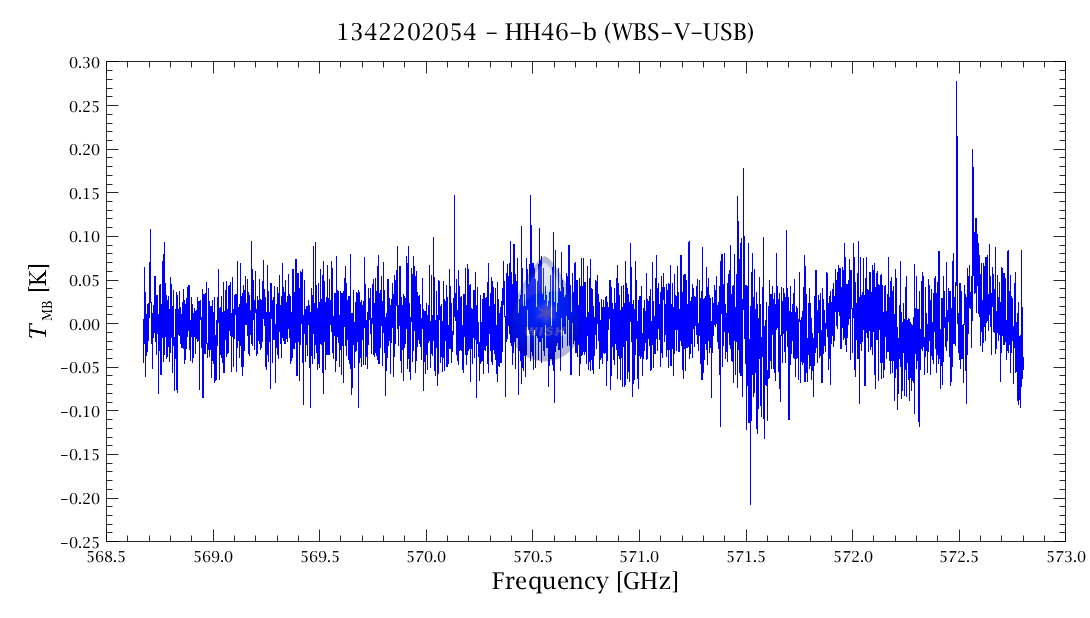

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0295	0.0284
continuum (K)	0.017	0.071

Downloads Corner

• RAW HIPE FORMAT (115MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Tafalla et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
