Source Details

NGC 1333 IRAS 4A-r
RA: 3 29 11.5 (^{h m s})
Dec: 31 13 55.92 (^{o ' "})

Observation Details

OBSID: 1342202060
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: NGC 1333 IRAS 4A 110-101 red
Band: 1B
Herschel Operation Day: OD445
Integration Time: 328 sec
LO Frequency: 564.6015 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-08-02
HSA Processing Date: 2014-07-22
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (5.50762,1.60356) arcsec

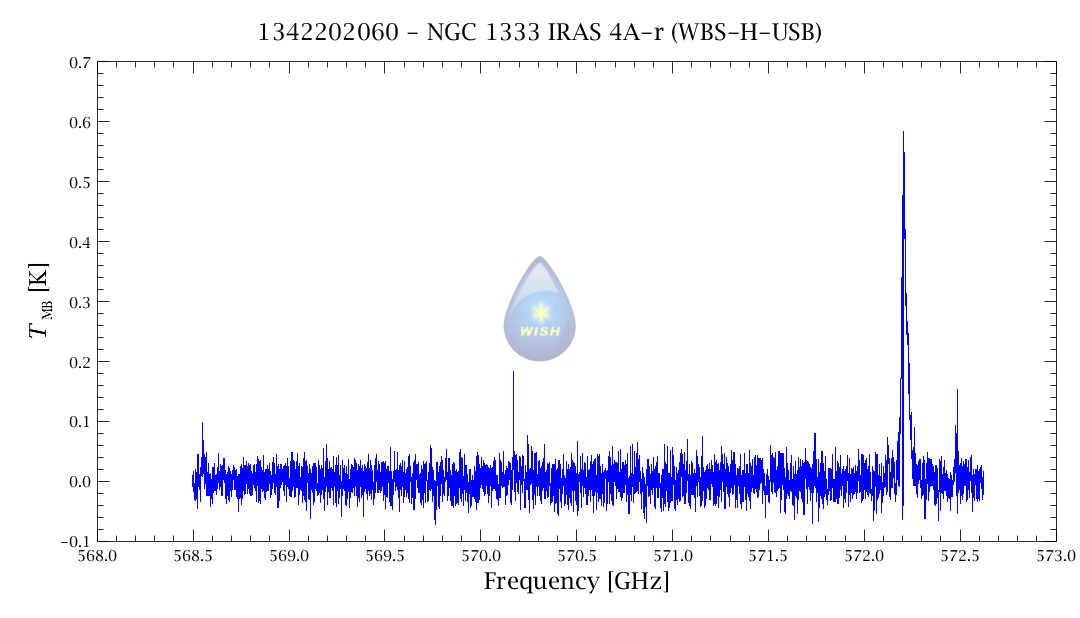

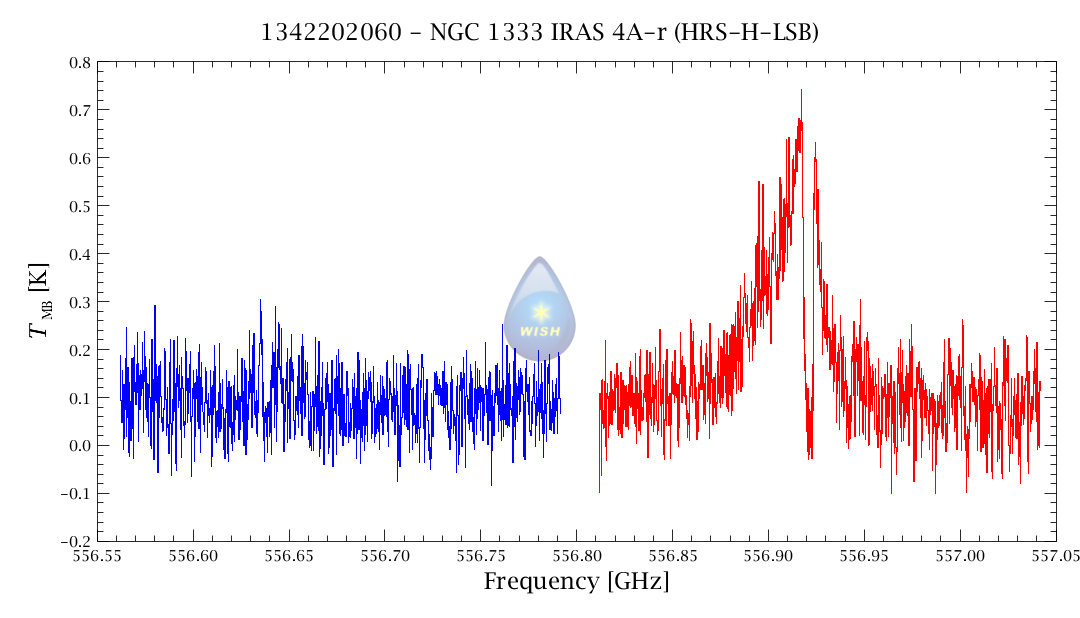

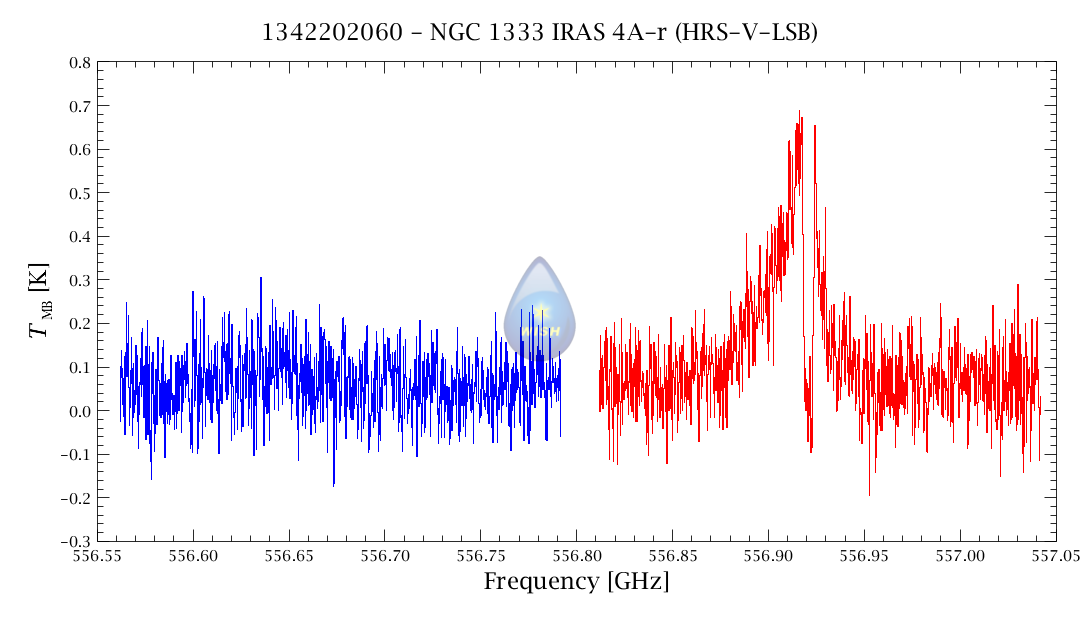

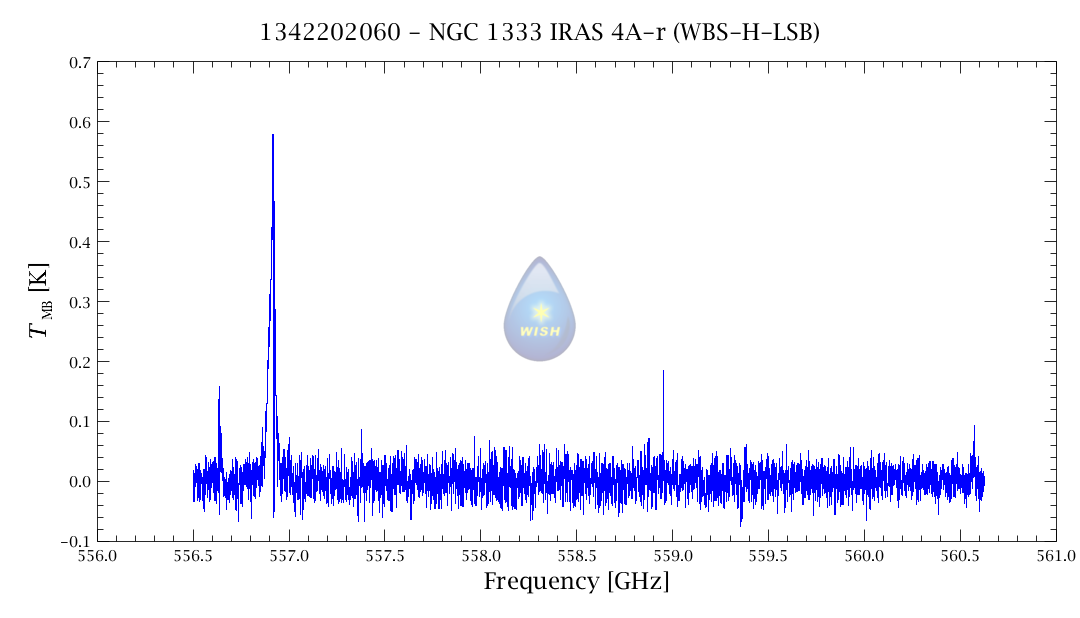

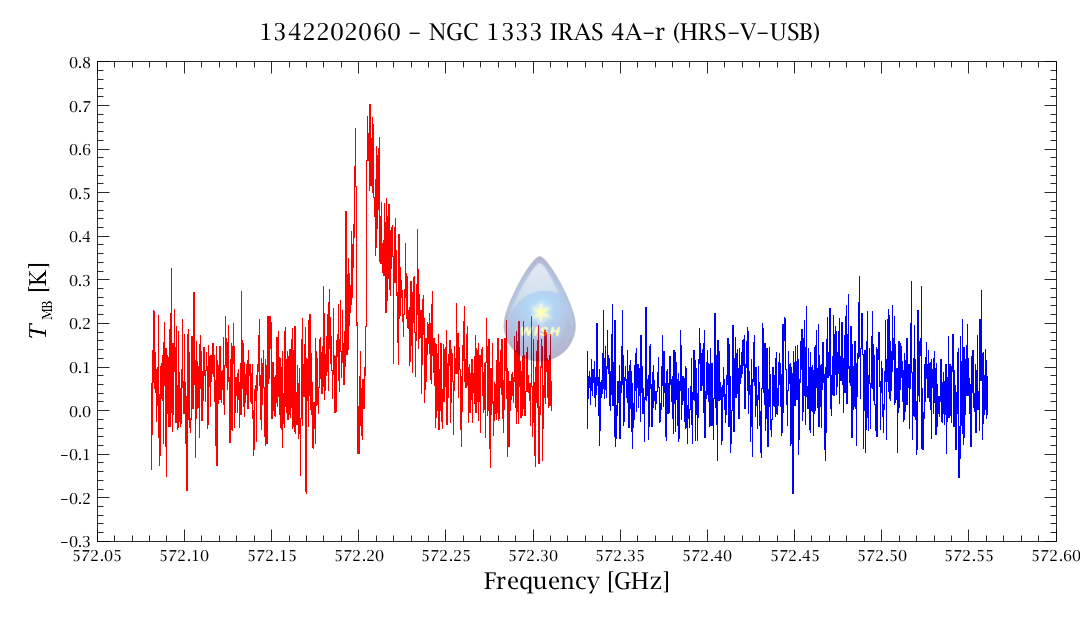

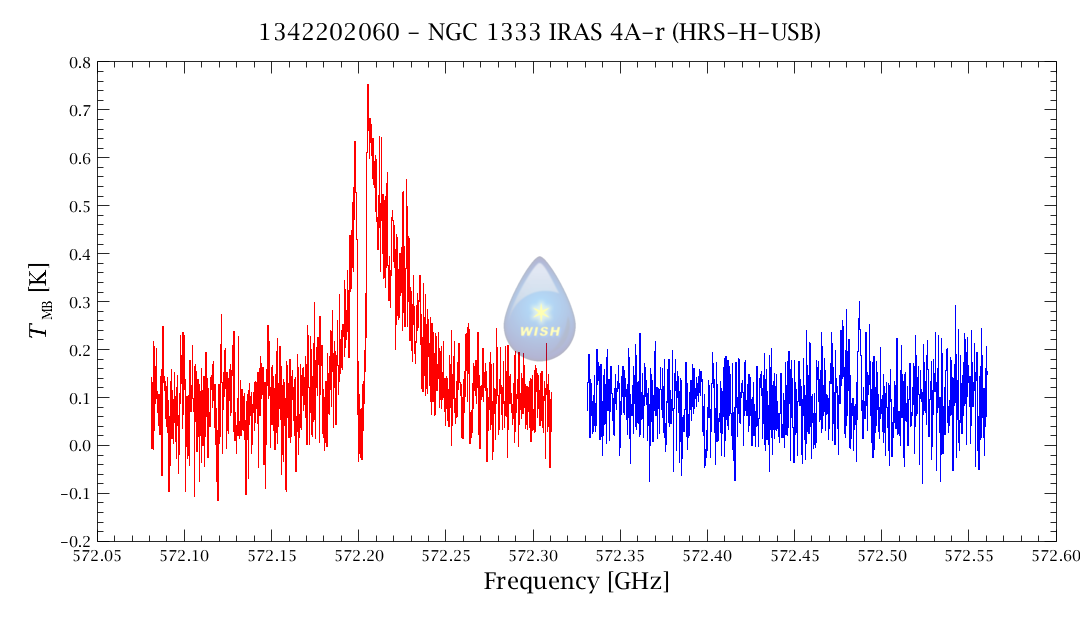

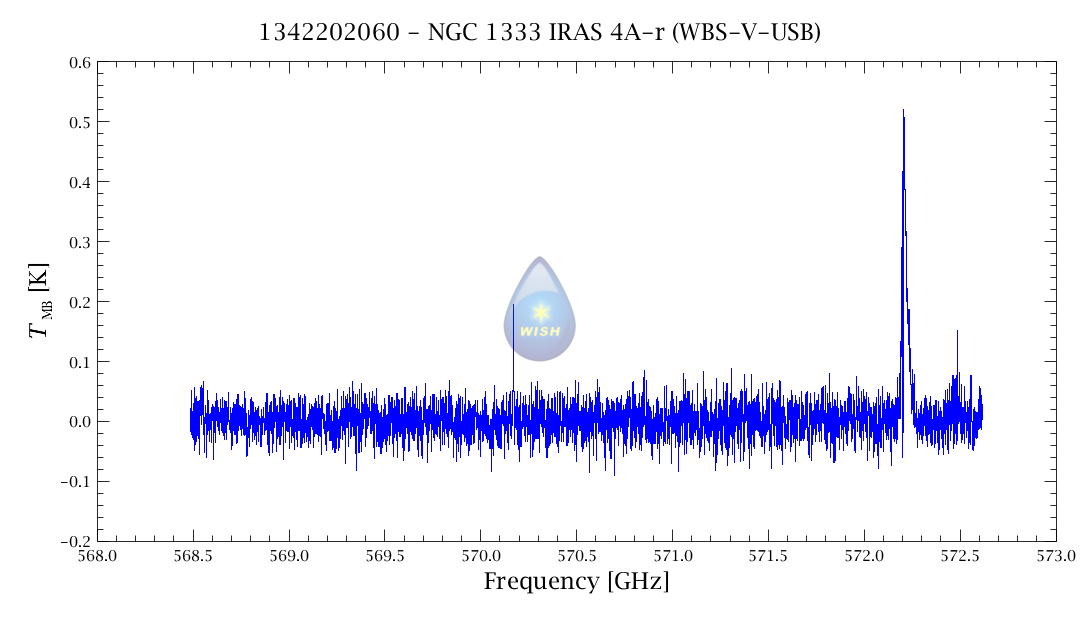

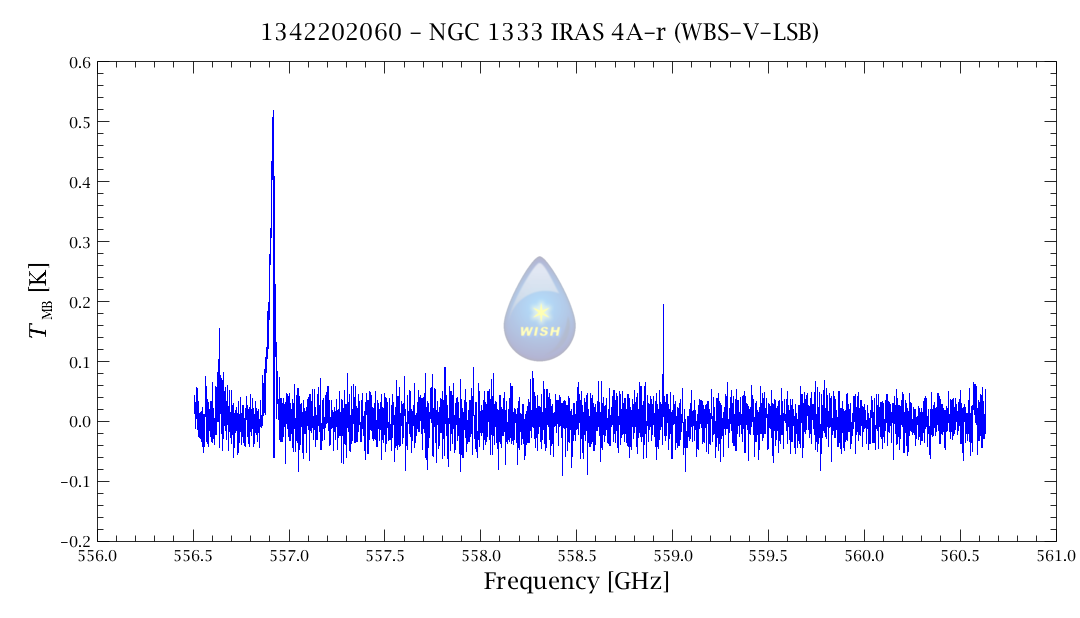

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0183	0.0220
continuum (K)	0.043	0.035

Downloads Corner

• RAW HIPE FORMAT (91MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Tafalla et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
