WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

NGC1333 IRAS4B
RA: 3 29 12.0 (^{h m s})
Dec: 31 13 8.04 (^{o ' "})

Observation Details

OBSID: 1342202064
Obs. Type: HIFI Single Point
Obs. Mode: Position Switch
AOR Label: PSP1_H2O 110-101 - NGC1333 IRAS4B
Band: 1B
Herschel Operation Day: OD445
Integration Time: 622 sec
LO Frequency: 562.653 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-08-02
HSA Processing Date: 2014-07-23
WISH Processing Date: 2014-08-04
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (5.46035,1.60754) arcsec

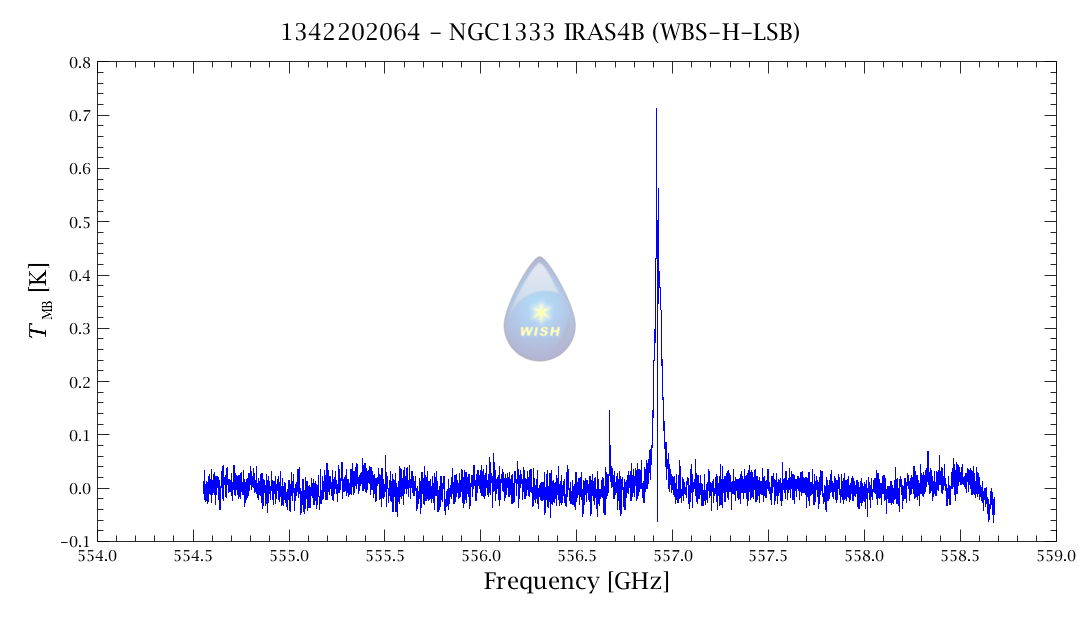

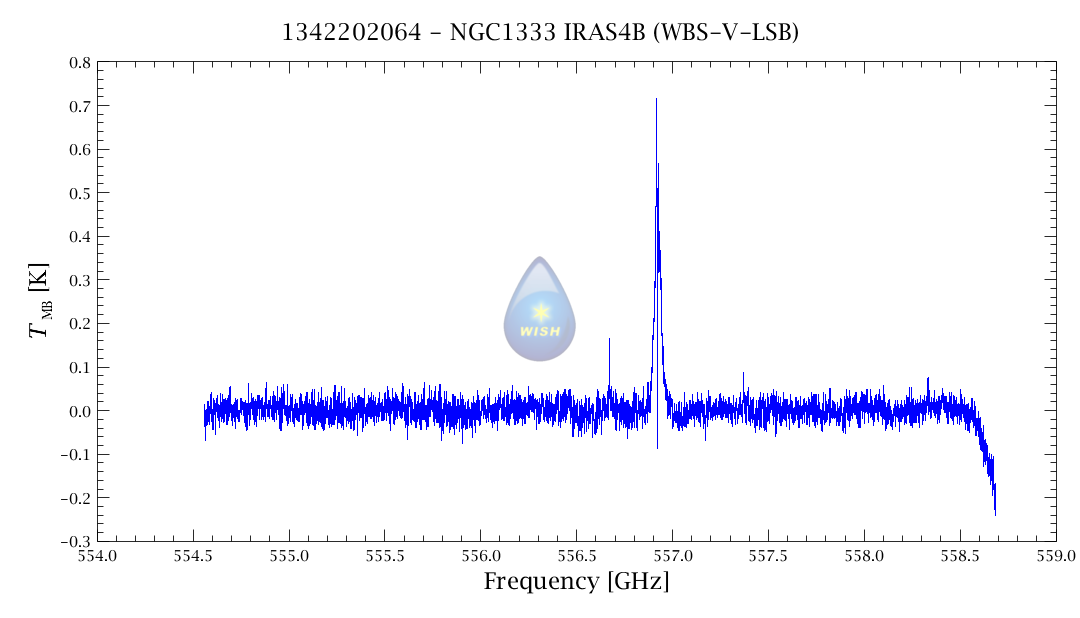

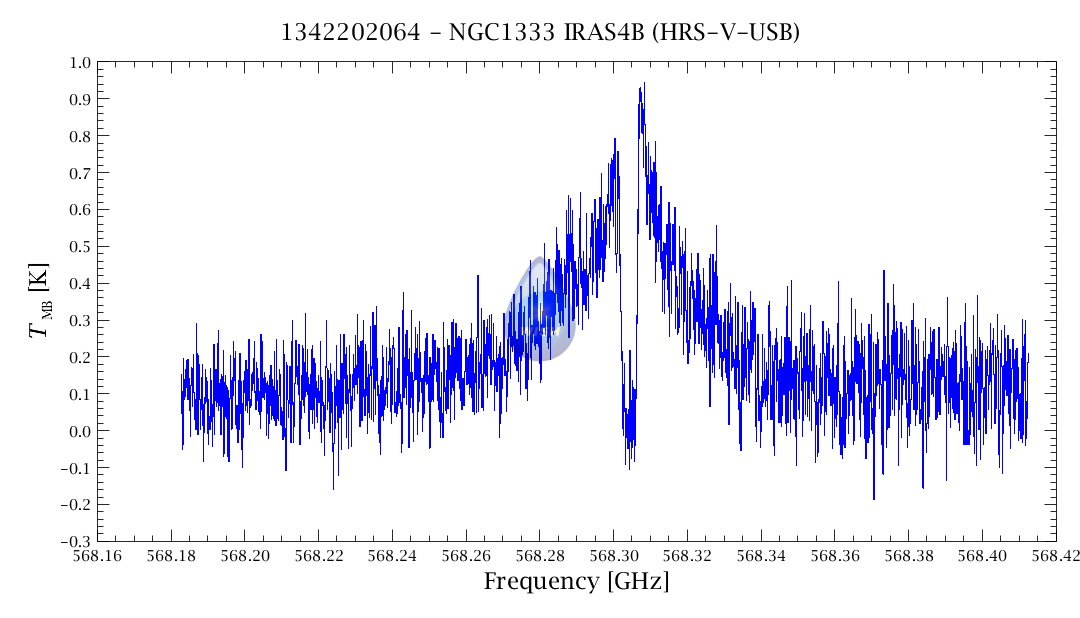

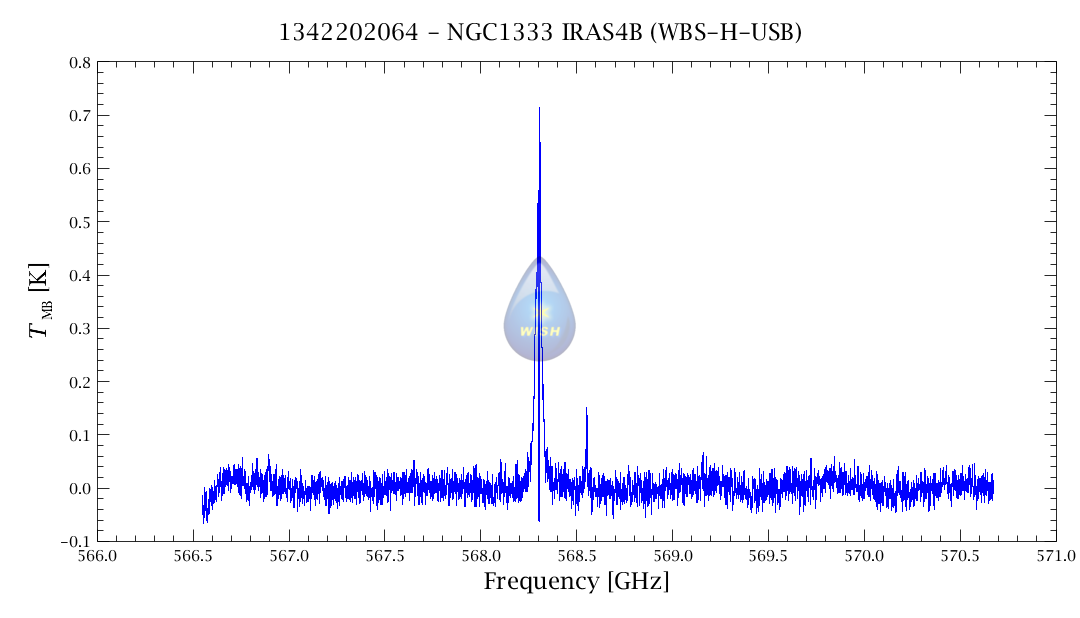

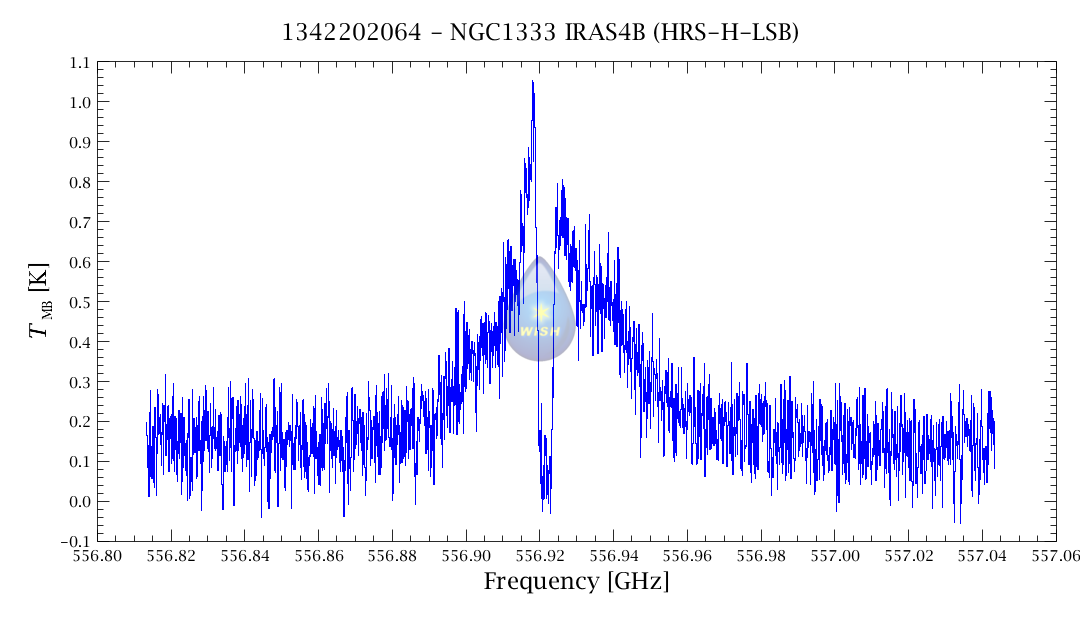

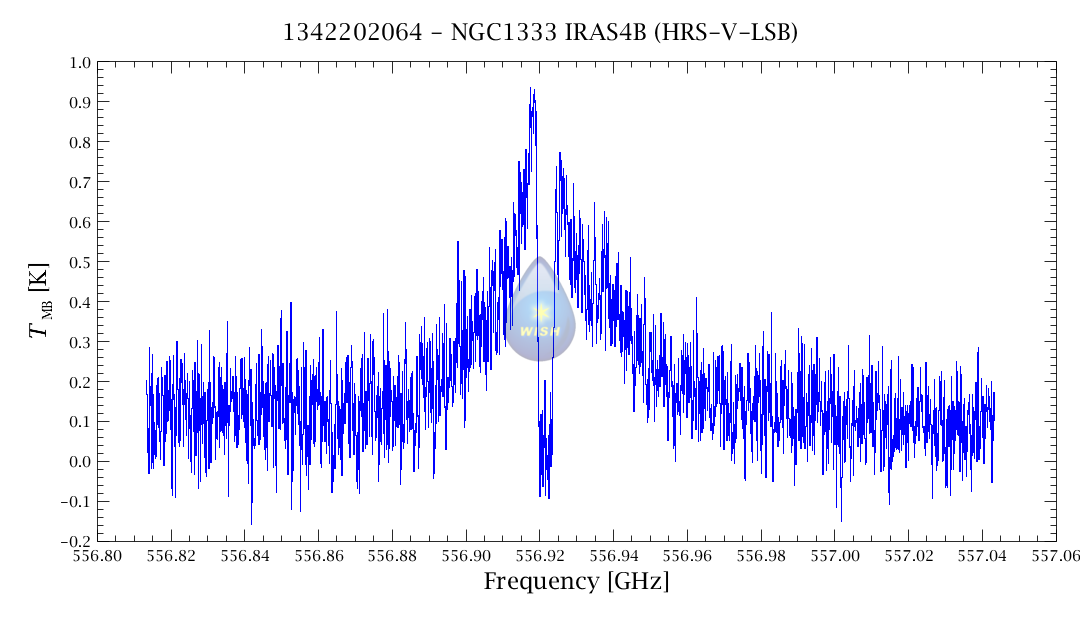

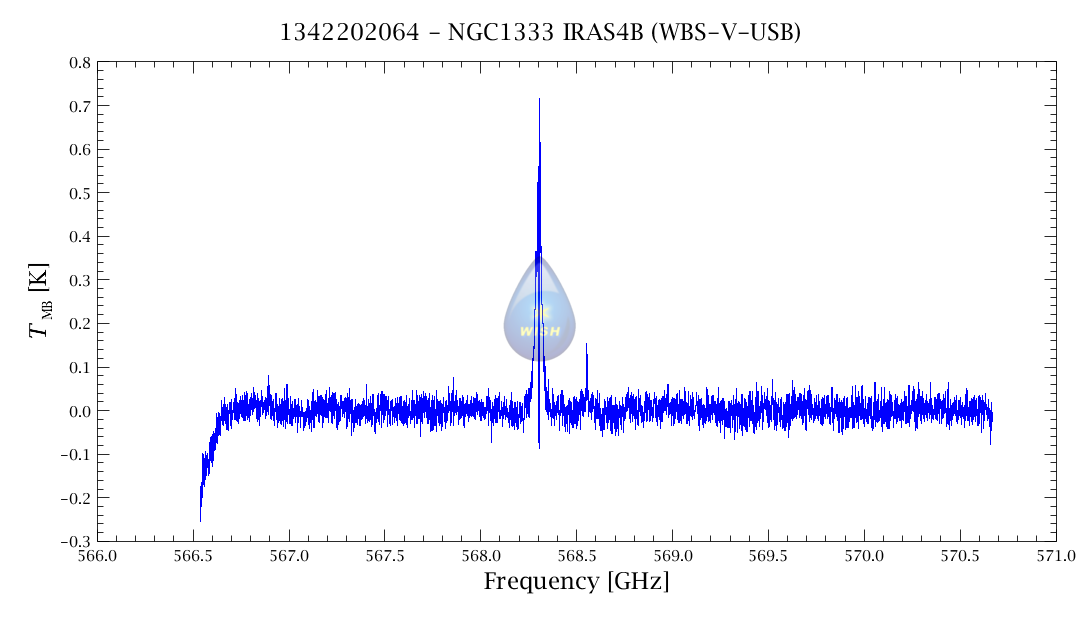

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0176	0.0204
continuum (K)	0.064	0.050

Downloads Corner

• RAW HIPE FORMAT (177MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Mottram et al. 2014, A&A
Kristensen et al. 2013, A&A
Kristensen et al. 2012, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
