WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

TMC 1
RA: 4 41 12.4 (^{h m s})
Dec: 25 46 36.12 (^{o ' "})

Observation Details

OBSID: 1342203155
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: KPGT_evandish_1-H2O 202-111 Class I - TMC 1
Band: 4A
Herschel Operation Day: OD461
Integration Time: 1259 sec
LO Frequency: 745.587 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-08-18
HSA Processing Date: 2014-07-23
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.64
Beam Efficiency V⁽¹⁾: η=0.66
Beam Efficiency (2012) ⁽¹⁾: η=0.749
Position offset (x,y): (-7.89391,0.37127) arcsec

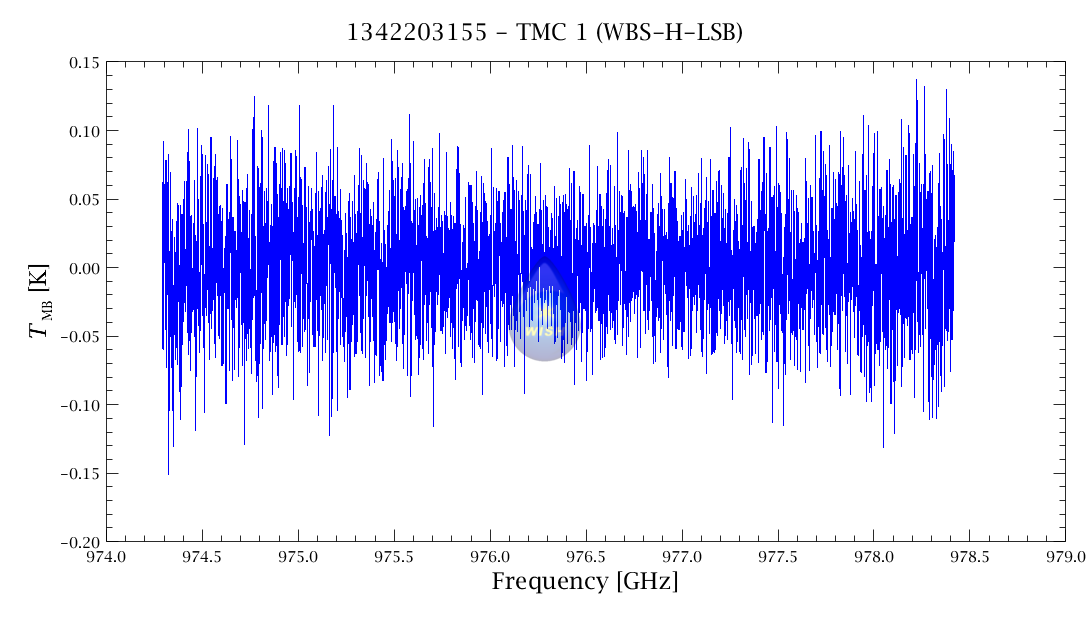

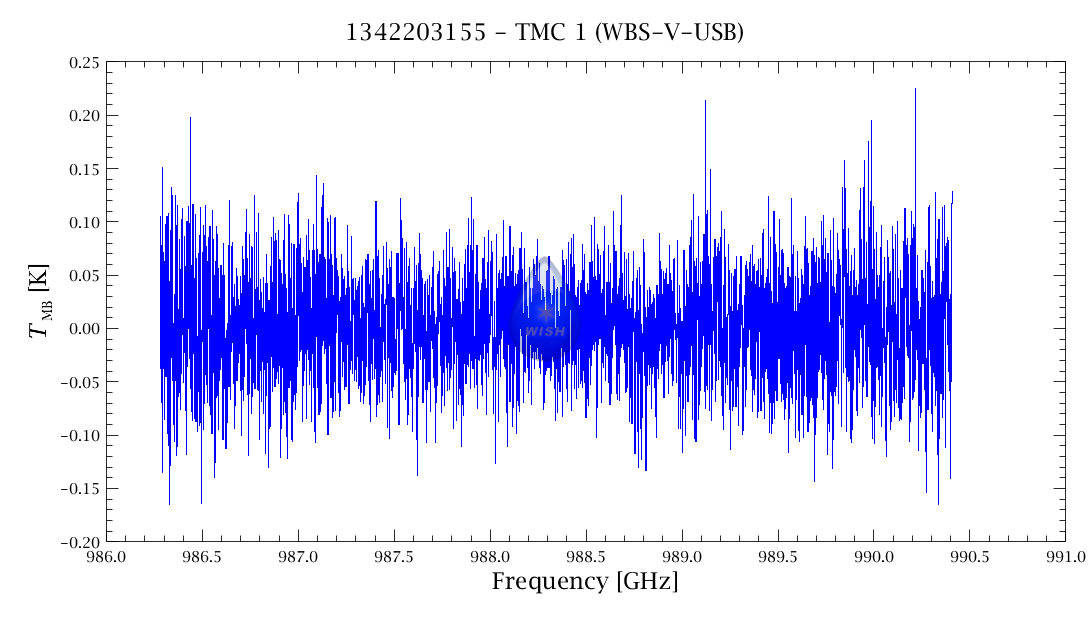

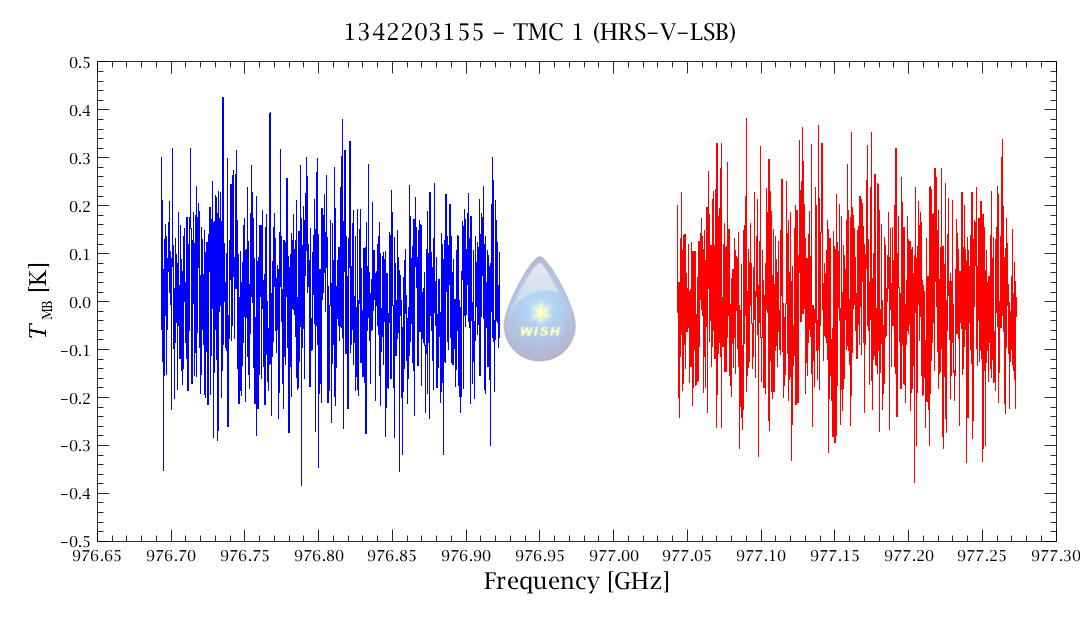

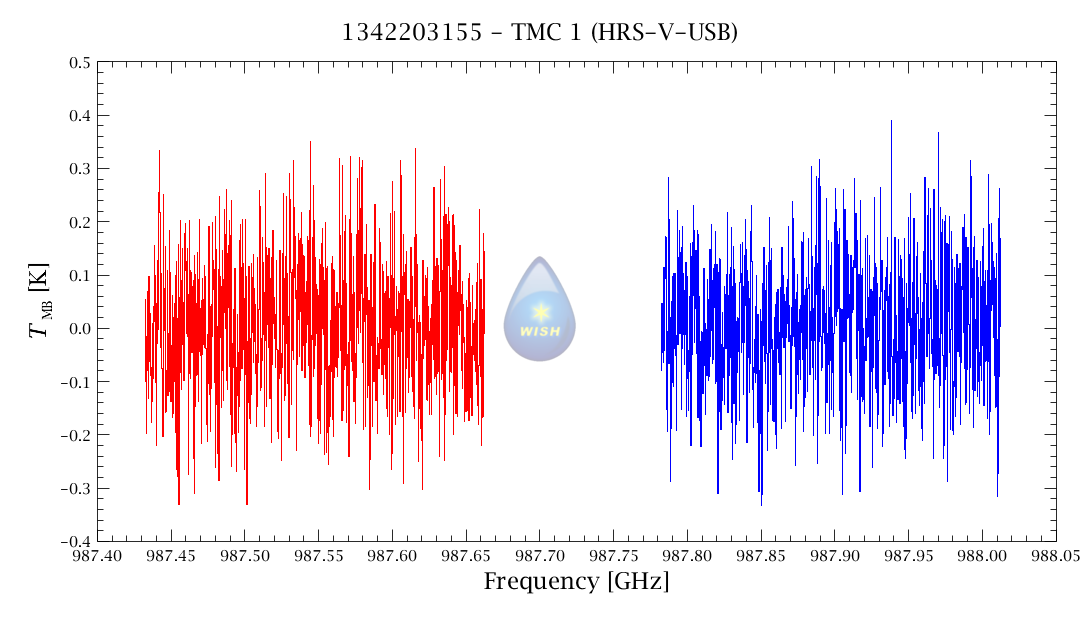

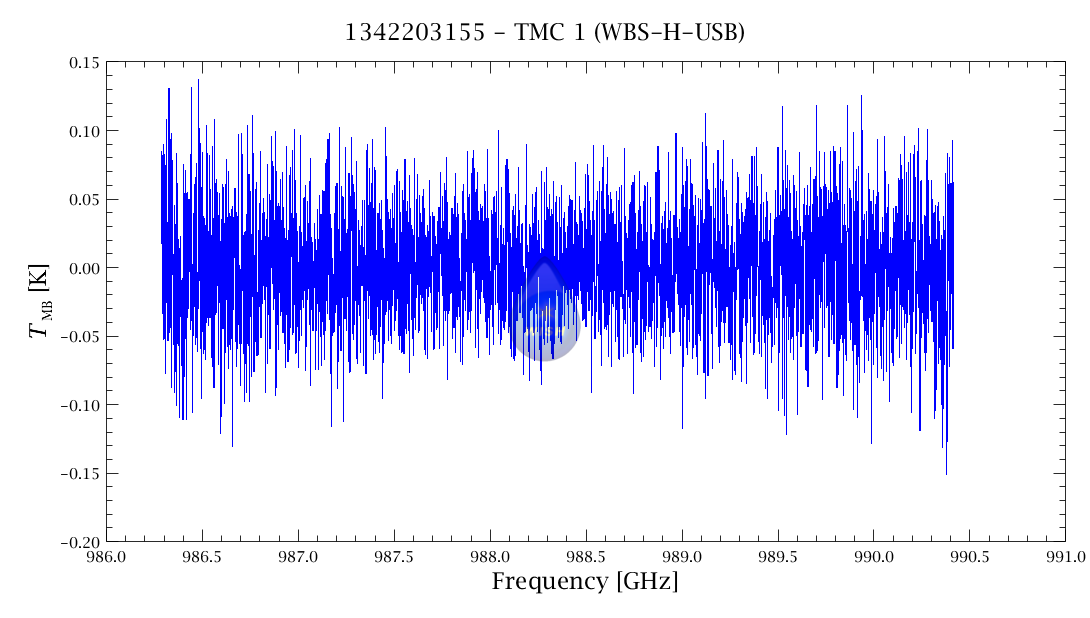

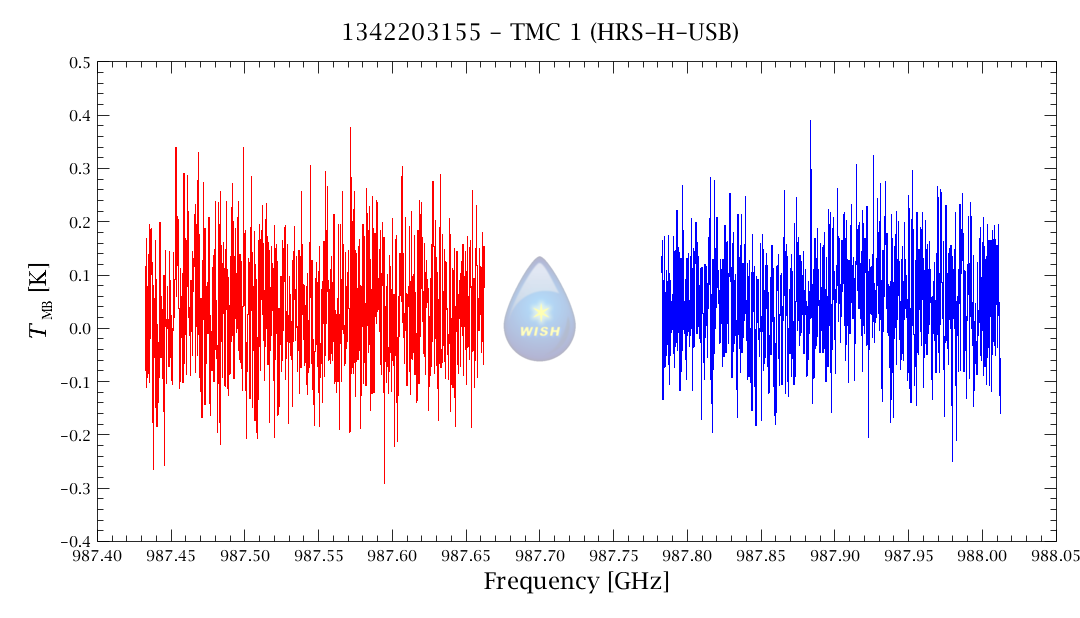

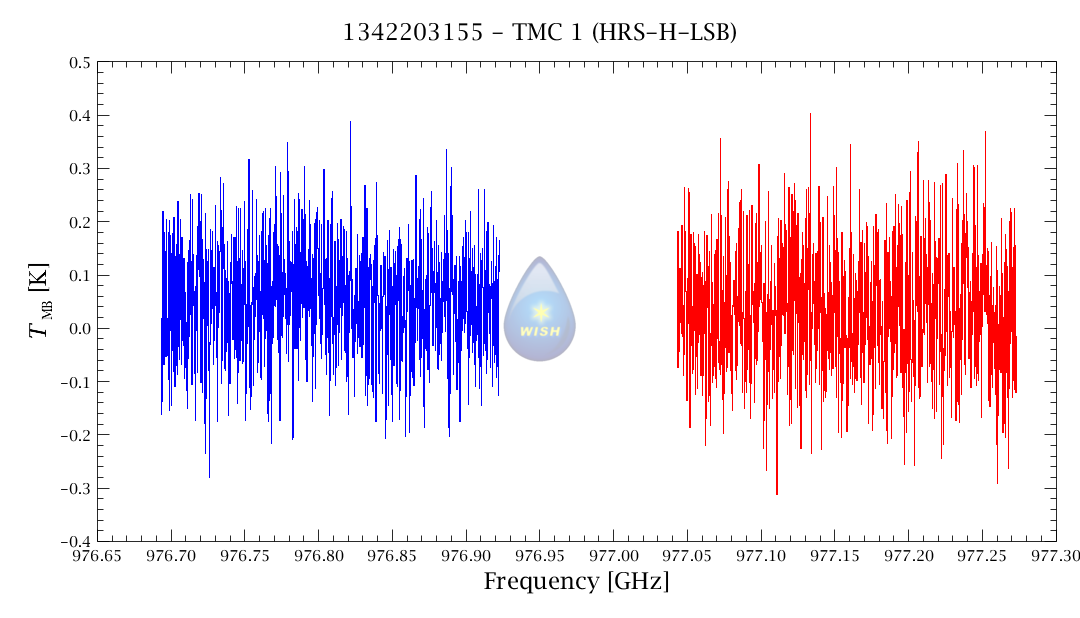

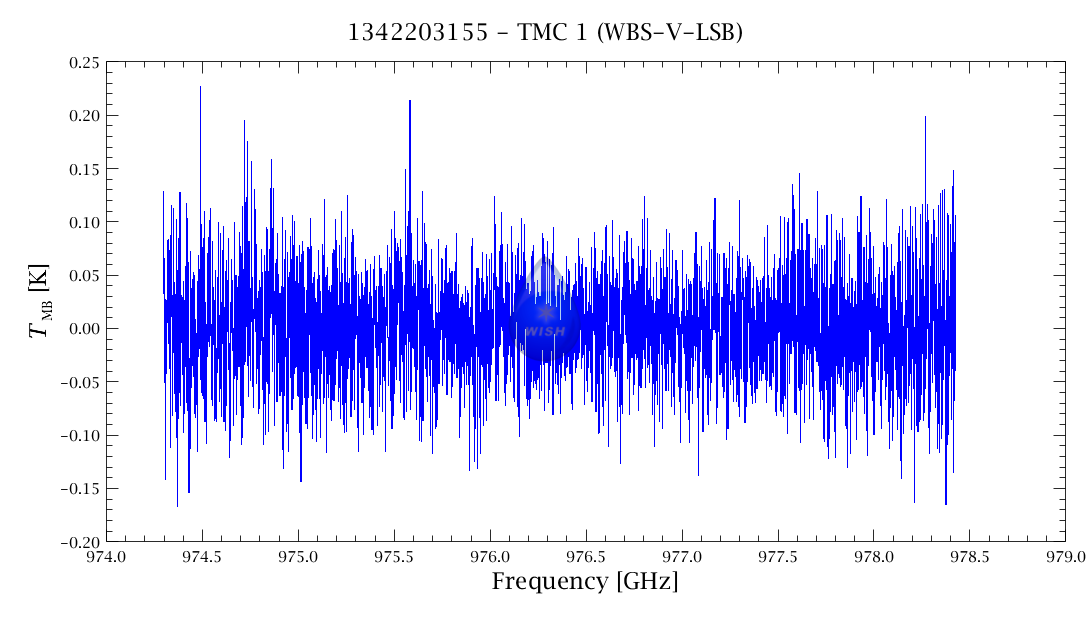

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0397	0.0484
continuum (K)	0.015	0.001

Downloads Corner

• RAW HIPE FORMAT (94MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Schmalzl et al. 2014, A&A
Mottram et al. 2014, A&A
Yildiz et al. 2013A, A&A
San Jose-Garcia et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
