WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

G327-06
RA: 15 53 8.9 (^{h m s})
Dec: -54 37 0.84 (^{o ' "})

Observation Details

OBSID: 1342203170
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: PSP2_H2O 202-111 - G327-06
Band: 4A
Herschel Operation Day: OD461
Integration Time: 463 sec
LO Frequency: 747.8775 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-08-18
HSA Processing Date: 2014-07-23
WISH Processing Date: 2014-08-01
Beam Efficiency H ⁽¹⁾: η=0.64
Beam Efficiency V⁽¹⁾: η=0.66
Beam Efficiency (2012) ⁽¹⁾: η=0.749
Position offset (x,y): (-0.06499,2.44794) arcsec

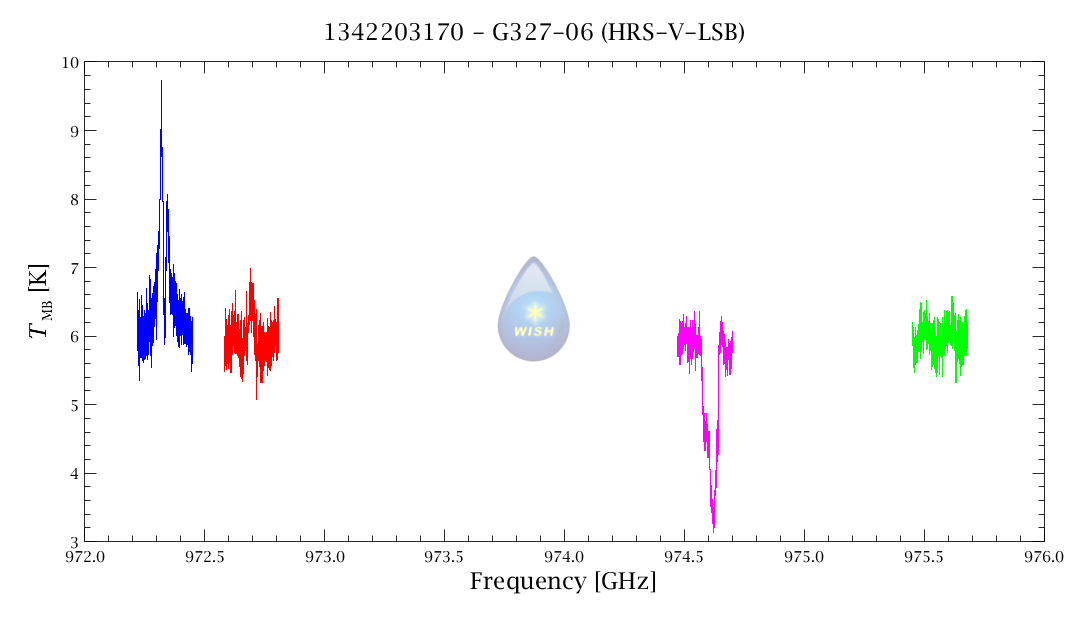

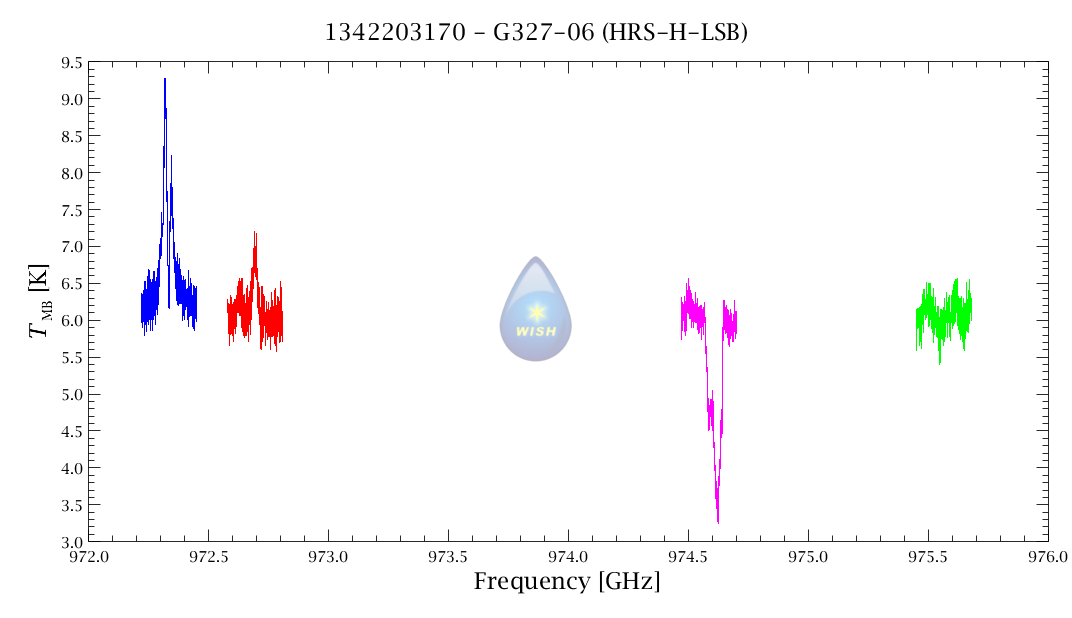

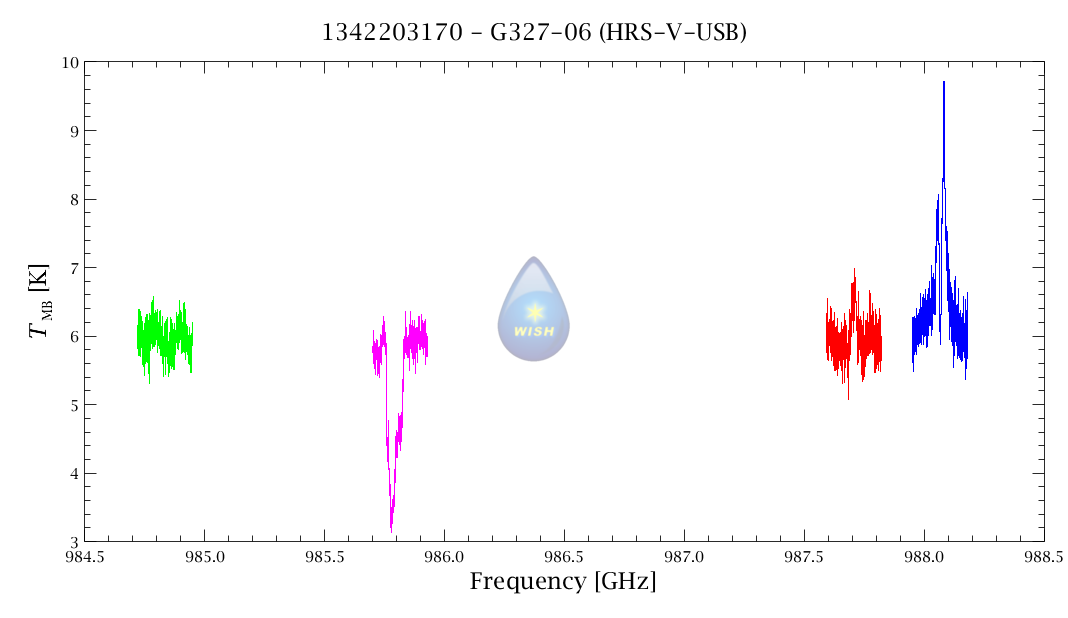

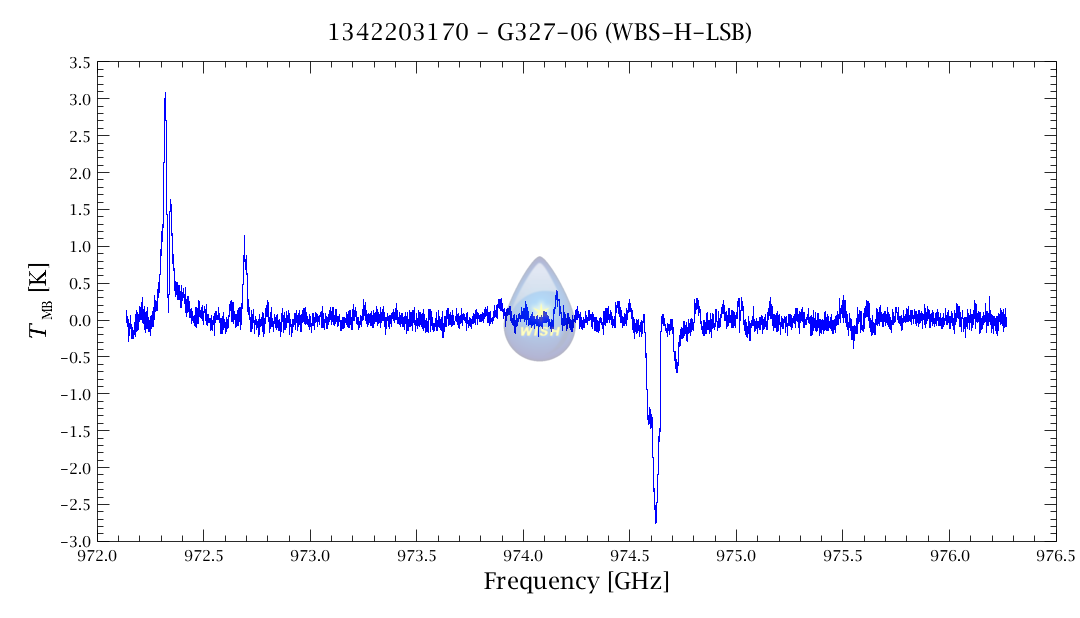

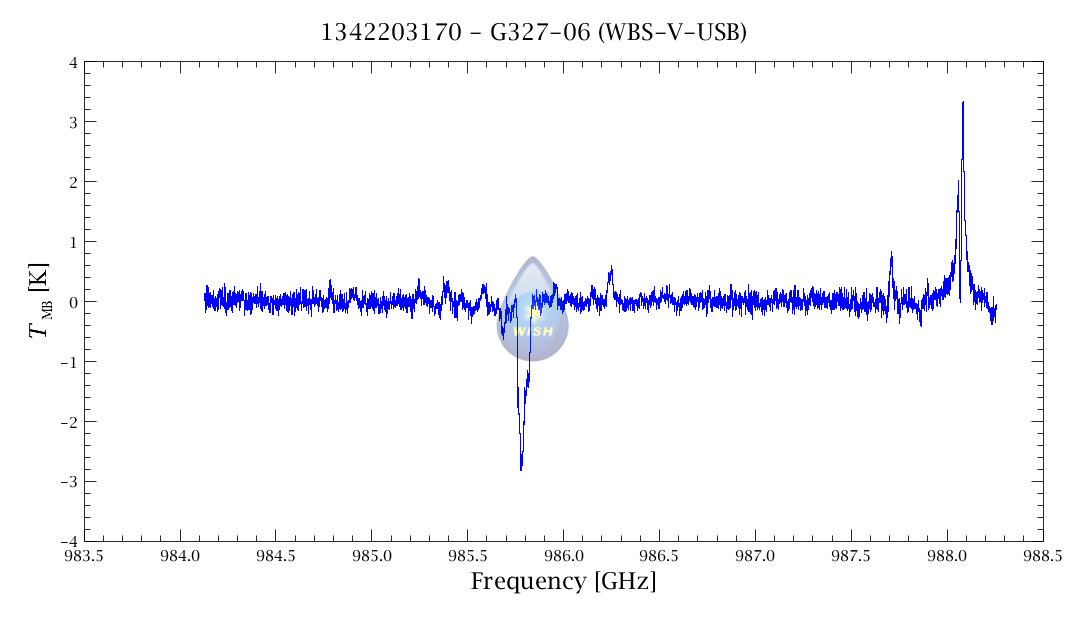

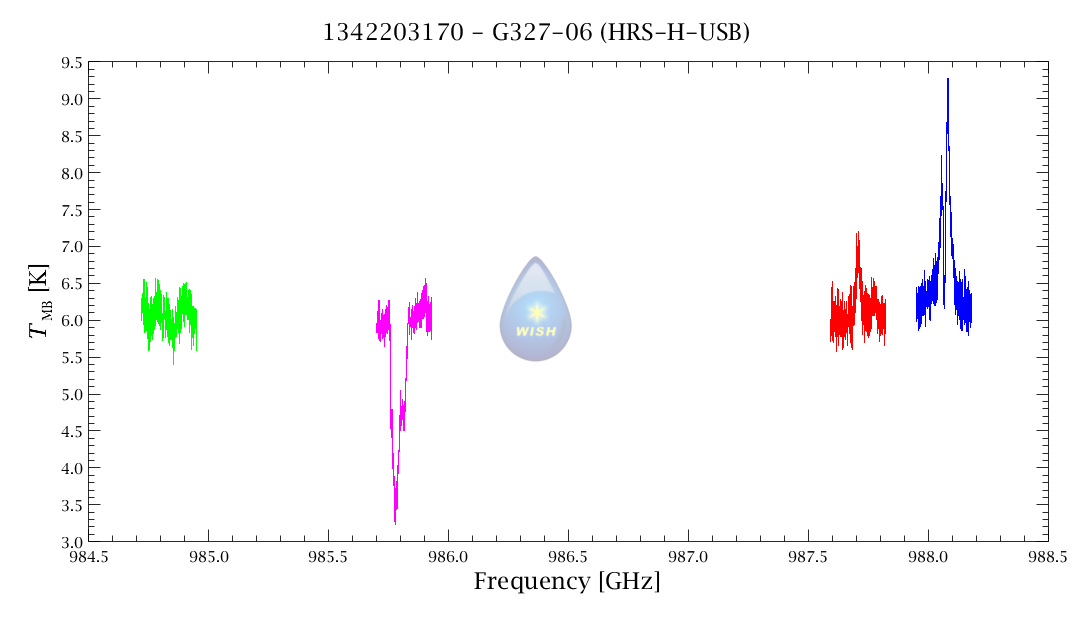

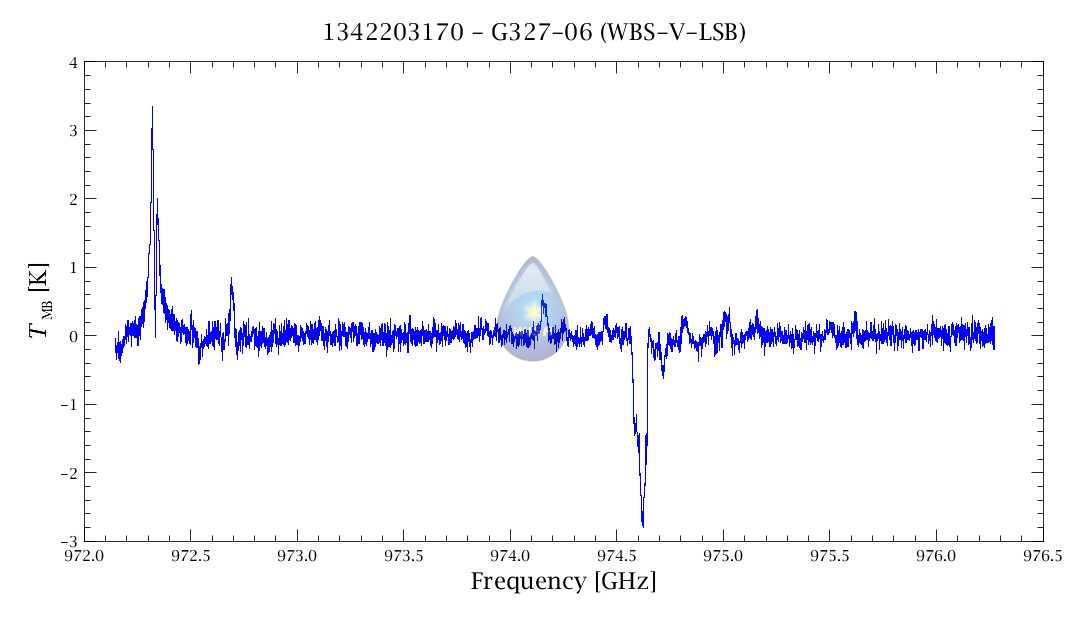

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0871	0.0920
continuum (K)	3.014	2.952

Downloads Corner

• RAW HIPE FORMAT (120MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Van der Tak et al. 2013, A&A
San Jose-Garcia et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
