WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

MWC480
RA: 4 58 46.3 (^{h m s})
Dec: 29 50 36.96 (^{o ' "})

Observation Details

OBSID: 1342203936
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: H2O 312-202 - MWC480
Band: 4B
Herschel Operation Day: OD476
Integration Time: 14868 sec
LO Frequency: 1091.619 GHz
HIPE/Pipeline Version: SPG v11.1.0
Observation Date: 2010-09-02
HSA Processing Date: 2014-01-29
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.63
Beam Efficiency V⁽¹⁾: η=0.64
Beam Efficiency (2012) ⁽¹⁾: η=0.738
Position offset (x,y): (-1.84318,1.53588) arcsec

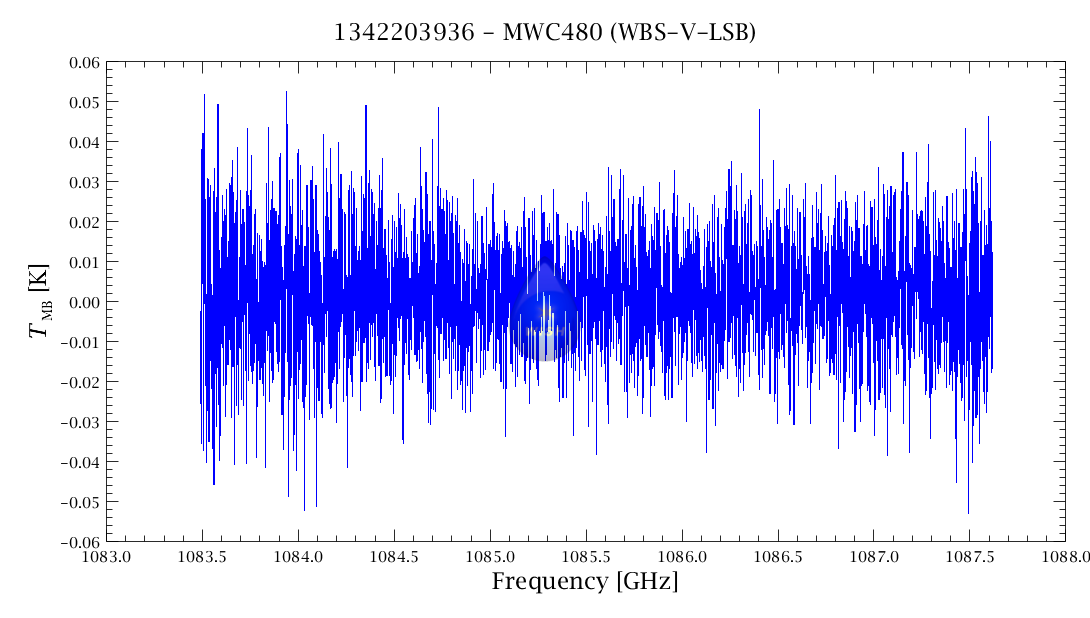

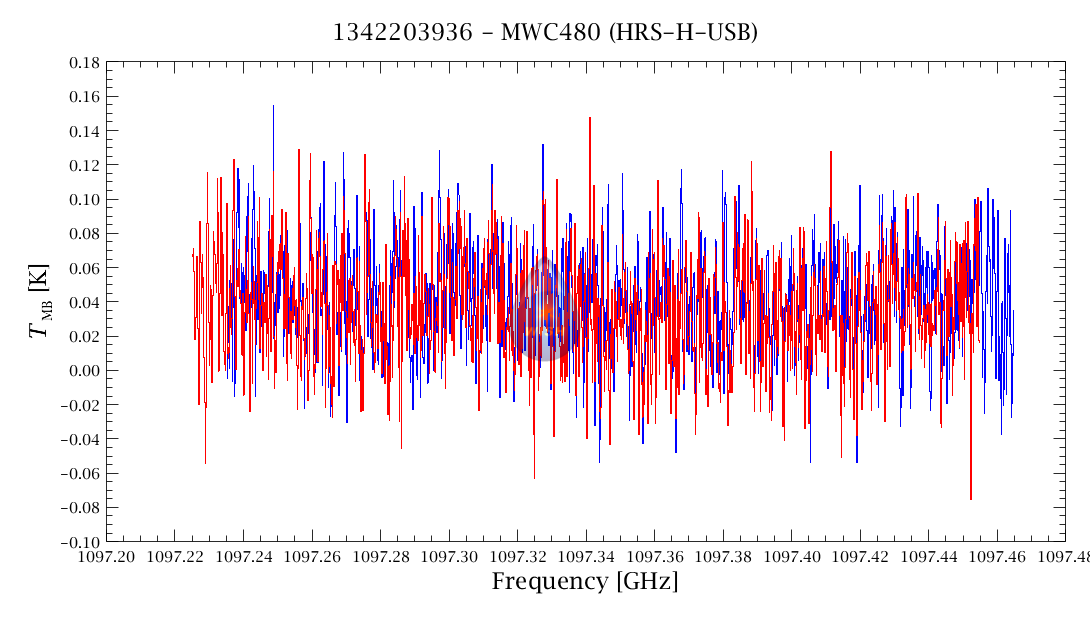

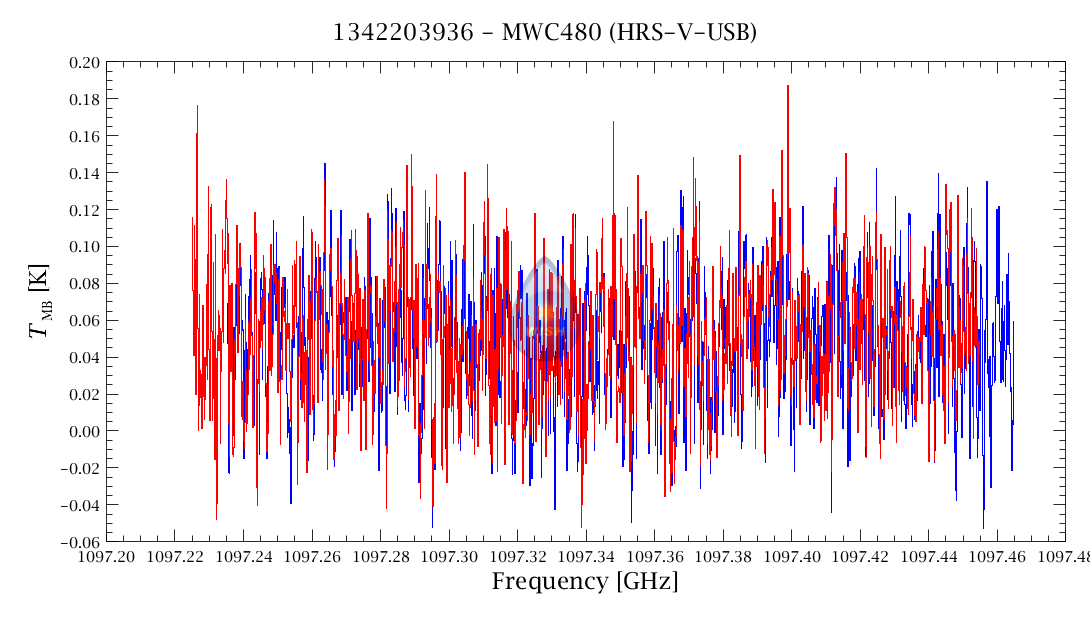

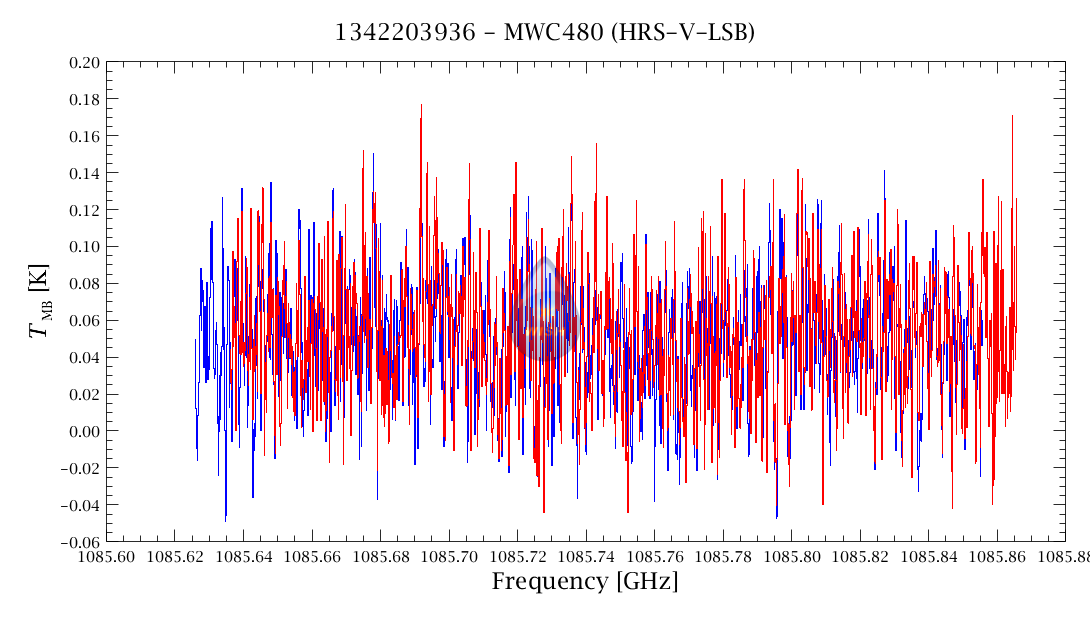

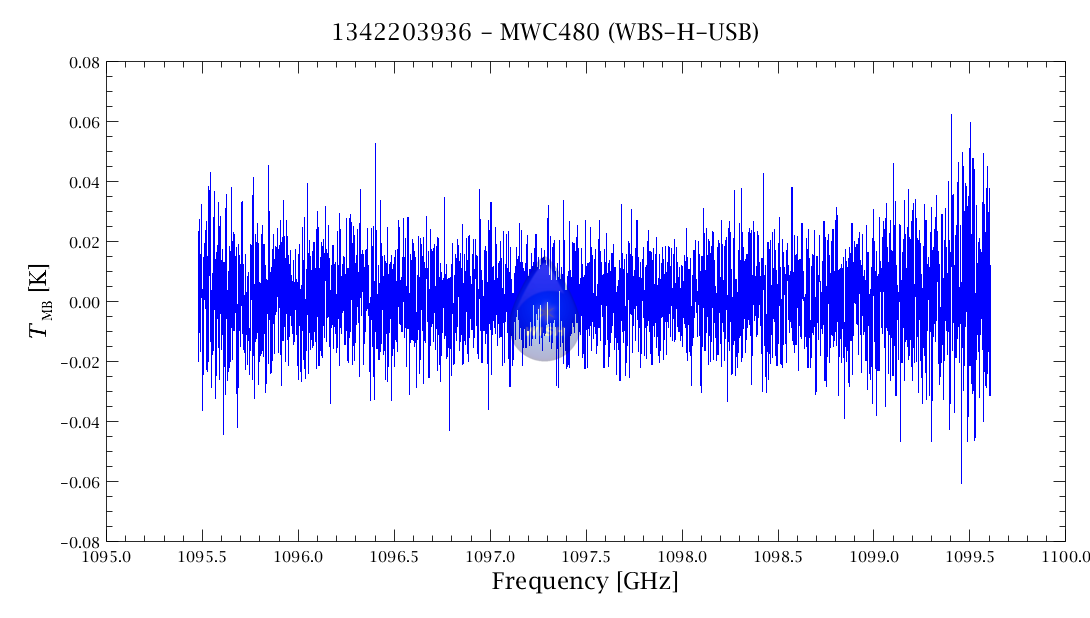

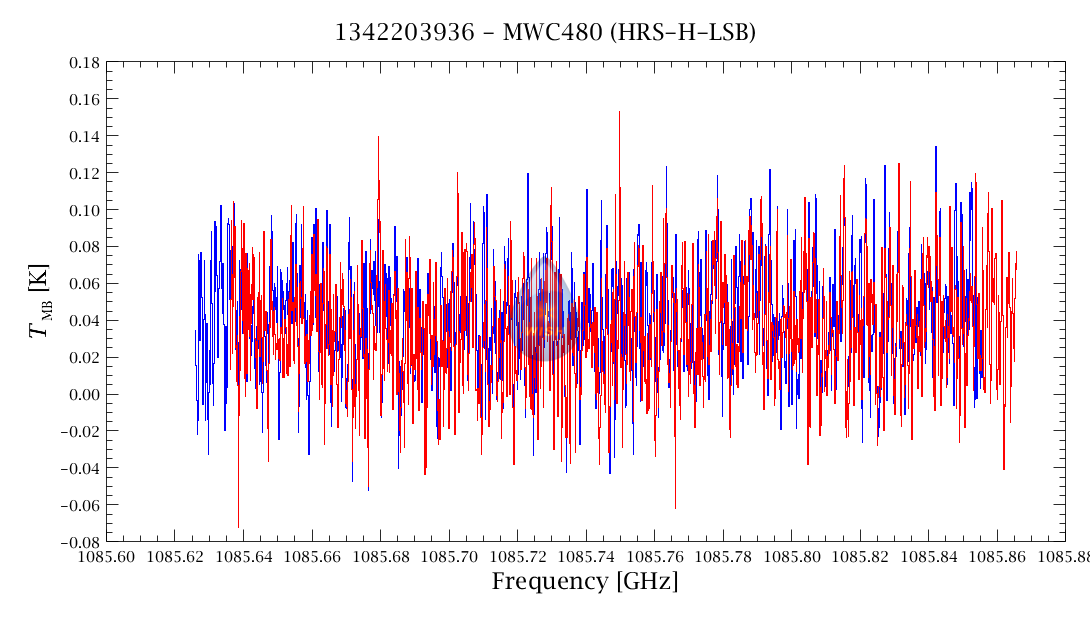

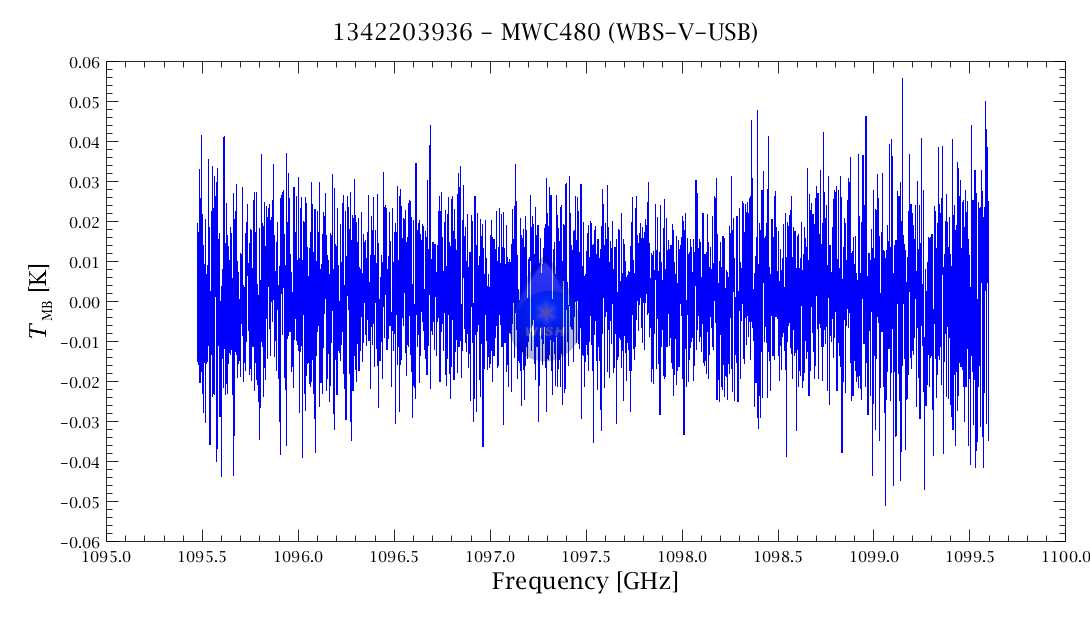

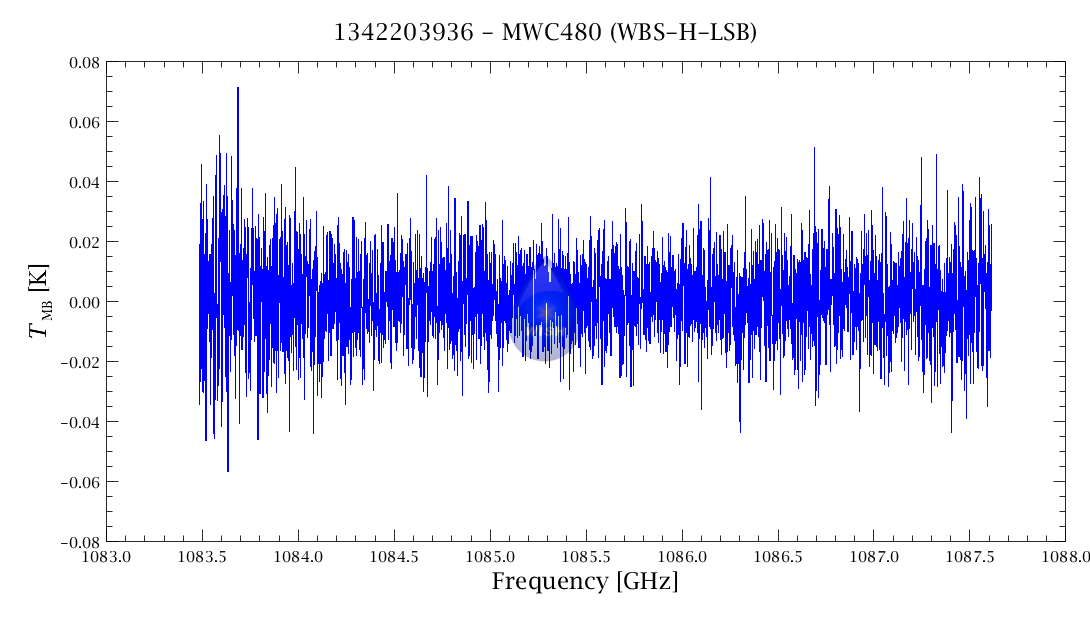

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0129	0.0126
continuum (K)	0.019	0.025

Downloads Corner

• RAW HIPE FORMAT (308MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
