Source Details

L1489
RA: 4 4 43.0 (^{h m s})
Dec: 26 18 56.88 (^{o ' "})

Observation Details

OBSID: 1342203938
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: KPGT_evandish_1-H2O 111-000 Class I - L1489
Band: 4B
Herschel Operation Day: OD476
Integration Time: 1767 sec
LO Frequency: 1108.7505 GHz
HIPE/Pipeline Version: SPG v11.1.0
Observation Date: 2010-09-02
HSA Processing Date: 2014-01-29
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.63
Beam Efficiency V⁽¹⁾: η=0.64
Beam Efficiency (2012) ⁽¹⁾: η=0.737
Position offset (x,y): (3.01331,-0.11359) arcsec

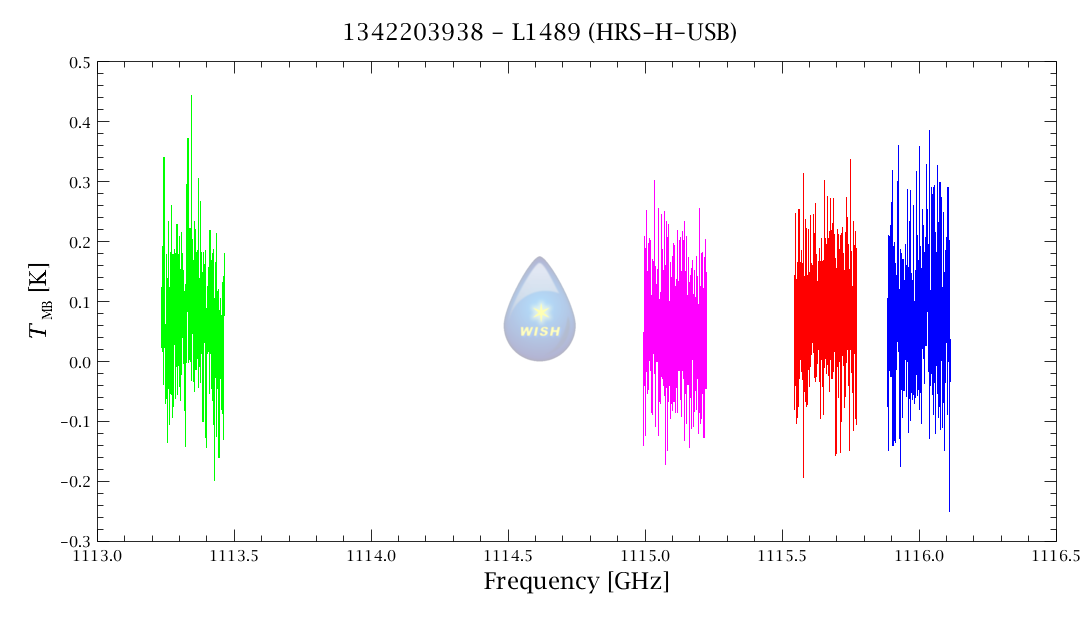

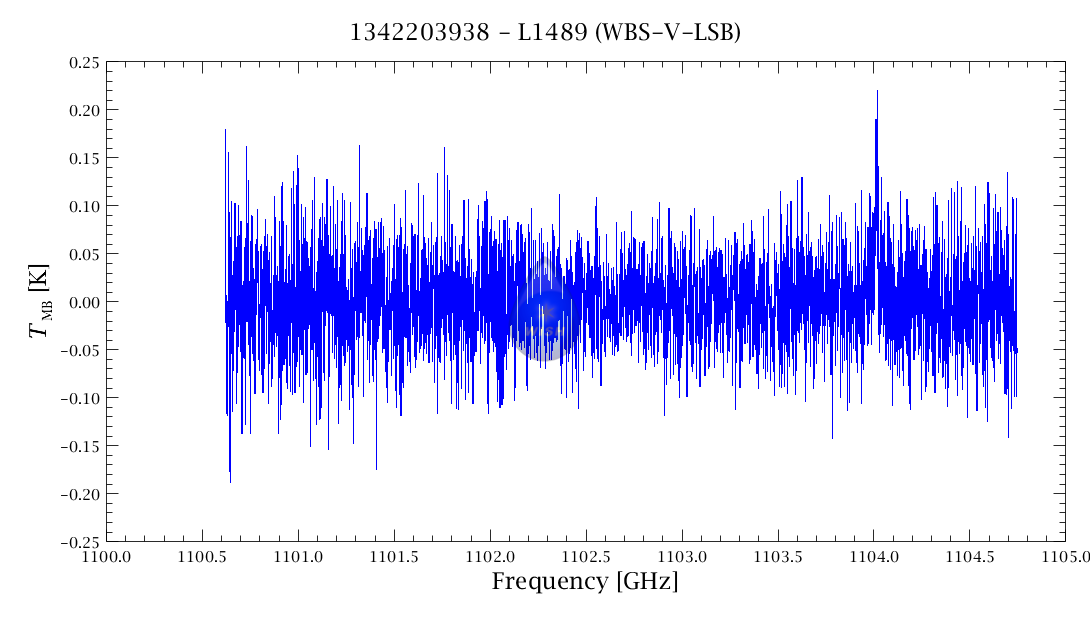

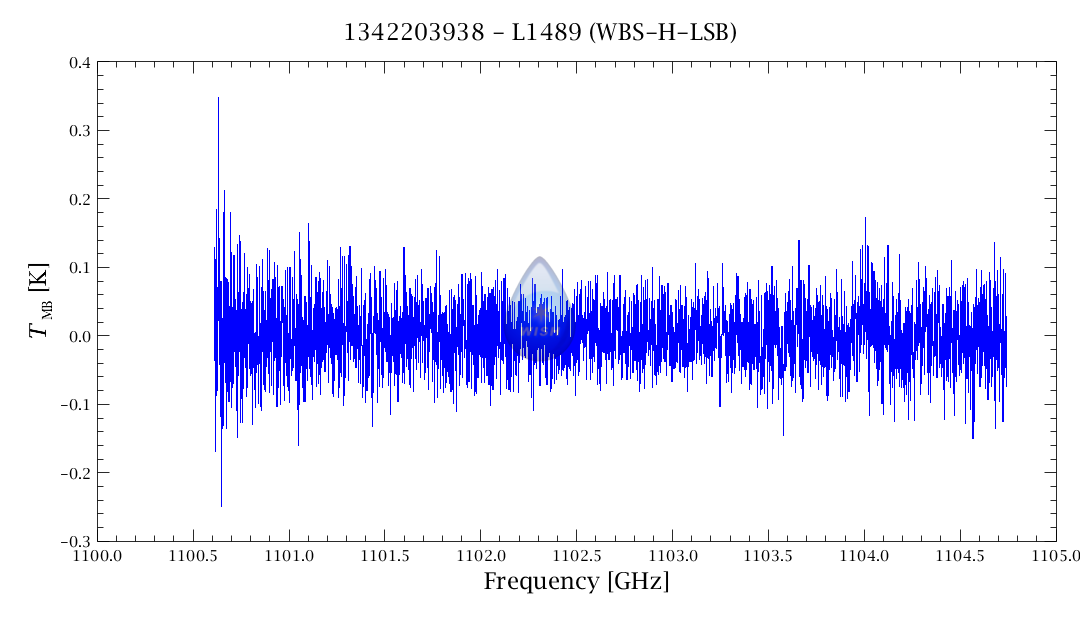

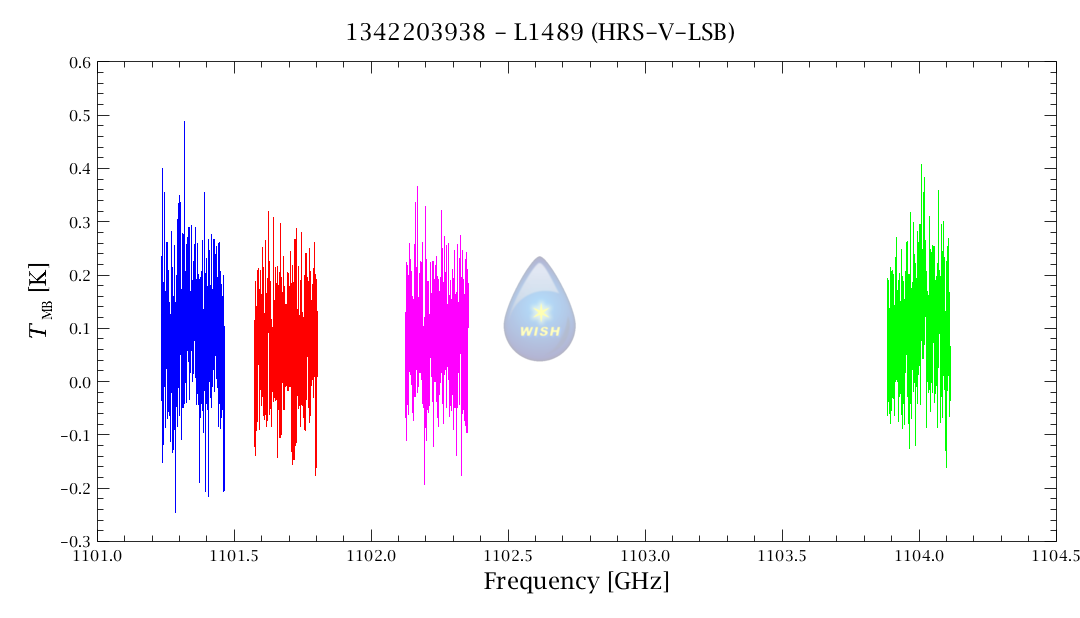

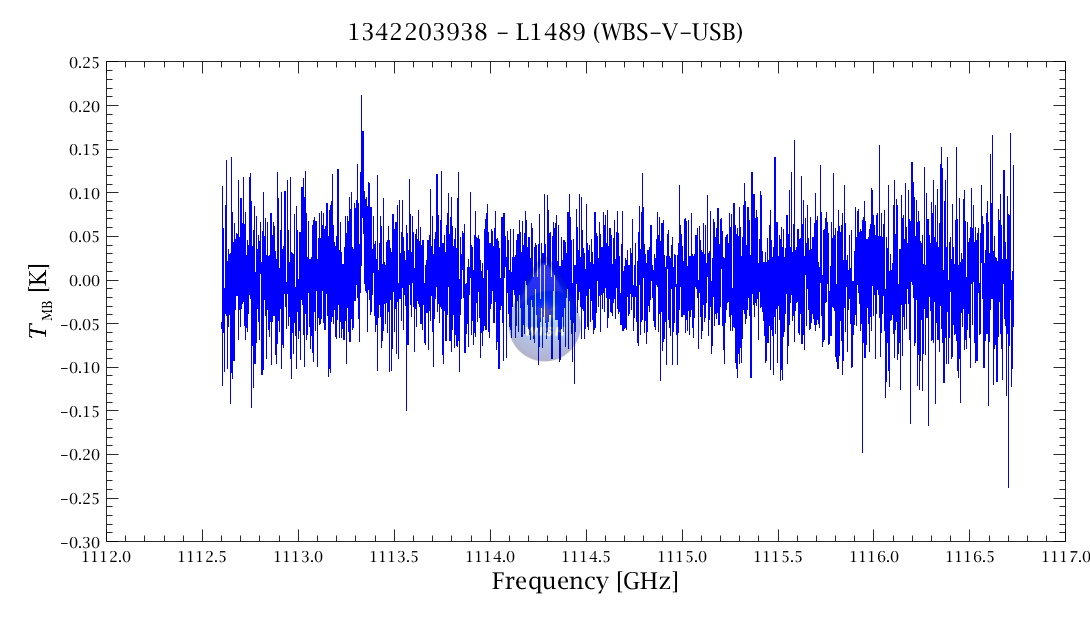

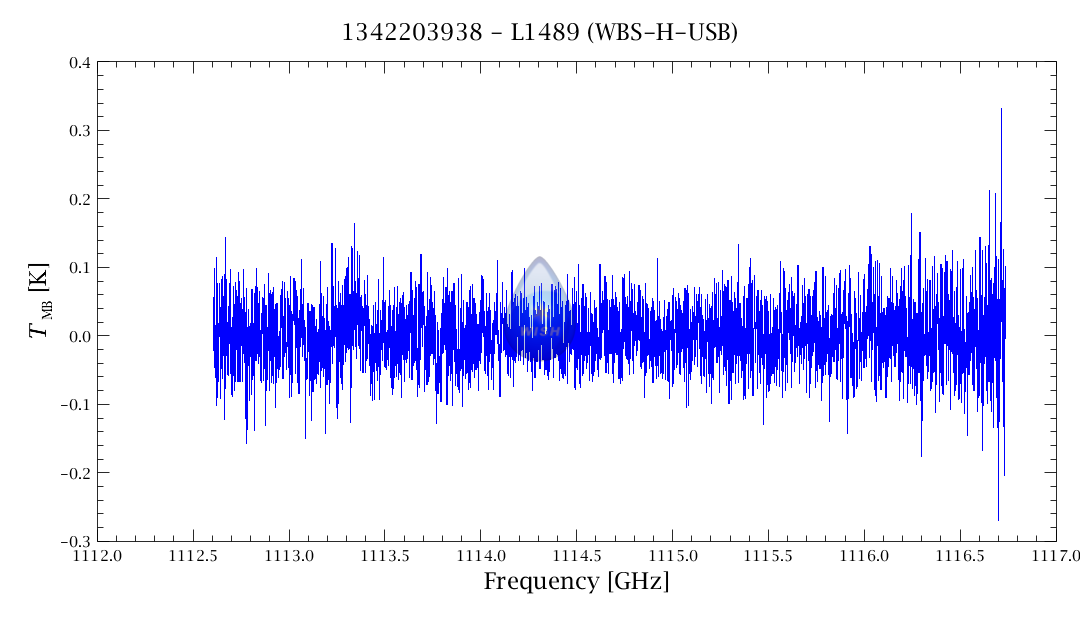

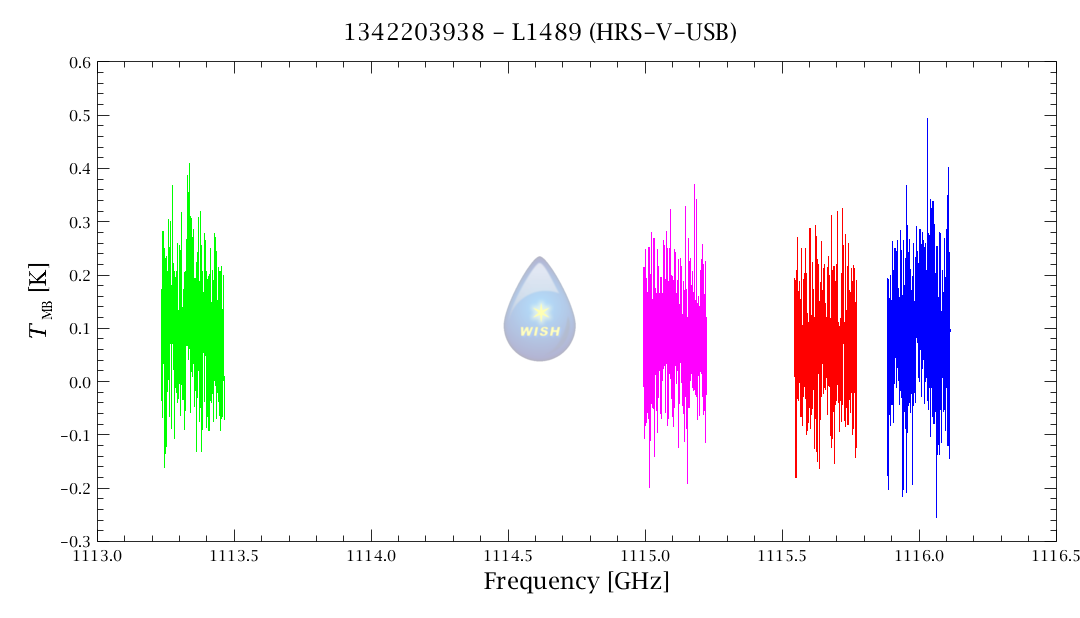

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0455	0.0432
continuum (K)	0.033	0.035

Downloads Corner

• RAW HIPE FORMAT (120MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Benz et al. 2015, A&A Submitted
Schmalzl et al. 2014, A&A
Mottram et al. 2014, A&A
Yildiz et al. 2013A, A&A
San Jose-Garcia et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
