WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

LkCa15
RA: 4 39 17.8 (^{h m s})
Dec: 22 21 3.60 (^{o ' "})

Observation Details

OBSID: 1342203939
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: H2O 312-303 - LkCa15
Band: 4B
Herschel Operation Day: OD476
Integration Time: 14868 sec
LO Frequency: 1091.61 GHz
HIPE/Pipeline Version: SPG v11.1.0
Observation Date: 2010-09-02
HSA Processing Date: 2014-01-29
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.63
Beam Efficiency V⁽¹⁾: η=0.64
Beam Efficiency (2012) ⁽¹⁾: η=0.738
Position offset (x,y): (-5.03096,-0.90427) arcsec

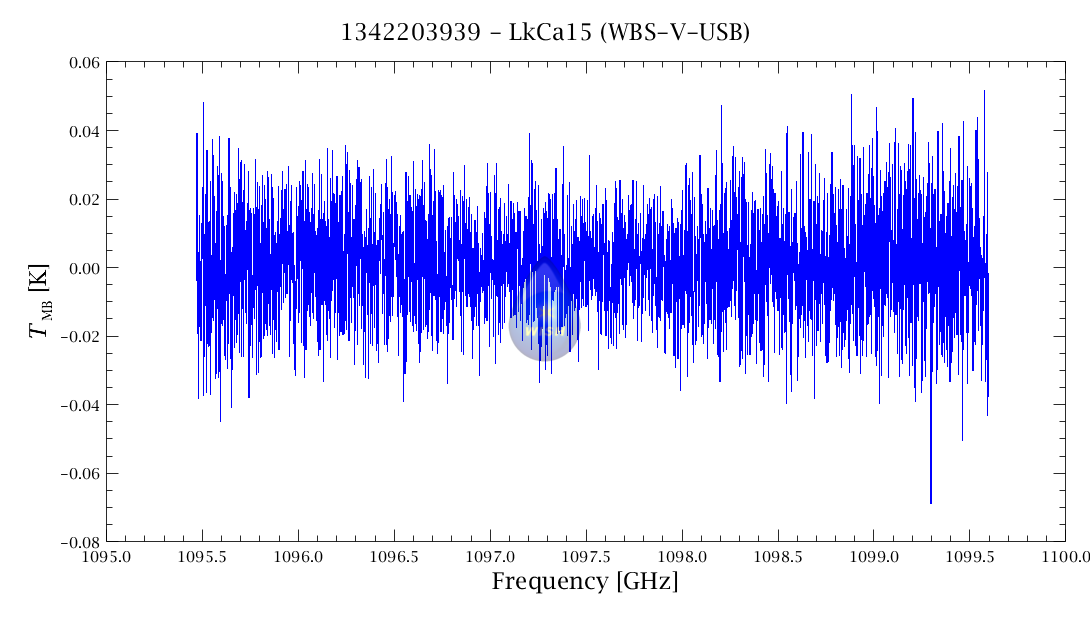

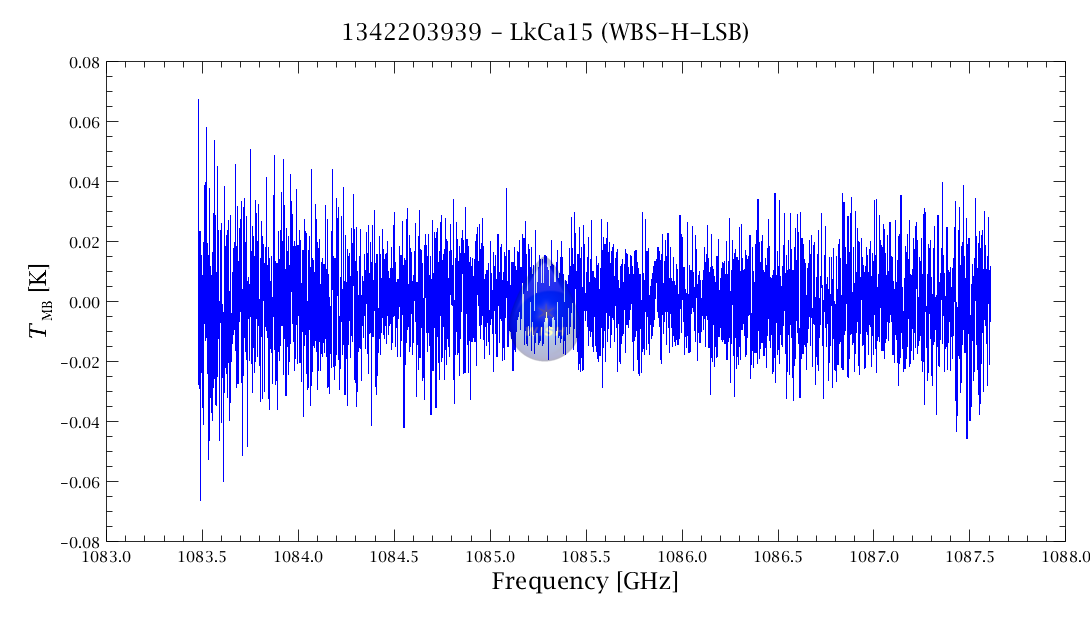

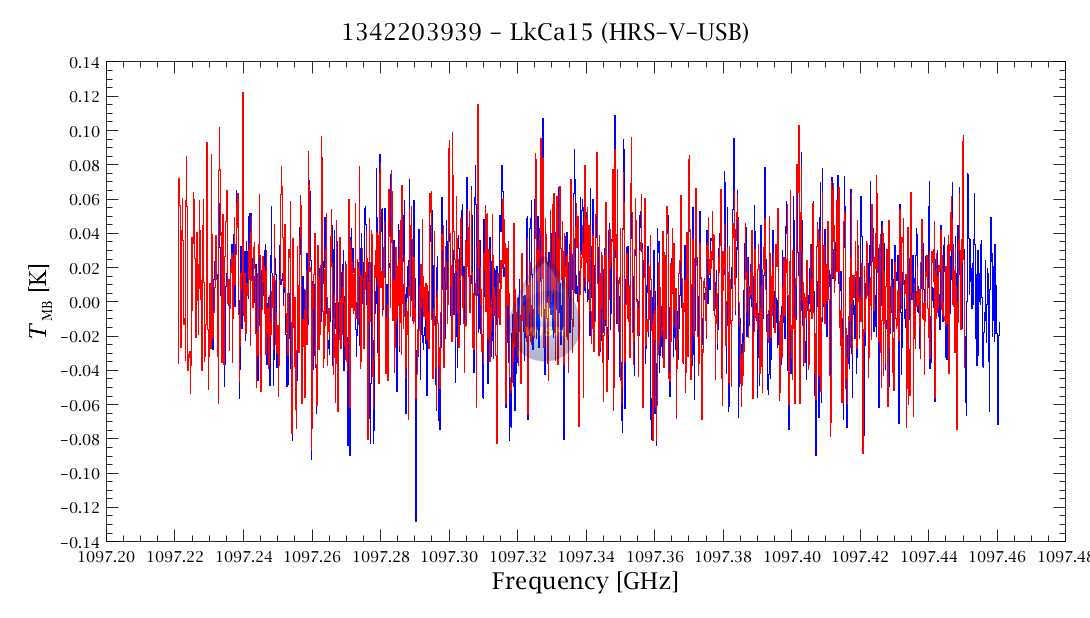

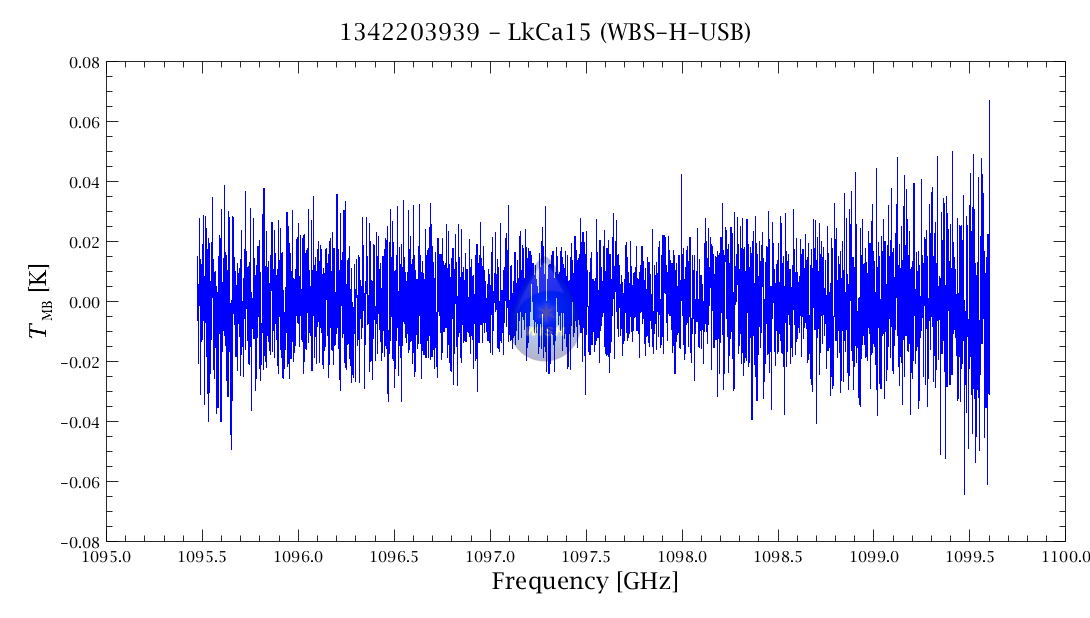

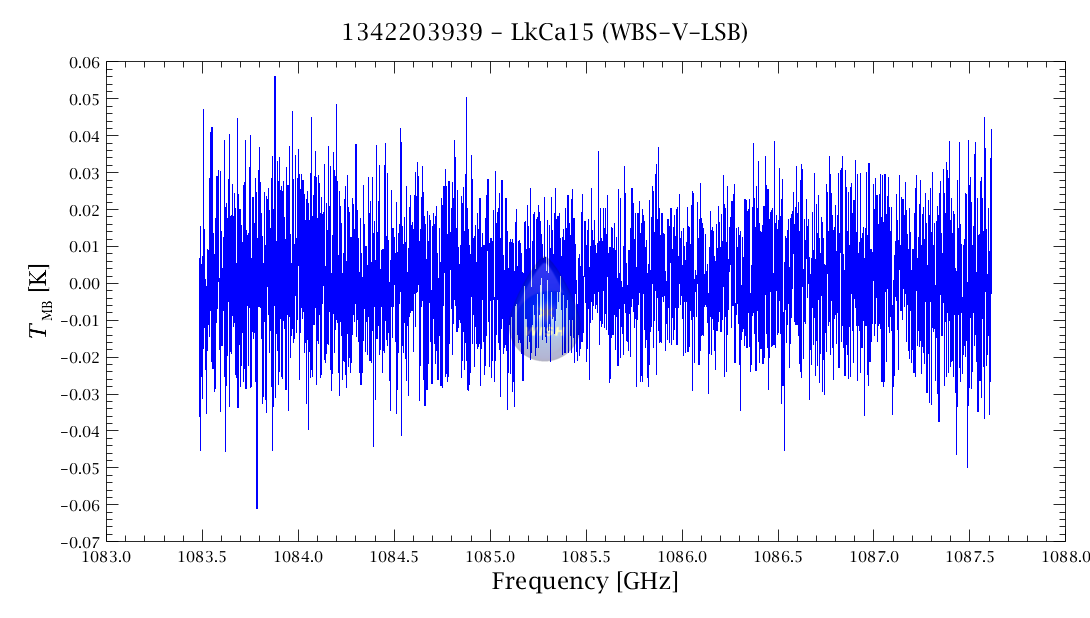

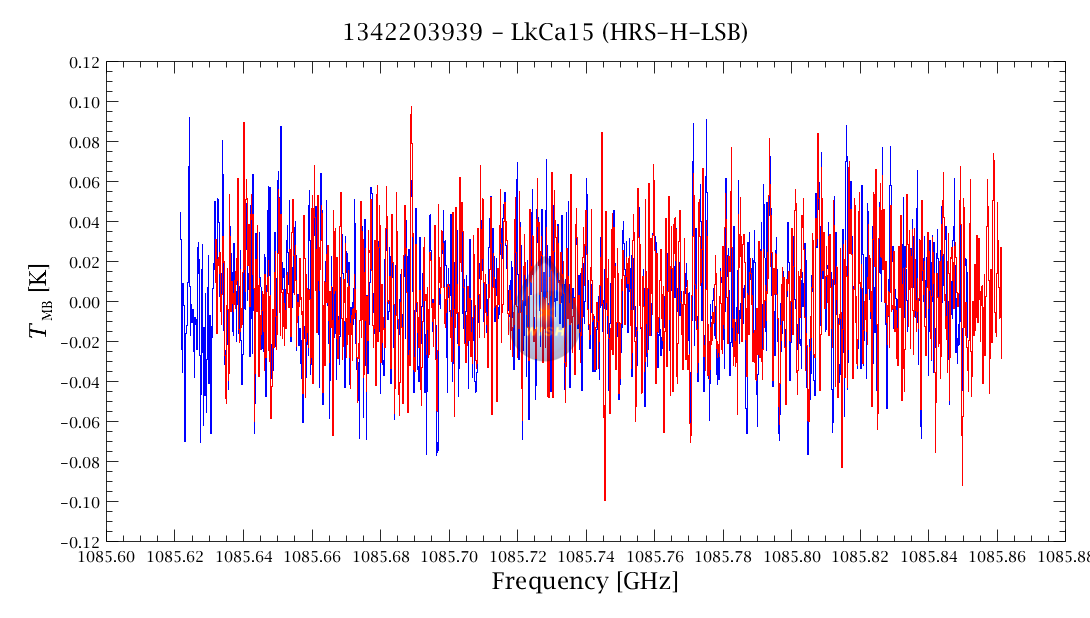

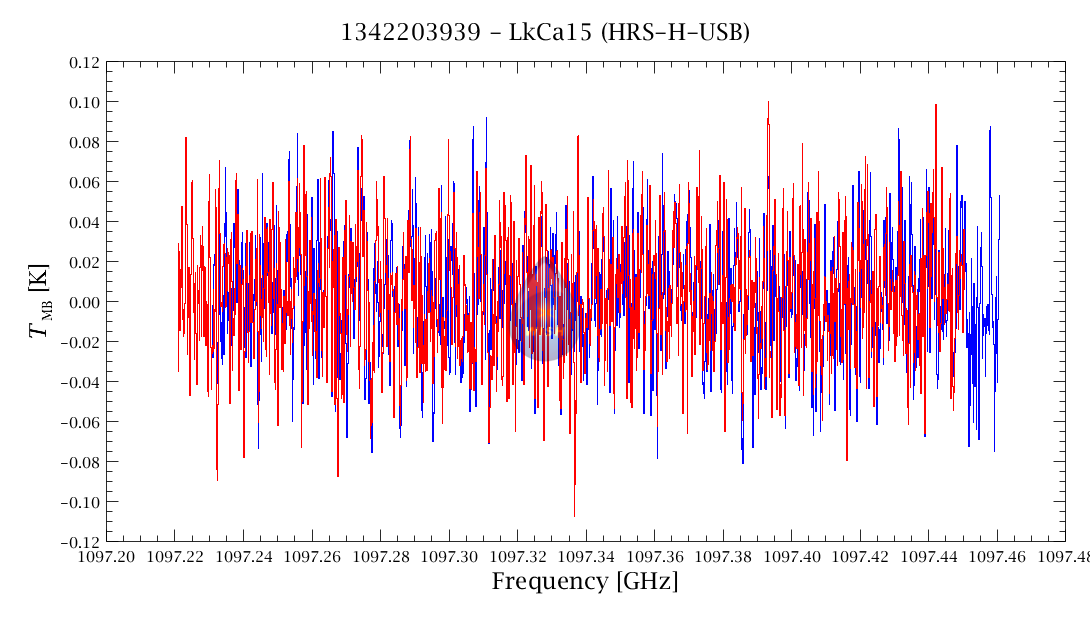

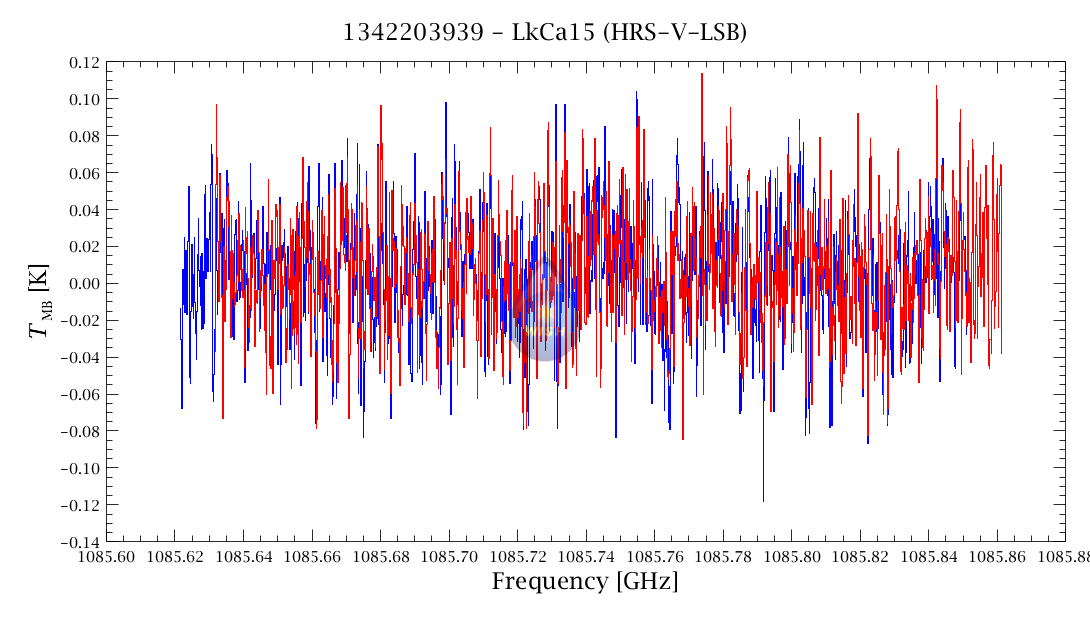

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0120	0.0130
continuum (K)	0.000	0.003

Downloads Corner

• RAW HIPE FORMAT (308MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
