WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

VLA-1 HH1/2-hh2
RA: 5 36 26.8 (^{h m s})
Dec: -6 47 26.99 (^{o ' "})

Observation Details

OBSID: 1342203998
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: VLA-1 HH1/2 HH2
Band: 1B
Herschel Operation Day: OD475
Integration Time: 304 sec
LO Frequency: 564.606 GHz
HIPE/Pipeline Version: SPG v11.1.0
Observation Date: 2010-08-31
HSA Processing Date: 2014-01-29
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (0.920689,2.19359) arcsec

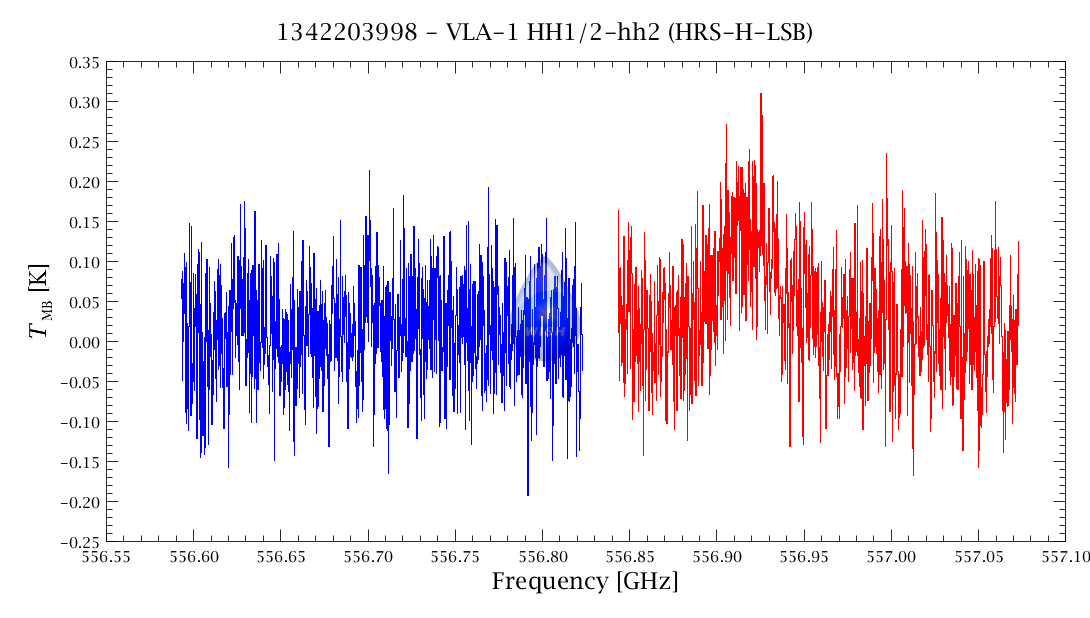

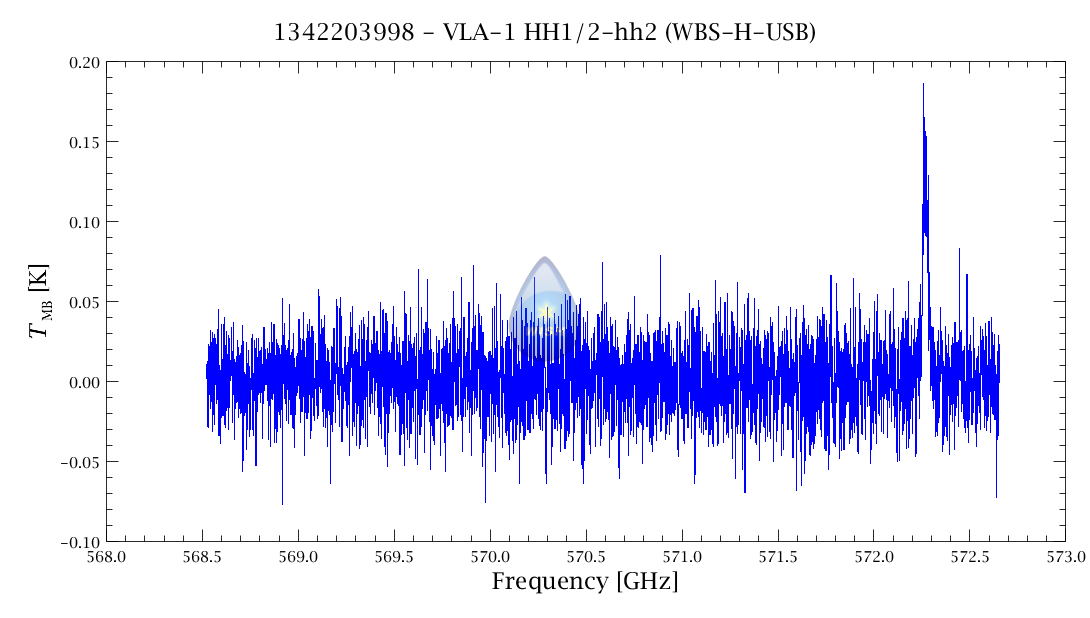

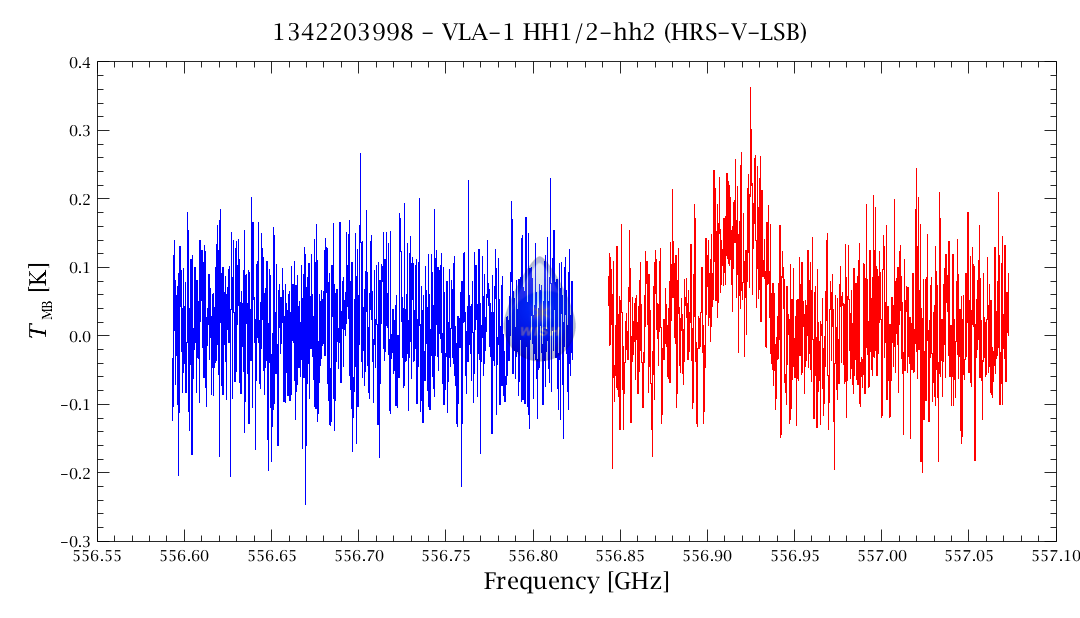

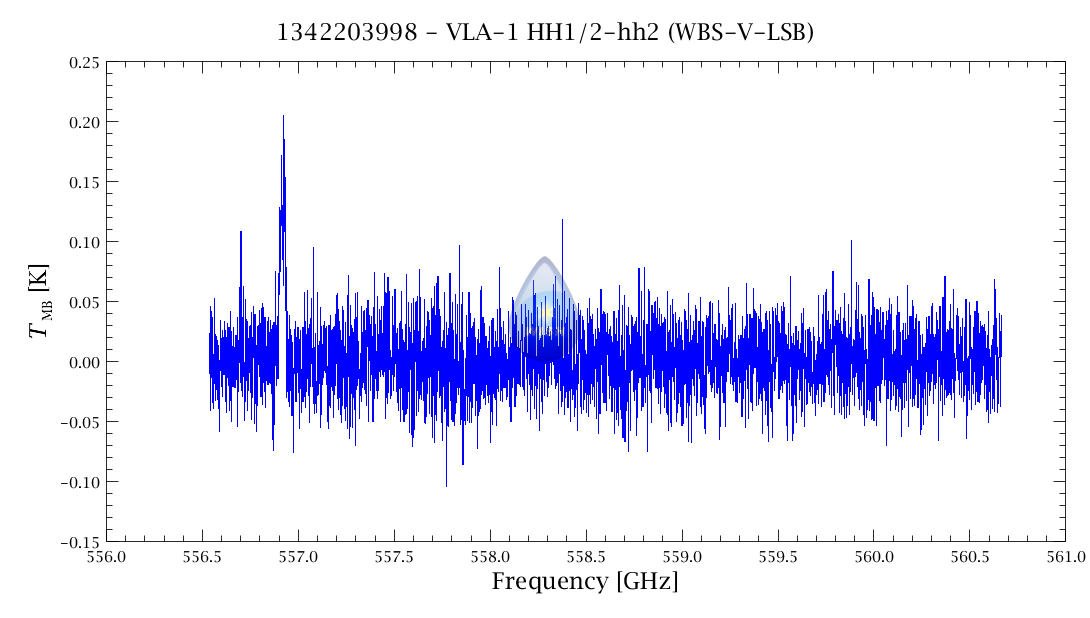

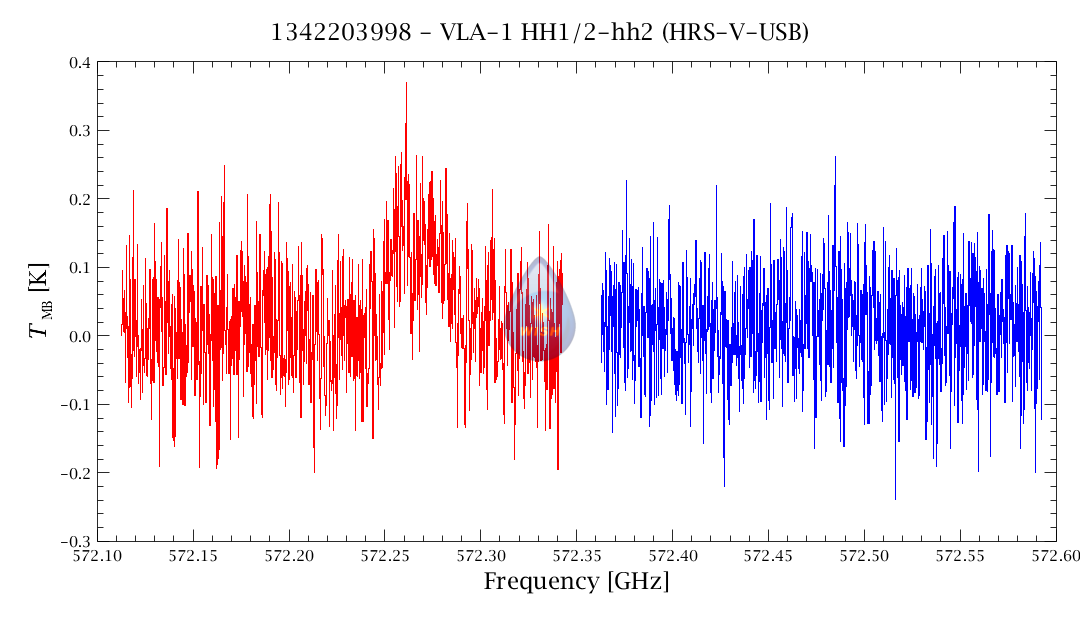

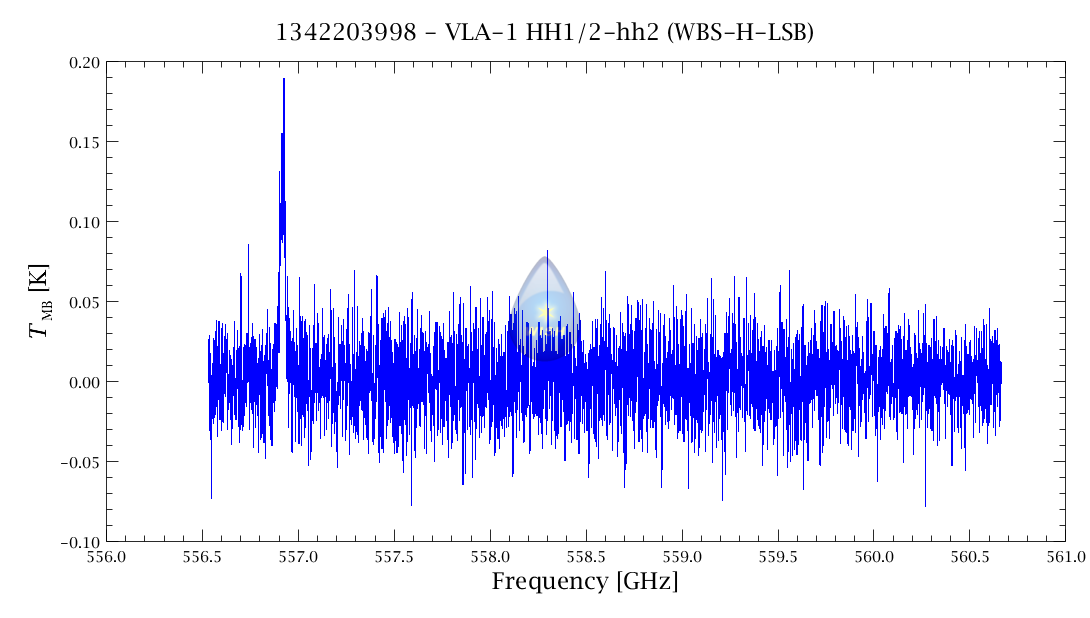

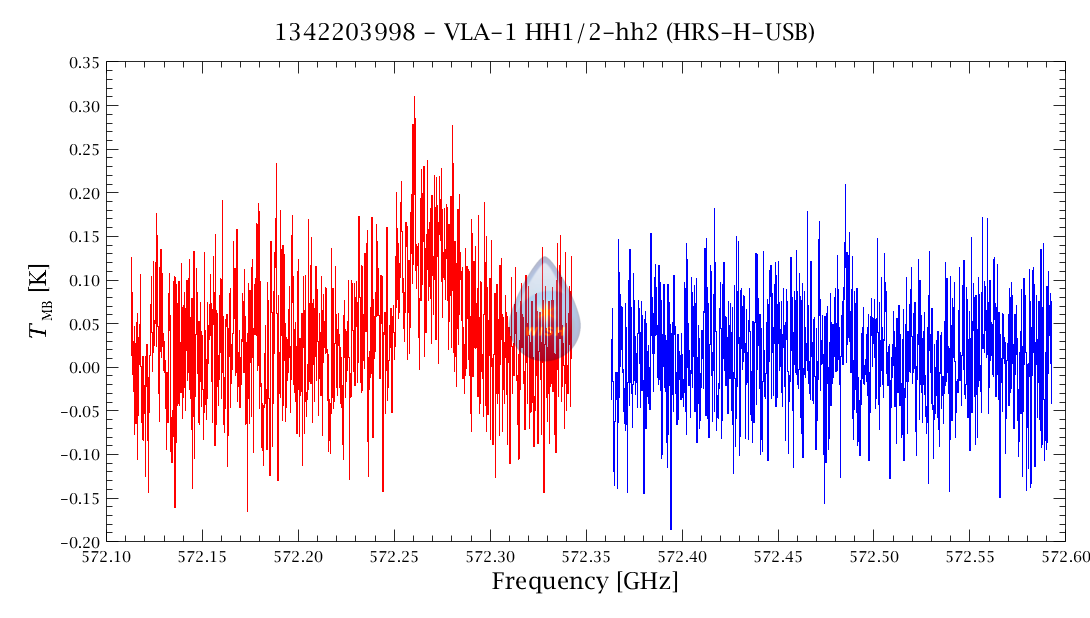

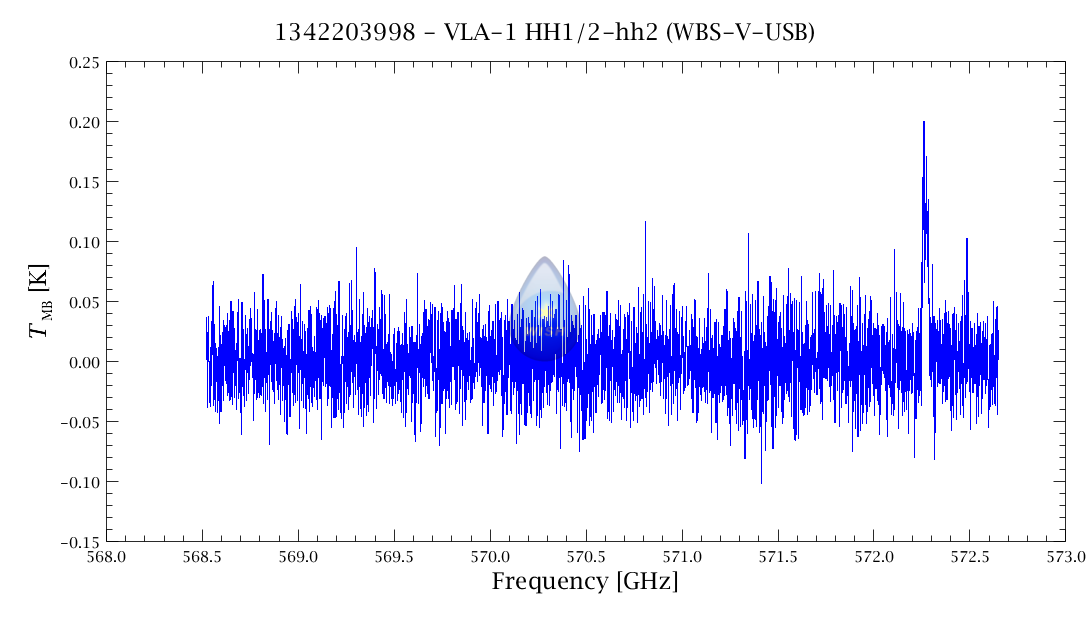

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0177	0.0229
continuum (K)	0.003	0.004

Downloads Corner

• RAW HIPE FORMAT (89MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Tafalla et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
