WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

LkCa15
RA: 4 39 17.8 (^{h m s})
Dec: 22 21 3.60 (^{o ' "})

Observation Details

OBSID: 1342204003
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: PSP2_H2O 110-101 - LkCa15
Band: 1B
Herschel Operation Day: OD475
Integration Time: 24045 sec
LO Frequency: 564.76125 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-09-01
HSA Processing Date: 2014-07-24
WISH Processing Date: 2014-08-05
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (-5.51109,-0.30554) arcsec

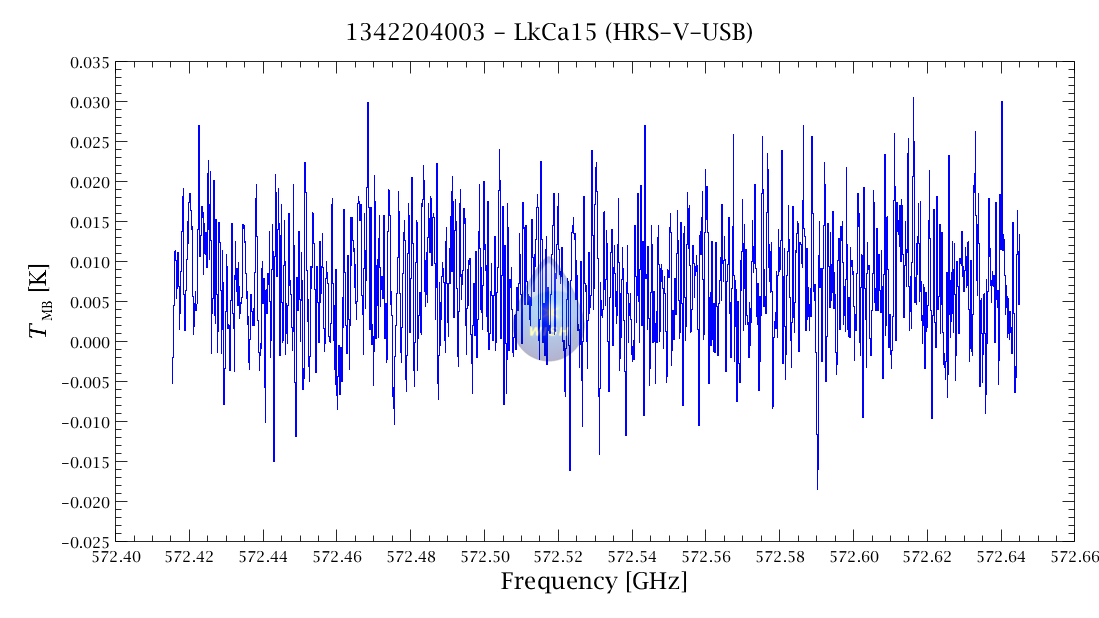

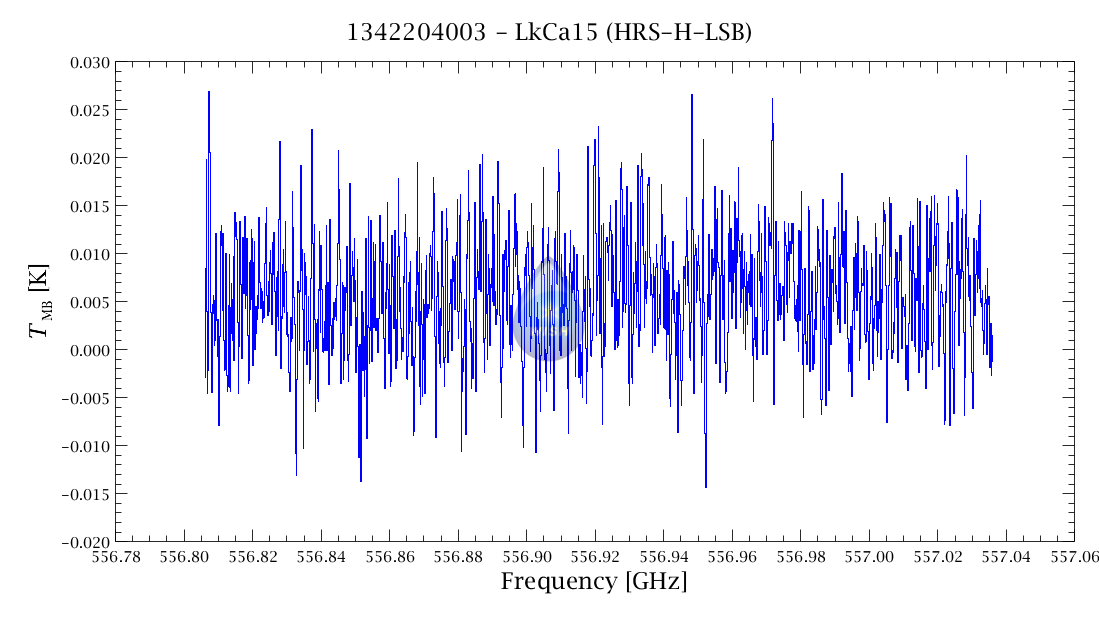

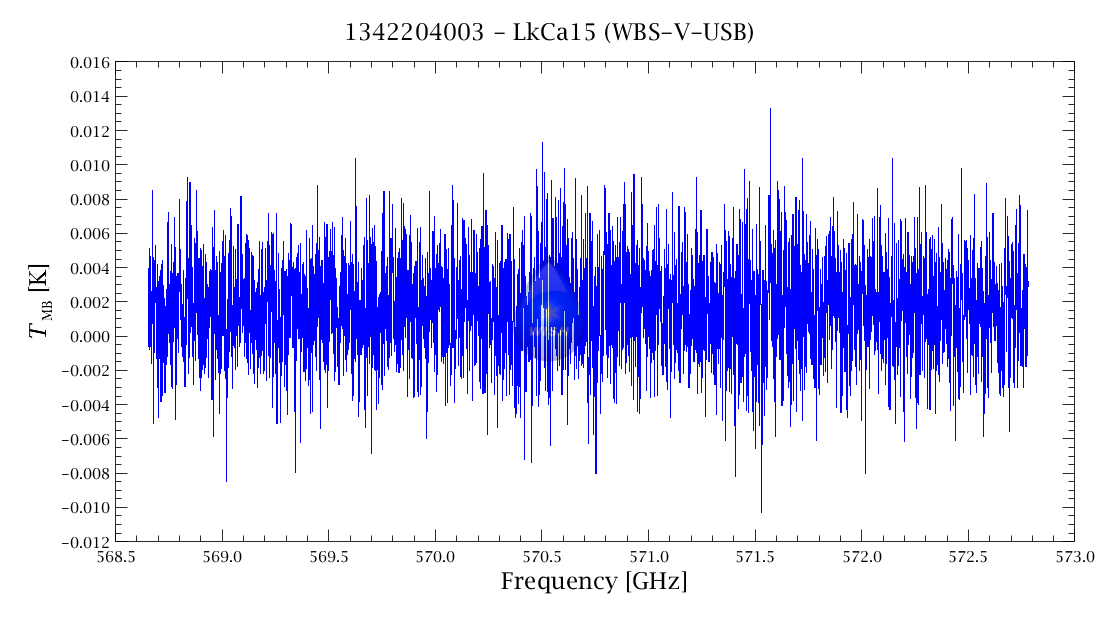

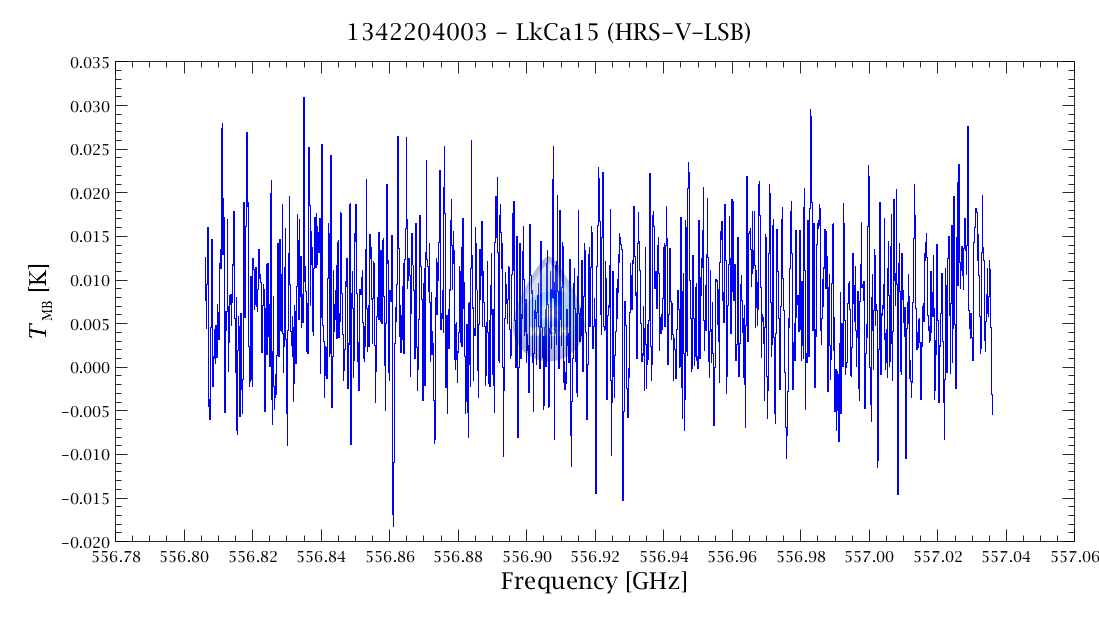

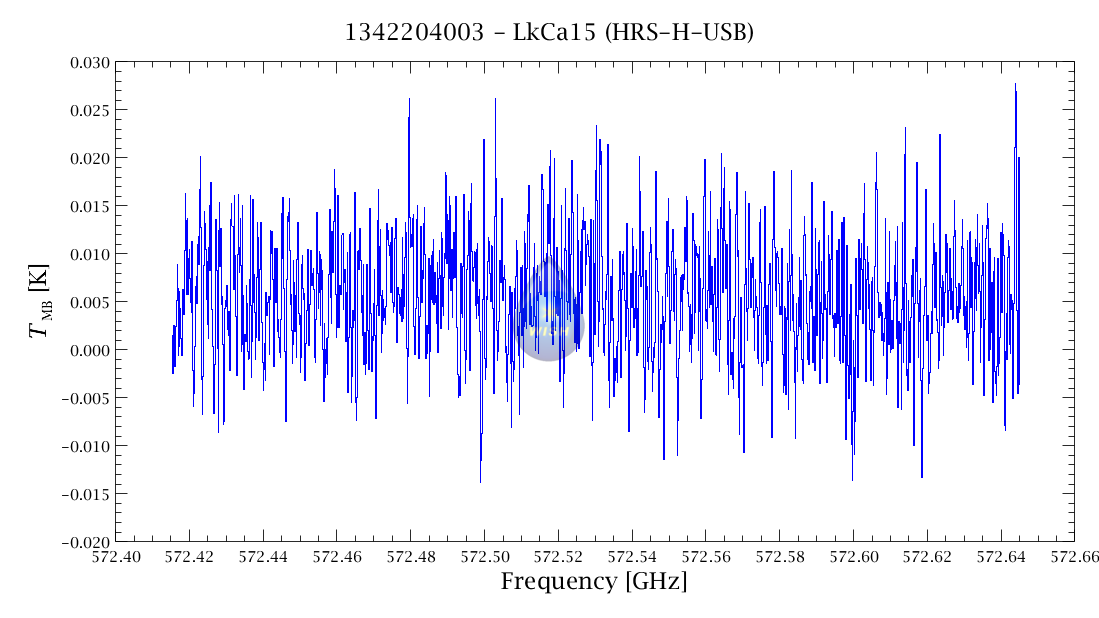

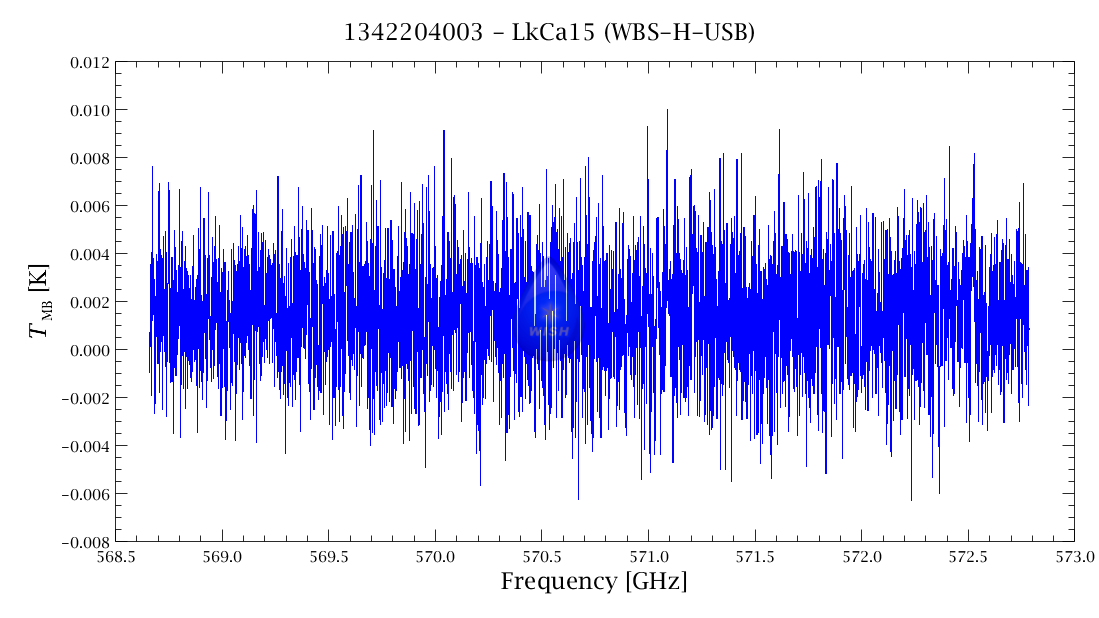

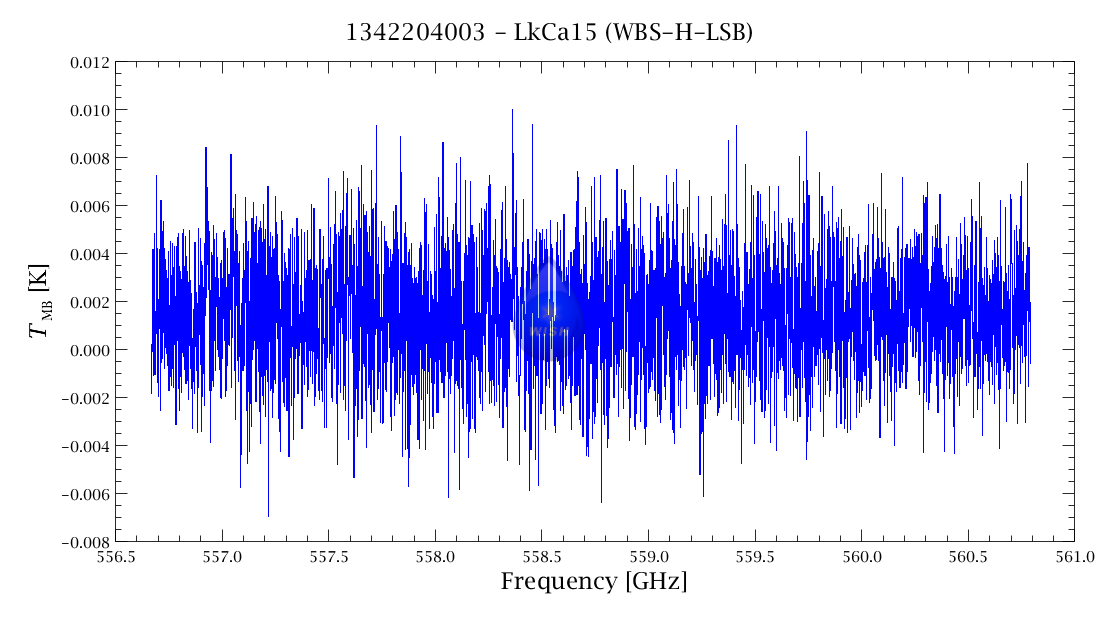

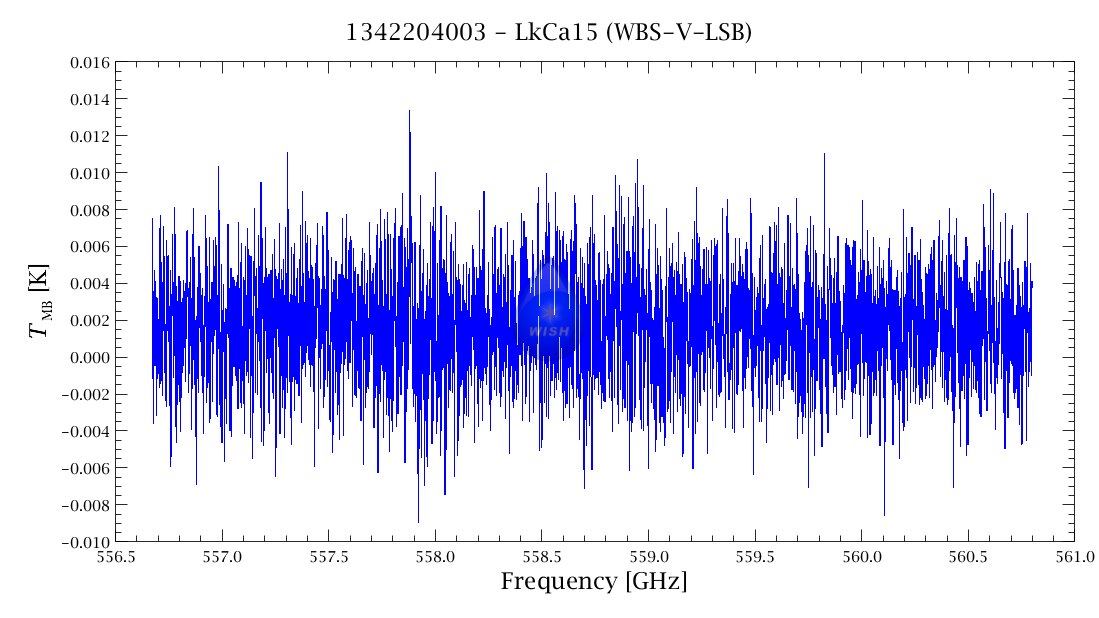

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0020	0.0024
continuum (K)	0.002	0.002

Downloads Corner

• RAW HIPE FORMAT (431MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
