WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

MWC480
RA: 4 58 46.3 (^{h m s})
Dec: 29 50 36.96 (^{o ' "})

Observation Details

OBSID: 1342204004
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: PSP2_H2O 110-101 - MWC480
Band: 1B
Herschel Operation Day: OD475
Integration Time: 23889 sec
LO Frequency: 564.7635 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-09-01
HSA Processing Date: 2014-07-24
WISH Processing Date: 2014-08-05
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (-1.85387,1.44579) arcsec

Spectral Details

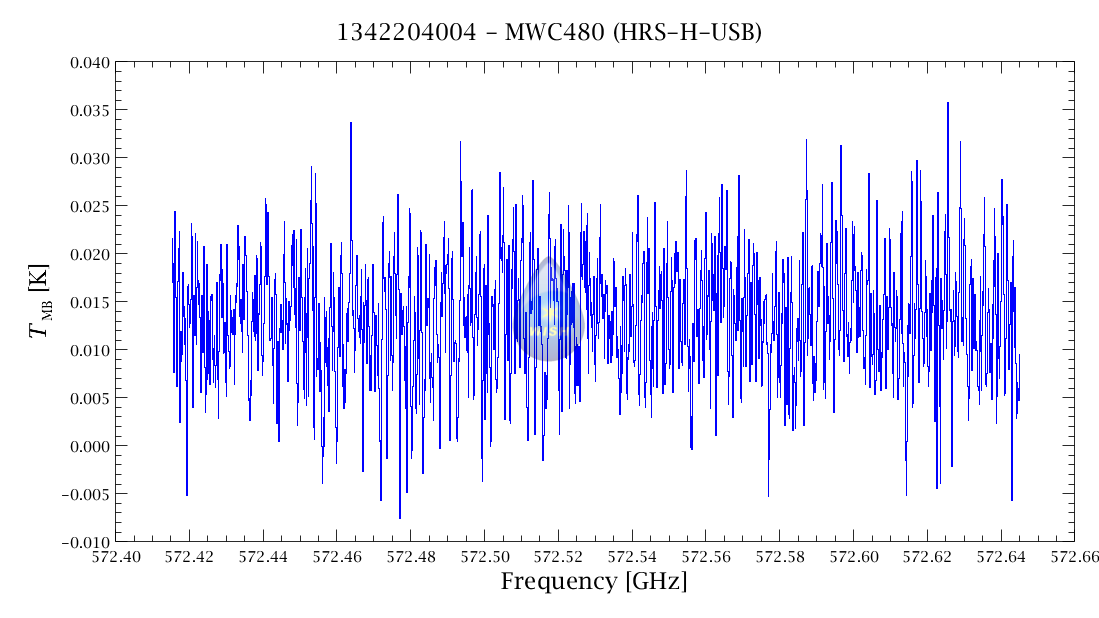

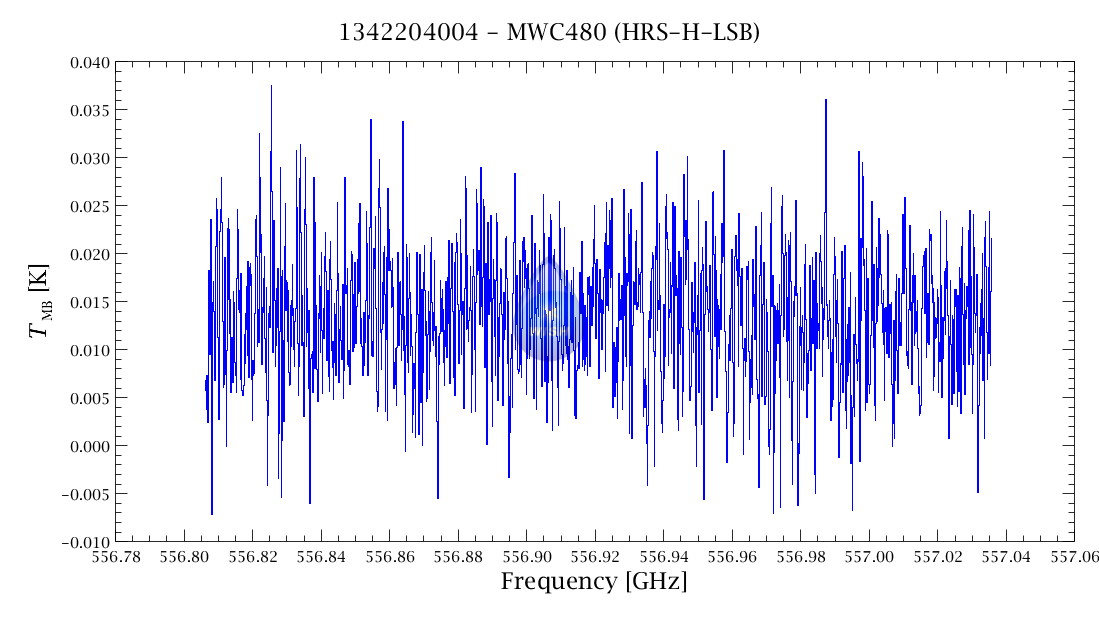

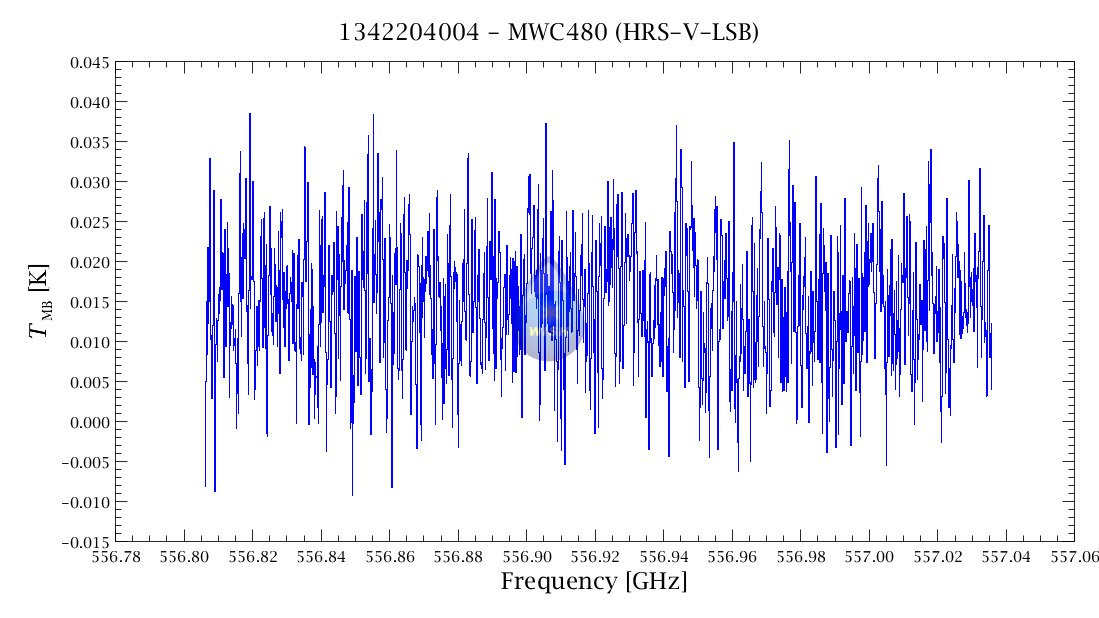

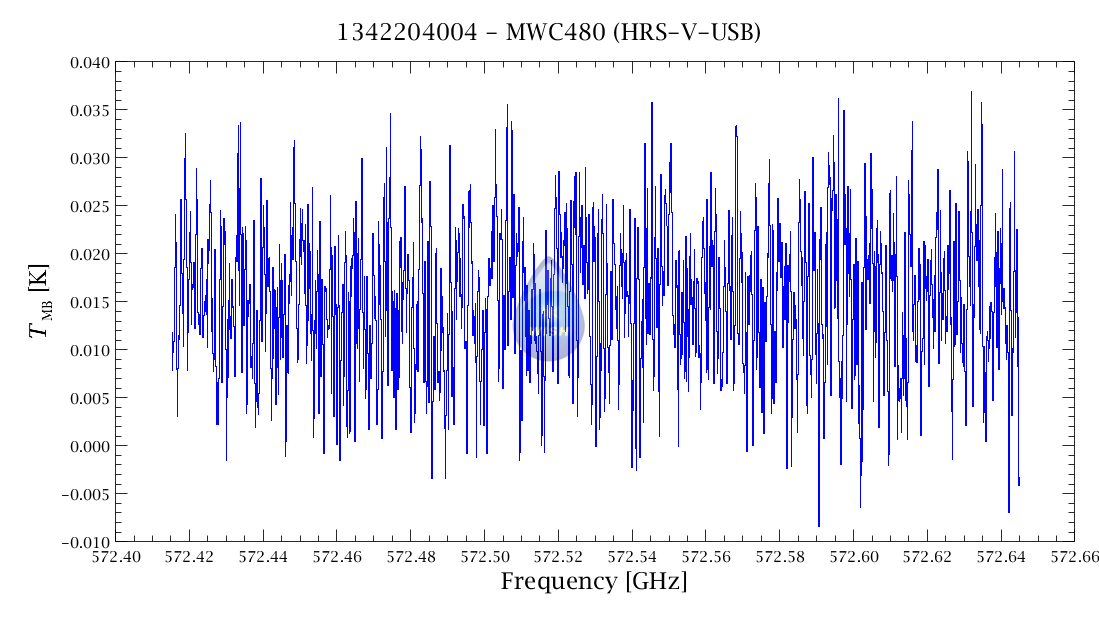

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1

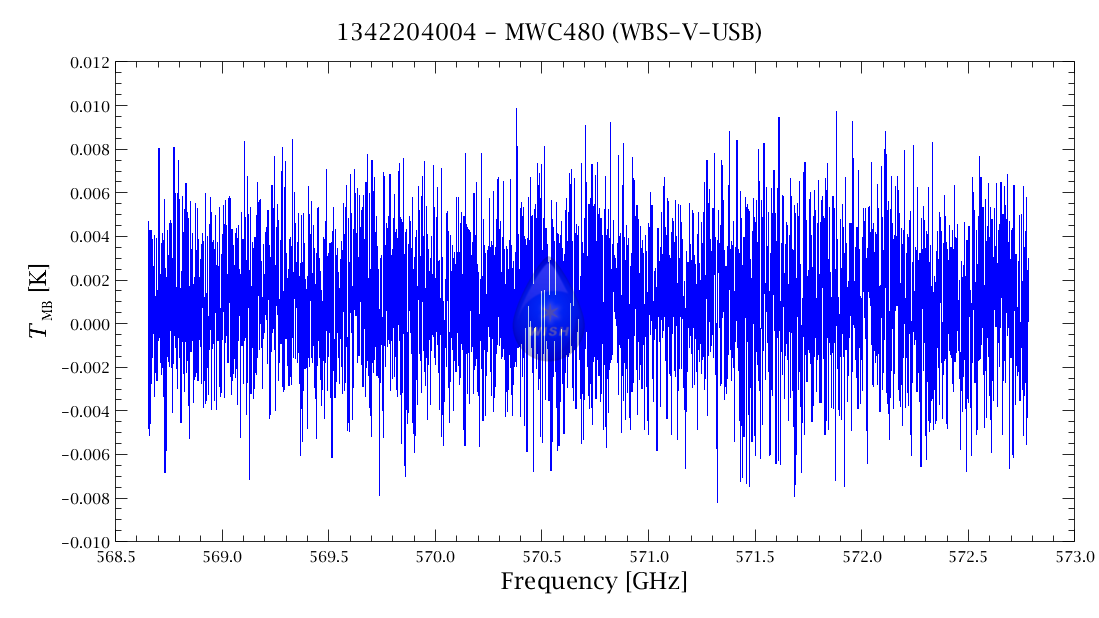

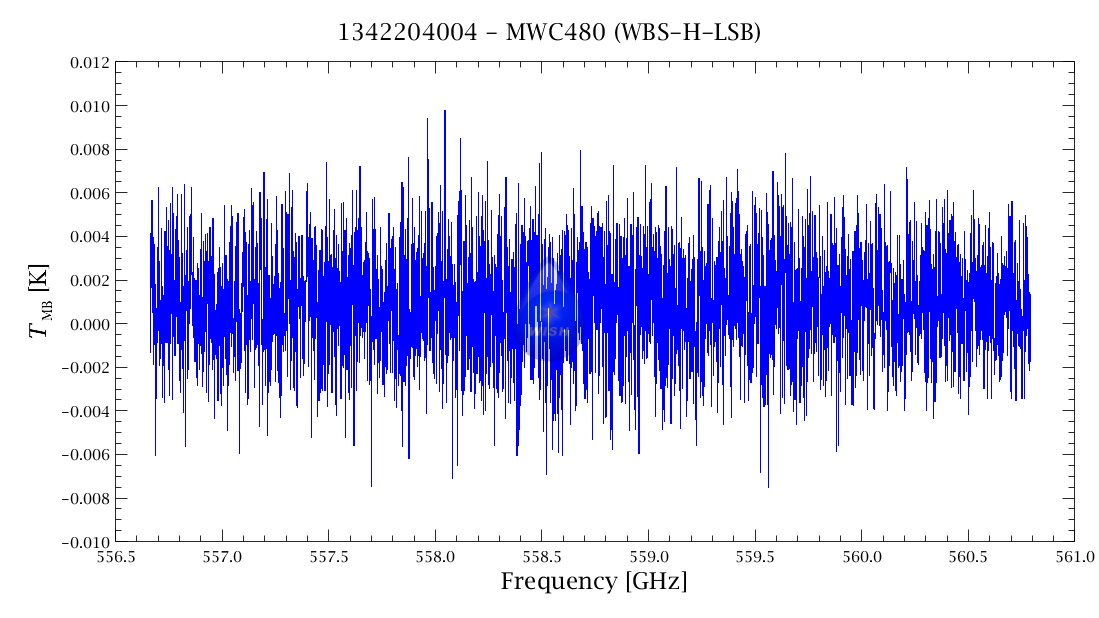

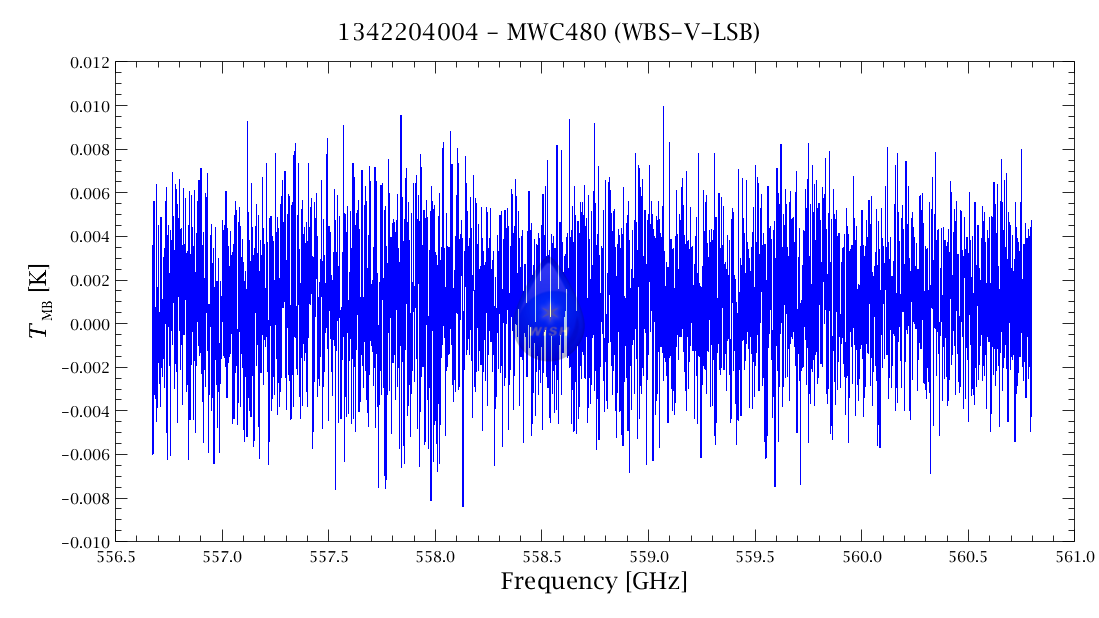

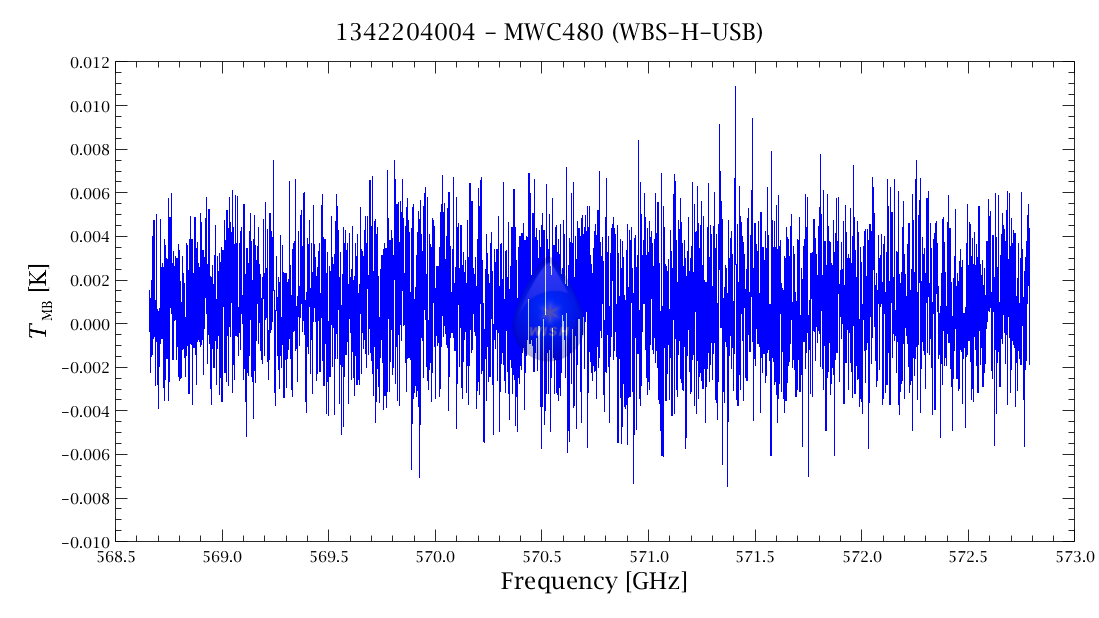

	WBS-H	WBS-V
rms (K)	0.0020	0.0025
continuum (K)	0.007	0.007

Downloads Corner

• RAW HIPE FORMAT (431MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
