WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

IRAS 15398/B228
RA: 15 43 1.2 (^{h m s})
Dec: -34 9 15.12 (^{o ' "})

Observation Details

OBSID: 1342204795
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: PSP2_H2O 211-202 - Class I - IRAS 15398/B228
Band: 2B
Herschel Operation Day: OD491
Integration Time: 2150 sec
LO Frequency: 758.982 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-09-16
HSA Processing Date: 2014-07-24
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.64
Beam Efficiency V⁽¹⁾: η=0.66
Beam Efficiency (2012) ⁽¹⁾: η=0.749
Position offset (x,y): (3.54577,-0.07421) arcsec

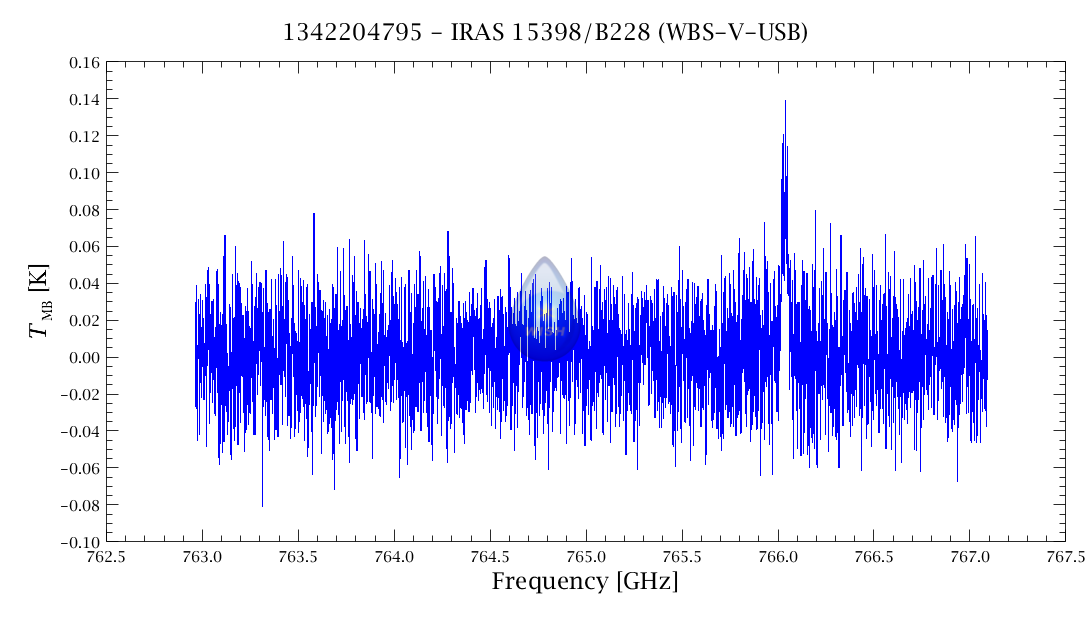

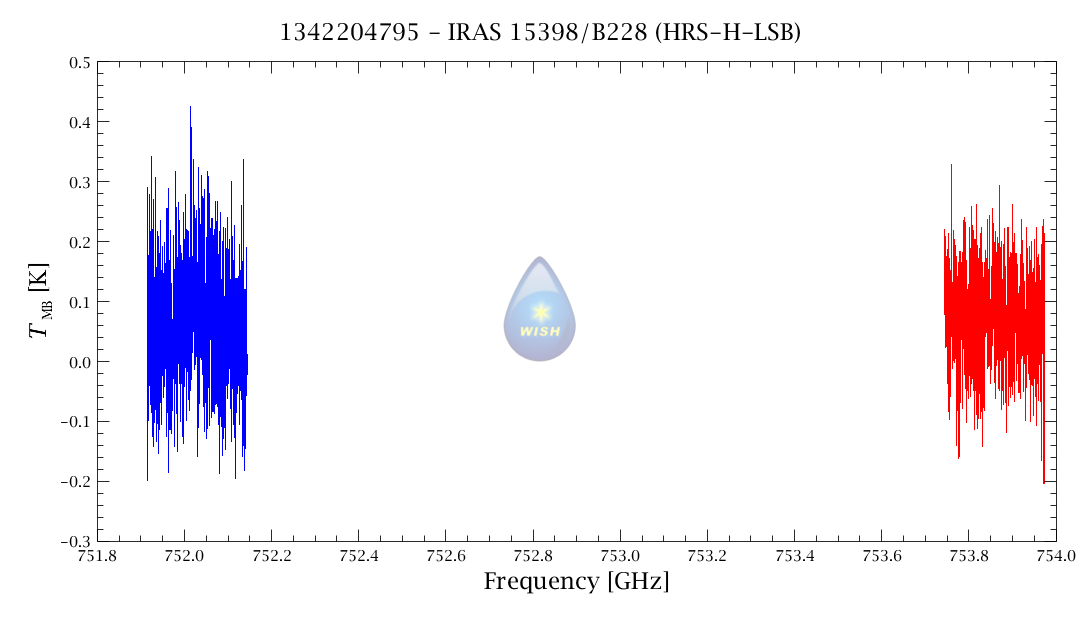

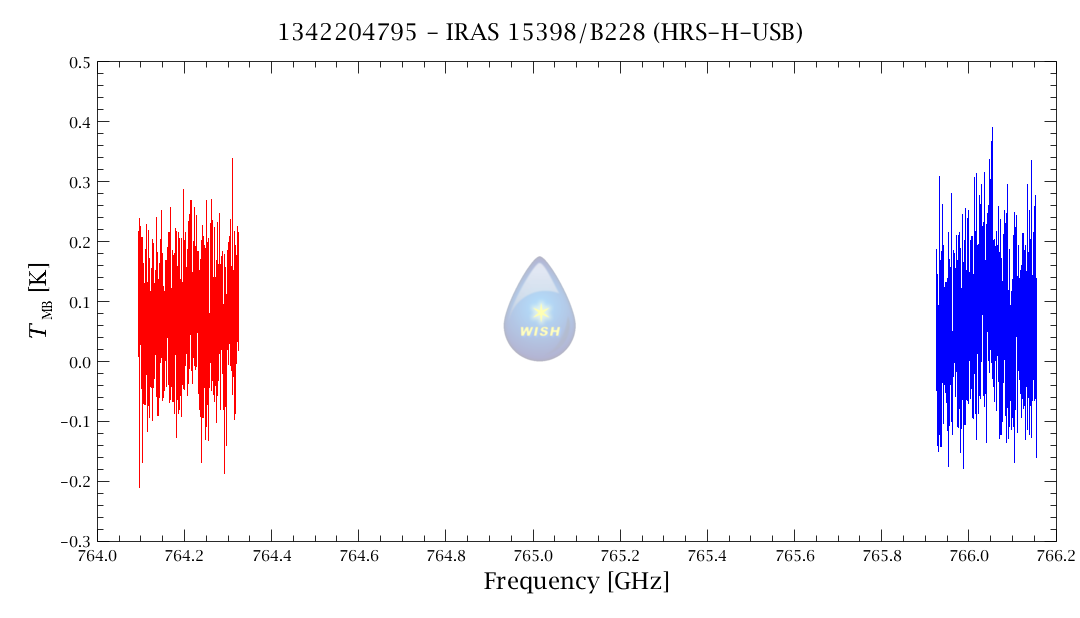

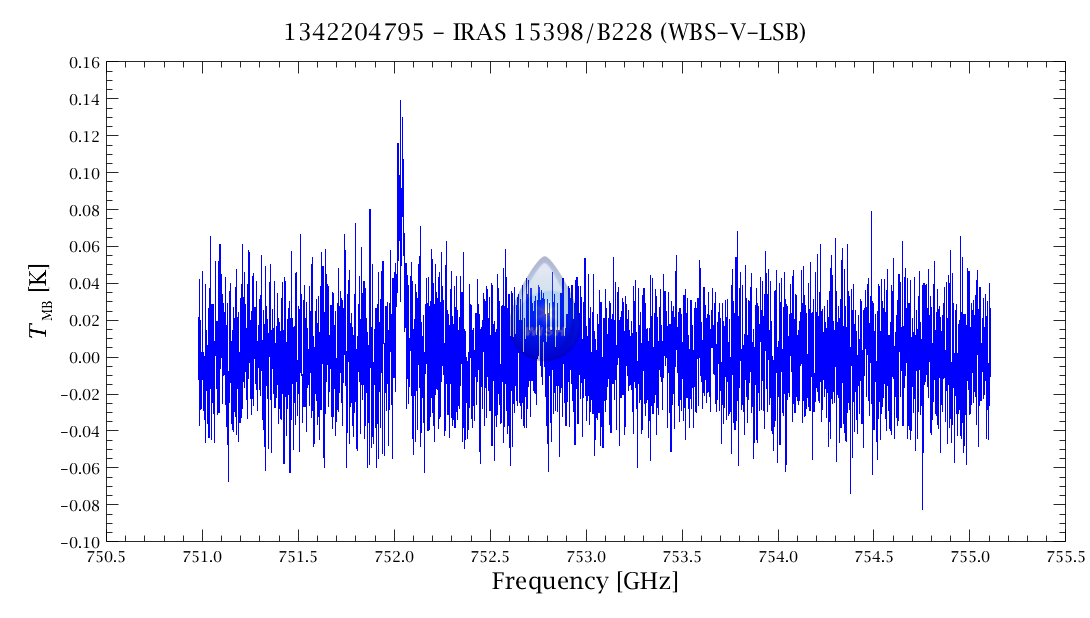

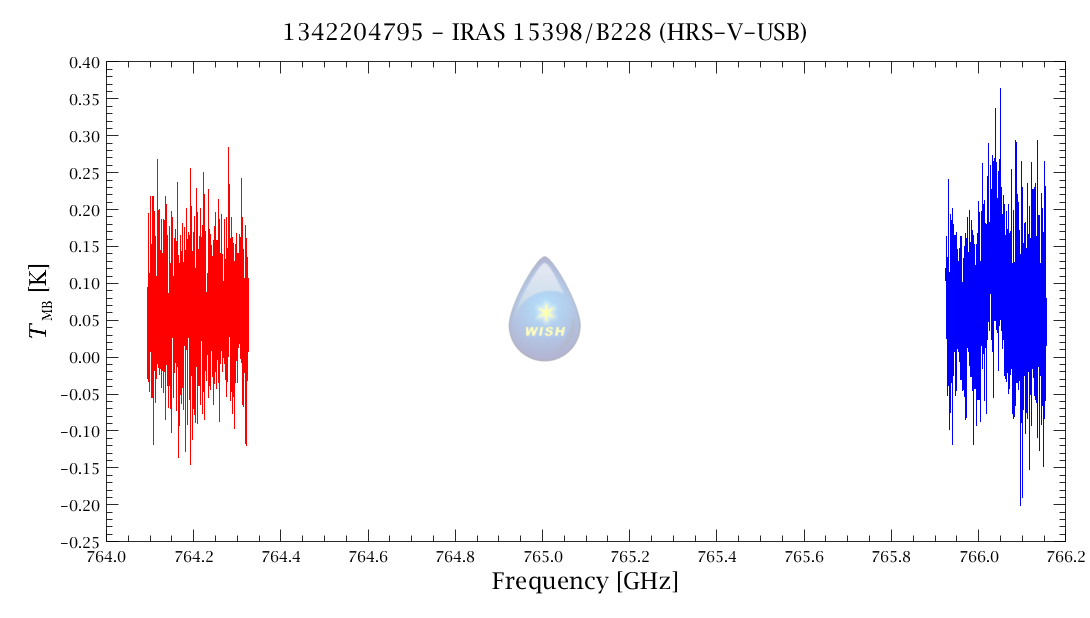

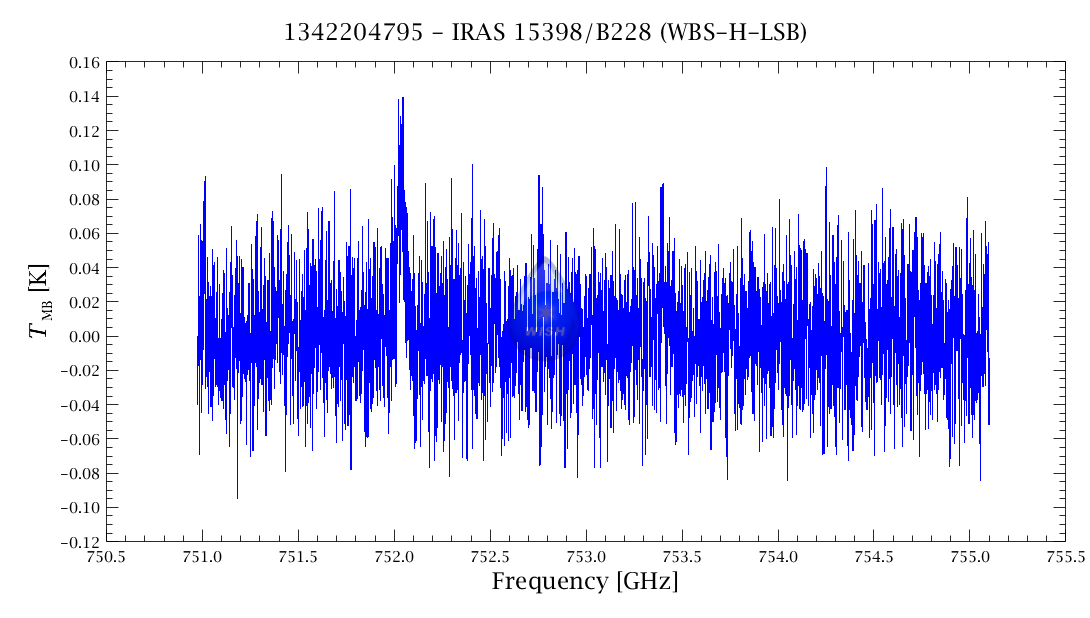

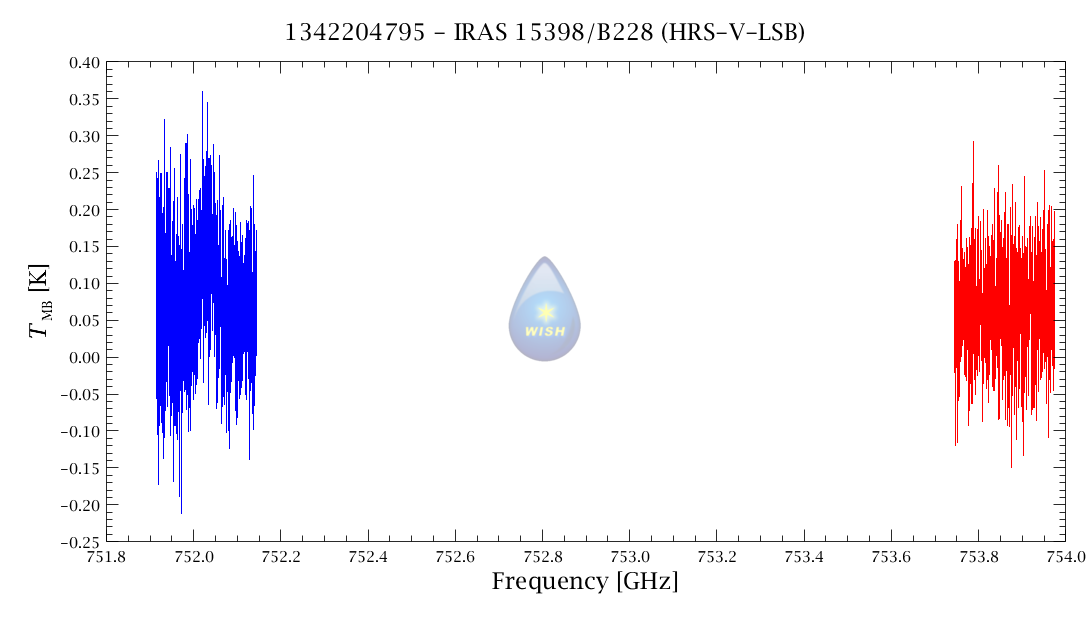

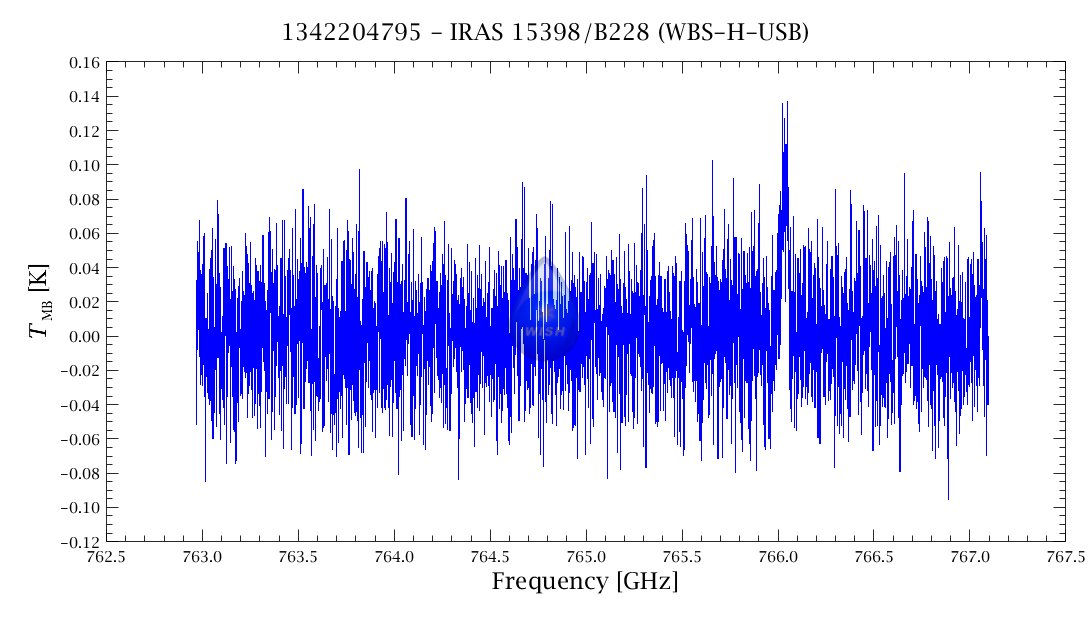

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0289	0.0223
continuum (K)	0.030	0.029

Downloads Corner

• RAW HIPE FORMAT (110MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Schmalzl et al. 2014, A&A
Mottram et al. 2014, A&A
Mottram et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
