WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

RNO 91
RA: 16 34 29.3 (^{h m s})
Dec: -15 47 1.32 (^{o ' "})

Observation Details

OBSID: 1342205297
Obs. Type: HIFI Single Point
Obs. Mode: Position Switch
AOR Label: KPGT_evandish_1-H2O 110-101 Class I - RNO 91
Band: 1B
Herschel Operation Day: OD503
Integration Time: 1012 sec
LO Frequency: 562.57425 GHz
HIPE/Pipeline Version: SPG v11.1.0
Observation Date: 2010-09-29
HSA Processing Date: 2014-01-30
WISH Processing Date: 2014-08-05
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (2.98326,-0.99175) arcsec

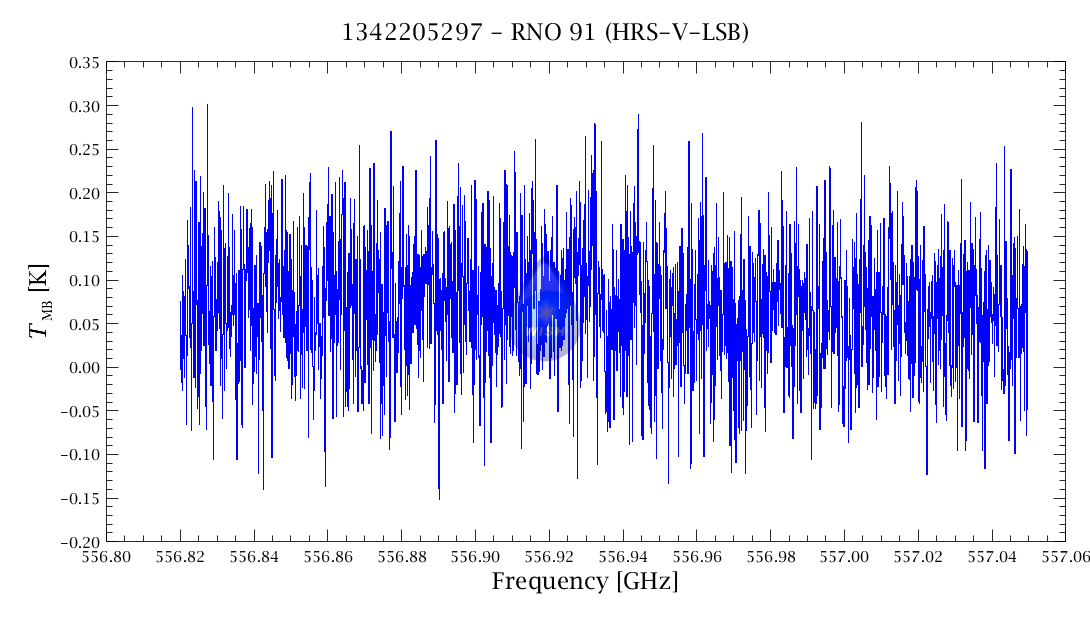

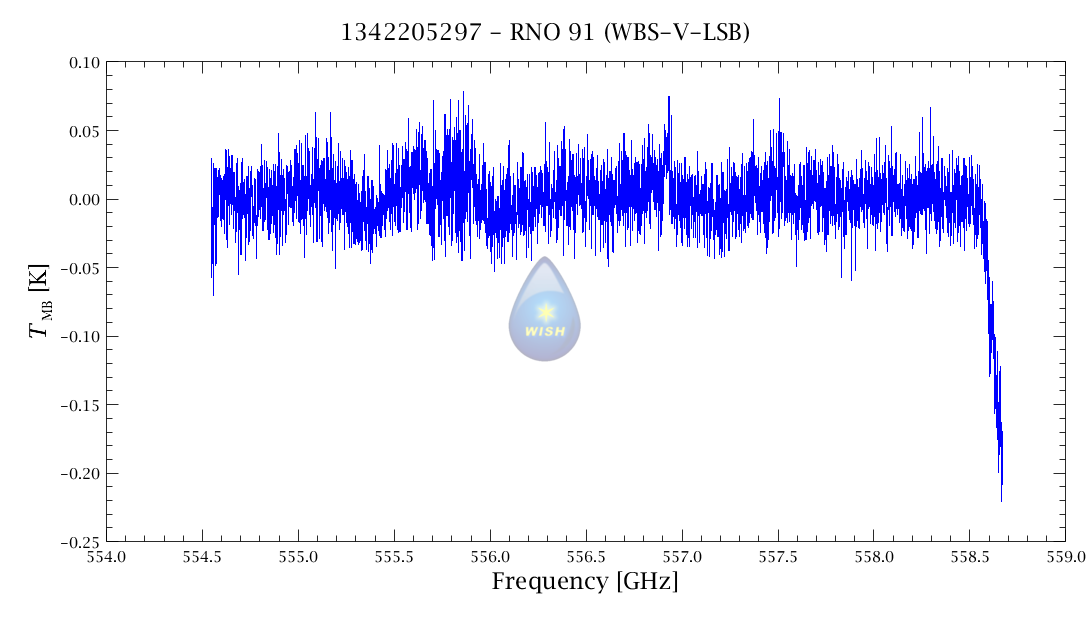

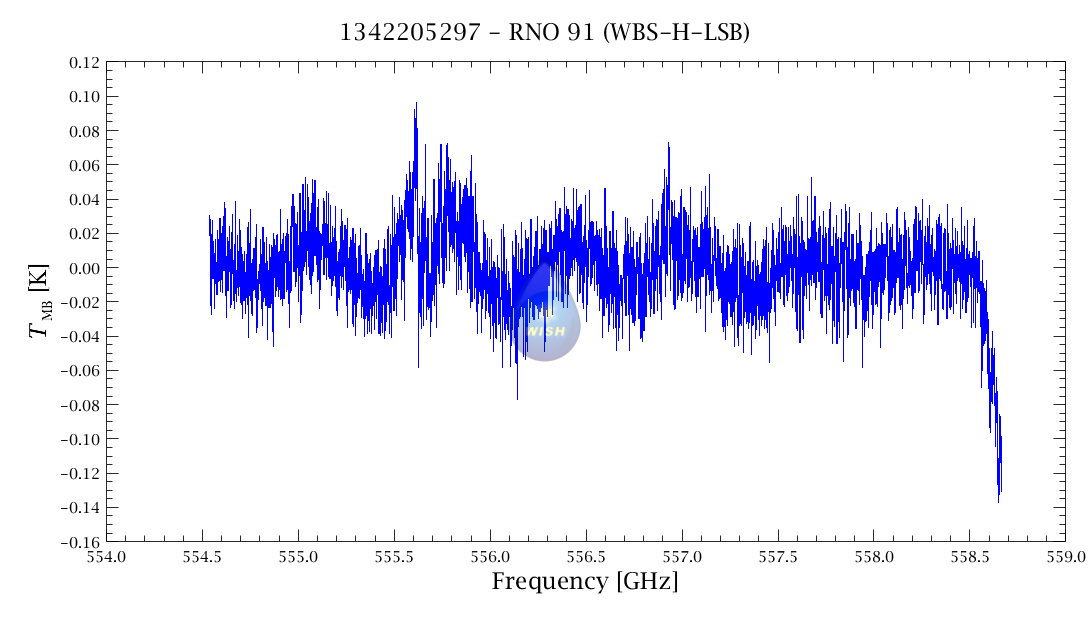

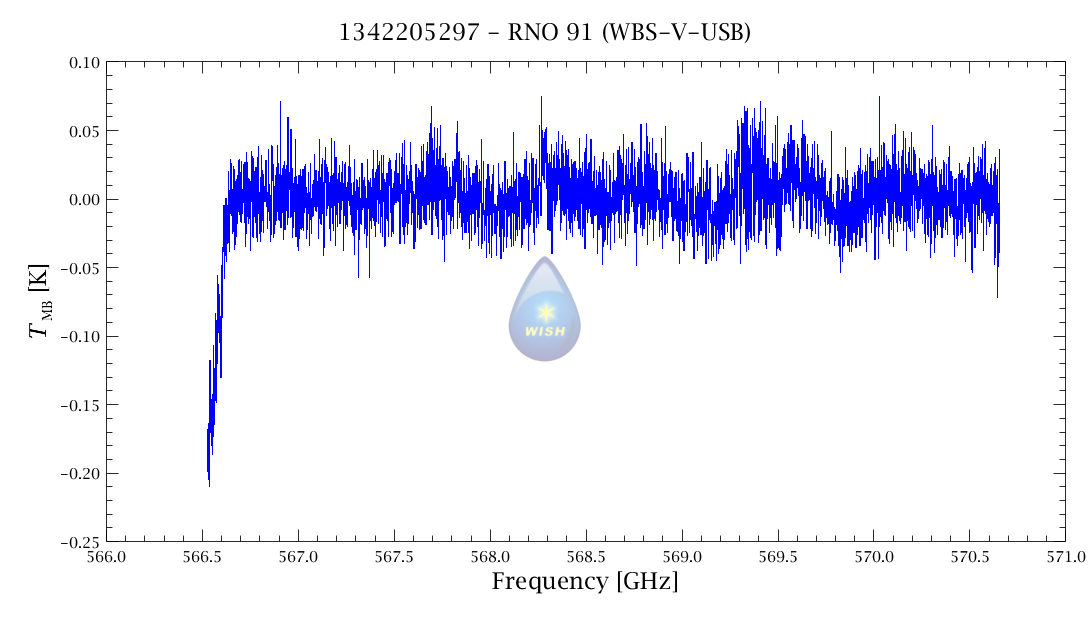

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0158	0.0169
continuum (K)	0.005	0.027

Downloads Corner

• RAW HIPE FORMAT (215MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Schmalzl et al. 2014, A&A
Mottram et al. 2014, A&A
Kristensen et al. 2012, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
