WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

HH25-MM-sio
RA: 5 46 9.7 (^{h m s})
Dec: 0 14 27.00 (^{o ' "})

Observation Details

OBSID: 1342205317
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: HH25-MM SiO
Band: 1B
Herschel Operation Day: OD503
Integration Time: 304 sec
LO Frequency: 564.61275 GHz
HIPE/Pipeline Version: SPG v11.1.0
Observation Date: 2010-09-29
HSA Processing Date: 2014-01-30
WISH Processing Date: 2014-08-05
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (1.02127,0.28813) arcsec

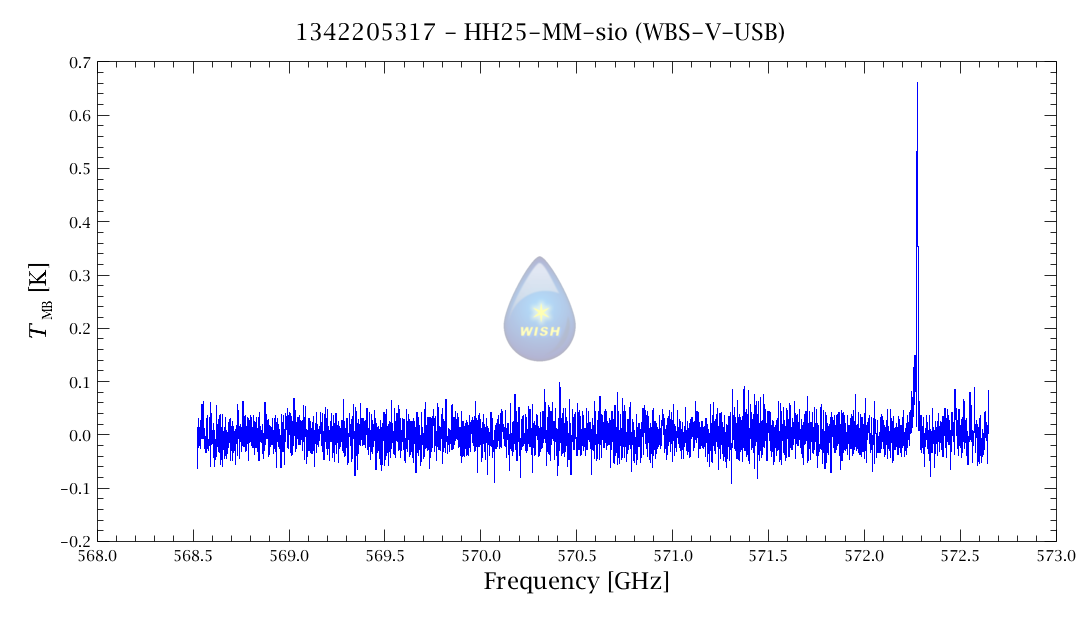

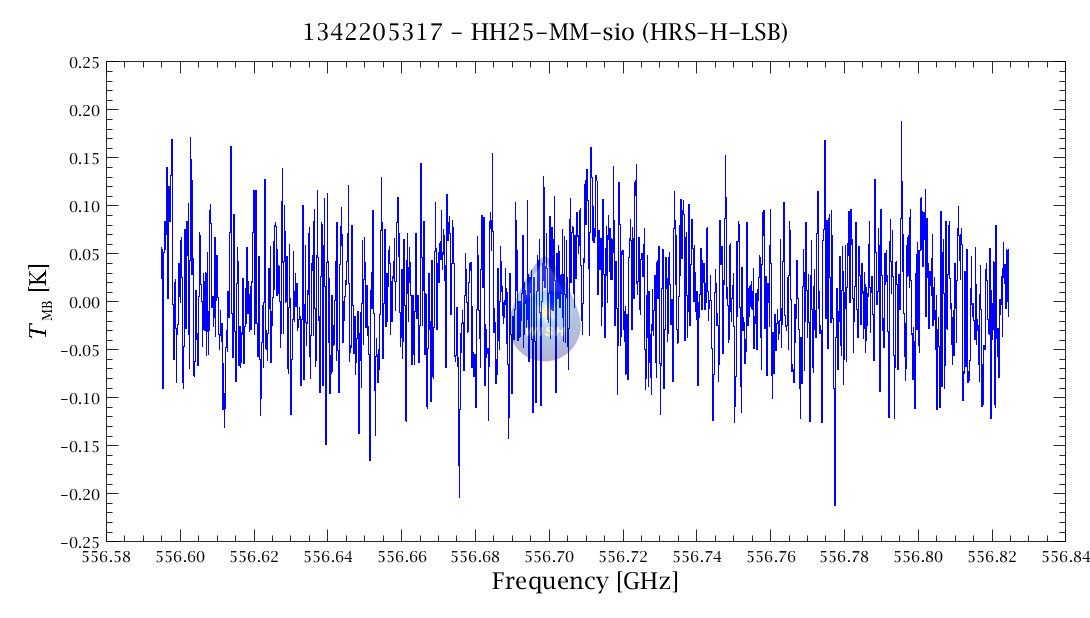

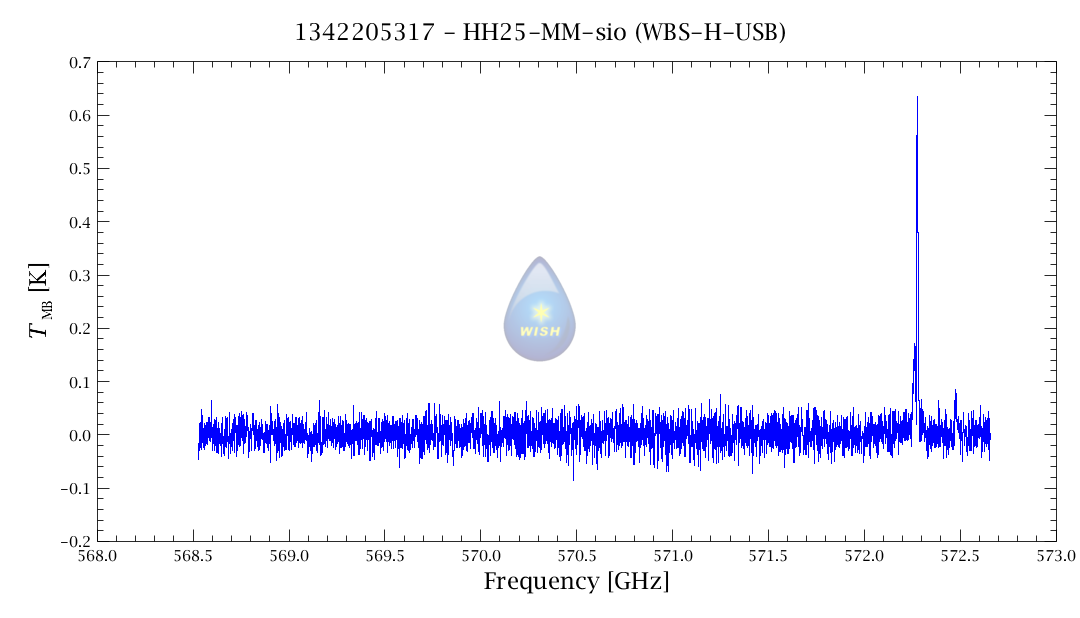

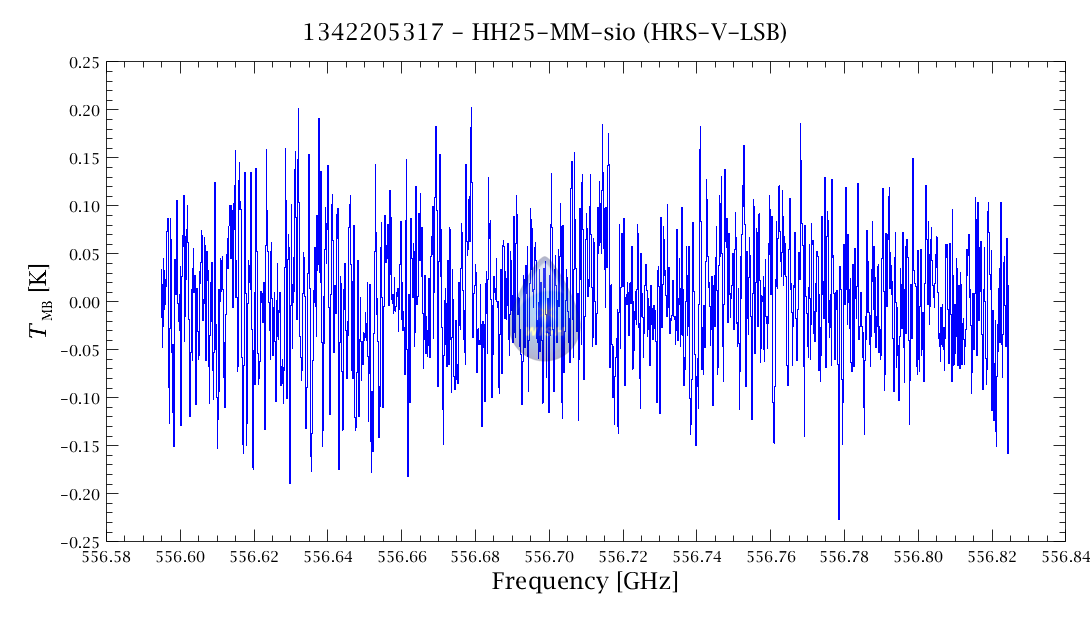

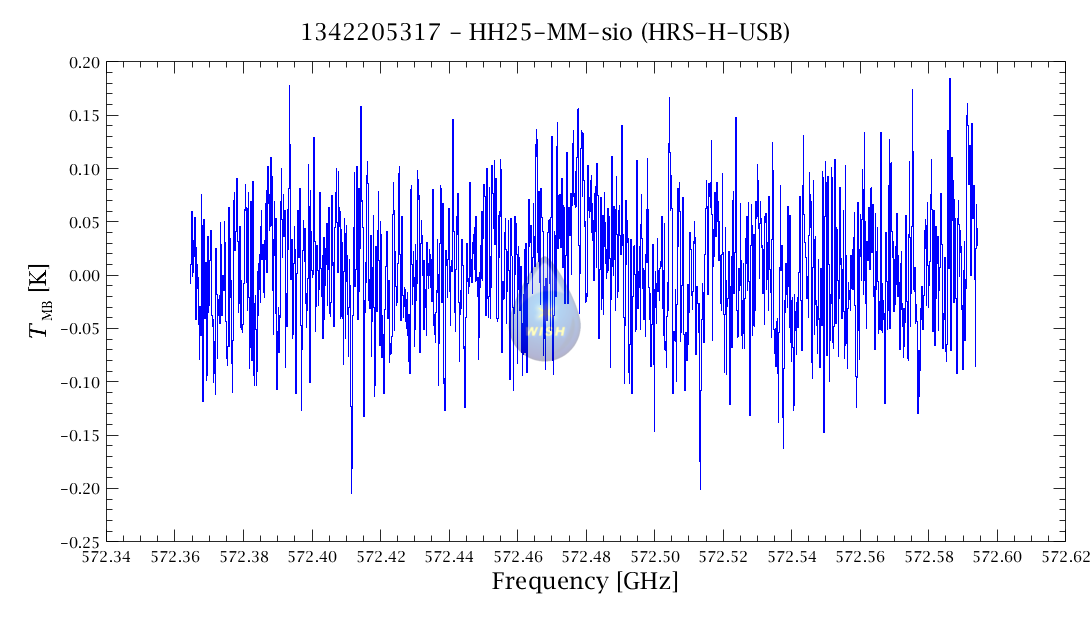

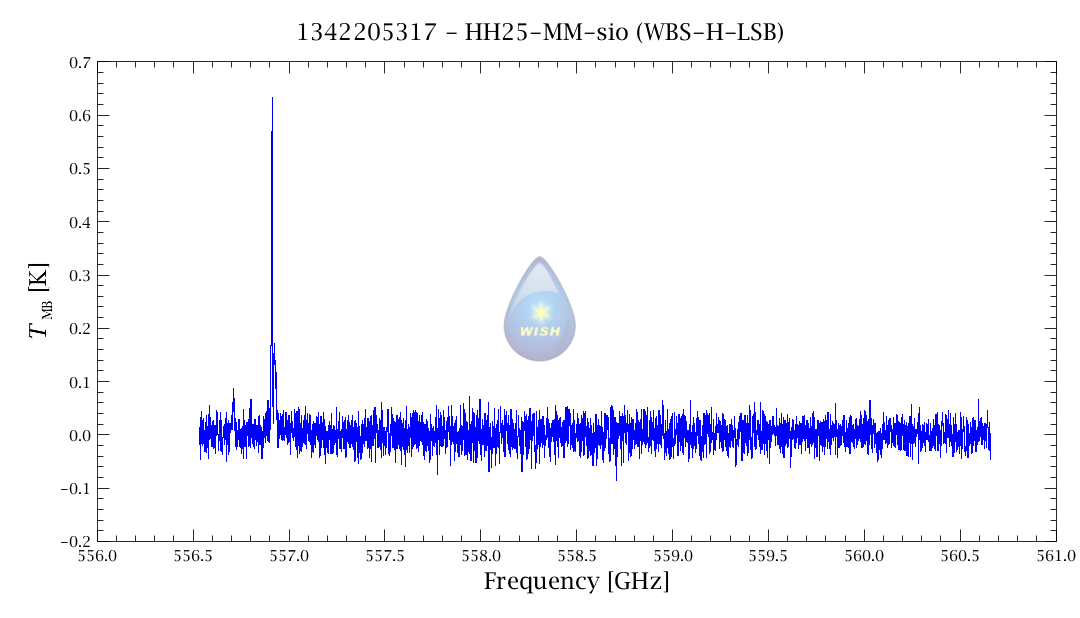

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0179	0.0225
continuum (K)	0.002	-0.001

Downloads Corner

• RAW HIPE FORMAT (92MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Tafalla et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
