WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

IRAS05358+3543
RA: 5 39 13.1 (^{h m s})
Dec: 35 45 50.04 (^{o ' "})

Observation Details

OBSID: 1342206126
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: H2O 111-000 - IRAS05358+3543
Band: 4B
Herschel Operation Day: OD505
Integration Time: 2965 sec
LO Frequency: 1107.9495 GHz
HIPE/Pipeline Version: SPG v11.1.0
Observation Date: 2010-10-01
HSA Processing Date: 2014-01-30
WISH Processing Date: 2014-08-01
Beam Efficiency H ⁽¹⁾: η=0.63
Beam Efficiency V⁽¹⁾: η=0.64
Beam Efficiency (2012) ⁽¹⁾: η=0.737
Position offset (x,y): (-1.7945,0.077805) arcsec

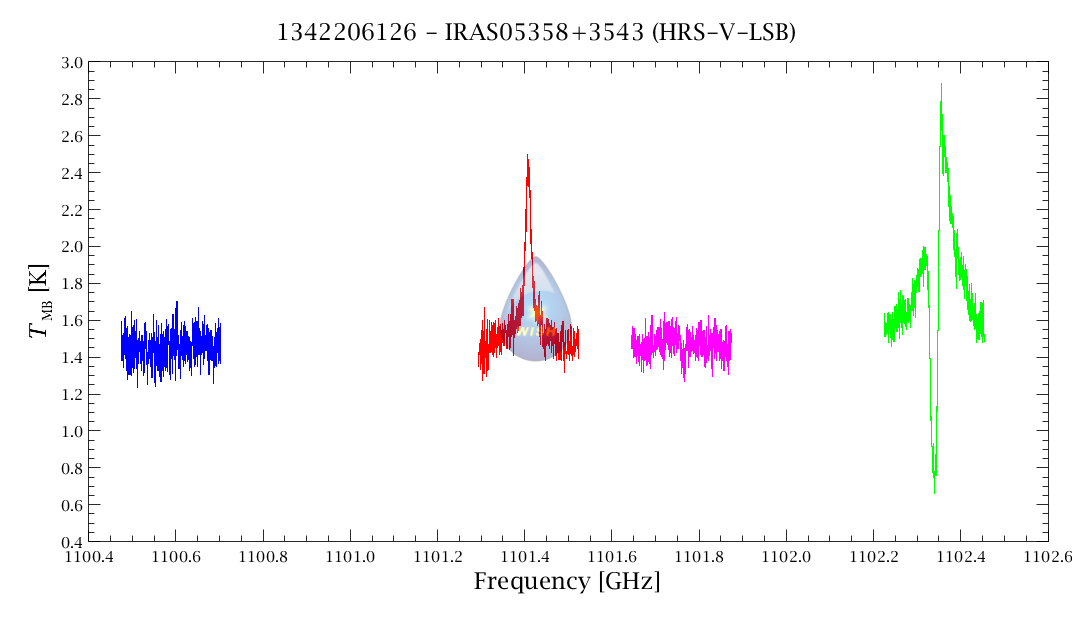

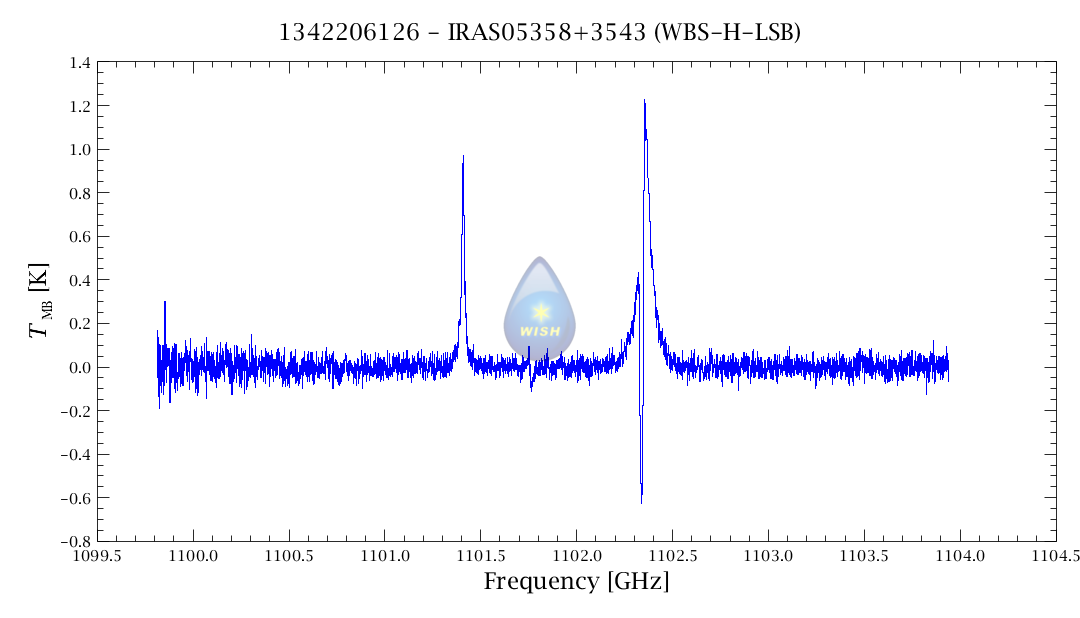

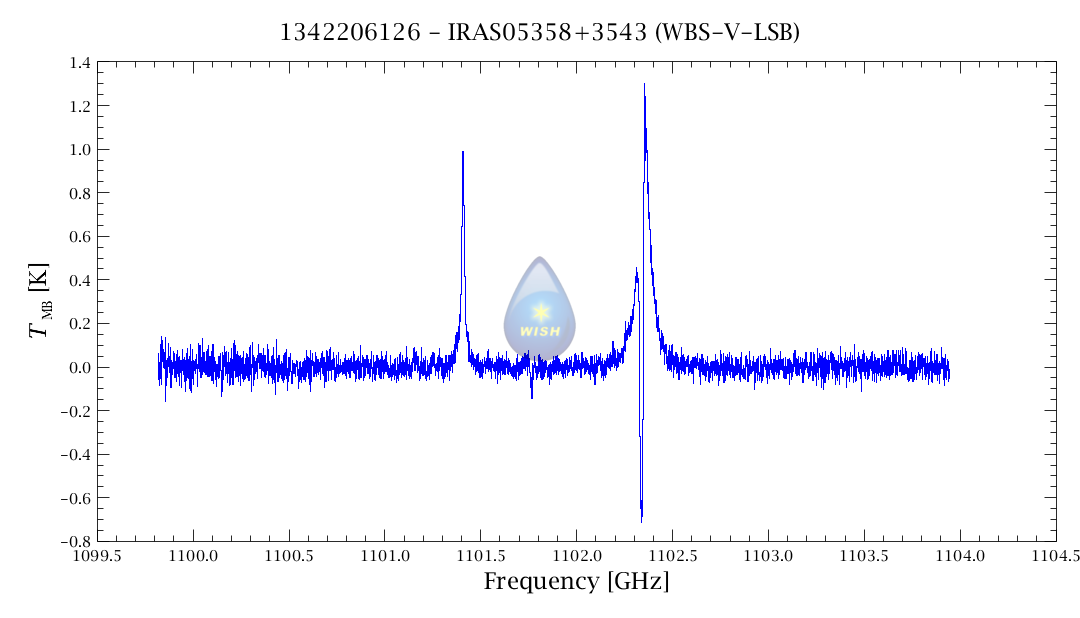

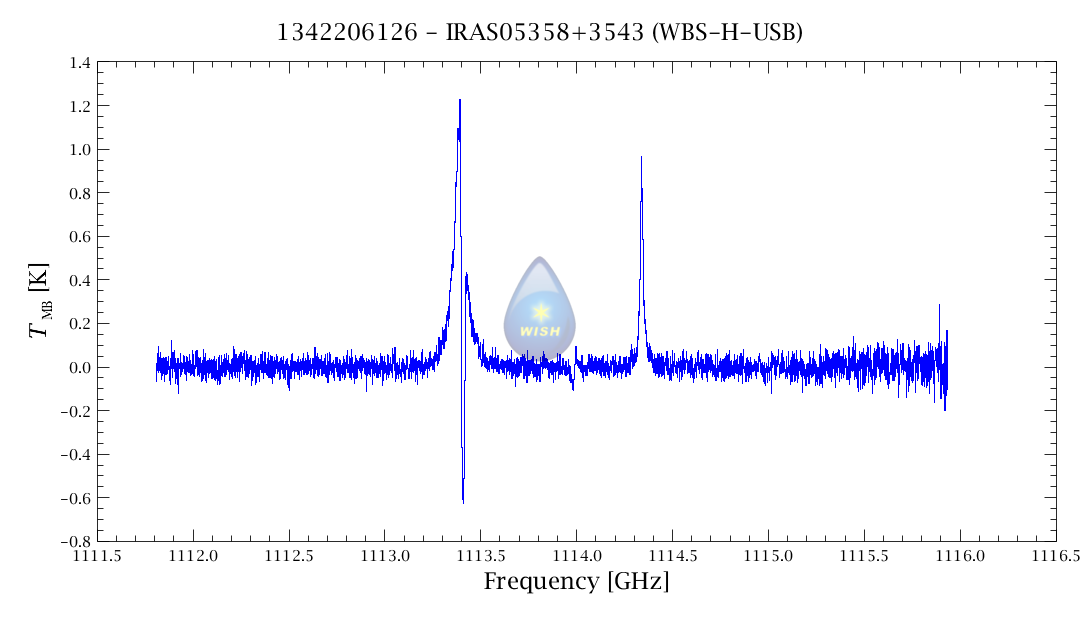

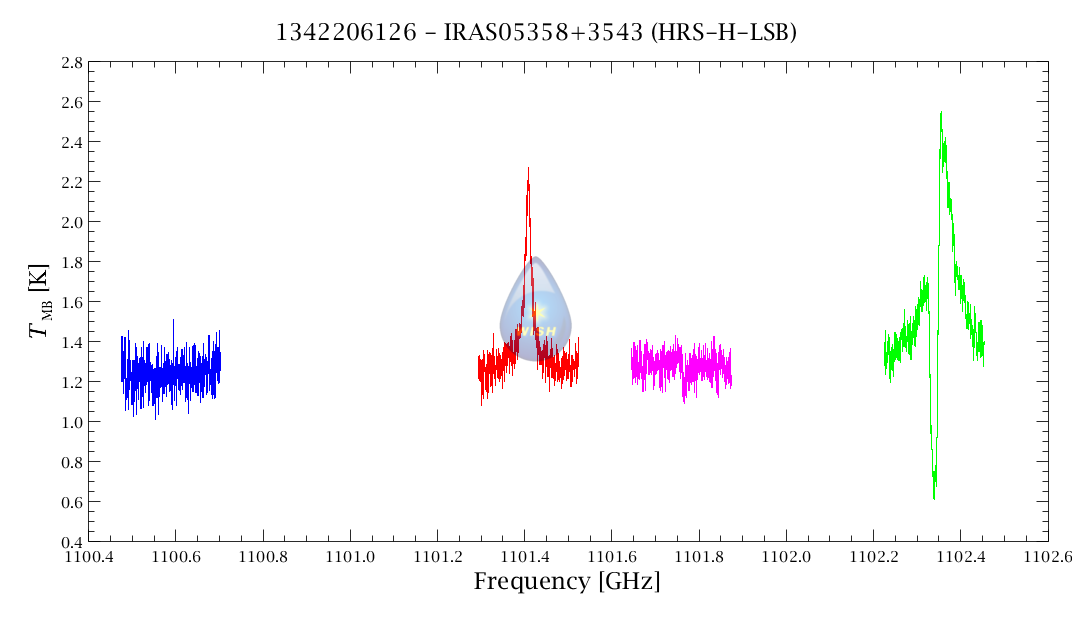

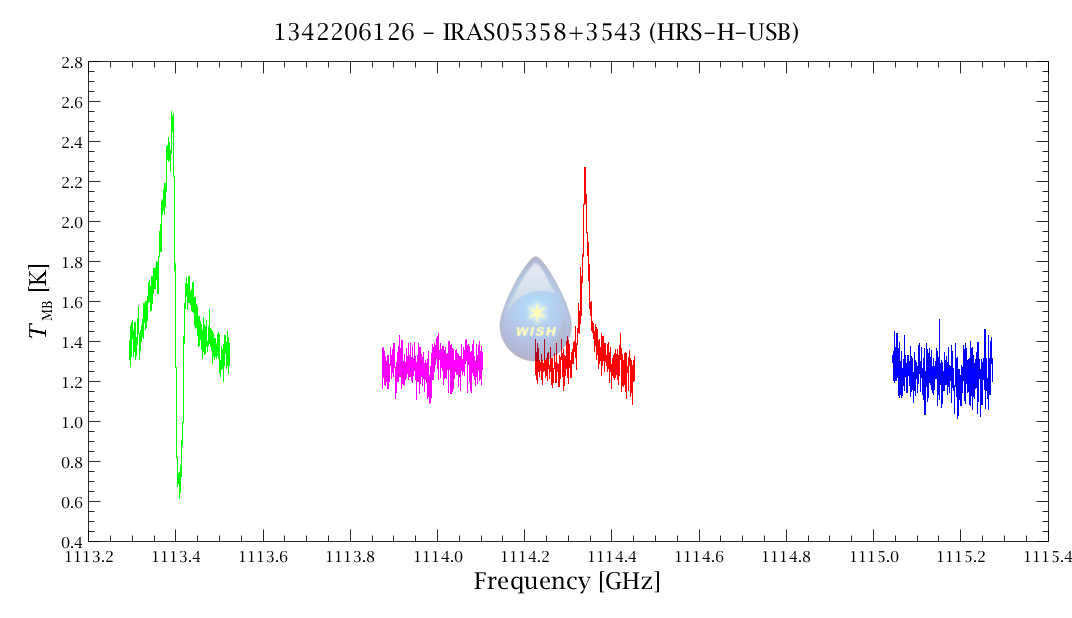

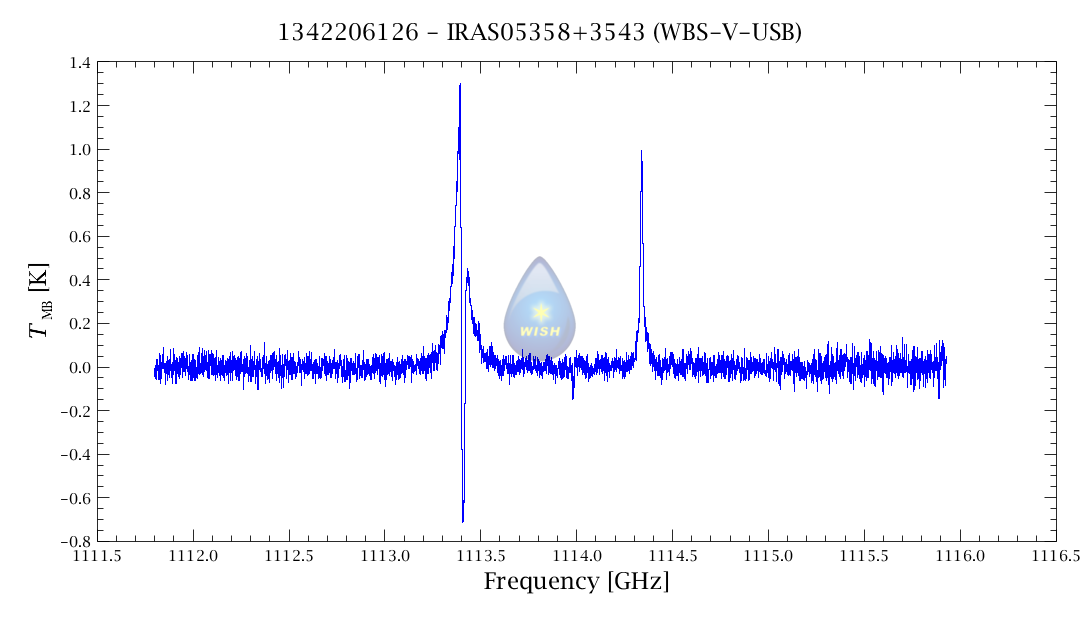

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0301	0.0320
continuum (K)	0.637	0.743

Downloads Corner

• RAW HIPE FORMAT (203MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Van der Tak et al. 2013, A&A
San Jose-Garcia et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
