WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

Ser SMM1
RA: 18 29 49.7 (^{h m s})
Dec: 1 15 20.48 (^{o ' "})

Observation Details

OBSID: 1342208575
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: Ser SMM1 - Setting 9
Band: 7B
Herschel Operation Day: OD534
Integration Time: 819 sec
LO Frequency: 1896.39225 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2010-10-30
HSA Processing Date: 2014-07-25
WISH Processing Date: 2014-08-01
Beam Efficiency H ⁽¹⁾: η=0.57
Beam Efficiency V⁽¹⁾: η=0.6
Beam Efficiency (2012) ⁽¹⁾: η=0.694
Position offset (x,y): (-2.40669,-0.46489) arcsec

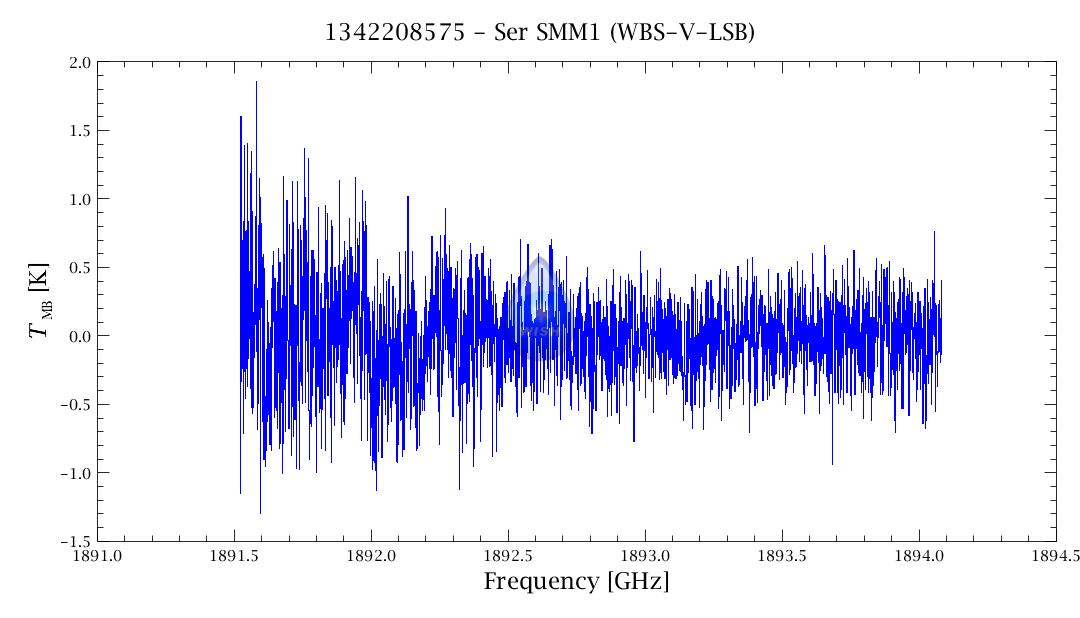

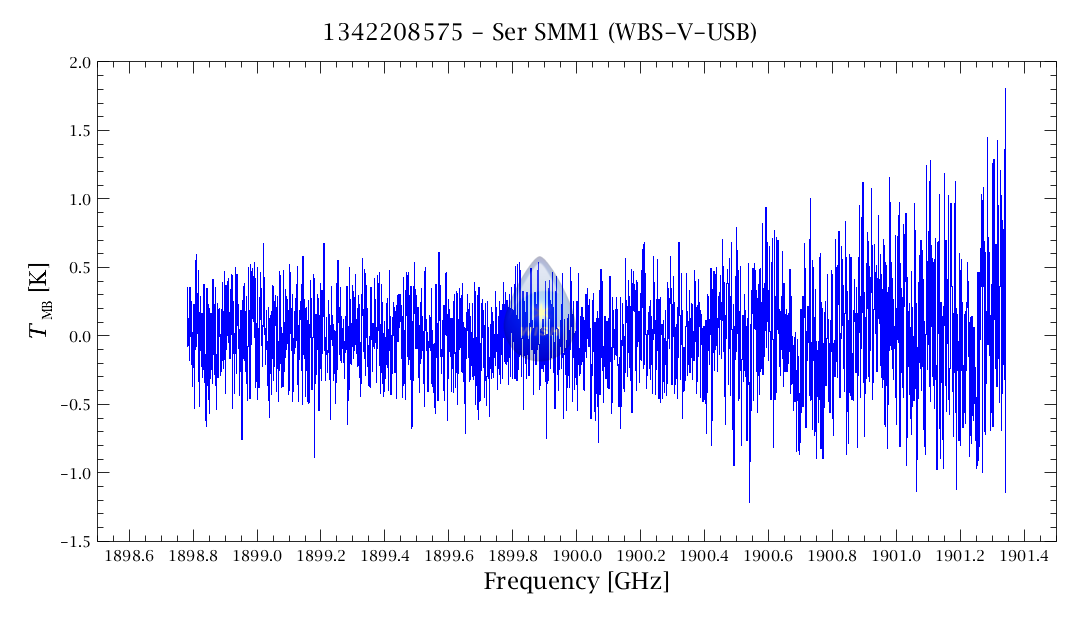

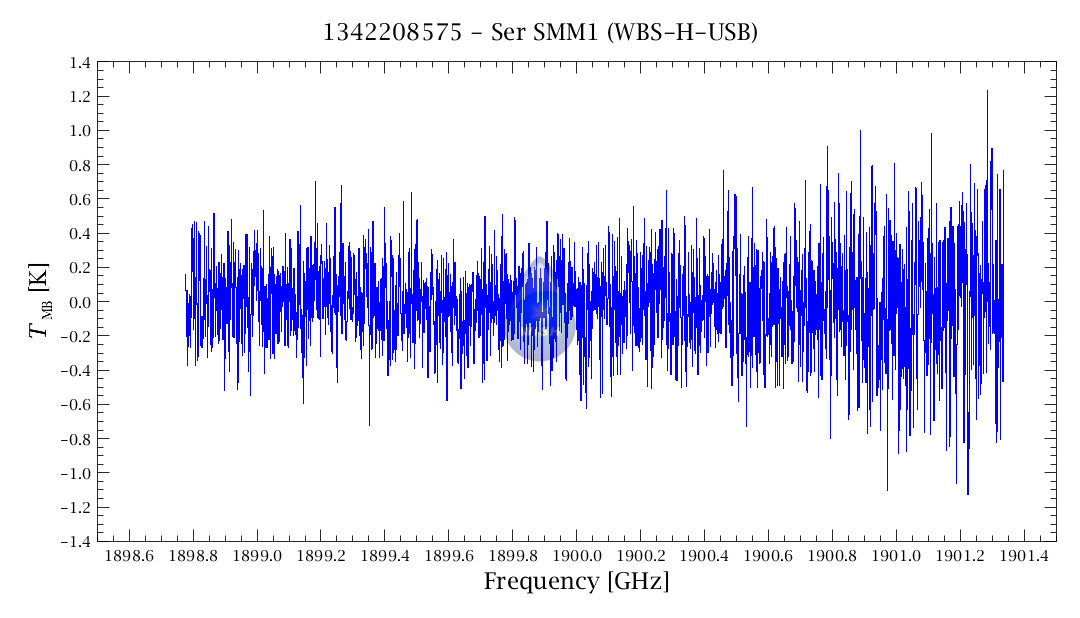

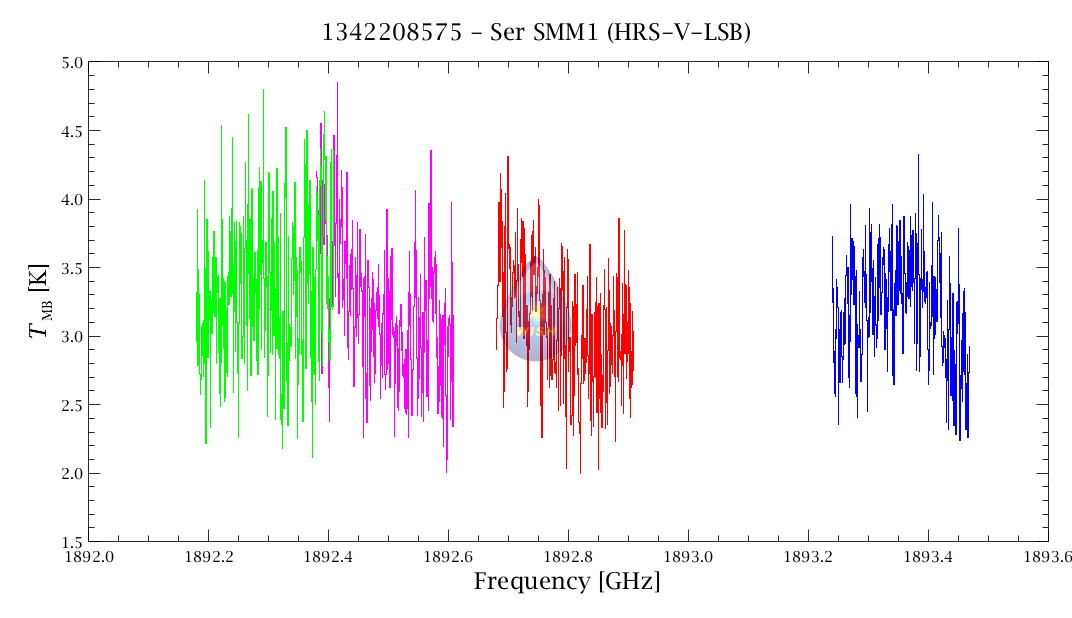

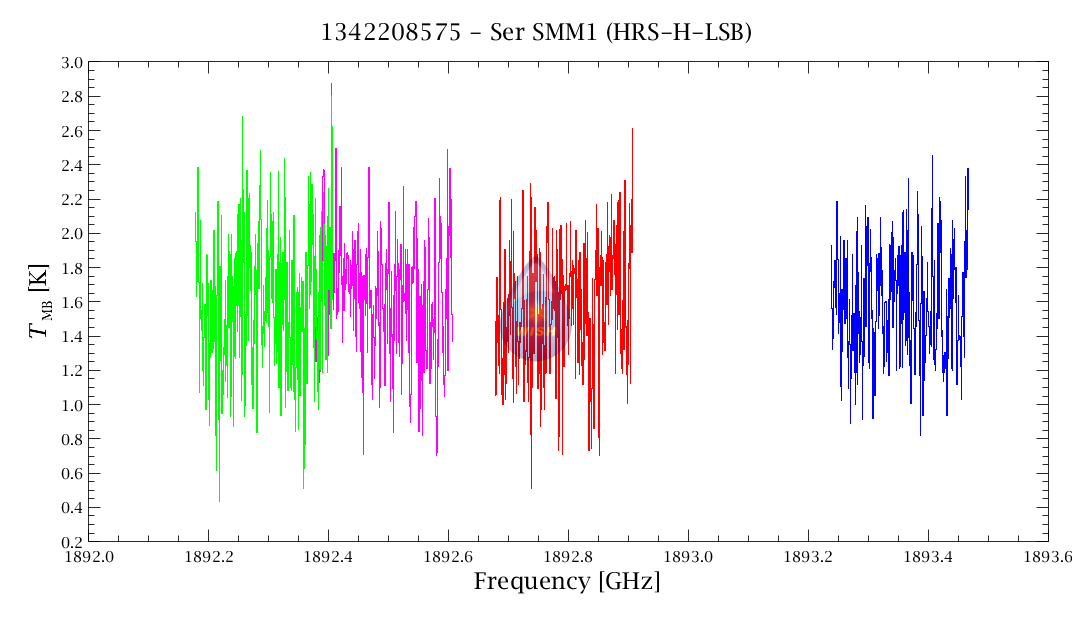

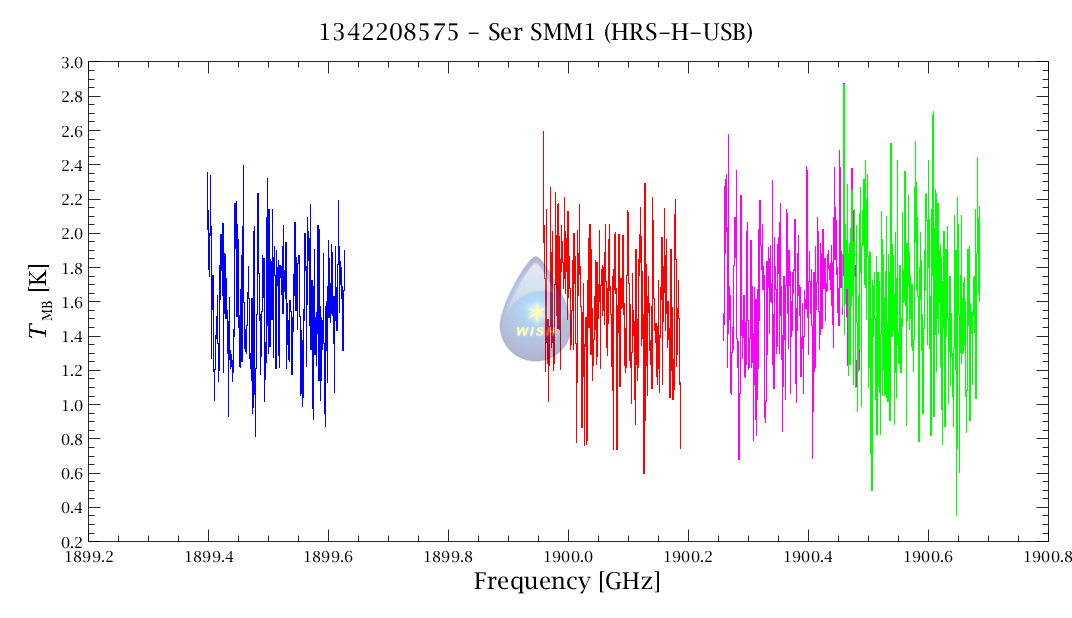

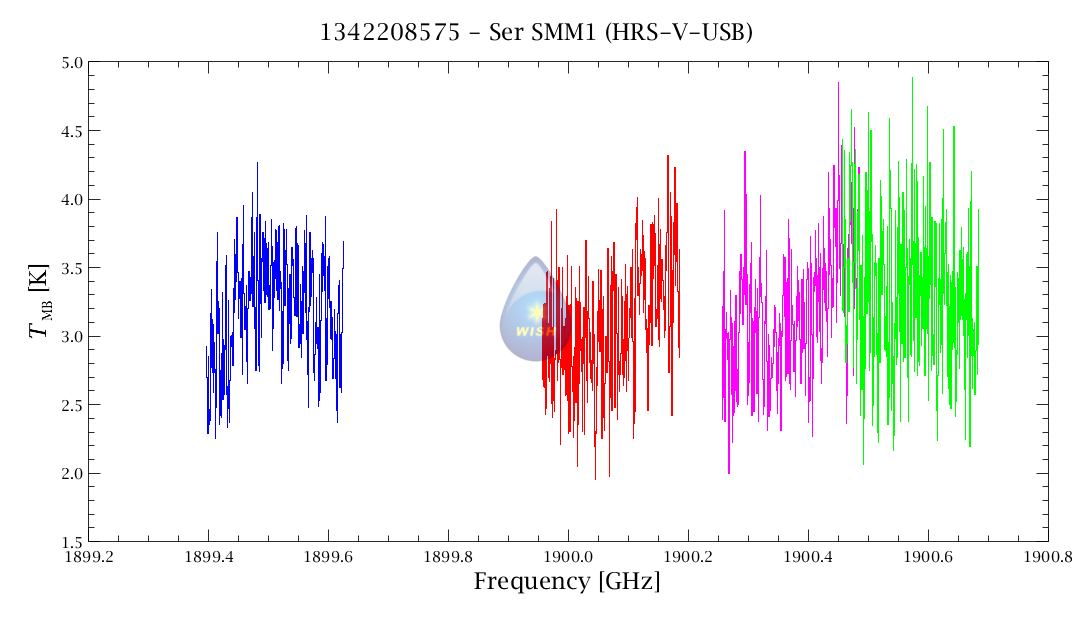

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1
	WBS-H	WBS-V
rms (K)	0.3569	0.5512
continuum (K)	0.789	1.808

Downloads Corner

• RAW HIPE FORMAT (107MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Benz et al. 2015, A&A Submitted
Kristensen et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
