WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

AFGL490
RA: 3 27 38.4 (^{h m s})
Dec: 58 47 8.16 (^{o ' "})

Observation Details

OBSID: 1342214346
Obs. Type: HIFI Single Point
Obs. Mode: Load Chop Ref
AOR Label: PSP2_H2O 110-101 - AFGL490
Band: 1A
Herschel Operation Day: OD643
Integration Time: 1407 sec
LO Frequency: 550.3365 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2011-02-16
HSA Processing Date: 2014-07-30
WISH Processing Date: 2014-08-05
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (2.71087,2.71468) arcsec

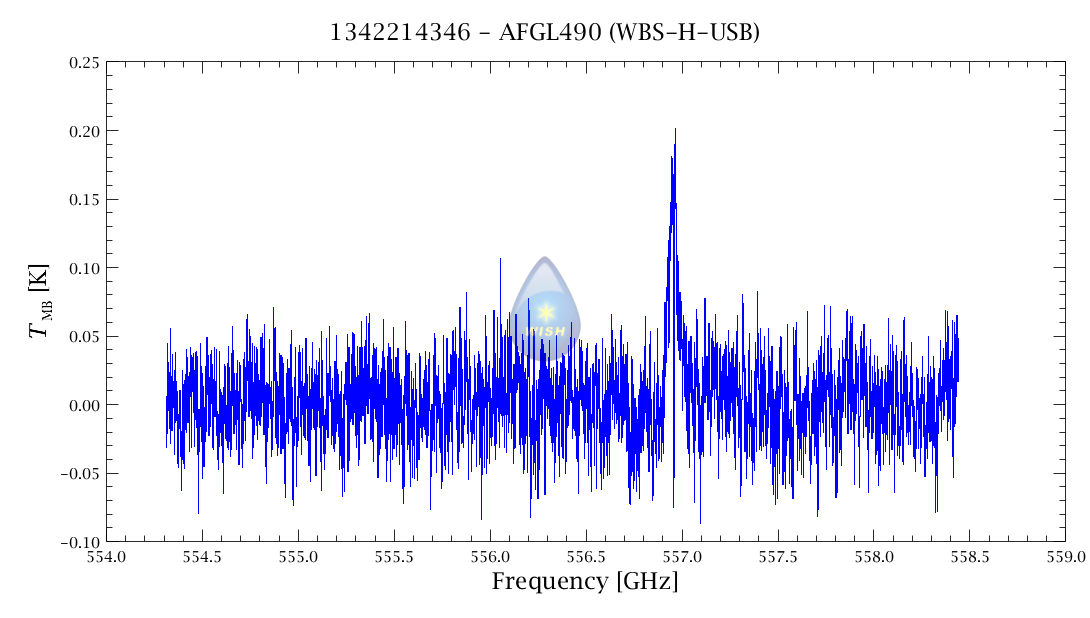

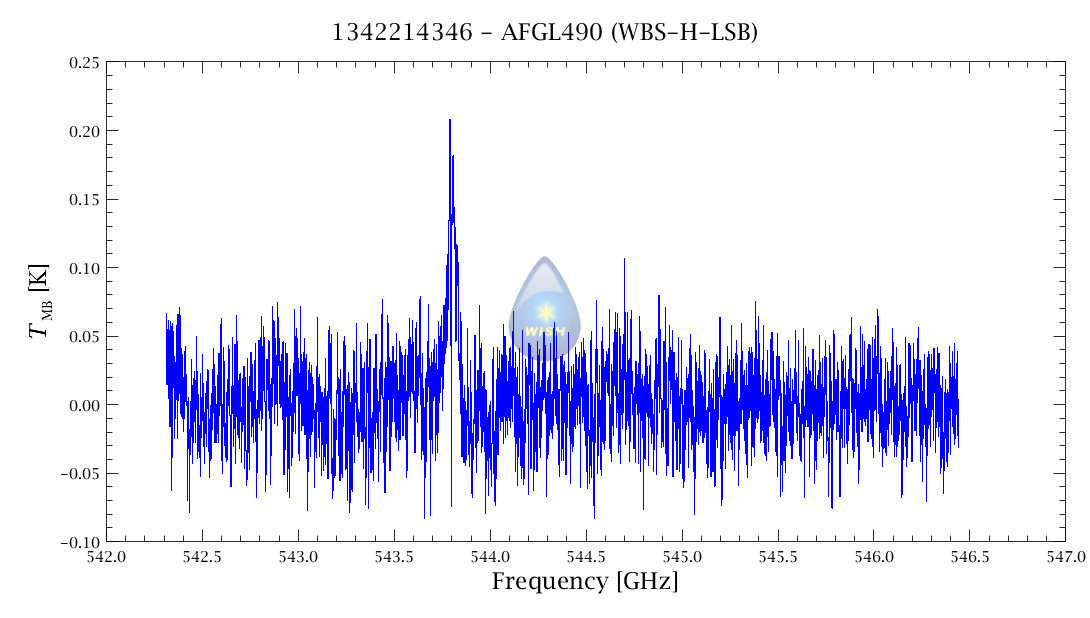

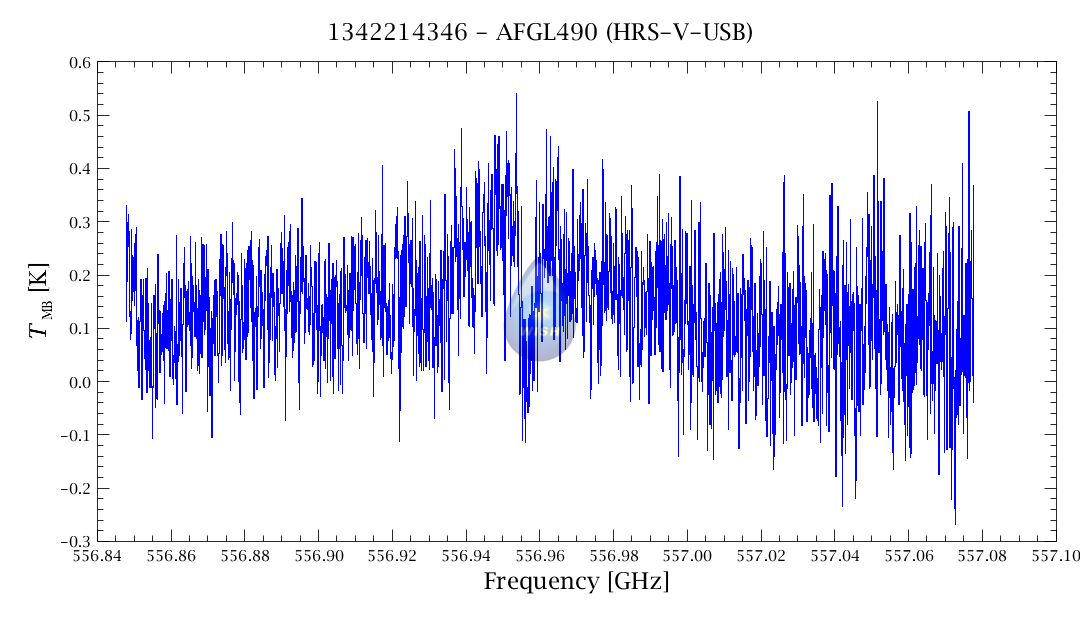

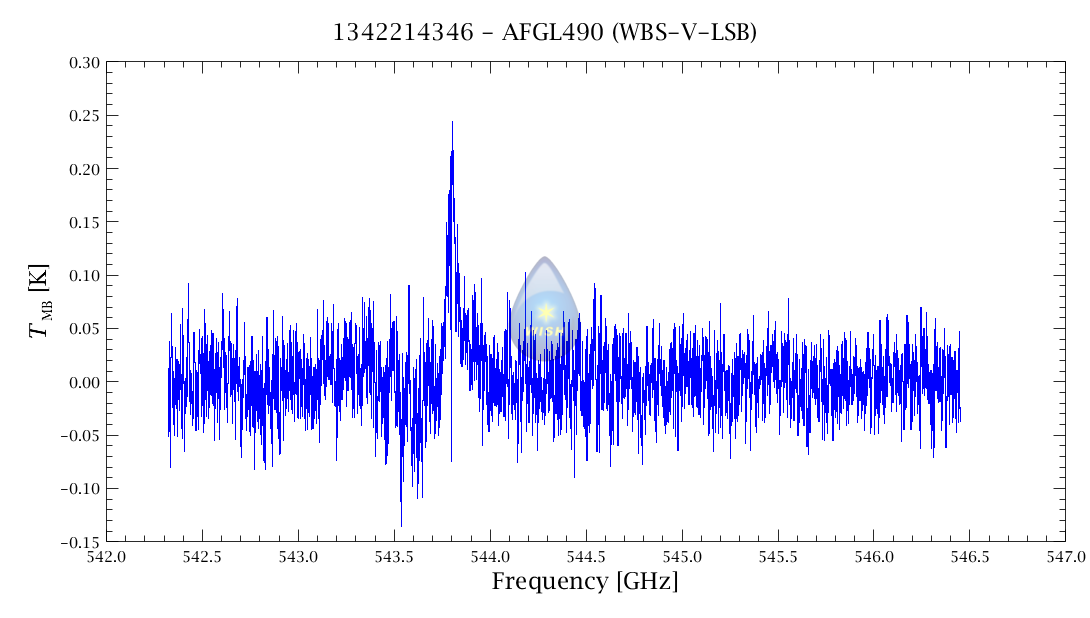

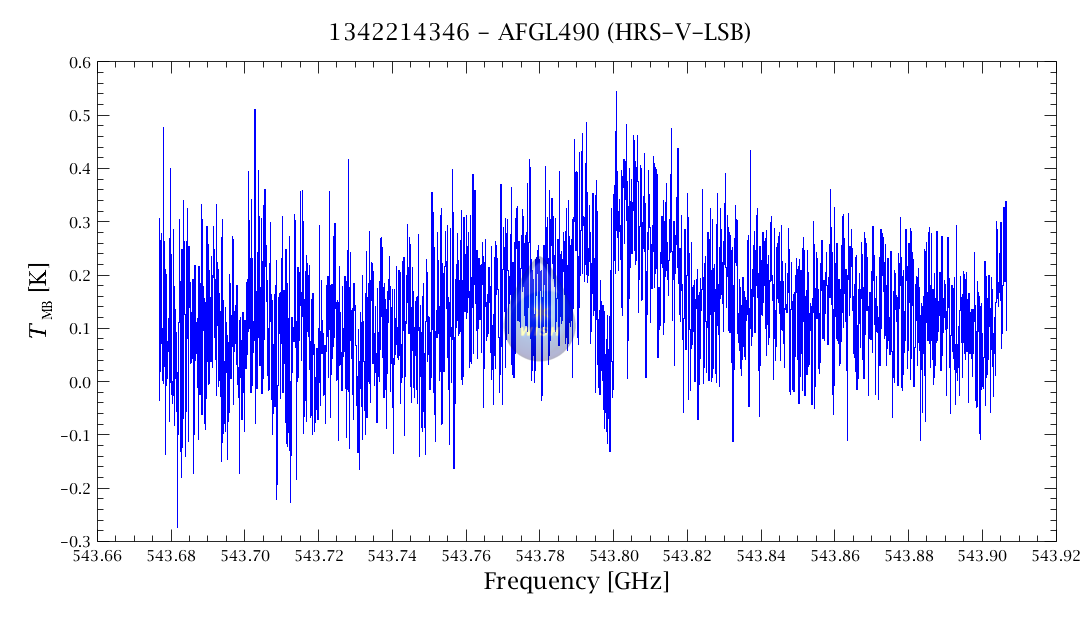

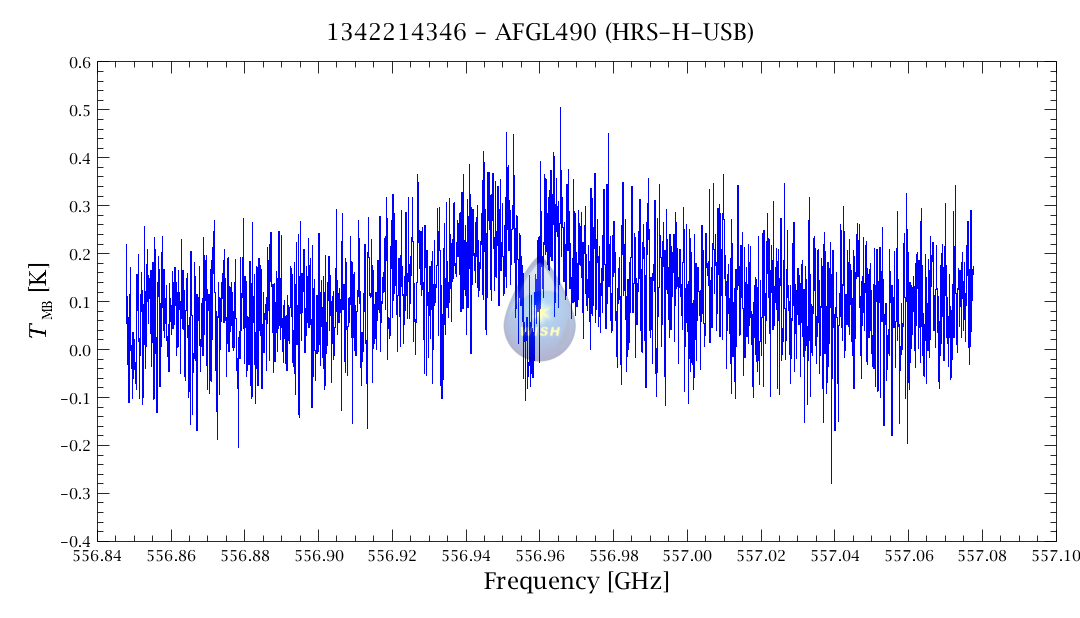

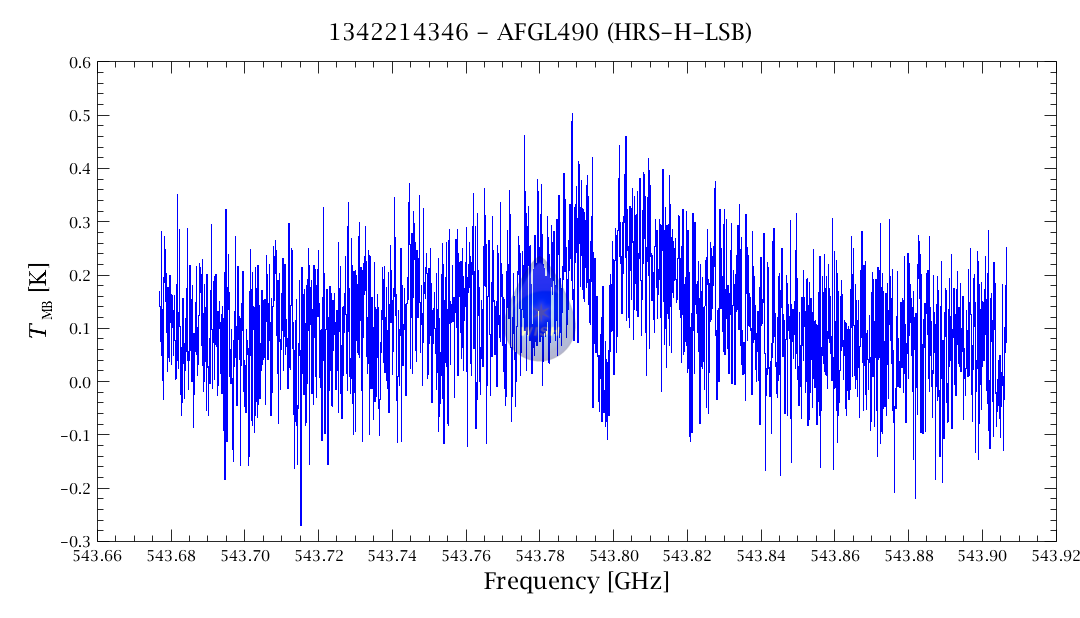

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0242	0.0236
continuum (K)	0.033	0.045

Downloads Corner

• RAW HIPE FORMAT (111MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
