WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

AFGL490
RA: 3 27 38.4 (^{h m s})
Dec: 58 47 8.16 (^{o ' "})

Observation Details

OBSID: 1342214347
Obs. Type: HIFI Single Point
Obs. Mode: Frequency Switch Ref
AOR Label: PSP2_H2O-18 110-101 - - AFGL490
Band: 1A
Herschel Operation Day: OD643
Integration Time: 1833 sec
LO Frequency: 542.39175 GHz
HIPE/Pipeline Version: SPG v5.2.0
Observation Date: 2011-02-16
HSA Processing Date: 2011-02-16
WISH Processing Date: 2014-08-05
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (0,0) arcsec

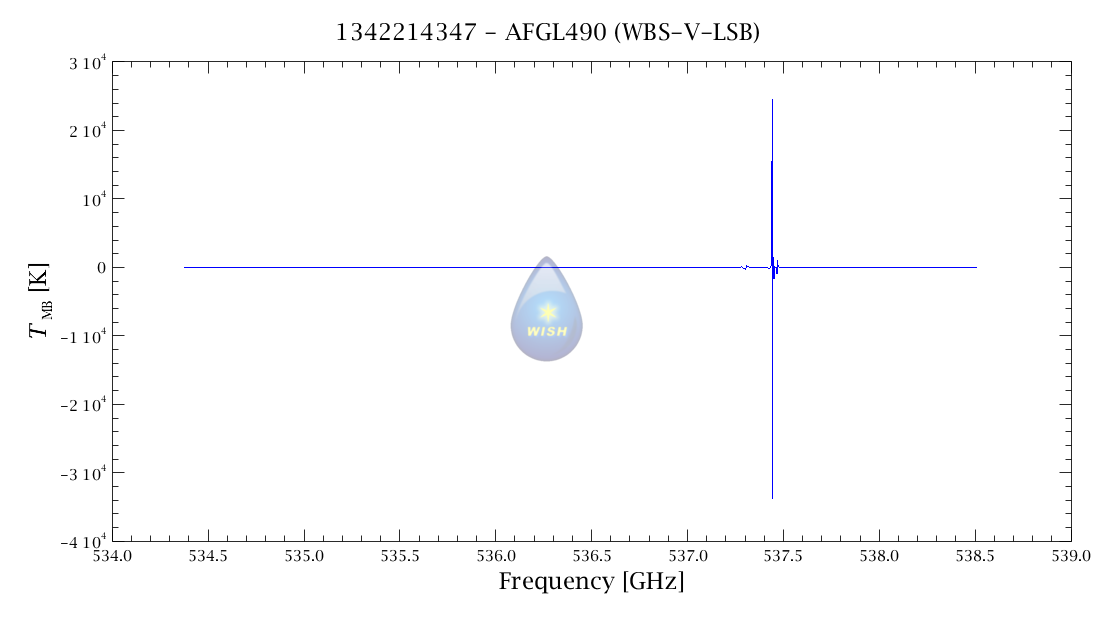

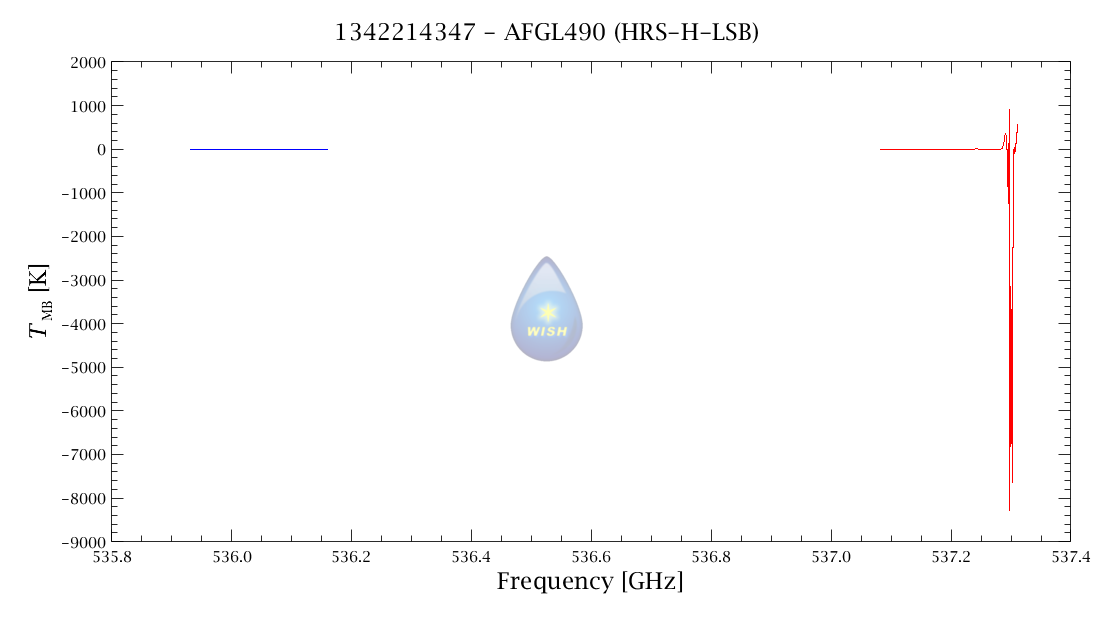

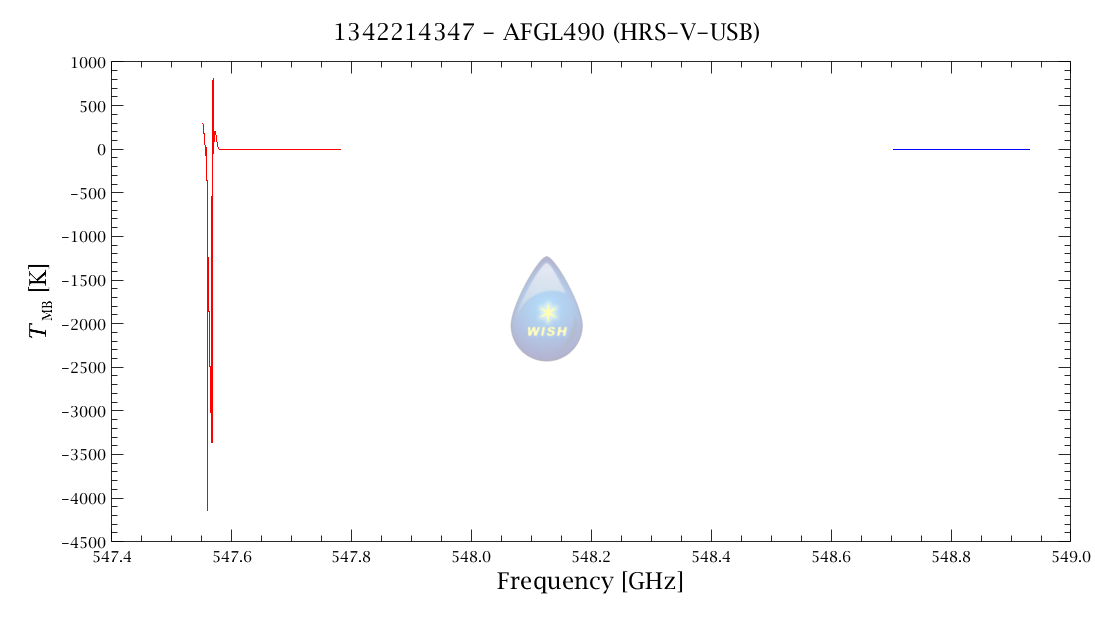

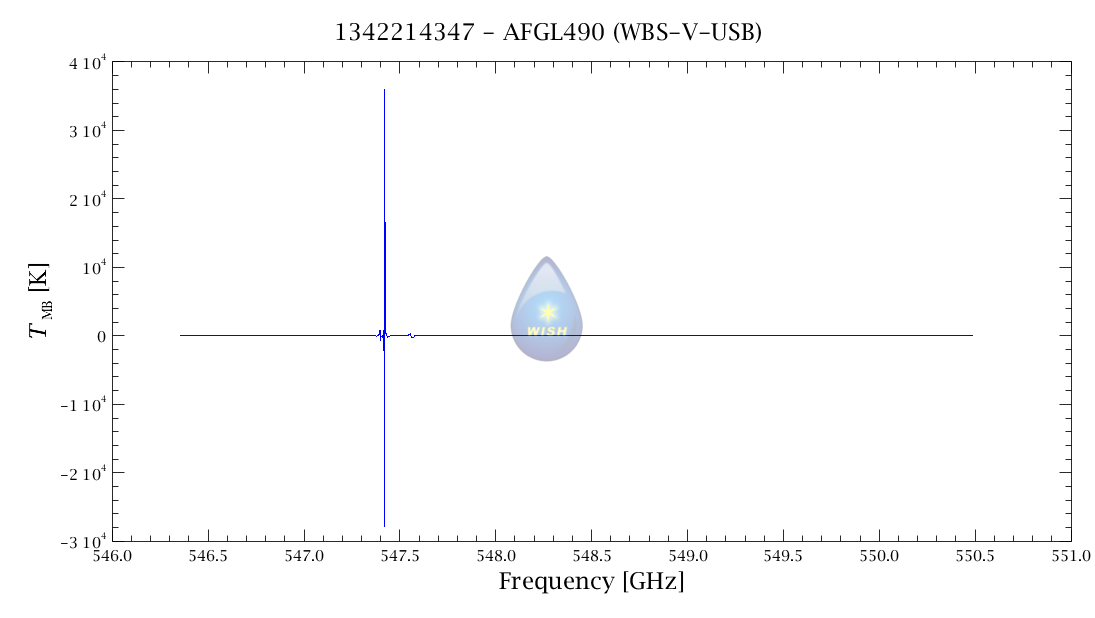

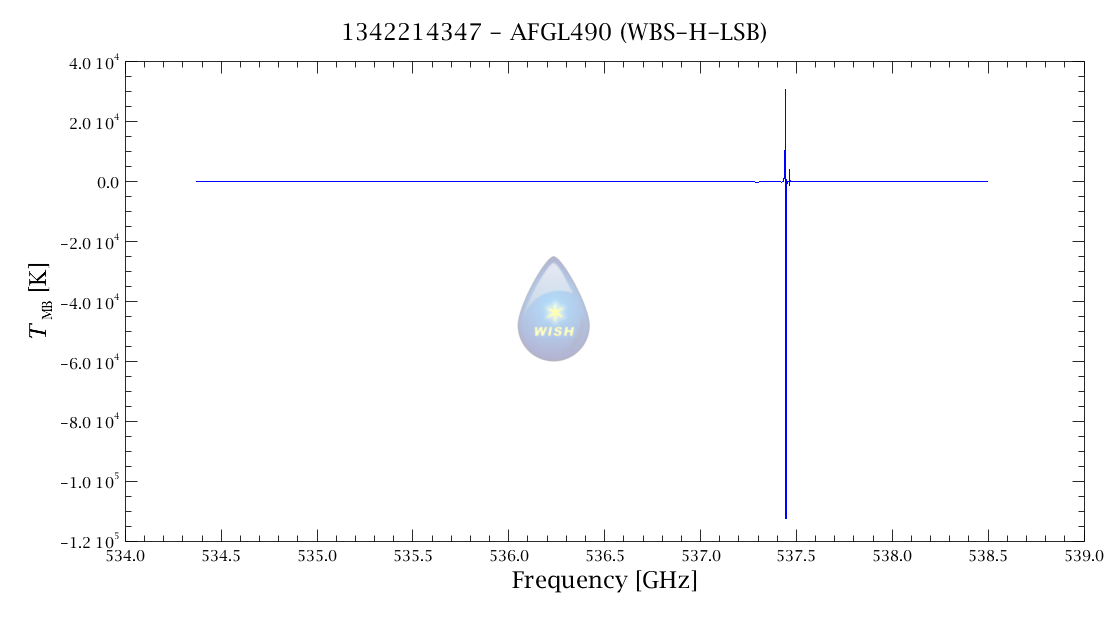

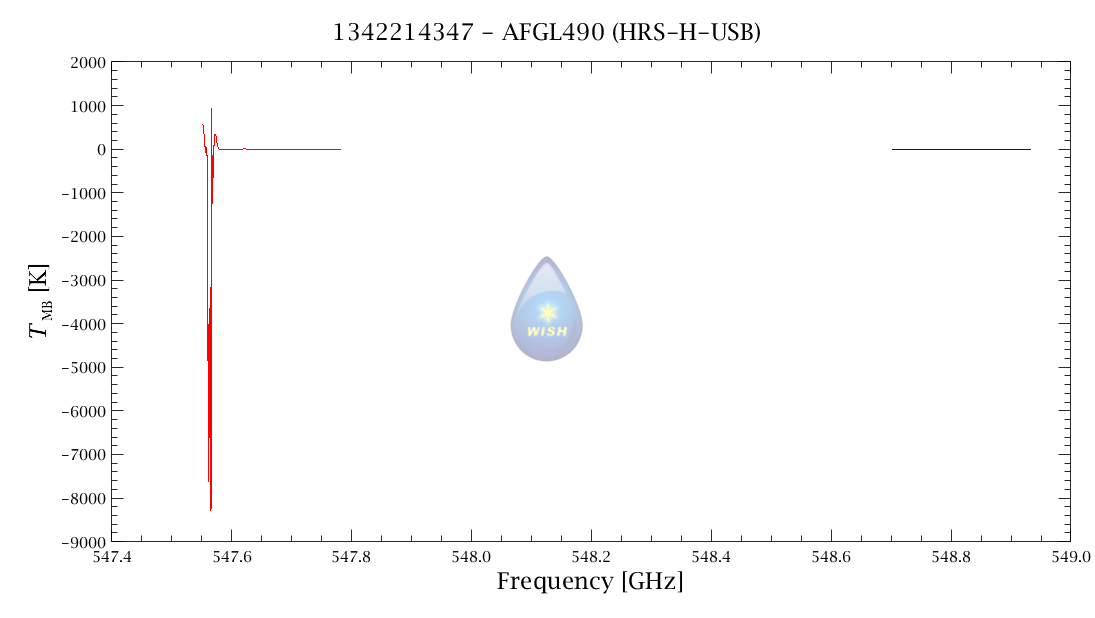

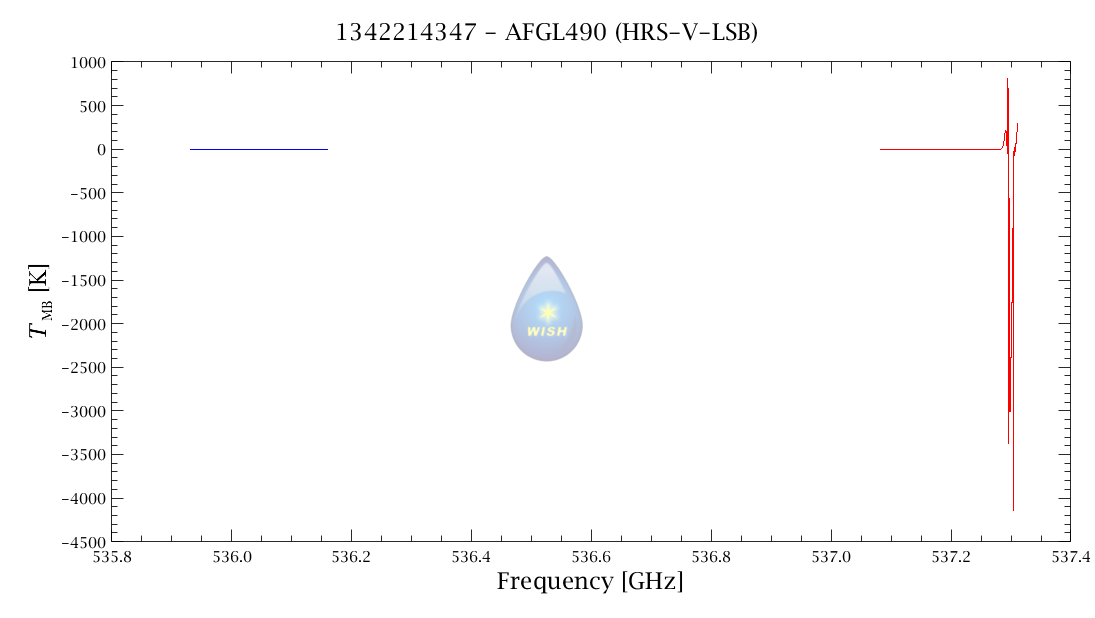

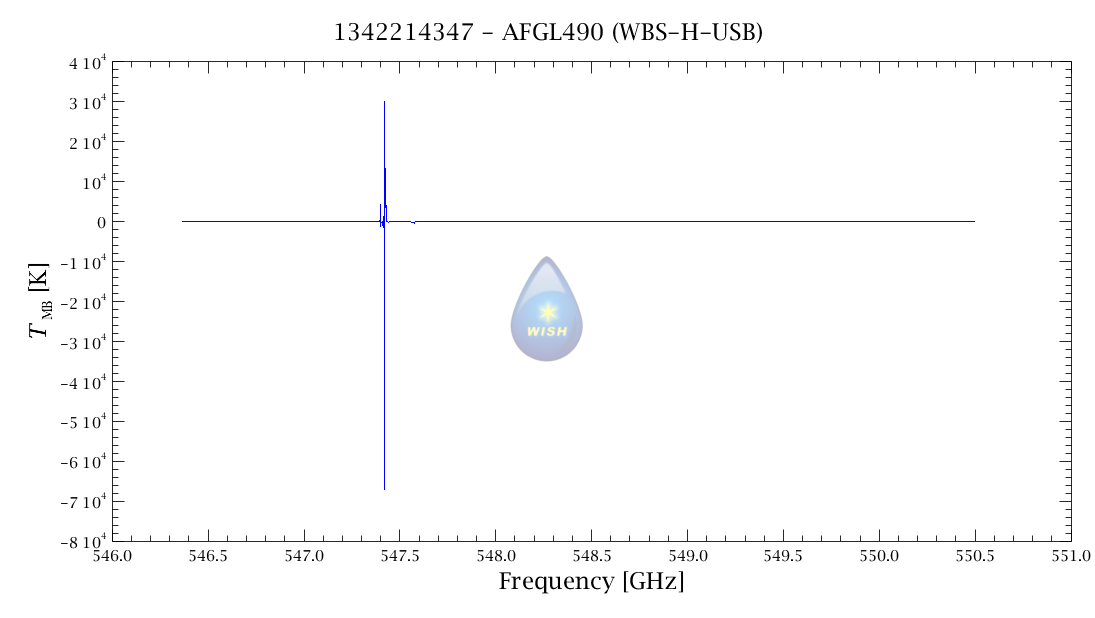

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	0.125	0.125
	WBS-H	WBS-V
rms (K)	0.1528	0.0611
continuum (K)	0.161	0.007

Downloads Corner

• RAW HIPE FORMAT (112MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
San Jose-Garcia et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
