WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

NGC6334-I-N-1
RA: 17 20 55.2 (^{h m s})
Dec: -35 45 3.96 (^{o ' "})

Observation Details

OBSID: 1342214455
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: H2O 212-101 -NGC6334-I-N
Band: 6B
Herschel Operation Day: OD646
Integration Time: 958 sec
LO Frequency: 1665.56925 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2011-02-18
HSA Processing Date: 2014-07-30
WISH Processing Date: 2014-08-01
Beam Efficiency H ⁽¹⁾: η=0.58
Beam Efficiency V⁽¹⁾: η=0.58
Beam Efficiency (2012) ⁽¹⁾: η=0.707
Position offset (x,y): (2.26617,-0.97315) arcsec

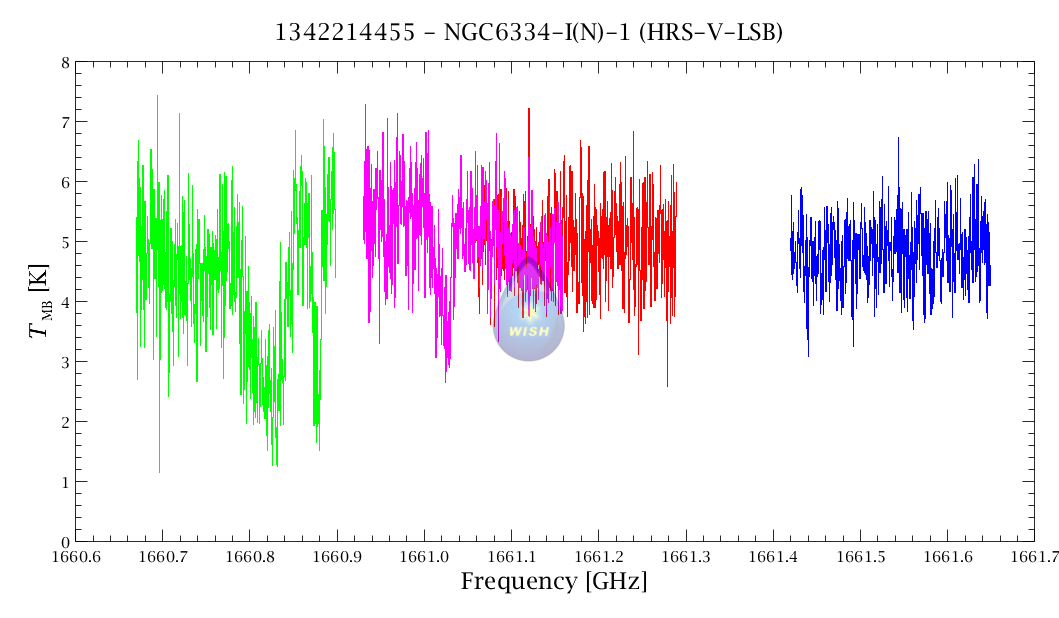

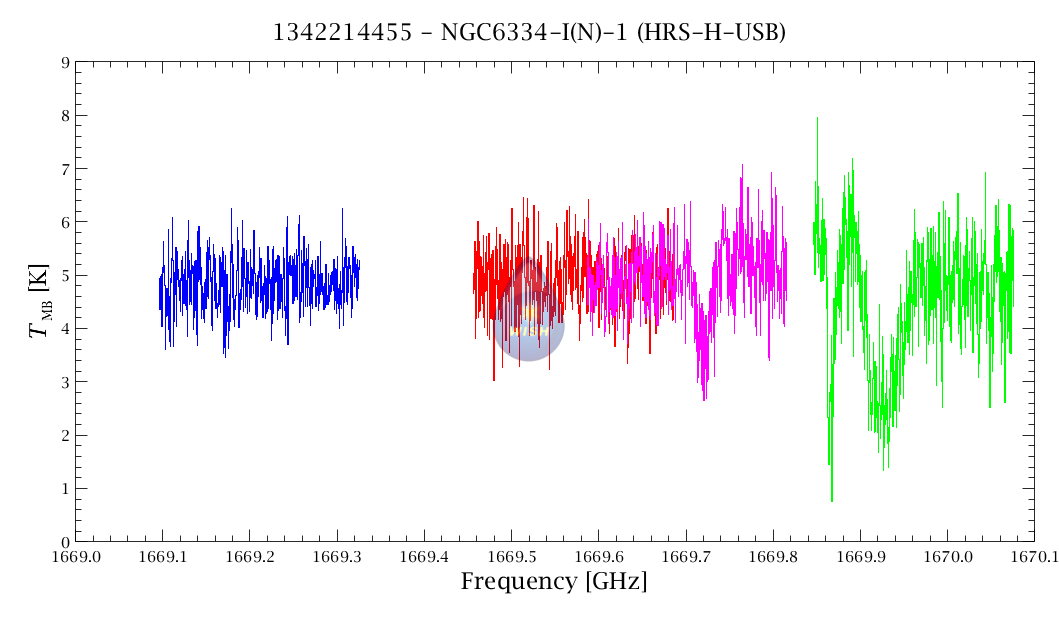

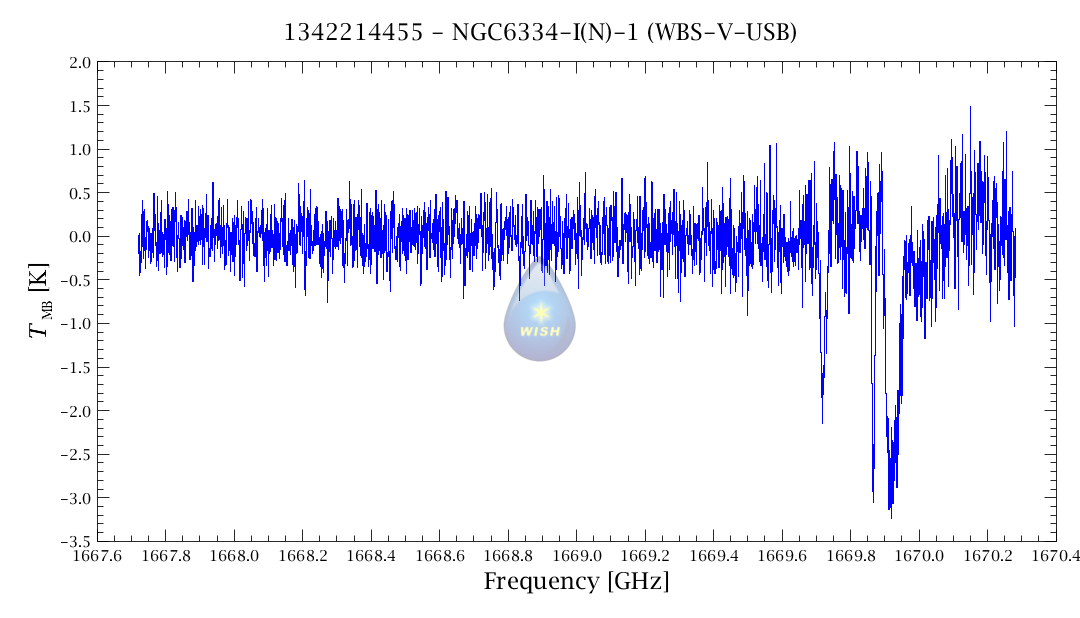

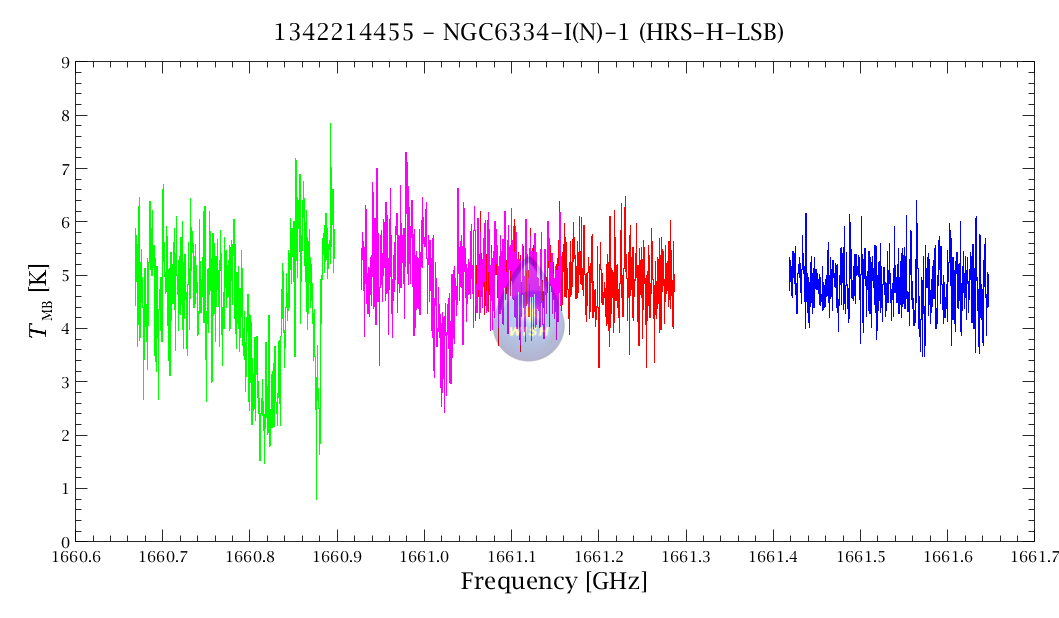

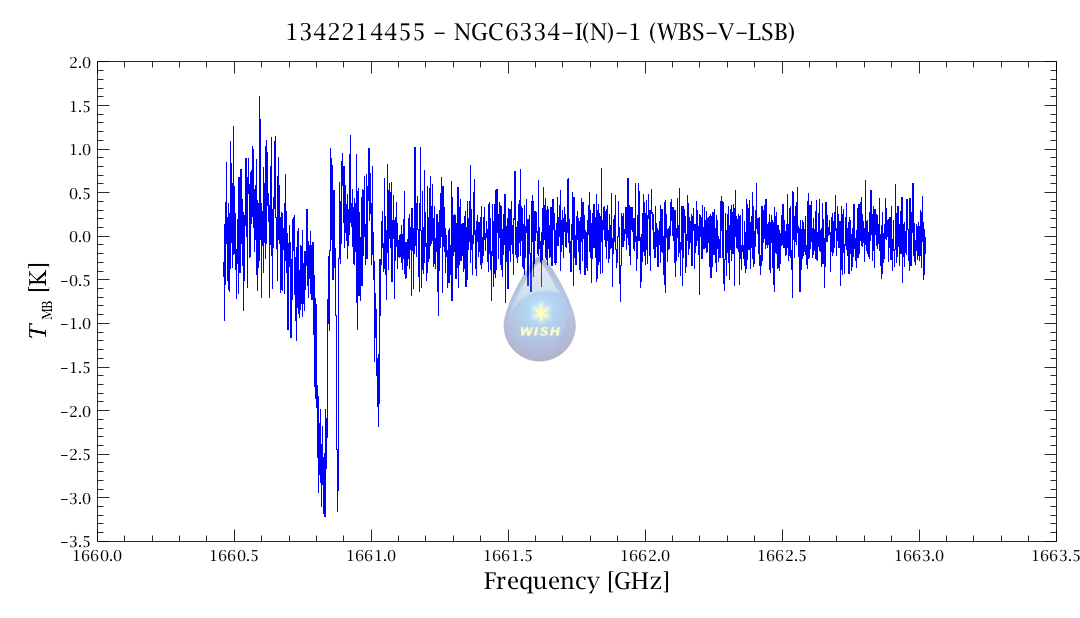

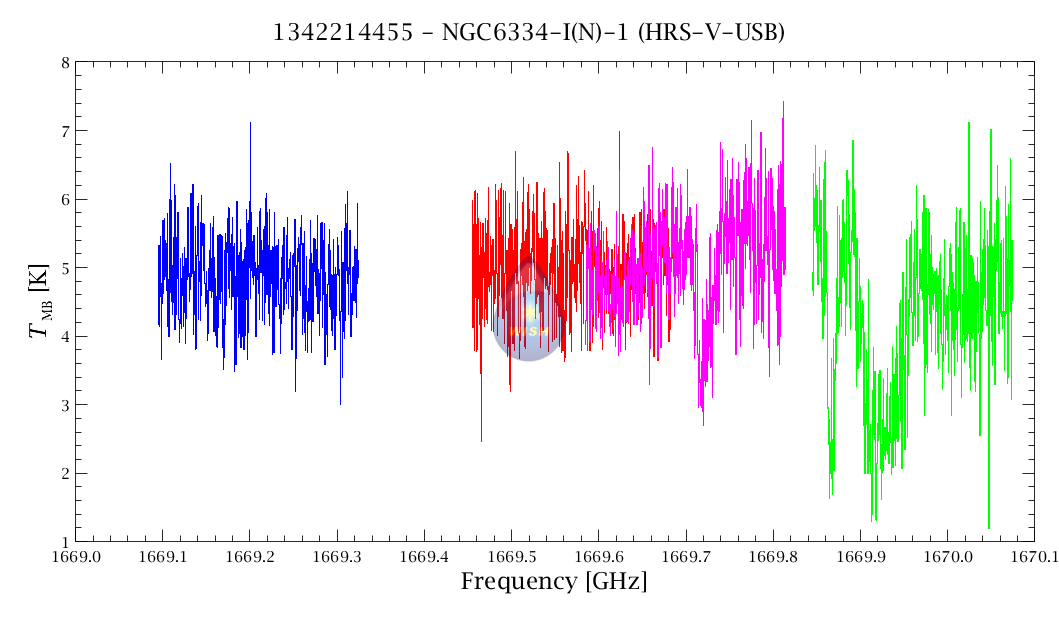

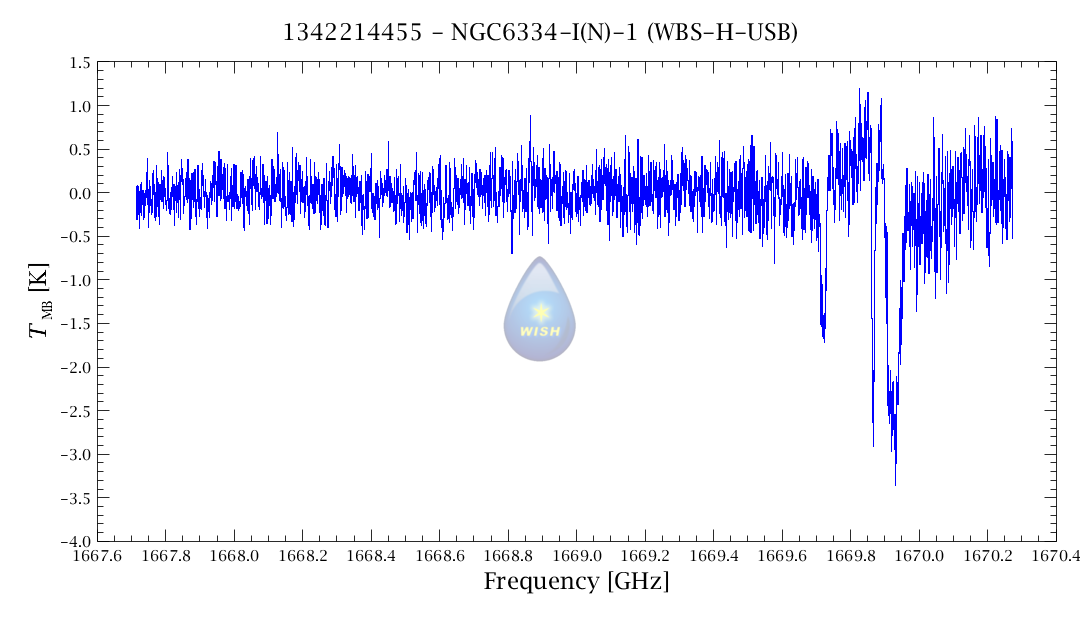

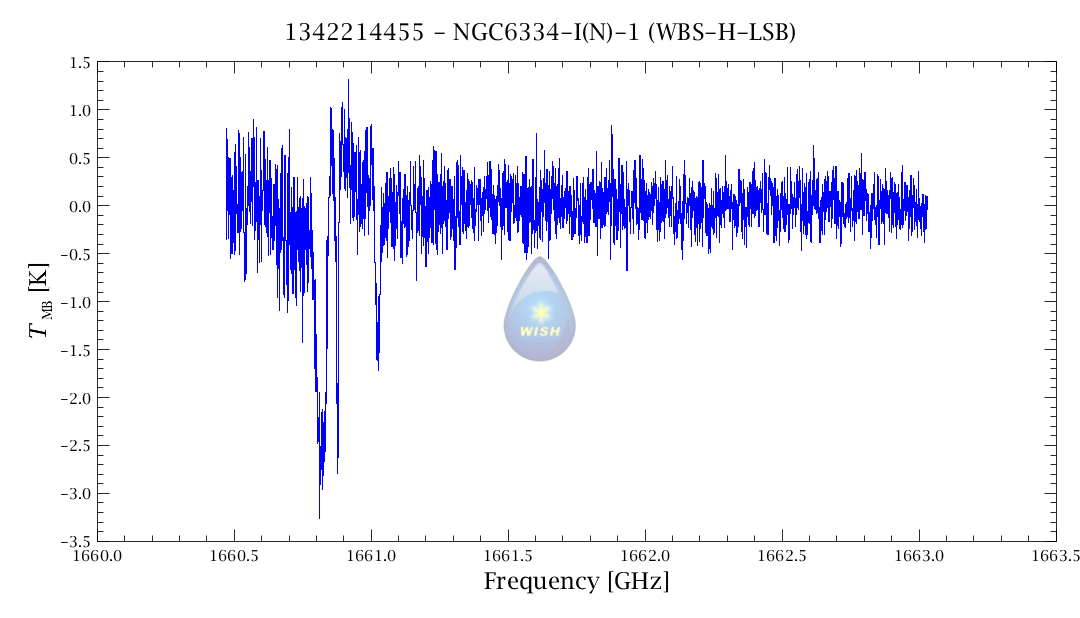

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	0.5
	WBS-H	WBS-V
rms (K)	0.4667	0.3936
continuum (K)	2.503	2.449

Downloads Corner

• RAW HIPE FORMAT (108MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Benz et al. 2015, A&A Submitted
Van der Tak et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
