WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

L1527
RA: 4 39 53.9 (^{h m s})
Dec: 26 3 9.72 (^{o ' "})

Observation Details

OBSID: 1342216335
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: PSP2_H2O 111-000 - L1527
Band: 4B
Herschel Operation Day: OD672
Integration Time: 2680 sec
LO Frequency: 1107.8055 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2011-03-17
HSA Processing Date: 2014-07-31
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.63
Beam Efficiency V⁽¹⁾: η=0.64
Beam Efficiency (2012) ⁽¹⁾: η=0.737
Position offset (x,y): (-7.40614,-0.00686) arcsec

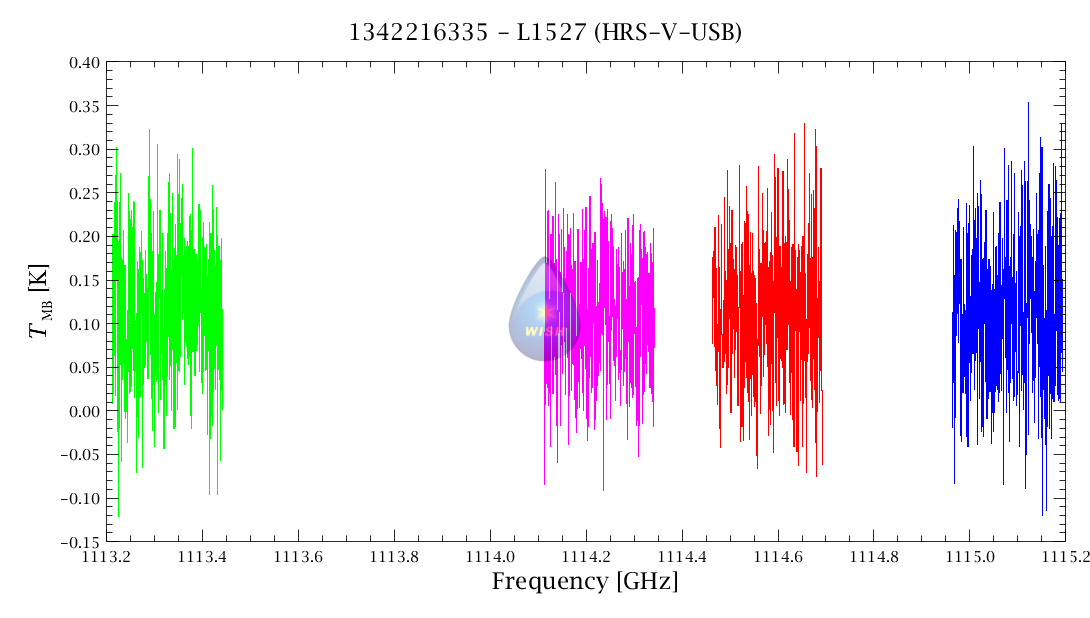

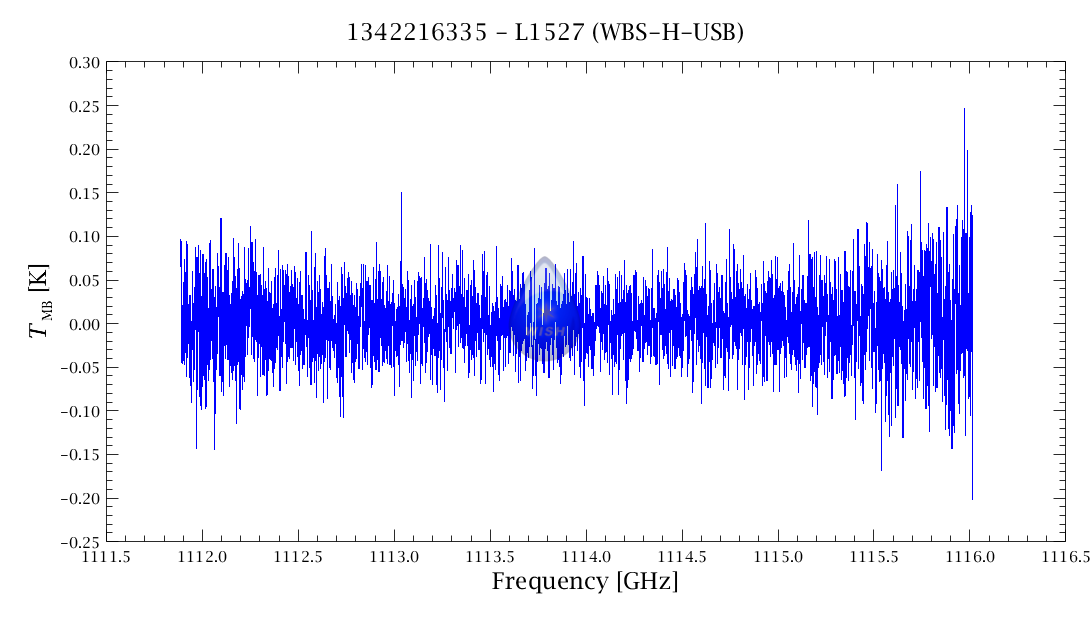

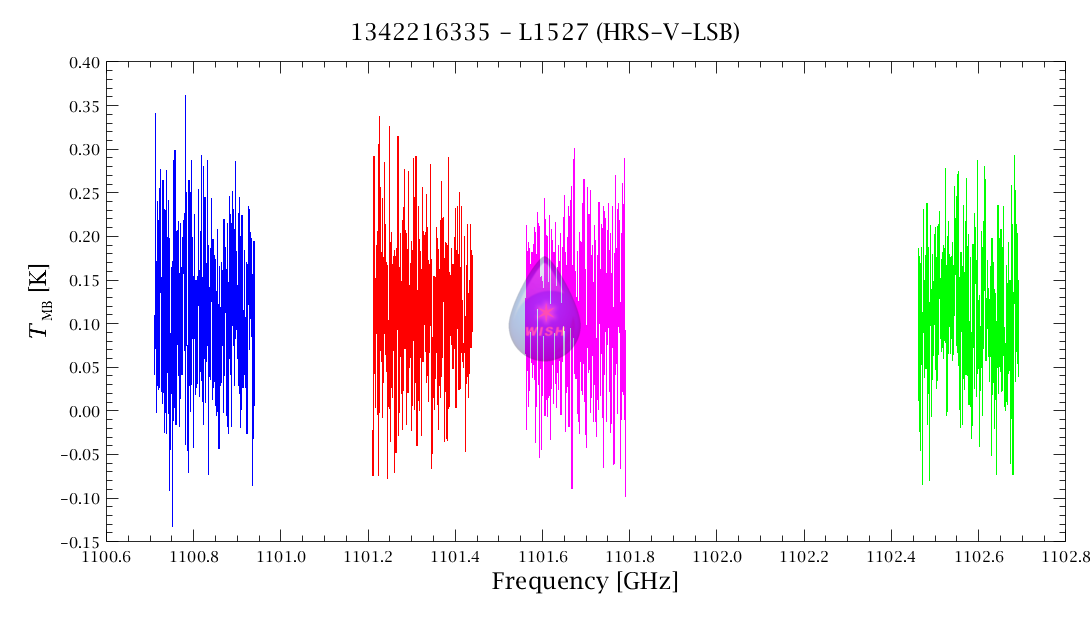

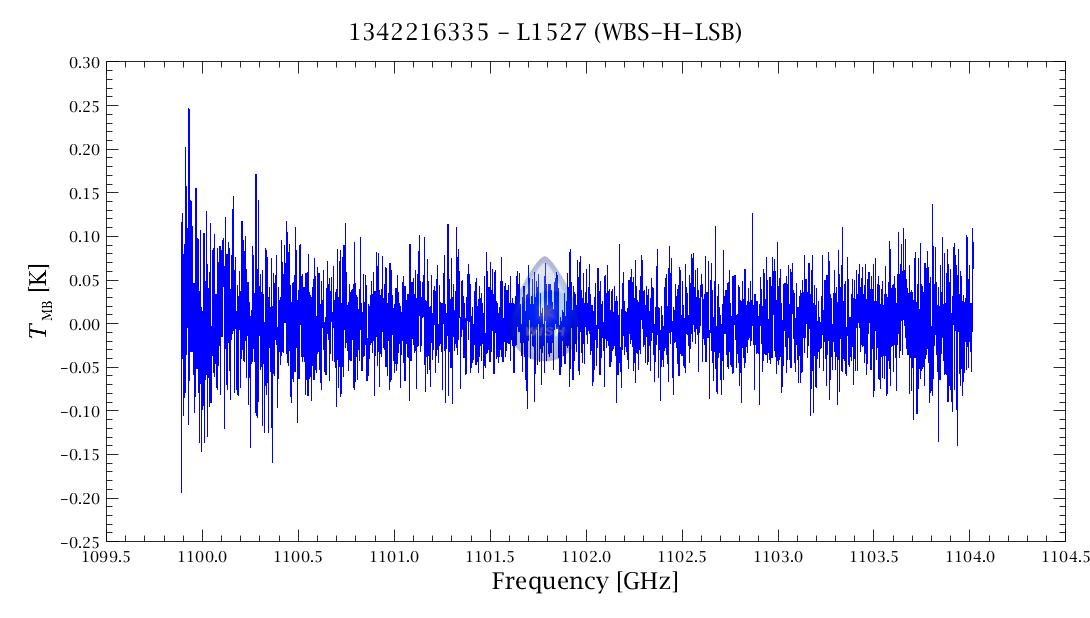

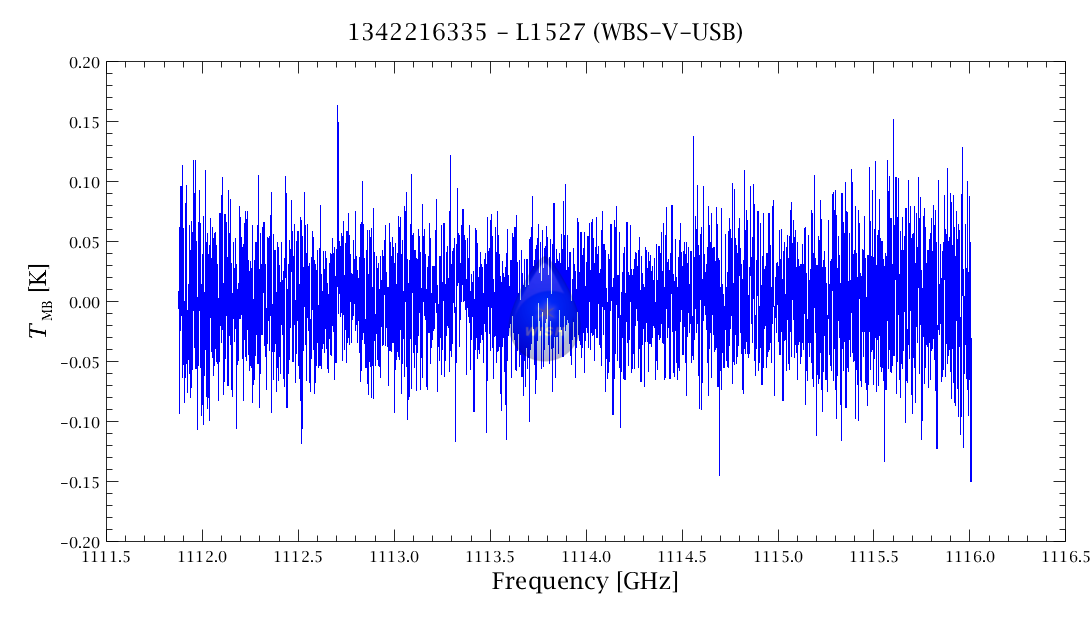

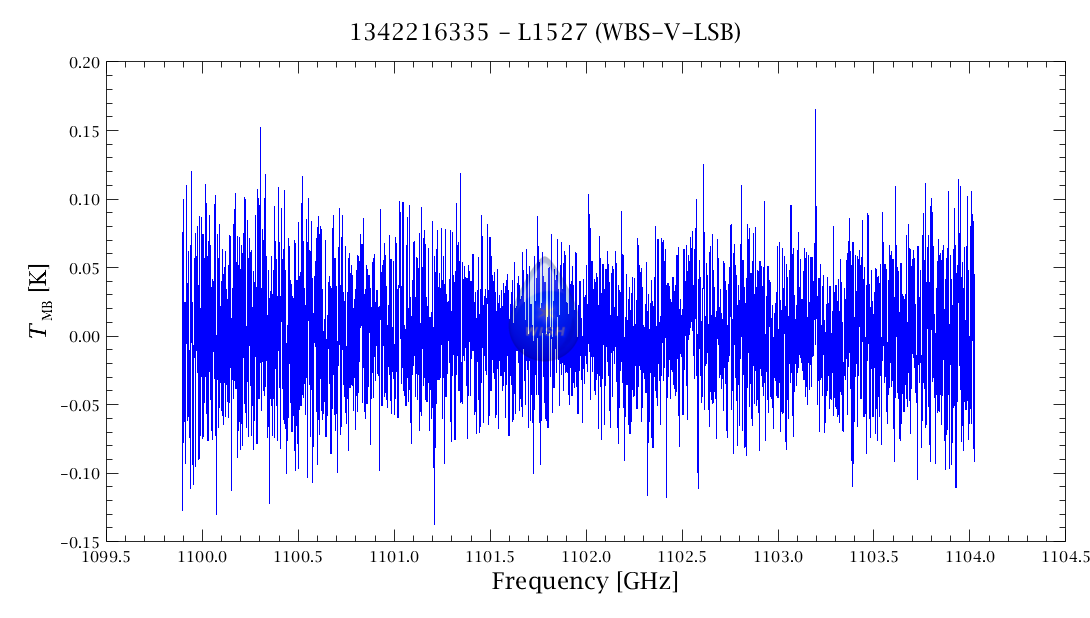

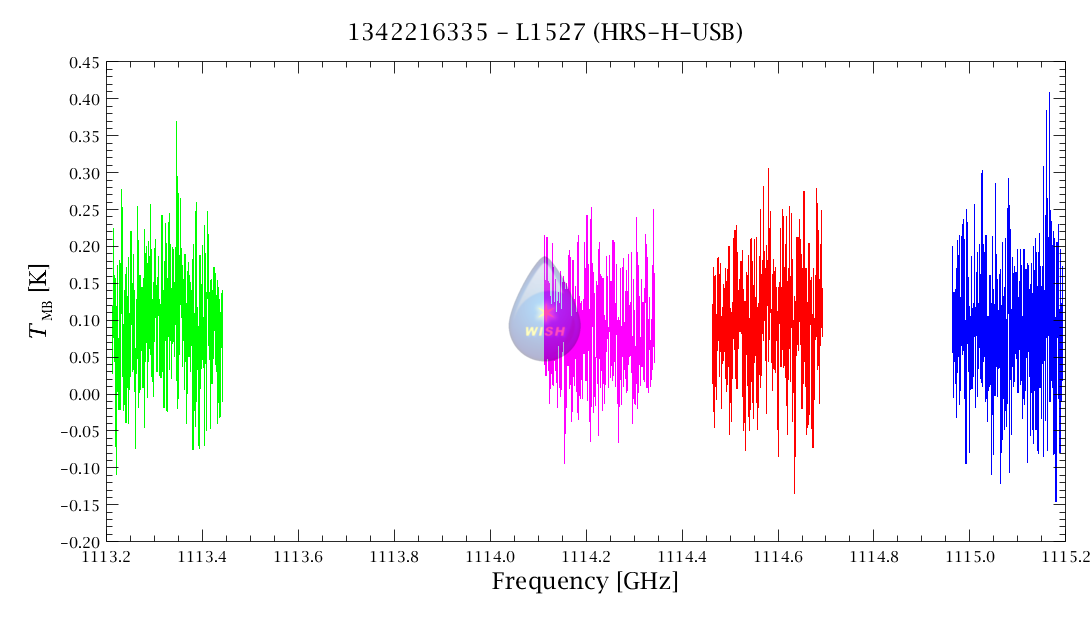

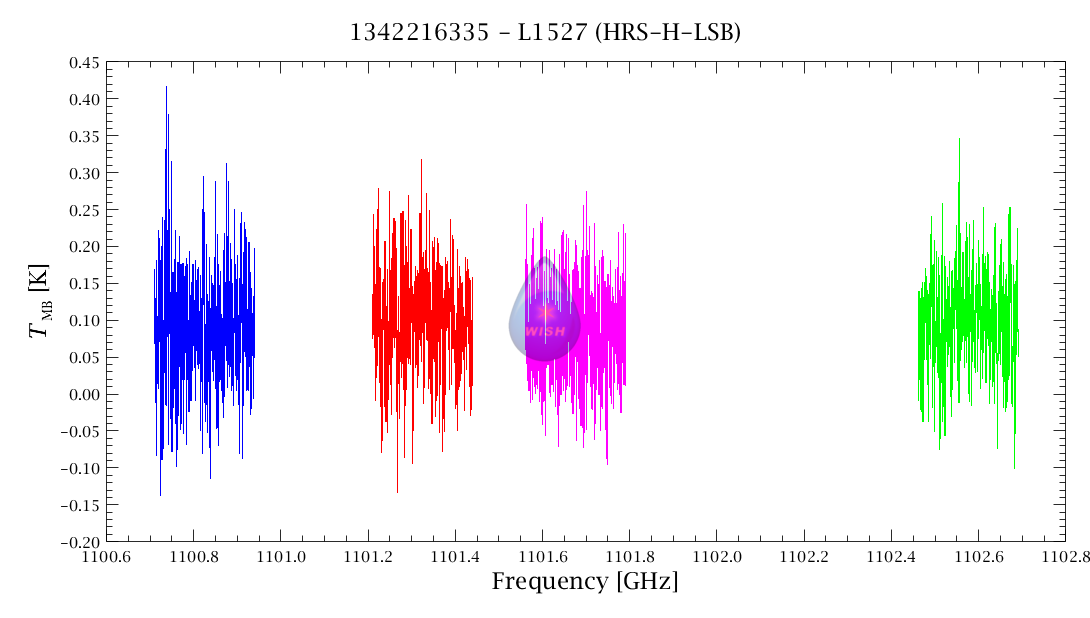

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0364	0.0377
continuum (K)	0.044	0.050

Downloads Corner

• RAW HIPE FORMAT (128MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Schmalzl et al. 2014, A&A
Mottram et al. 2014, A&A
Mottram et al. 2013, A&A
Yildiz et al. 2013A, A&A
San Jose-Garcia et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
