WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

AFGL490
RA: 3 27 38.4 (^{h m s})
Dec: 58 47 8.16 (^{o ' "})

Observation Details

OBSID: 1342217724
Obs. Type: HIFI Single Point
Obs. Mode: Load Chop Ref
AOR Label: PSP2_H2O 111-000 - - AFGL490
Band: 4B
Herschel Operation Day: OD687
Integration Time: 2356 sec
LO Frequency: 1107.873 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2011-04-01
HSA Processing Date: 2014-07-31
WISH Processing Date: 2014-08-01
Beam Efficiency H ⁽¹⁾: η=0.63
Beam Efficiency V⁽¹⁾: η=0.64
Beam Efficiency (2012) ⁽¹⁾: η=0.737
Position offset (x,y): (2.92721,4.12453) arcsec

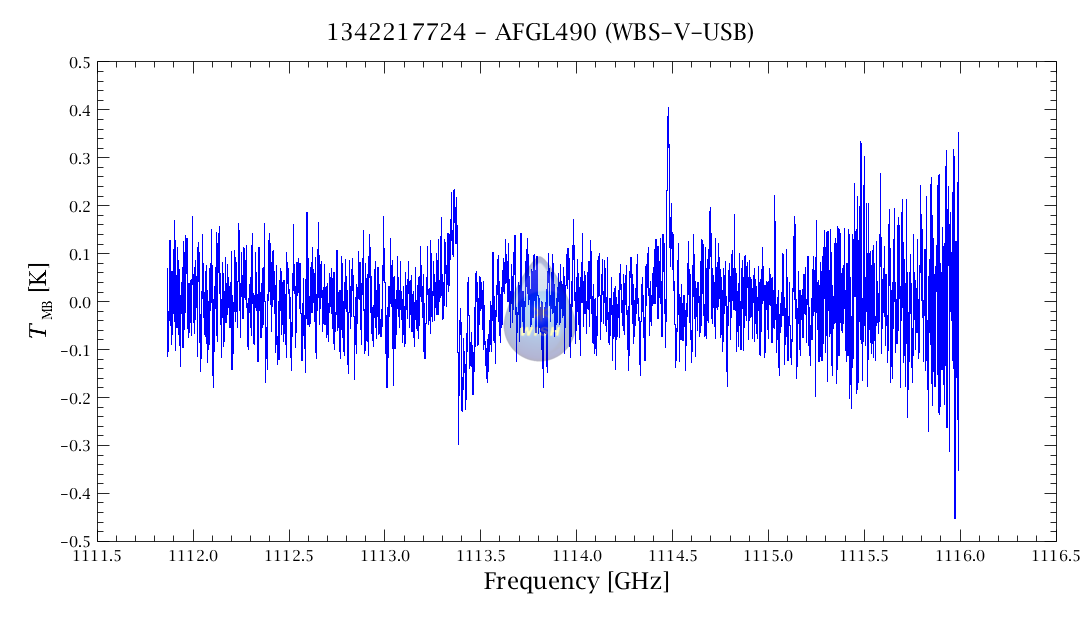

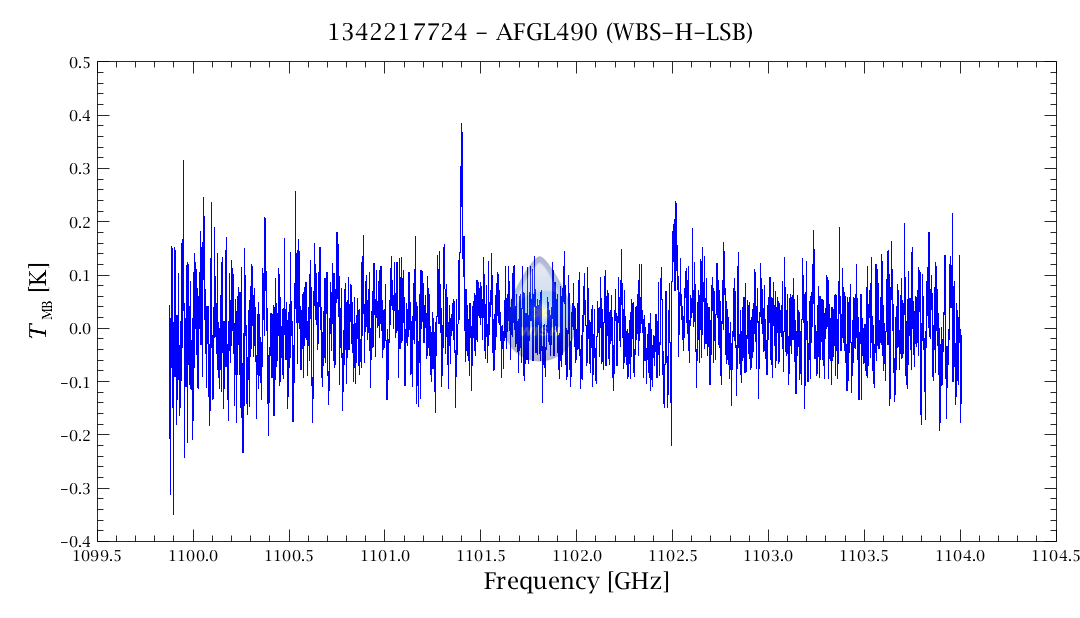

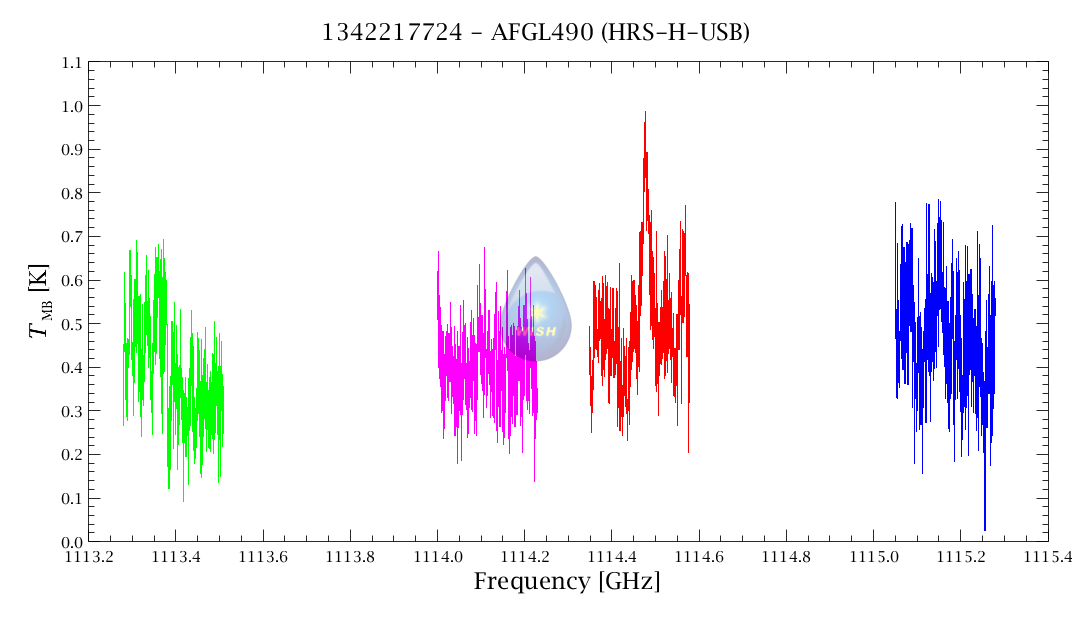

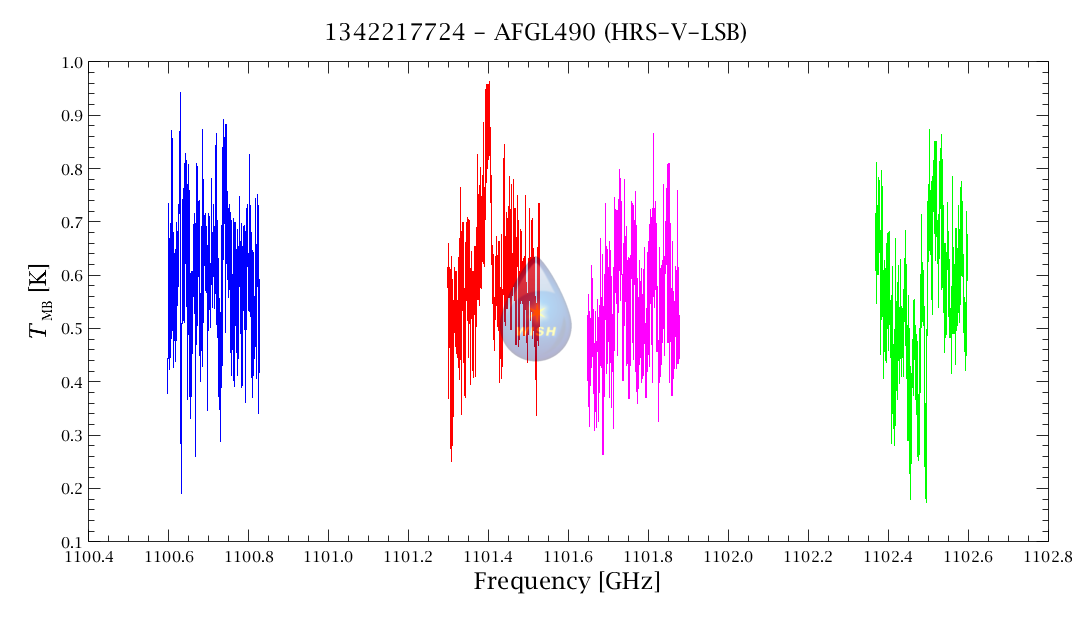

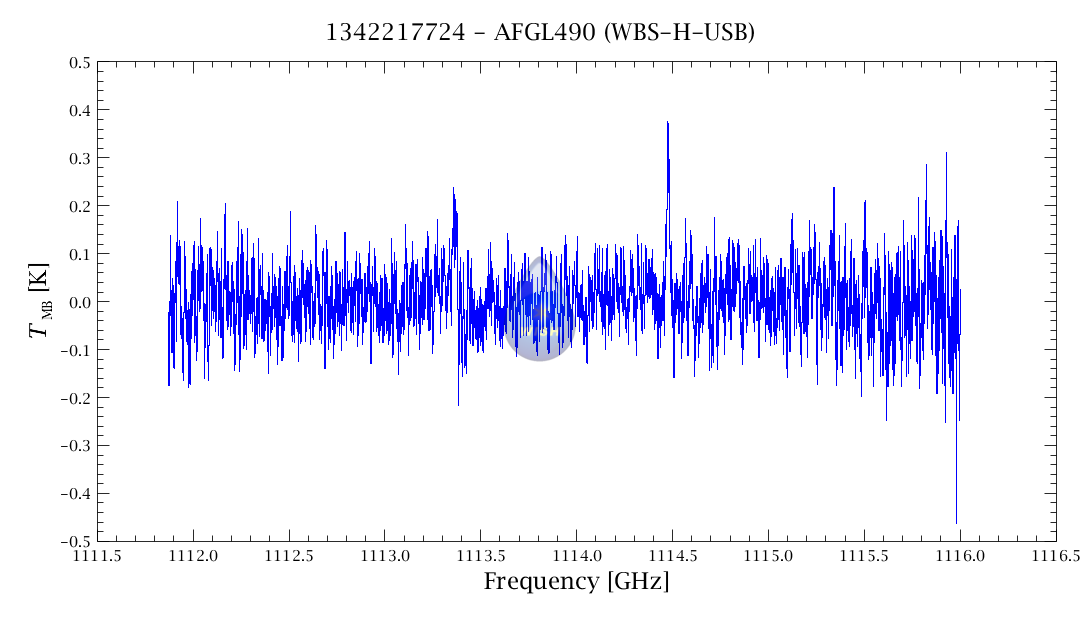

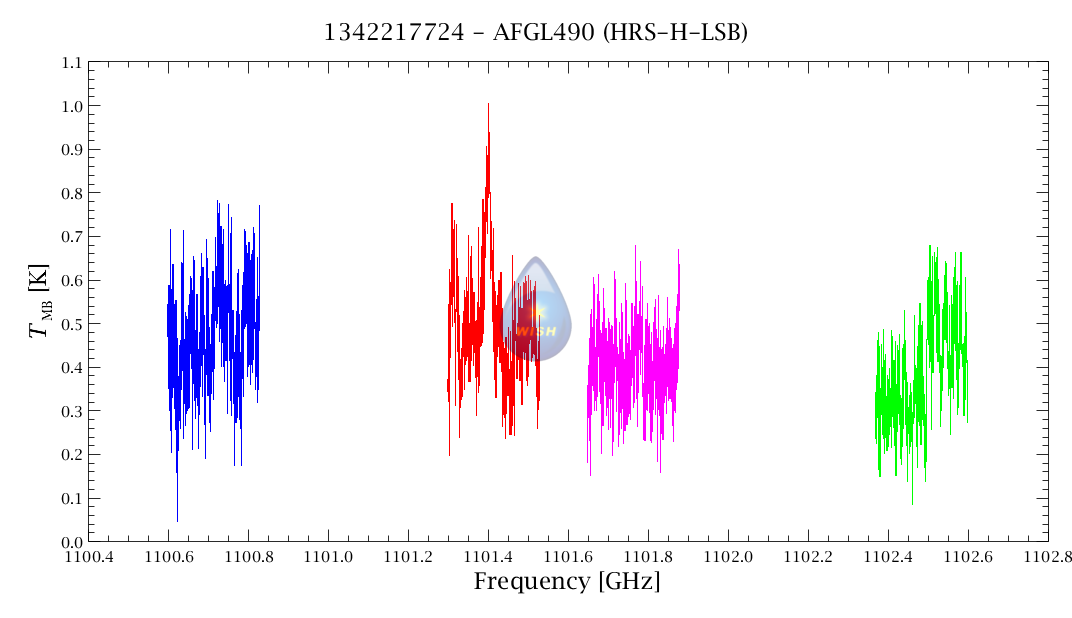

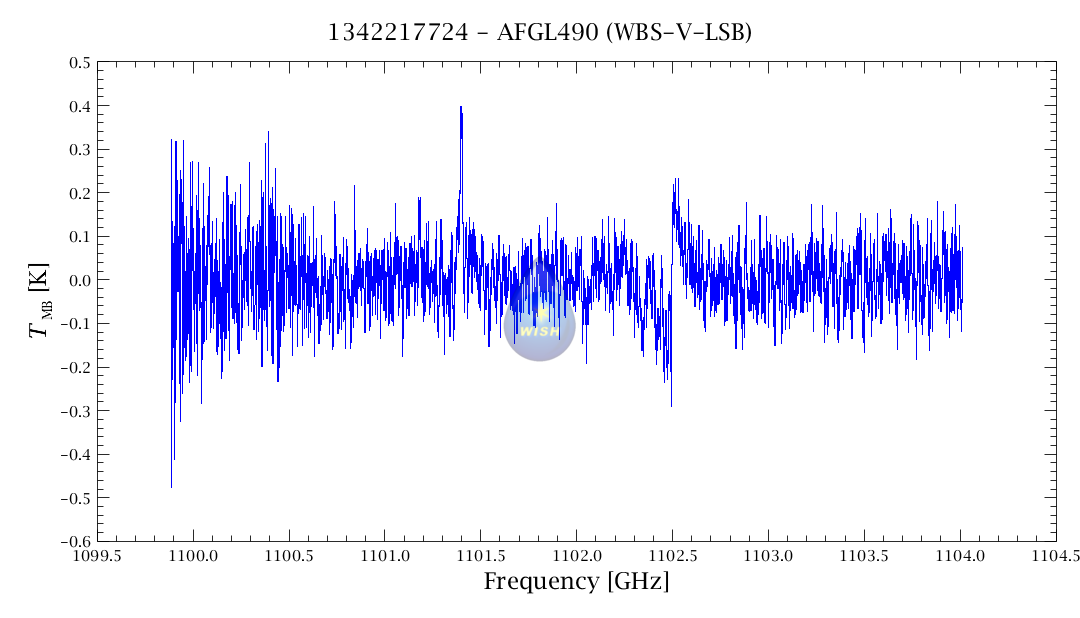

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0604	0.0639
continuum (K)	0.224	0.311

Downloads Corner

• RAW HIPE FORMAT (196MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
San Jose-Garcia et al. 2013, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
