WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

G28.34+0.06-NH3-P1
RA: 18 42 46.3 (^{h m s})
Dec: -4 4 12.00 (^{o ' "})

Observation Details

OBSID: 1342219195
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: HPoint-0000 - 0001
Band: 1A
Herschel Operation Day: OD707
Integration Time: 3555 sec
LO Frequency: 551.979 GHz
HIPE/Pipeline Version: SPG v12.1.0
Observation Date: 2011-04-21
HSA Processing Date: 2014-08-01
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.62
Beam Efficiency (2012) ⁽¹⁾: η=0.754
Position offset (x,y): (-0.05131,-0.74837) arcsec

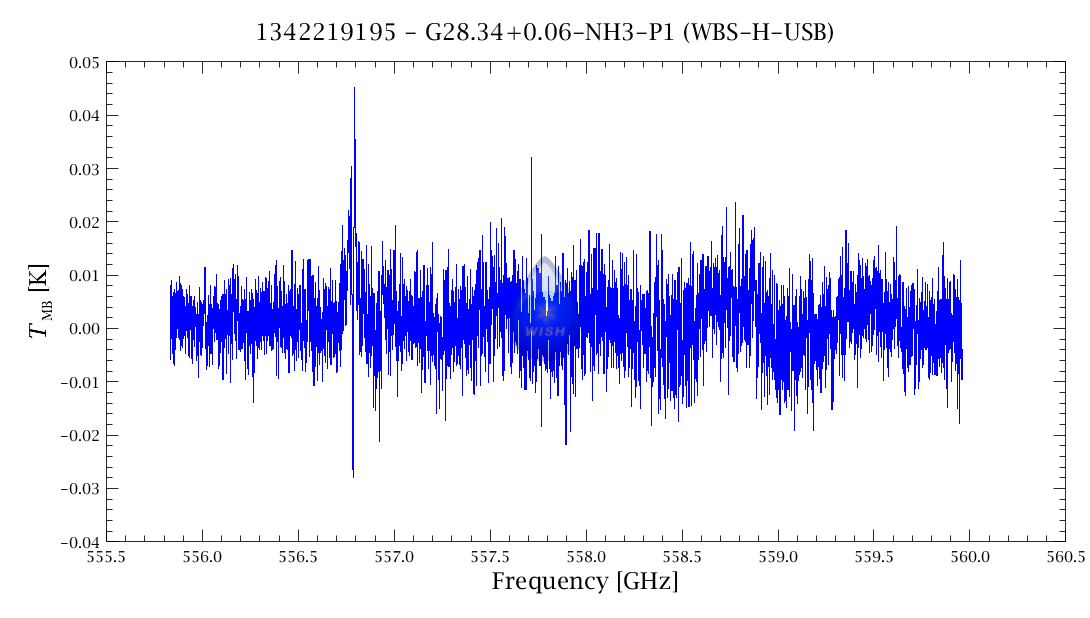

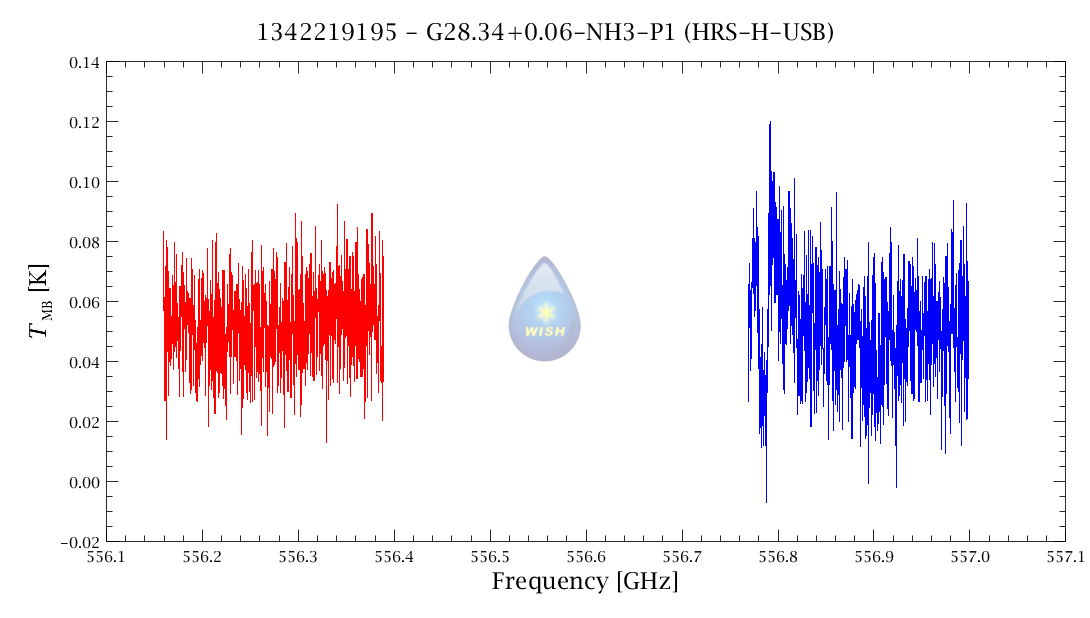

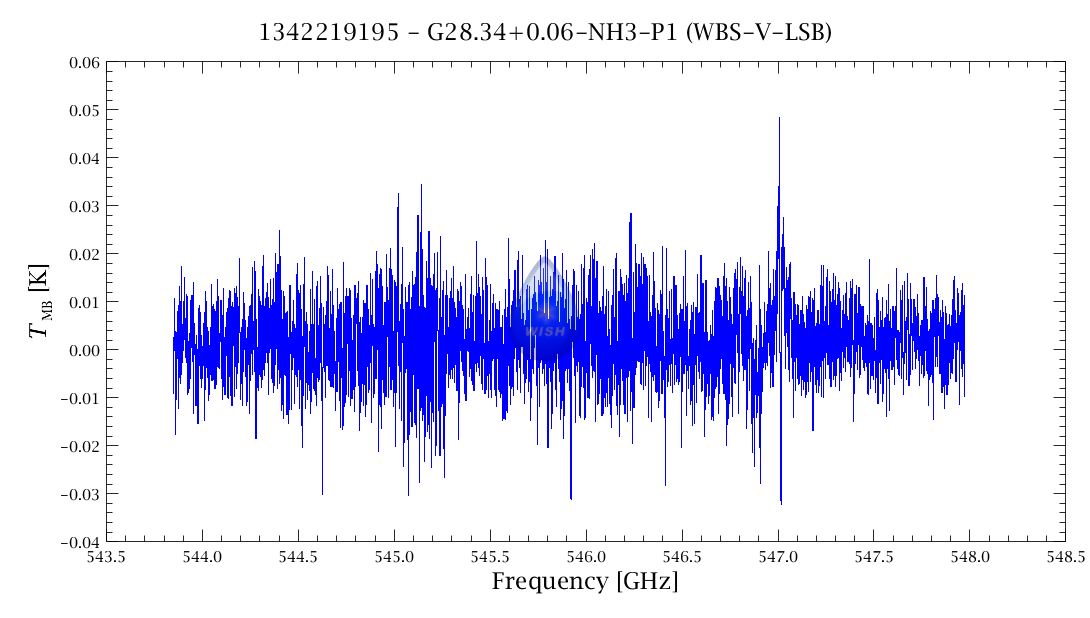

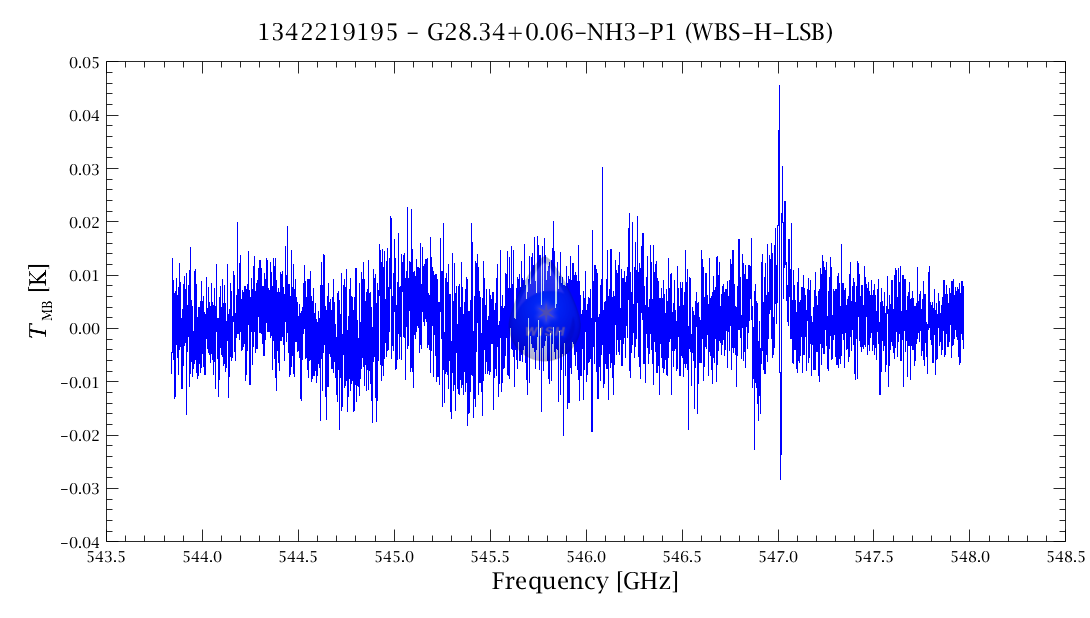

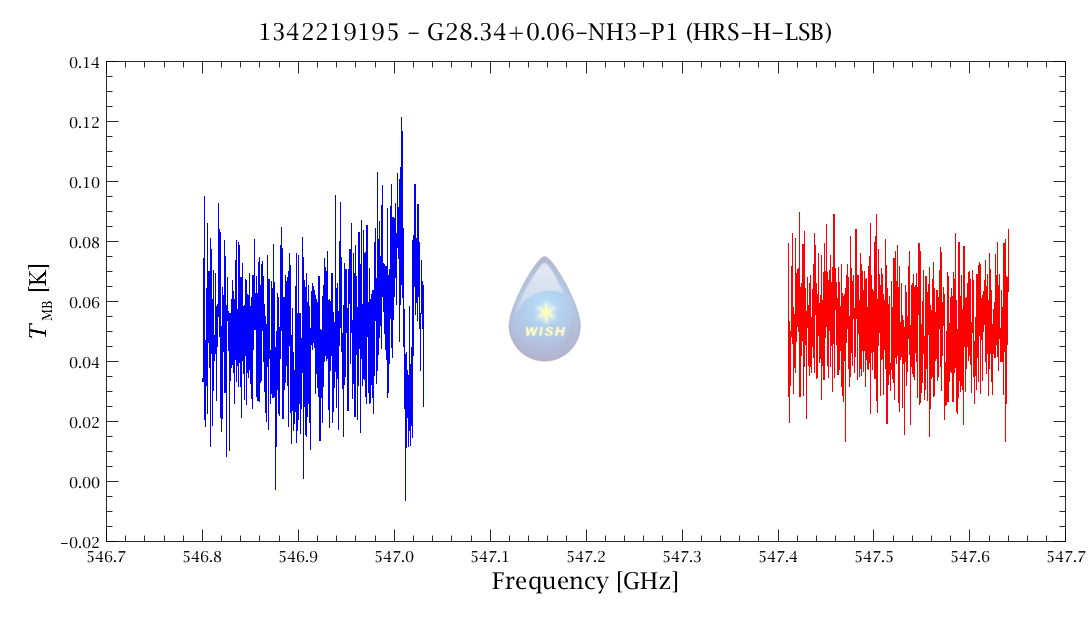

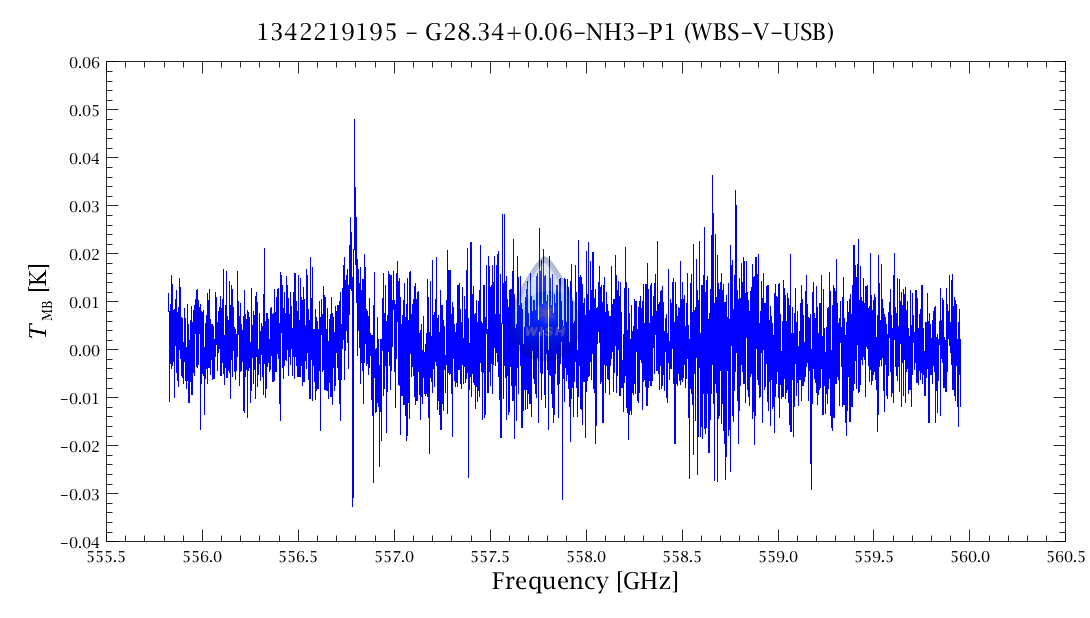

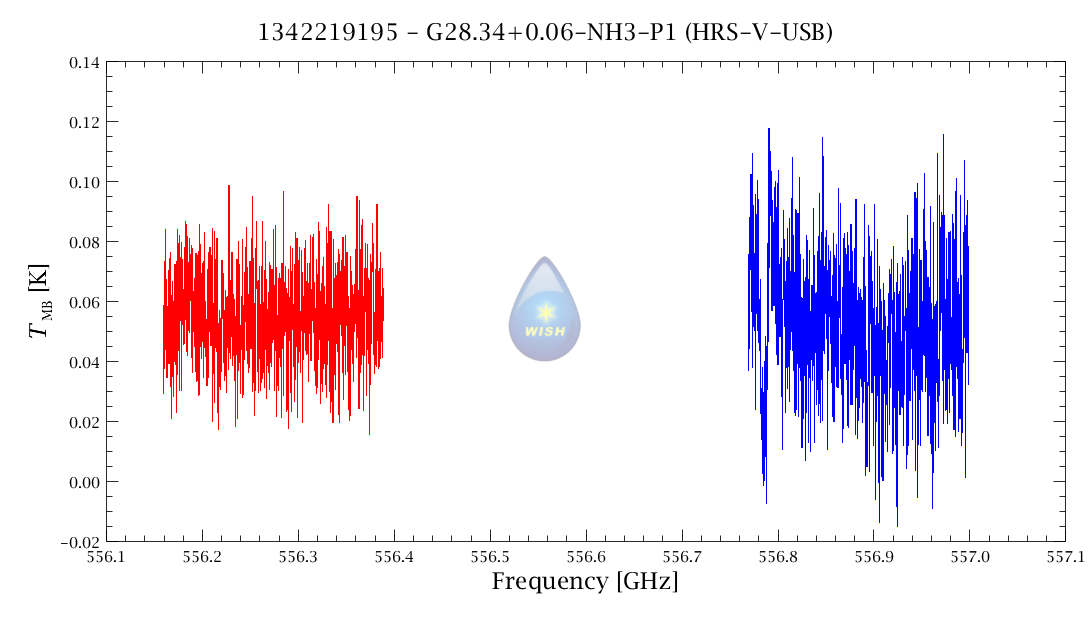

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0042	0.0055
continuum (K)	0.025	0.028

Downloads Corner

• RAW HIPE FORMAT (173MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Shipman et al. 2014, A&A

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
