WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

W3-IRS5
RA: 2 25 40.6 (^{h m s})
Dec: 62 5 51.00 (^{o ' "})

Observation Details

OBSID: 1342226059
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: HIFI-HDO_HDO 111-000 -- W3-IRS5
Band: 3B
Herschel Operation Day: OD821
Integration Time: 1092 sec
LO Frequency: 839.8215 GHz
HIPE/Pipeline Version: SPG v11.1.0
Observation Date: 2011-08-13
HSA Processing Date: 2014-02-03
WISH Processing Date: 2014-08-02
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.63
Beam Efficiency (2012) ⁽¹⁾: η=0.747
Position offset (x,y): (0,0) arcsec

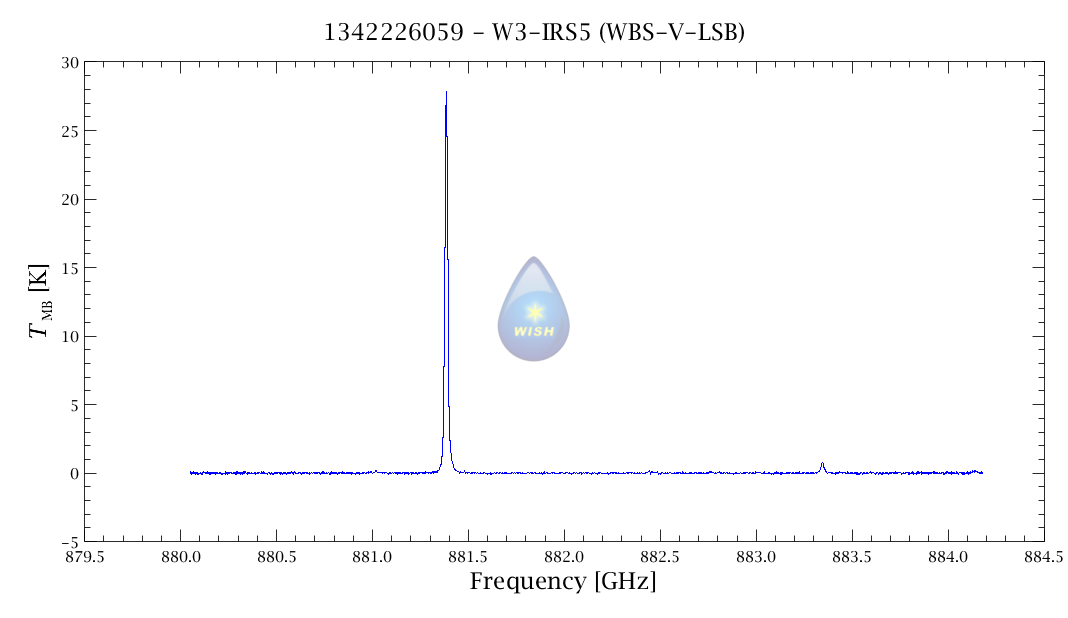

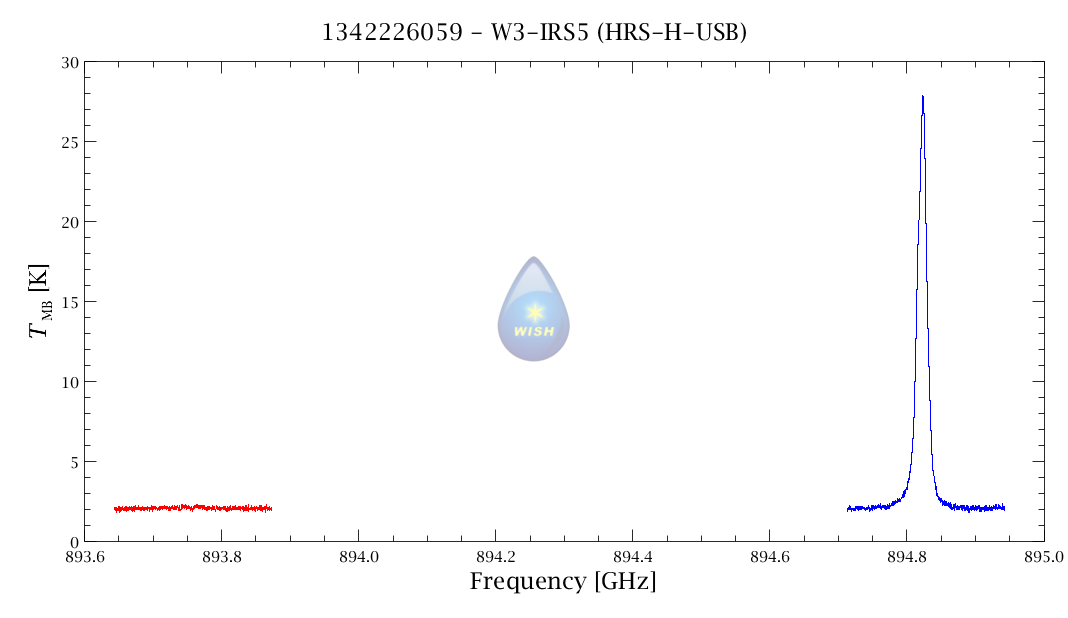

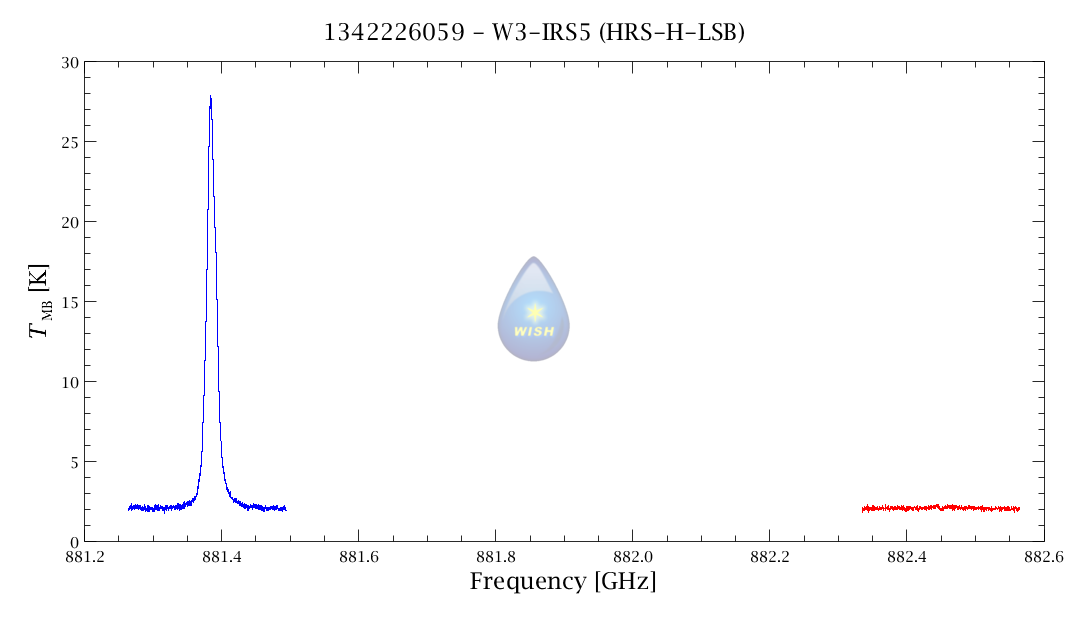

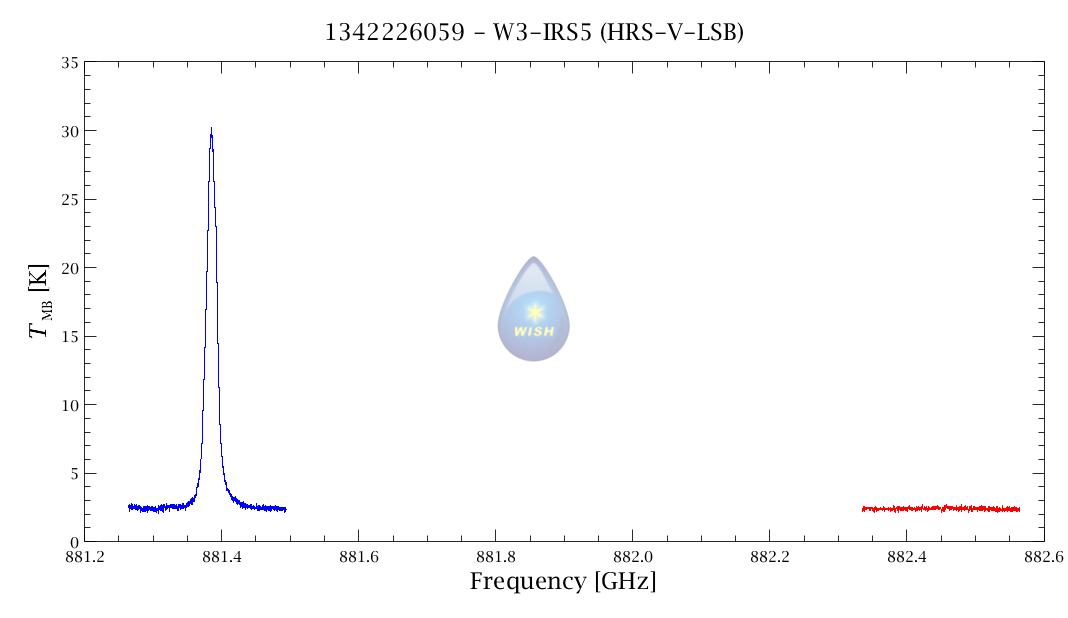

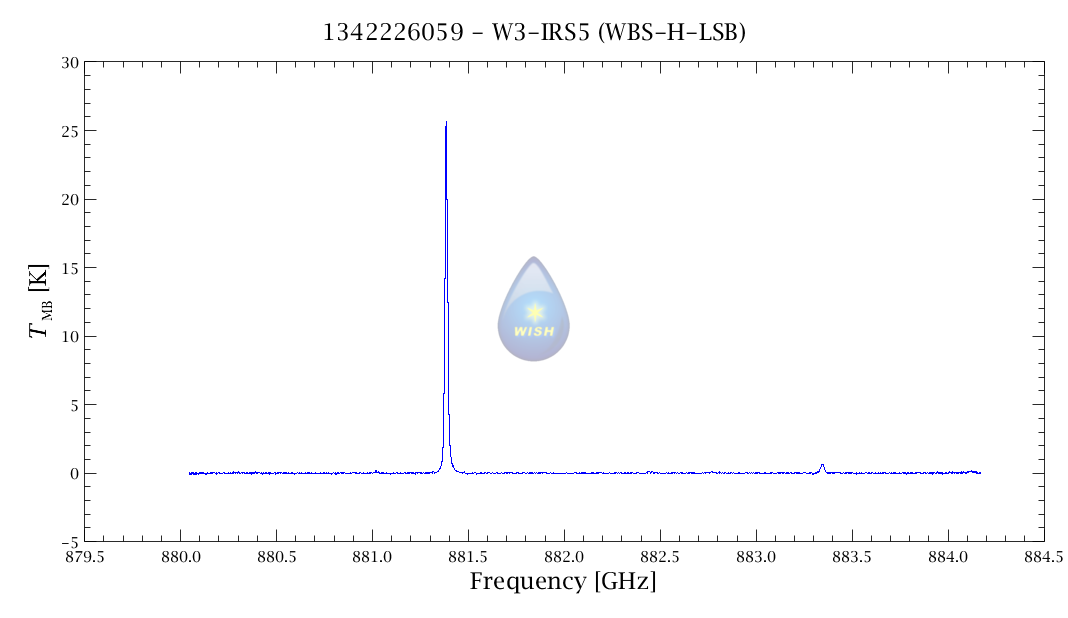

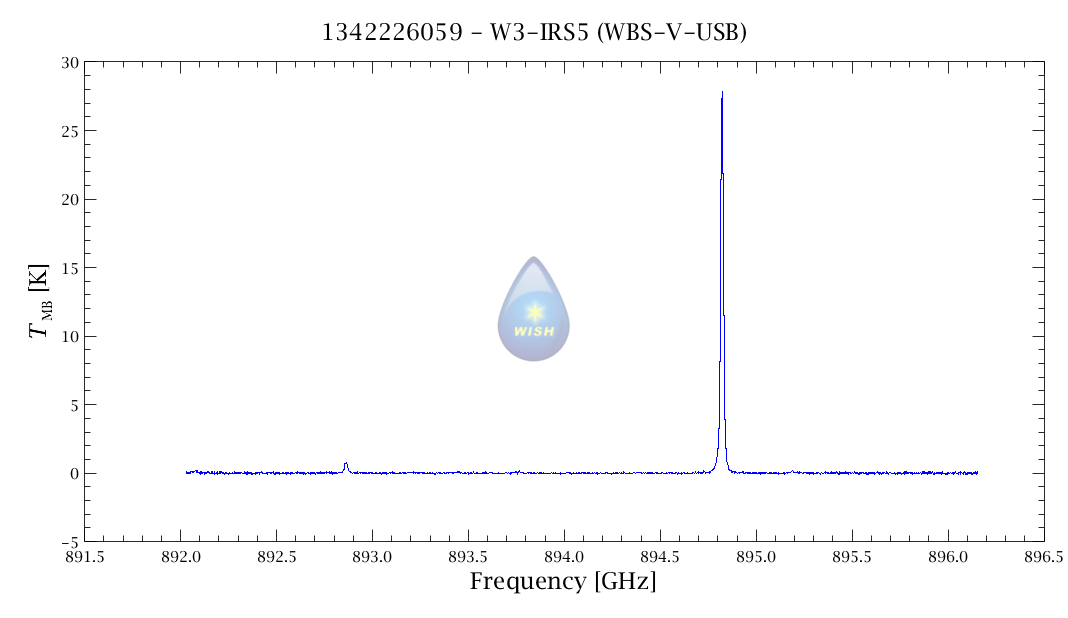

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0320	0.0452
continuum (K)	1.036	1.201

Downloads Corner

• RAW HIPE FORMAT (111MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
