WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

NGC7538-IRS1
RA: 23 13 45.4 (^{h m s})
Dec: 61 28 9.84 (^{o ' "})

Observation Details

OBSID: 1342227536
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: HIFI-HDO_H2O 524-431 -- NGC7538-IRS1
Band: 4A
Herschel Operation Day: OD835
Integration Time: 2853 sec
LO Frequency: 763.6005 GHz
HIPE/Pipeline Version: SPG v11.1.0
Observation Date: 2011-08-26
HSA Processing Date: 2014-02-04
WISH Processing Date: 2014-08-03
Beam Efficiency H ⁽¹⁾: η=0.64
Beam Efficiency V⁽¹⁾: η=0.66
Beam Efficiency (2012) ⁽¹⁾: η=0.749
Position offset (x,y): (0,0) arcsec

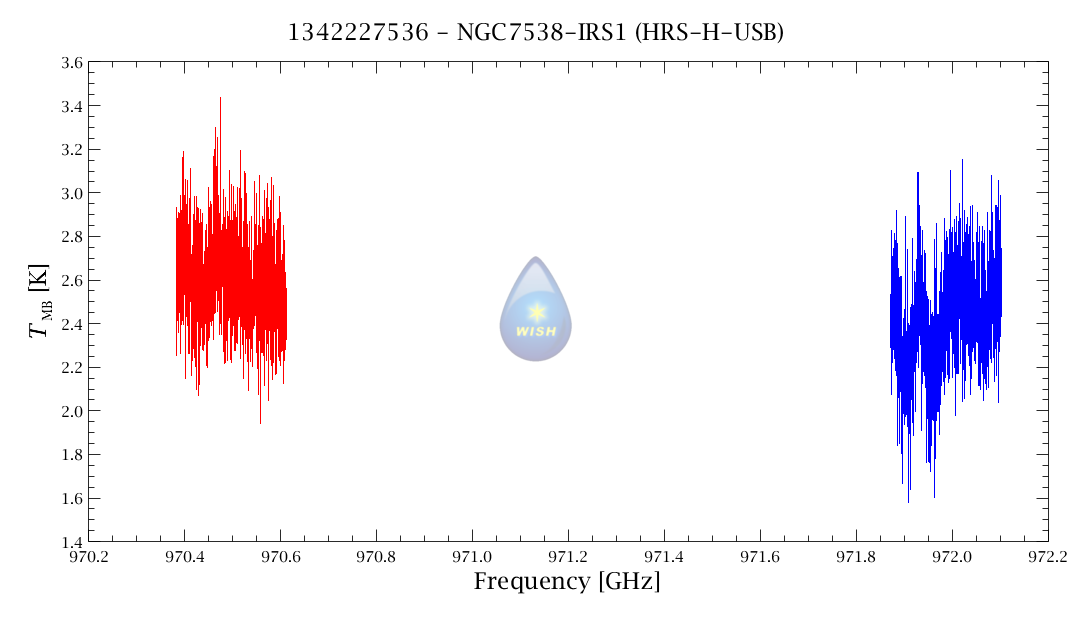

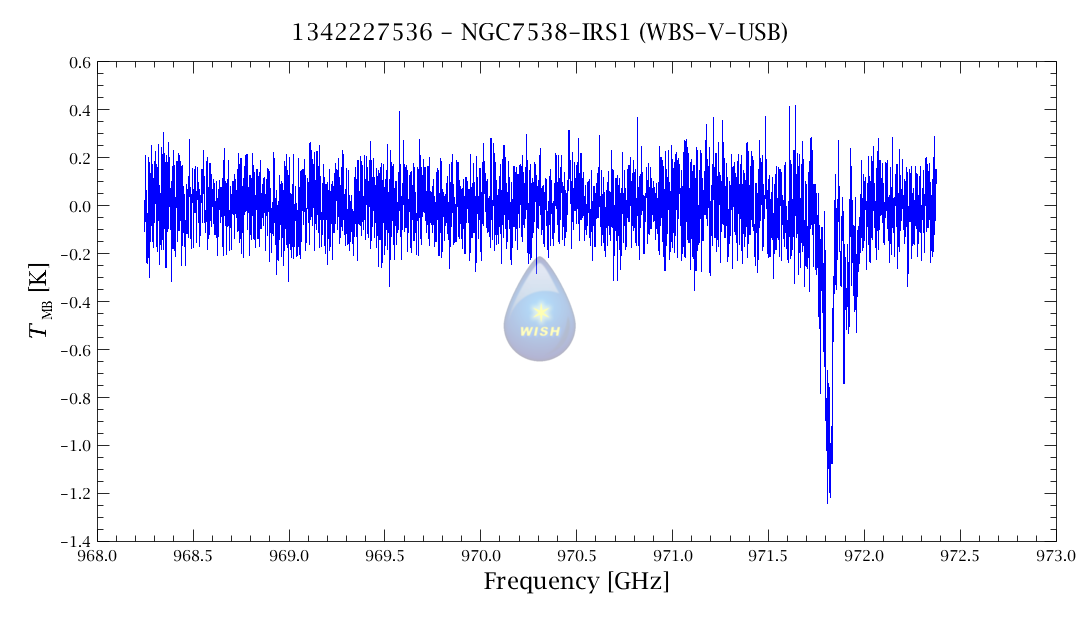

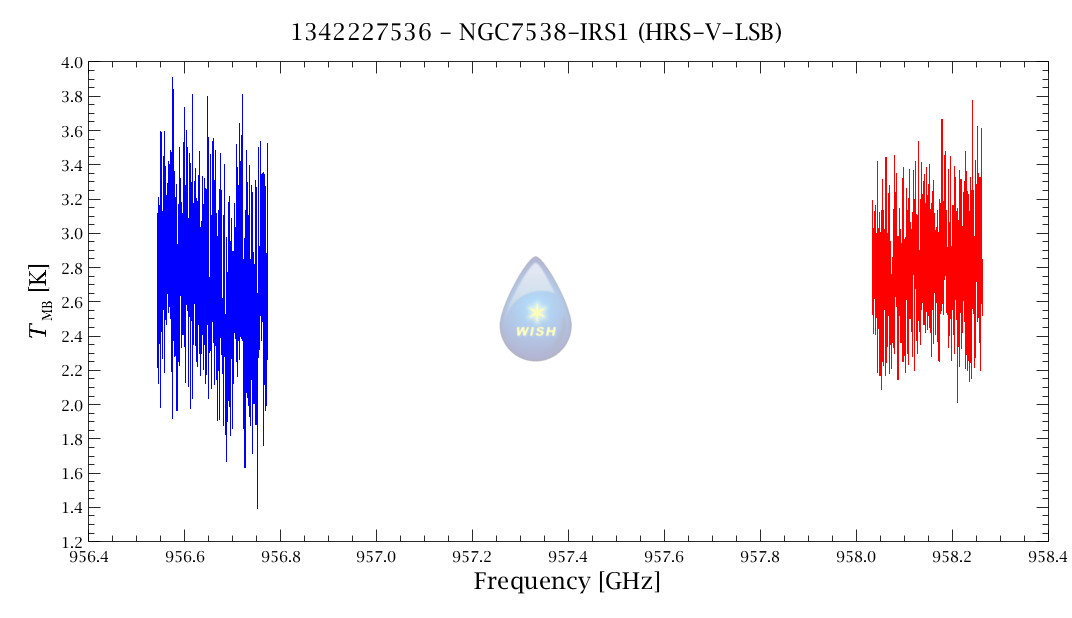

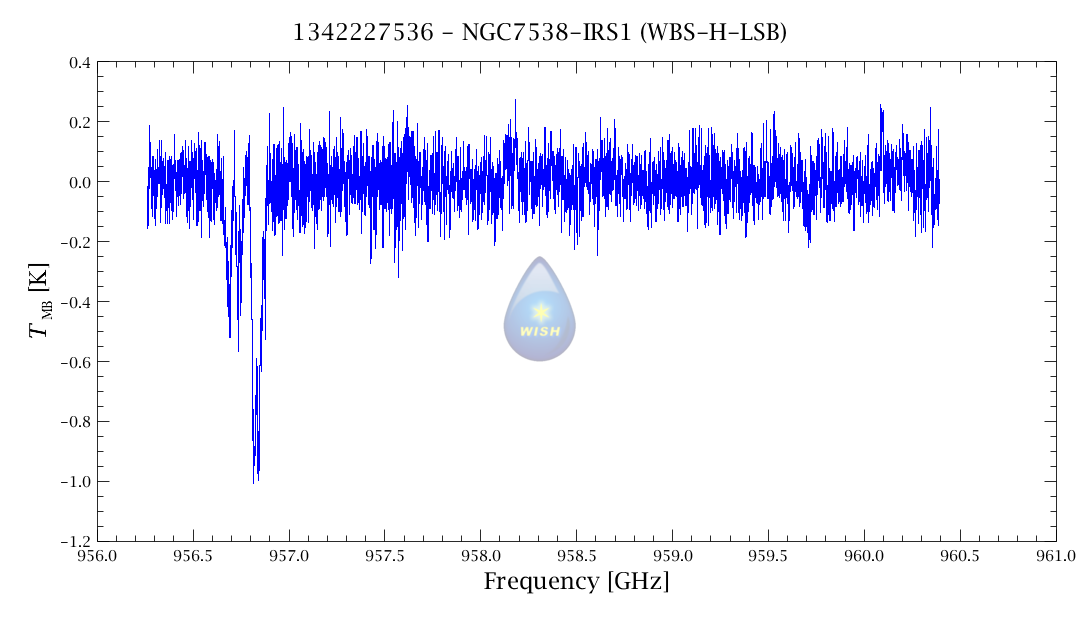

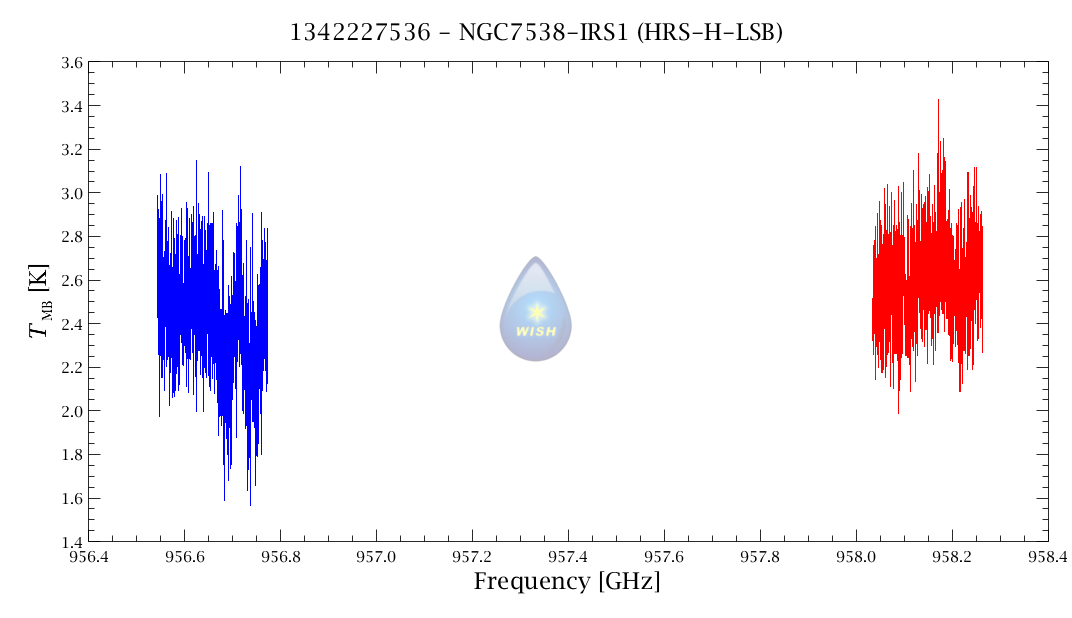

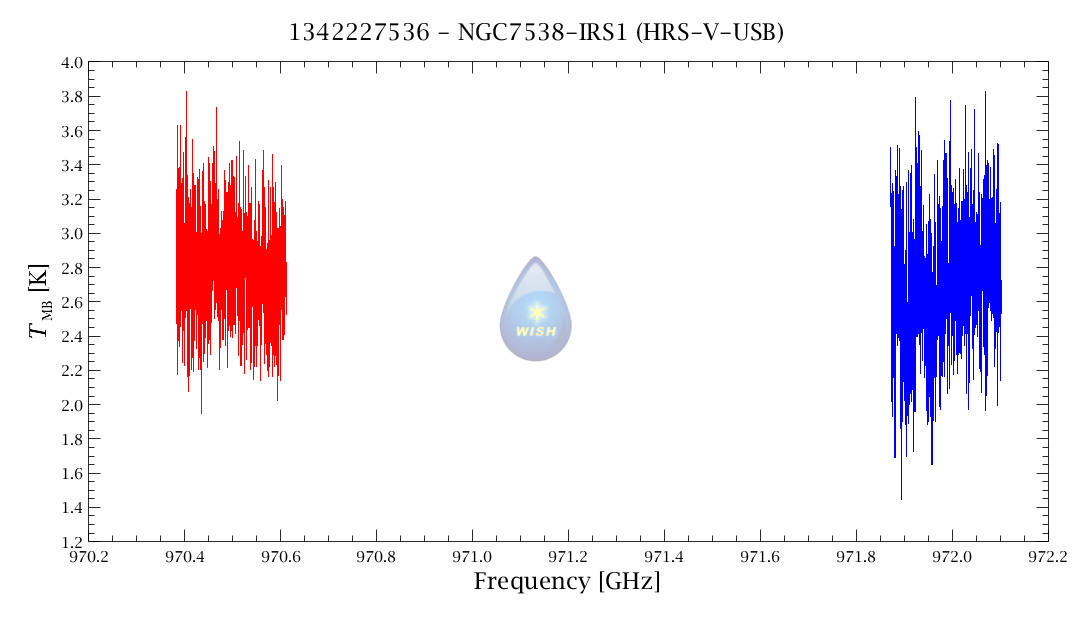

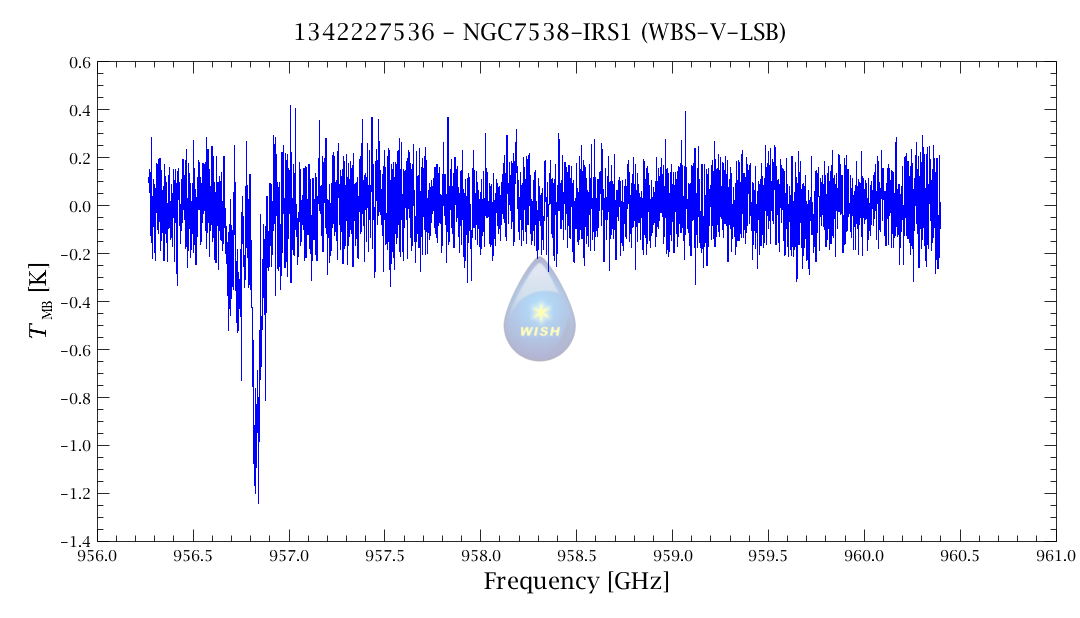

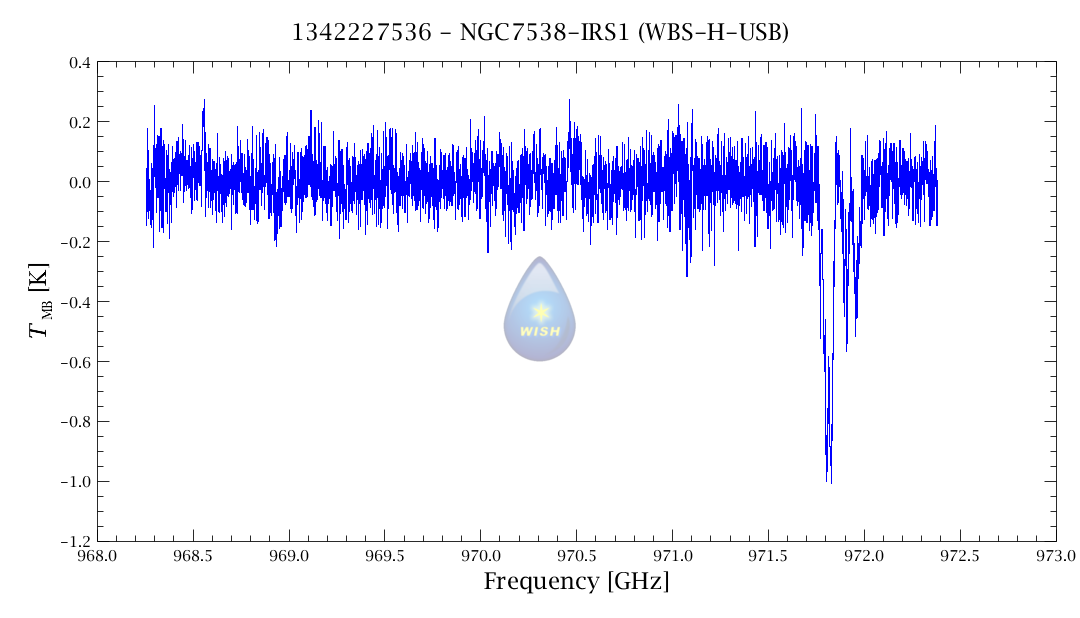

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0725	0.1064
continuum (K)	1.247	1.383

Downloads Corner

• RAW HIPE FORMAT (409MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:
Indriolo et al. 2015, ApJ

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
