WISH Live Data Show 2.0

WISH PROPRIETARY DATA ©

Source Details

NGC 2071
RA: 5 47 4.4 (^{h m s})
Dec: 0 21 49.00 (^{o ' "})

Observation Details

OBSID: 1342227549
Obs. Type: HIFI Single Point
Obs. Mode: DBS fastChop
AOR Label: HIFI-HDO_HDO 111-000 -- NGC2071
Band: 3B
Herschel Operation Day: OD835
Integration Time: 8935 sec
LO Frequency: 840.0105 GHz
HIPE/Pipeline Version: SPG v11.1.0
Observation Date: 2011-08-27
HSA Processing Date: 2014-02-04
WISH Processing Date: 2014-08-03
Beam Efficiency H ⁽¹⁾: η=0.62
Beam Efficiency V⁽¹⁾: η=0.63
Beam Efficiency (2012) ⁽¹⁾: η=0.746
Position offset (x,y): (0,0) arcsec

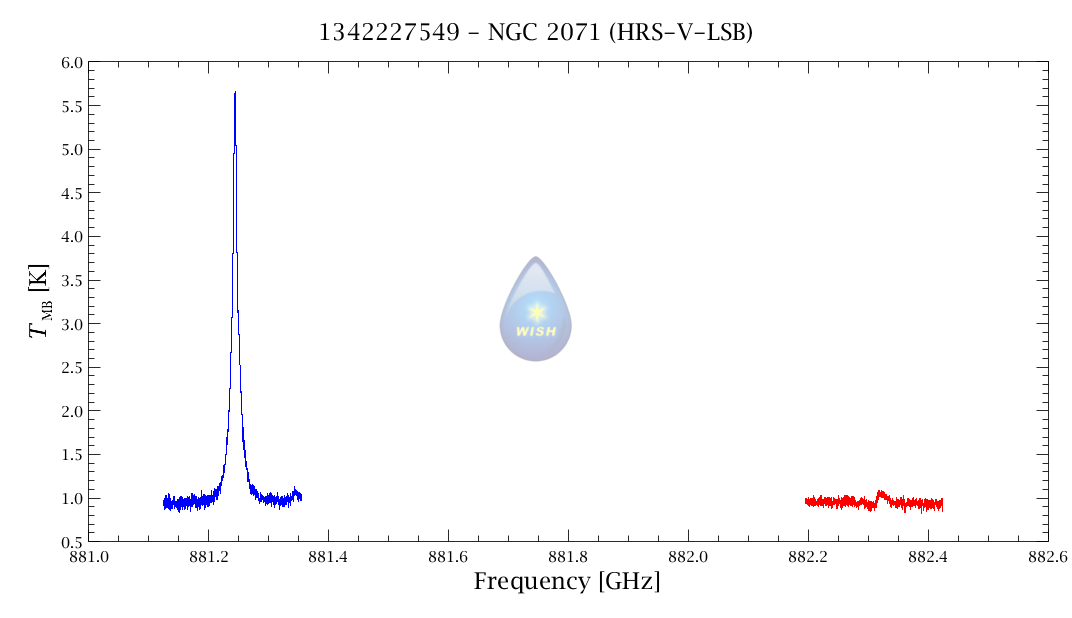

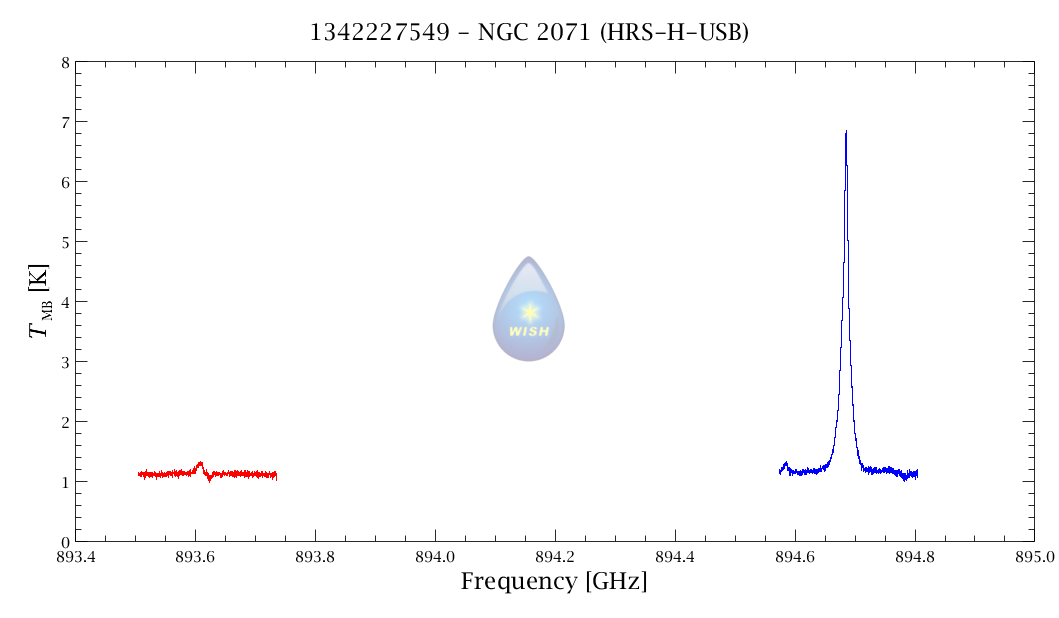

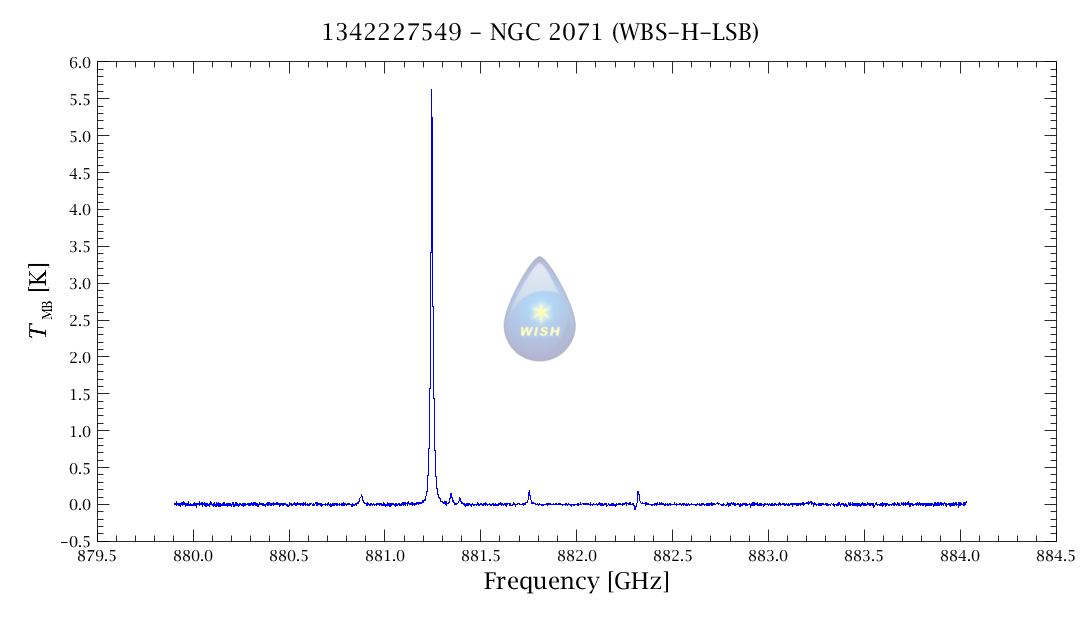

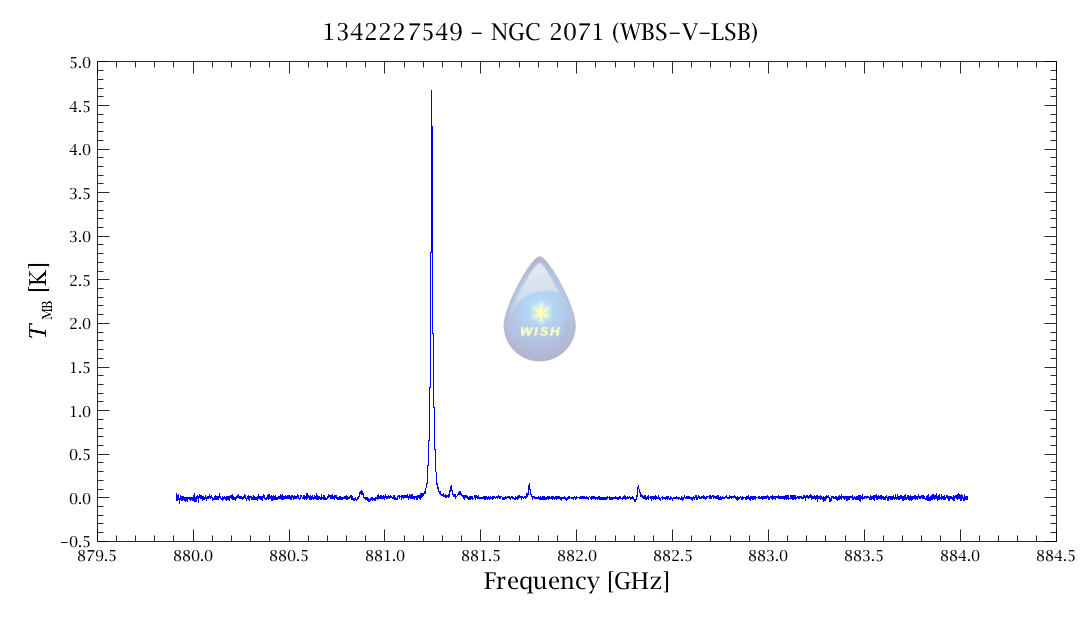

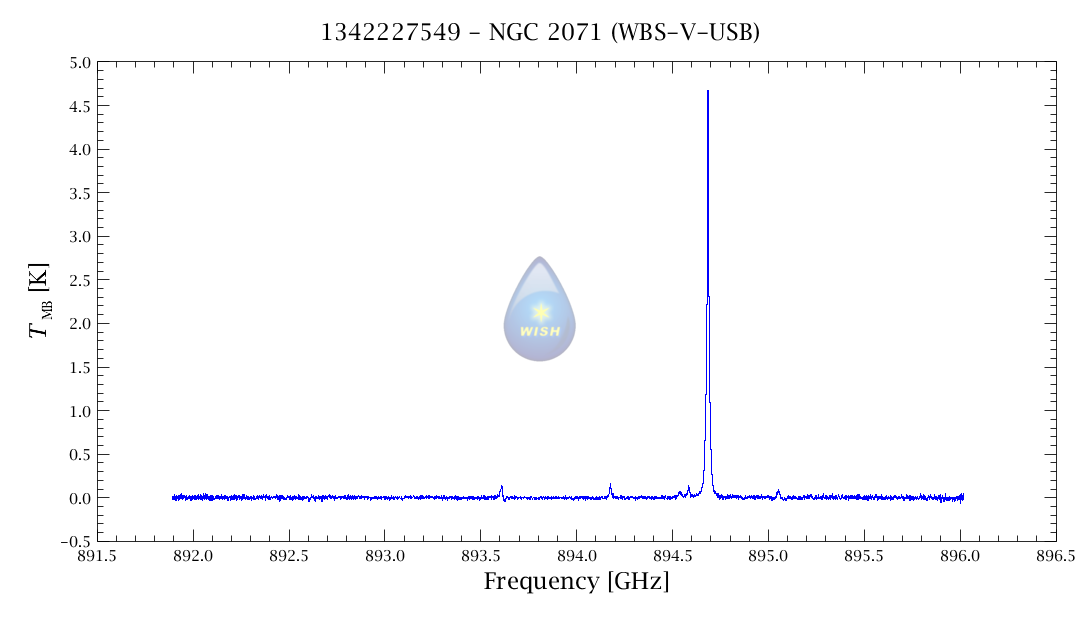

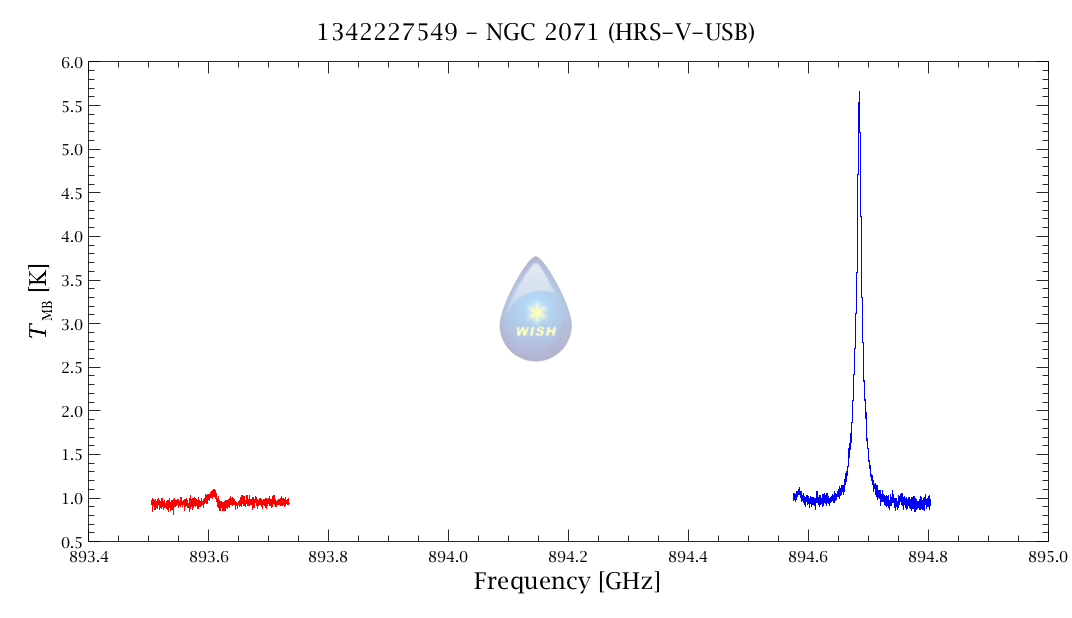

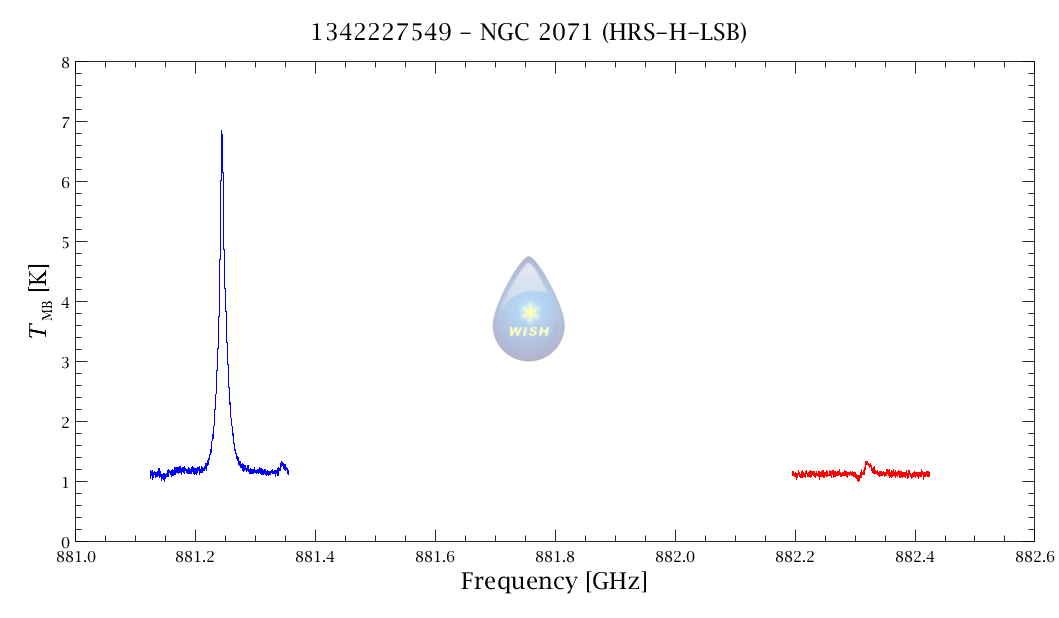

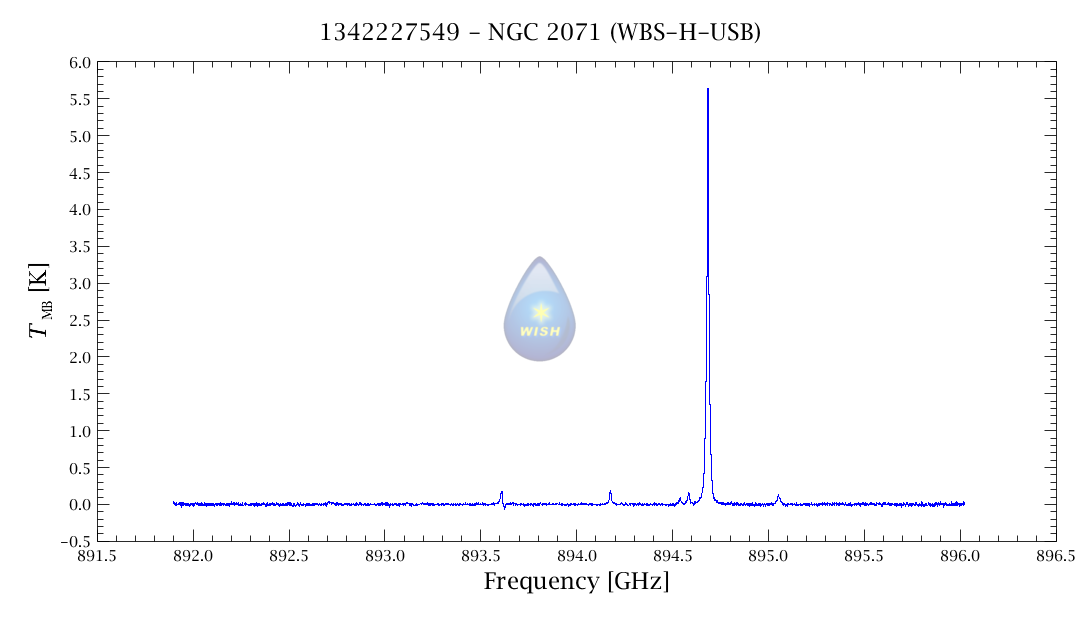

Spectral Details

	WBS	HRS
FitBaseline	Yes	No
FitHifiFringe	Yes	No
Reso. (MHz)	1.1	1.1
	WBS-H	WBS-V
rms (K)	0.0119	0.0157
continuum (K)	0.567	0.475

Downloads Corner

• RAW HIPE FORMAT (229MB)
• FITS FORMAT
• CLASS FORMAT

Publications

This data was published in:

Notes
⁽¹⁾ The observation files (HIPE, CLASS and fits formats) were reduced with the old Beam Efficiencies published in Roelfsema et al. 2012. New beam efficiencies are given as H and V separately. Please correct for new beam efficiency before analysis.
